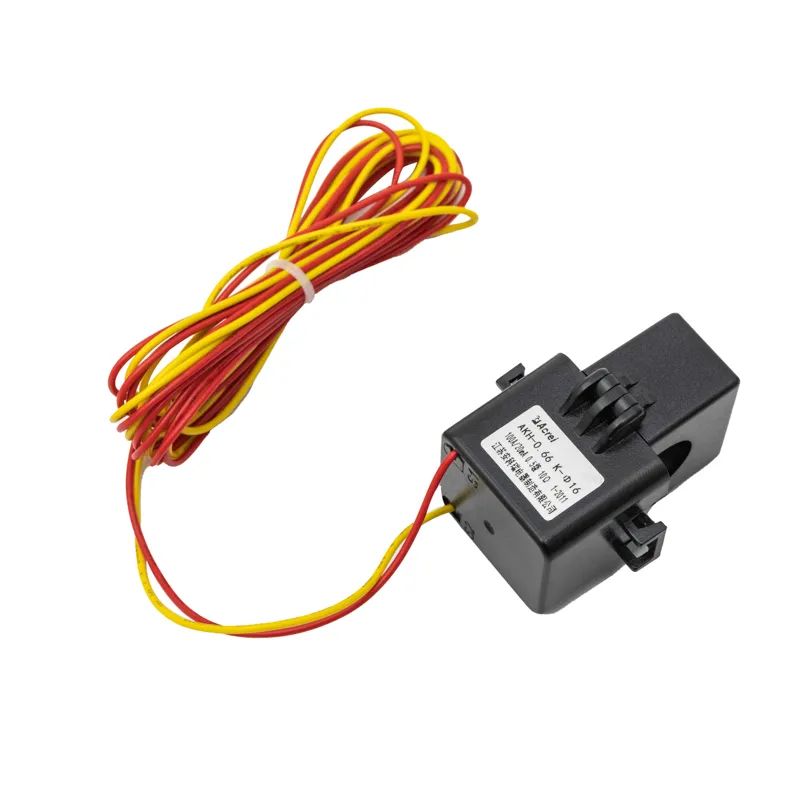

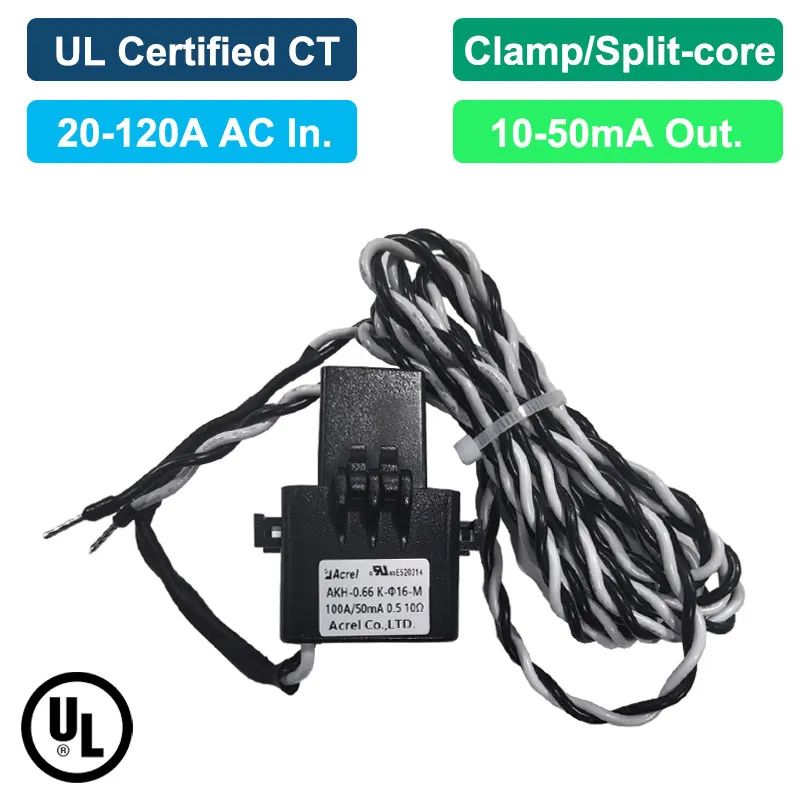

Acrel AKH-0.66 K-Φ16-M Series of Split Core Current Transformers 120A/40mA UL Approved for Energy Meters IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Power Sensors
Series of products: AC Current Transformers
Series of products: Split Core AC Current Transformers
- Product Description
- Parameters
- Q&A
- Download
-
Overview
AKH-0.66/K series split current transformers are mainly used in reconstructing projects of urban and rural power grids. They can be mounted easily without removal of primary bus. They also can be operated with electricity, which prevents the normal utilization of electricity. Thus, they save the manpower, material resources and financial resources and improve the efficiency of users. This series match with relay protection, measuring and metering equipment.
Coding Rule
Dispaly
Function
● Measurement: Alternating Current (AC)

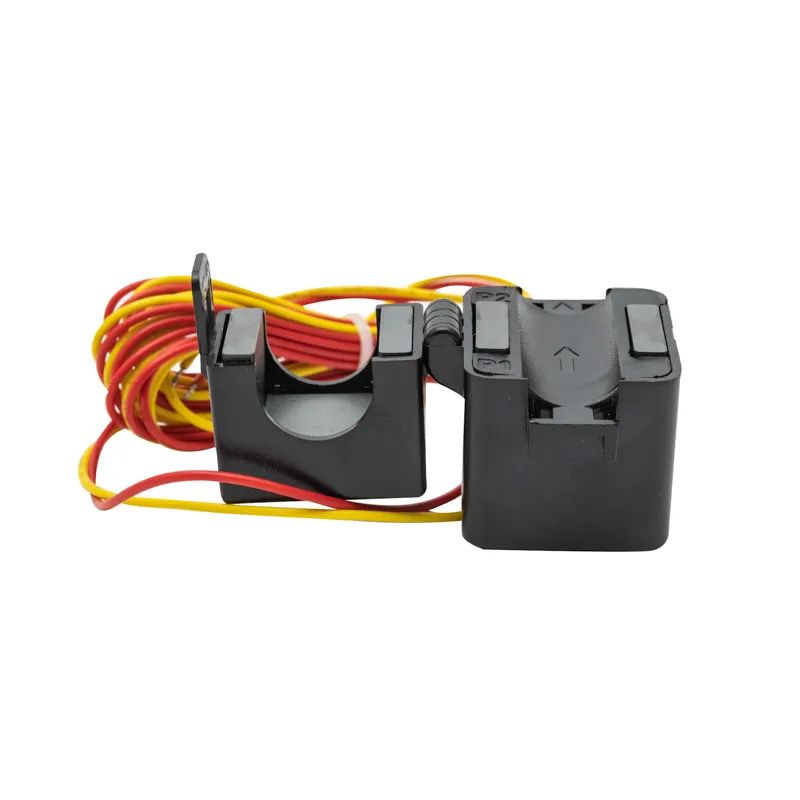

● Installtion: Split-core type/clamp on installation
● Primary Current Input: 20~120A AC
● Secondary Current Input: (10-50)mA● Accuracy: Class 0.5
● Rated Operating Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Operating Temperature: -30℃~+70℃
● Operating Altitude: ≤3000m

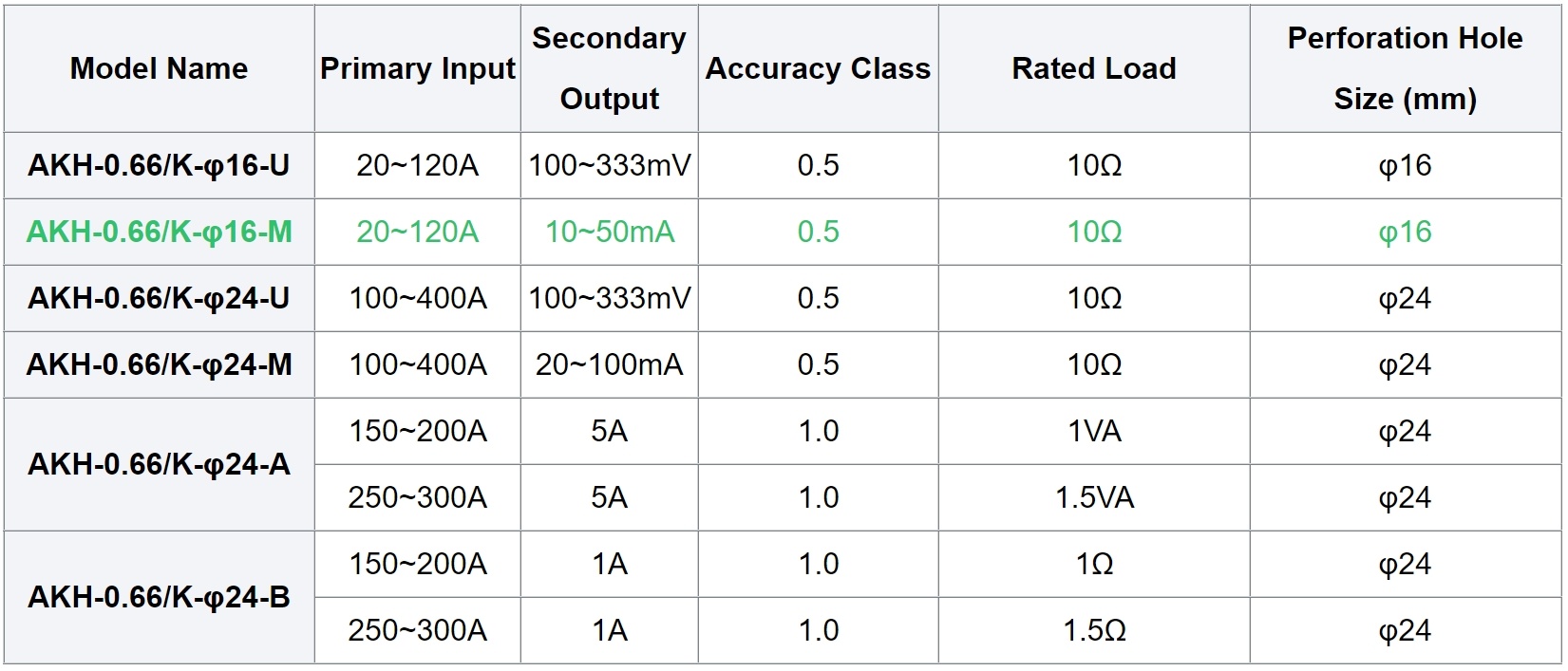

● Power Frequency withstand Voltage: 3000V/1min 50HzModels
Network

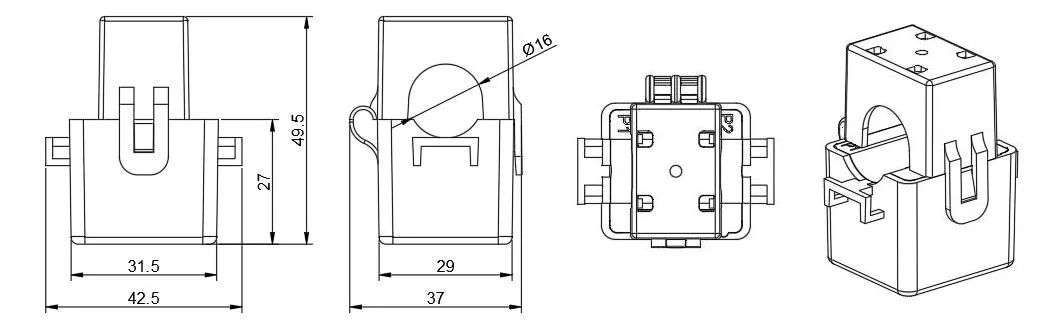

Dimension

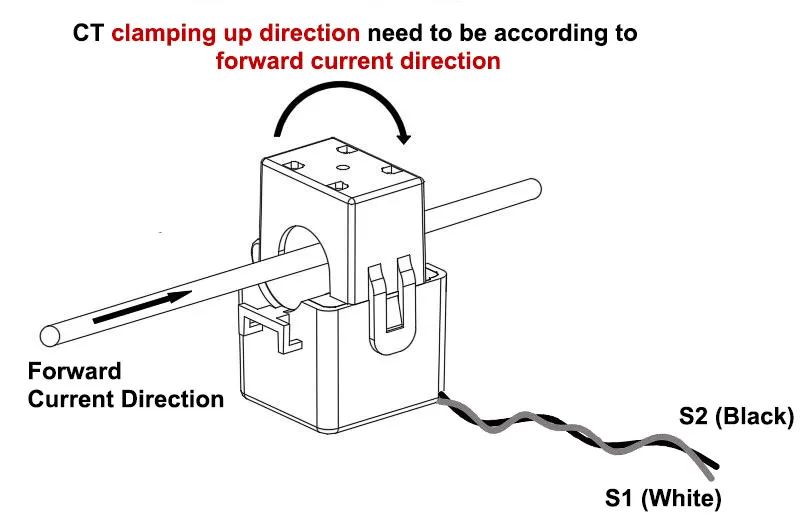

Installation
Product Description:- PView
- high-performance
- requirements
-
-
1. Who are we?
We are a top manufacturer with over 2100 employees, over 500 R&D engineers in China, with CE, ROHS, IEC, EAC, MID, UL, FCC Certificates, etc.
Our Products: AC/DC electricity meters, current transformers, hall sensors, transducers, gateways, Motor protectors, wireless temperature monitoring, residual current relays, medical IT, IOT platform, other energy management systems, etc.As a top-level provider of electrical solution service, we can help you save energy, reduce cost, improve energy efficiency and safety, realize intelligent, visual and fine management of energy, and provide data services for energy management.
2. What is your website?
www.acrelindia.com3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;4.What can you buy from us?
AC/DC Energy Meter, Hall Effect Sensor, Current Transformer, Current Transducer, Motor Protectors, Wireless Temperature Monitoring, Residual Current Relay, IOT Platform, etc.5. Why should you buy from us not from other suppliers?
147 computer software copyrights, 2 million meters, 1.5 million transformers, more than 100 design patents, 70 utility model patents.6. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDU, Express Delivery, etc.
Accepted Payment Currency: USD, EUR, RMB, etc.
Accepted Payment Type: T/T, L/C, etc.
Language Spoken:English, Spanish, Chinese, etc.Other Question? Please contact us and we will get back to you as soon as possible.
