Overview
The ADL200-NK single-phase prepaid watt-hour meter is used to measure single-phase AC active power. It has prepaid control and RS485 communication functions, and its performance specifications meet the GB/T17215.321-2021 standard.
It is an ideal meter for reforming the traditional power consumption system and improving the power management level.
The product complies with the requirements of enterprise standard Q31/0114000129C035-2017 "Enterprise Standard for Guideway Installation of energy meters".

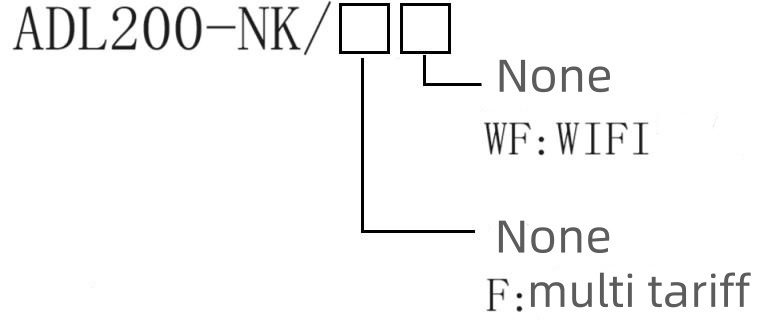

Coding Rule
Dispaly

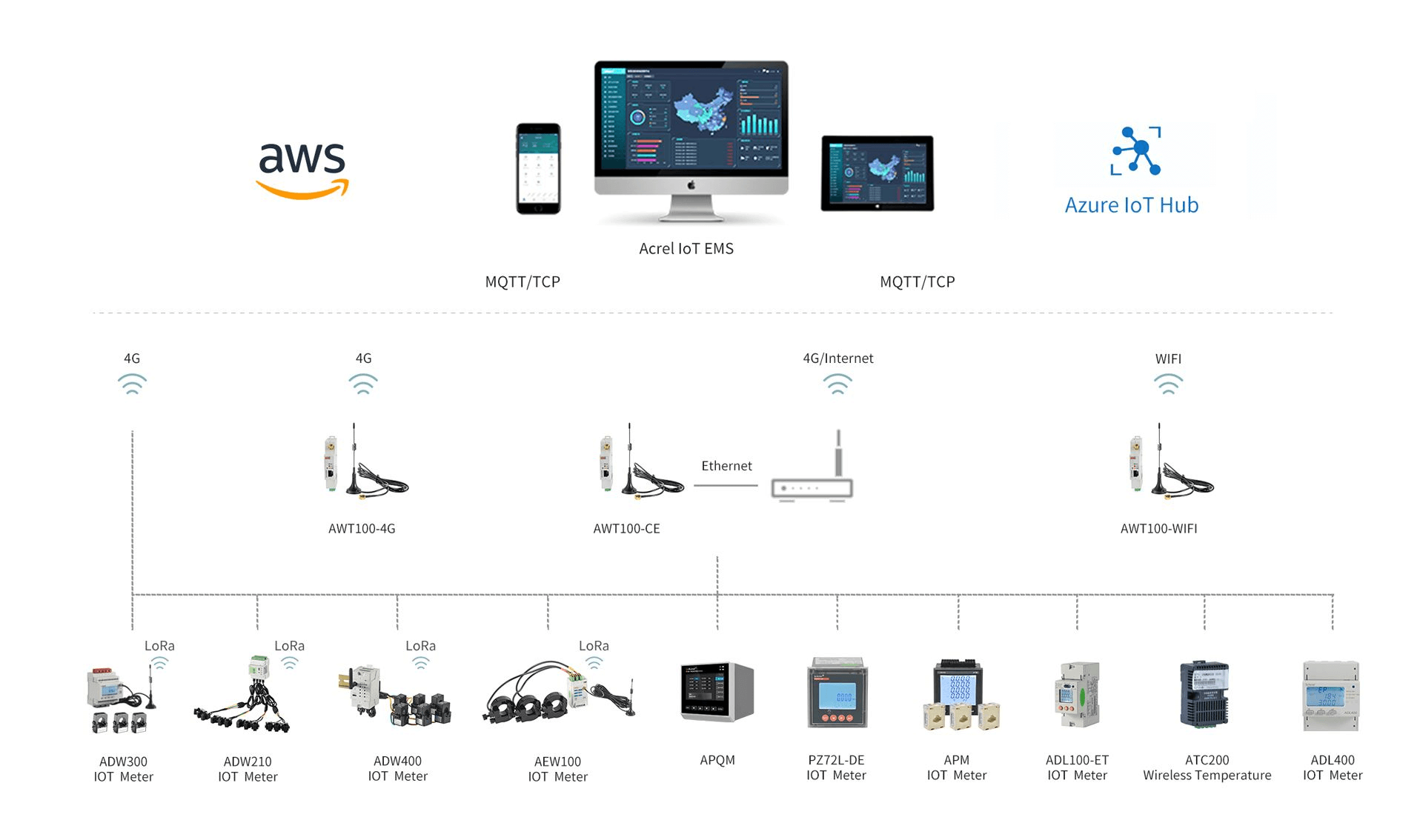

Network

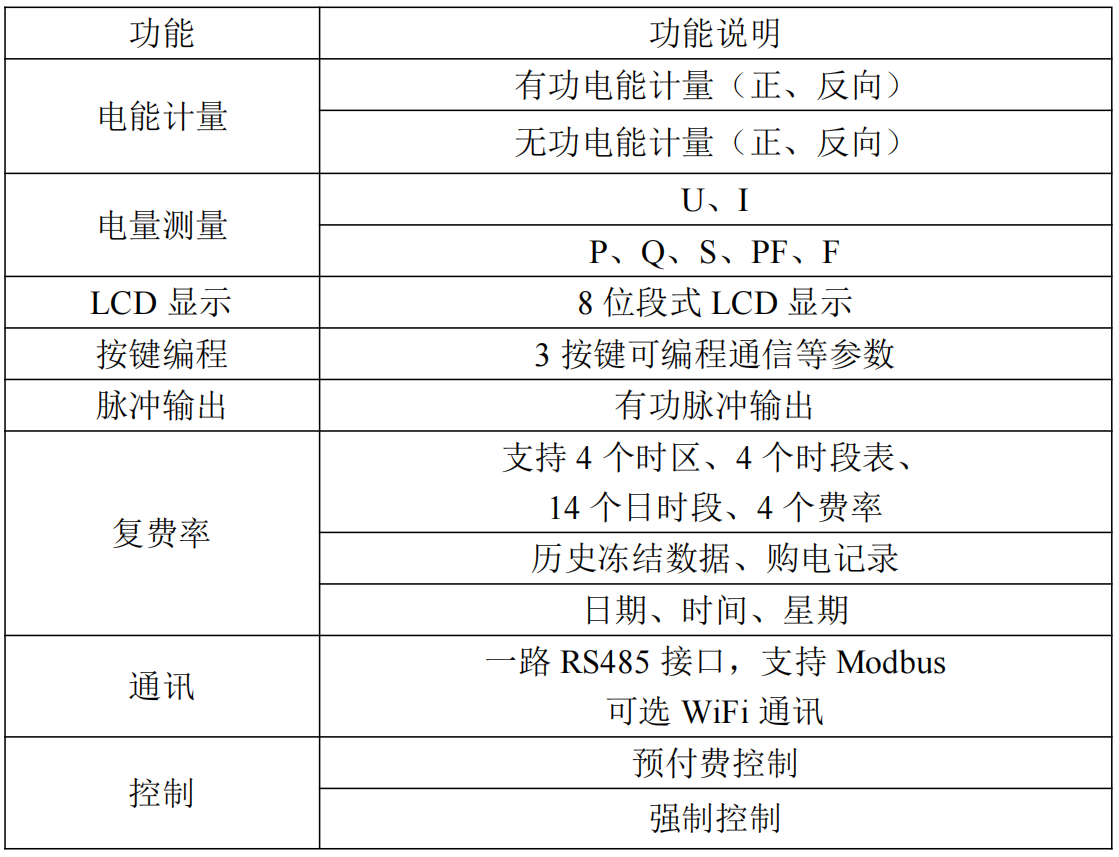

Function

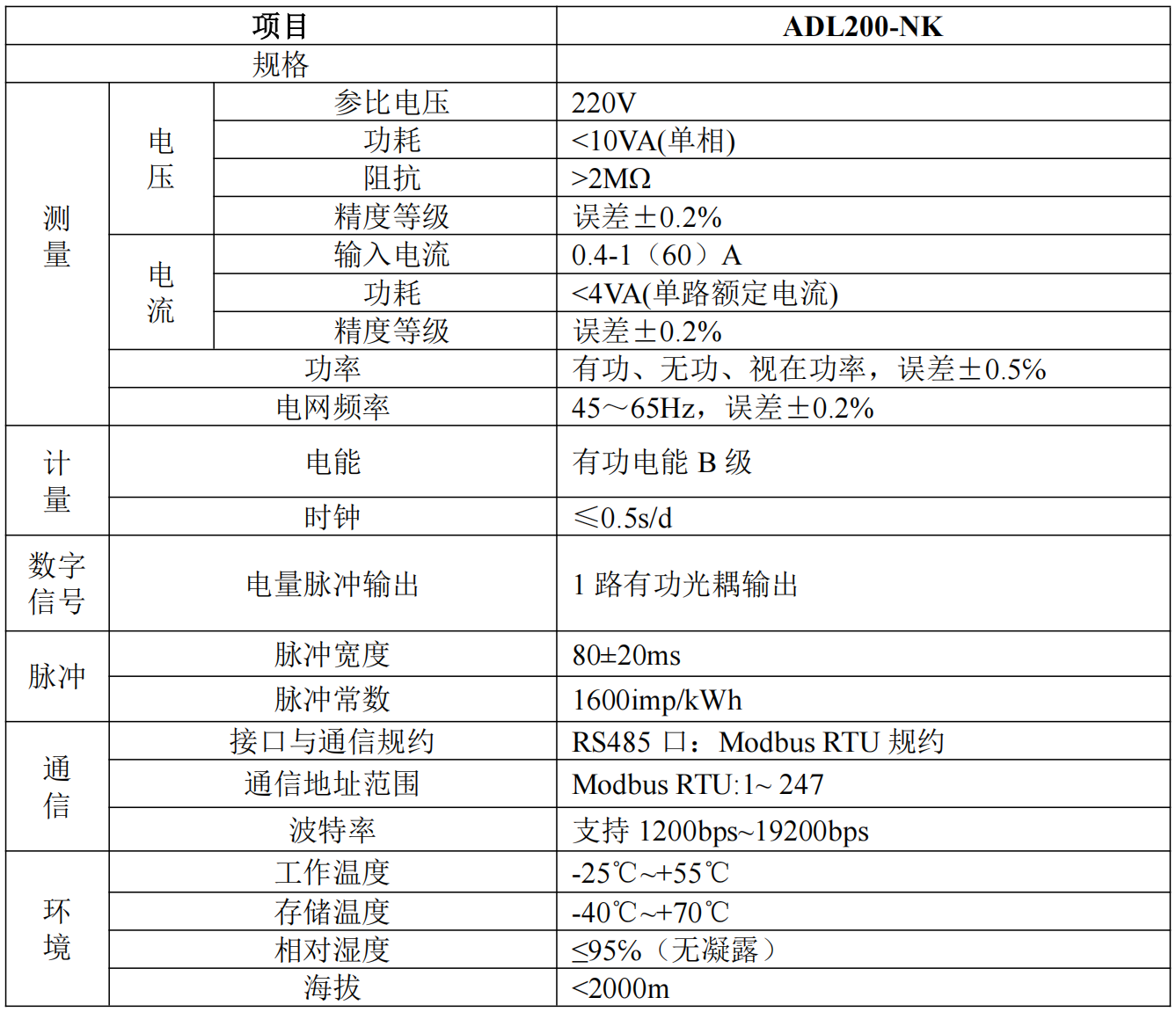

● Single phase 2 wires
● Rated voltage: 220V, 230V;
● Rated current: 0.4A-60A
● Overload: 1.2 times rating (continuous)
2 times the rating for 1 second
● Accuracy of active energy：Class B
● Communication: RS485(Modbus-RTU)
Electricity Data Measurement
● kWh (positive and negative)
● kVarh (positive and negative)
● U, I, P, Q, S, PF, Hz, etc.
● Communication, and other parameters can be programmable by the key
● LCD dispaly: Segmented LCD display
● Active pulse output
● Prepaid function, remote switch on/off
● Grid frequency: 45~65Hz, error ±0.2%
● Standard&Certificate: CE;
● Pulse width: 80±20ms
● Pulse constant: 1600imp/kWh
● Mounted: DIN 35mm
● Baud rate: Support 1200bps-19200bps
● Operating temperature: -25℃～+55℃
● Storage temperature: -40℃～+70℃
● Relative humidity: ≤95℅ (without condensation)

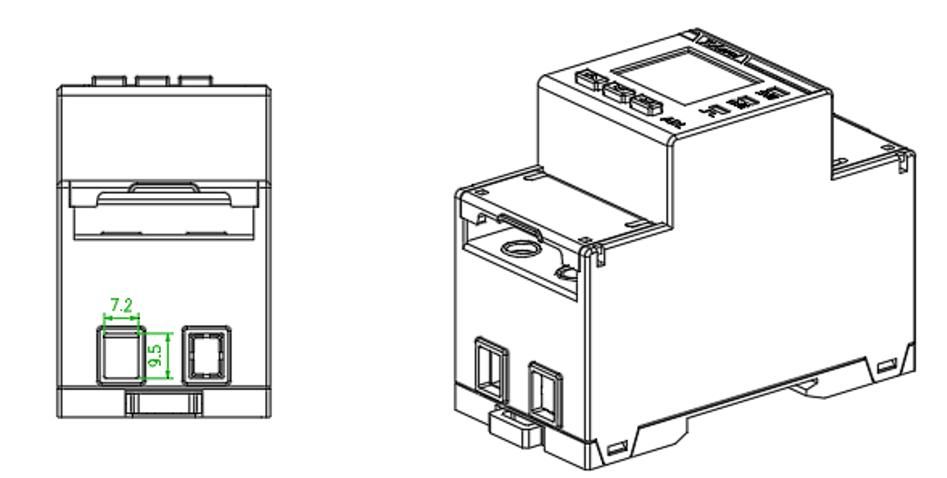

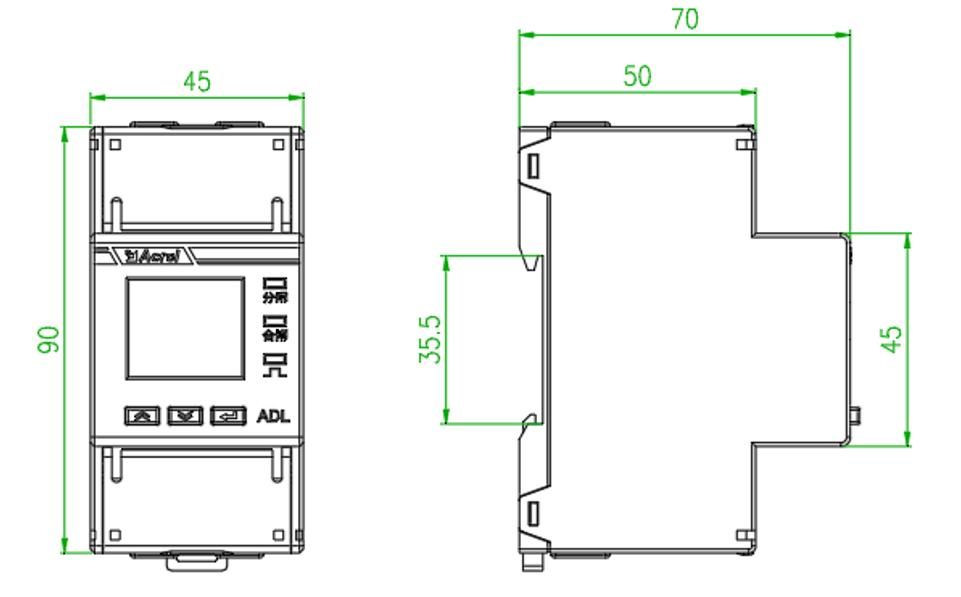

Dimension
Wiring

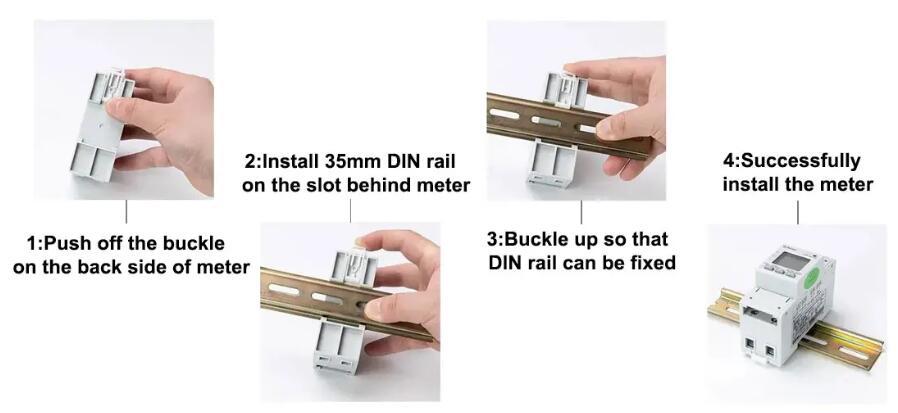

Installation
