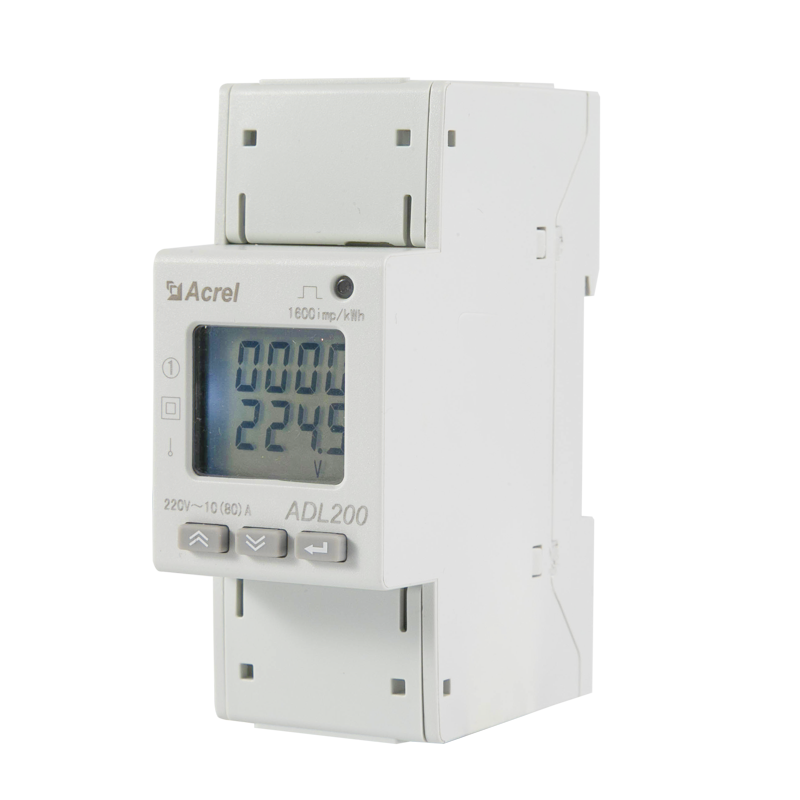

ADL200/C CE MID Approved Digital Single Phase Energy Meter For IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Energy Management
Series of products: Single Phase Energy Meters
Series of products: AC Energy Meters
Series of products: Din Rail Installed AC Energy Meters
Series of products: Din Rail Installed Energy Meters
Series of products: AC/DC Meters for Charging Piles
Series of products: New Energy
Series of products: AC Meters for EV Chargers
- Product Description
- Parameters
- Q&A
- Download
-
Overview
ADL200 single phase electric meter is designed for single phase active energy measurement on low voltage system, in the same time it can measure the electrical parameters like voltage, current, power and so on. There is also RS485 can be chosen. This electricity meter has advantages of smaller volume, high precision, good EMC, easily installing etc, All meters meet the related technical requirements of electricity meter in the IEC62053-21、IEC62053-22 standards.

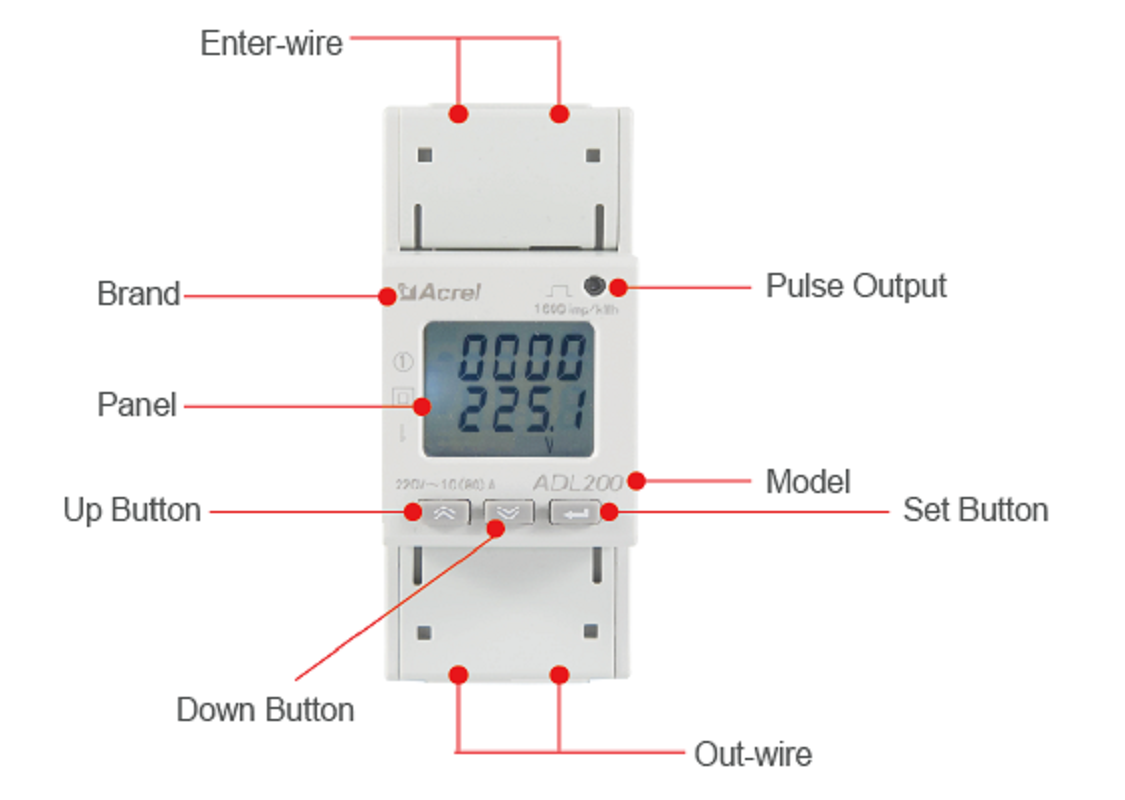

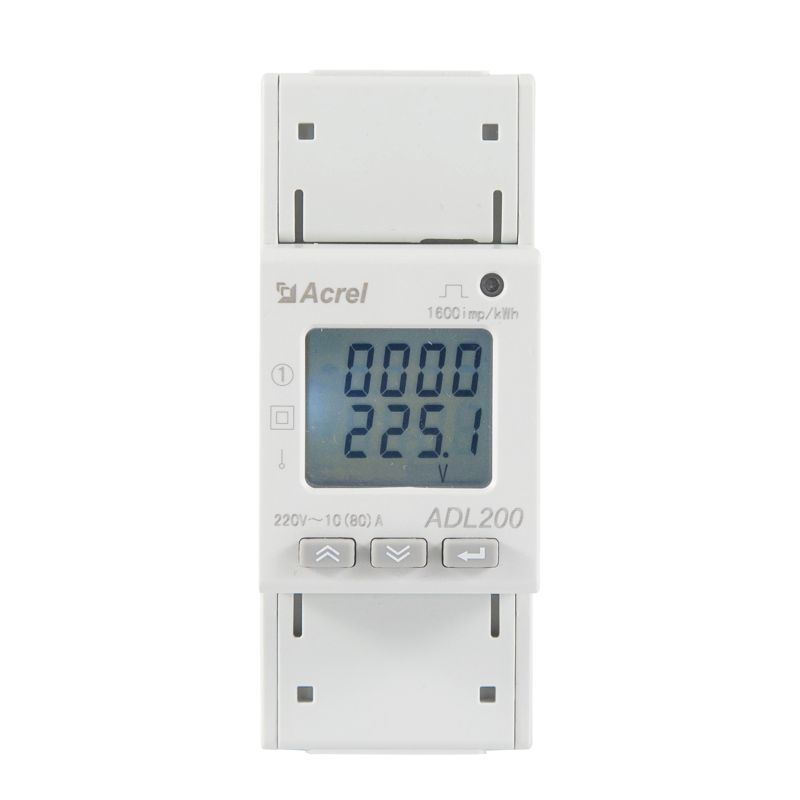

Dispaly
Function
● Communication: RS485(Modbus-RTU), Infrared communication
Can link to IOT Platform, Energy Management Systems, etc.
● Rated voltage: AC220V, 230V (withstand 120% load)
● Rated current: 3×10(80)A, measure 0.1A-80A (withstand 120% load)
● Measurement: Active kWh (positive and negative), reactive power, U, I, P, Q, S, PF, F, etc.
● 1 phase 2 lines
● Standard&Certificate: MID, CE, EAC
● Multi-tariff: Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates(optional)
● Data Record: 3 months historical energy data frozen storage(optional)
● Pulse output: Active energy pulse output
● Key programming: 3 keys to set parameters, such as code, address, baud rate, multi-tariff and communication protocol
● Accuracy: 1
● Display: 8 digits display U, I, P, Q, PF, kWh and other energy consumption,
● Frequency: 50Hzl)
● Mounted: DIN 35mm
● Pulse constant: 1000imp/kWh
● Relative humidity: ≤95%(No condensation)
● Clock accuracy: ≤0.5s/d
● Starting current: 0.01A
Network

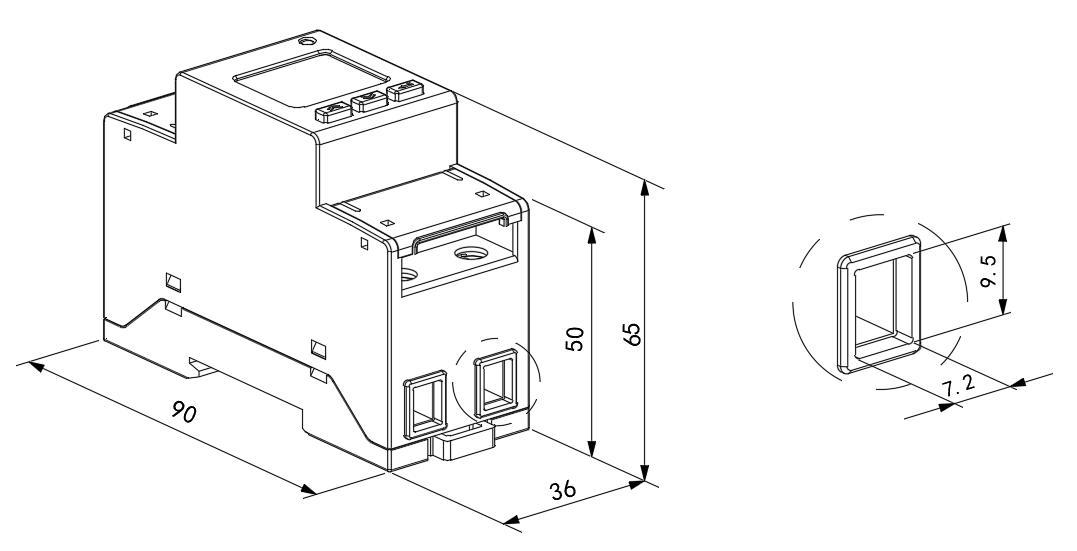

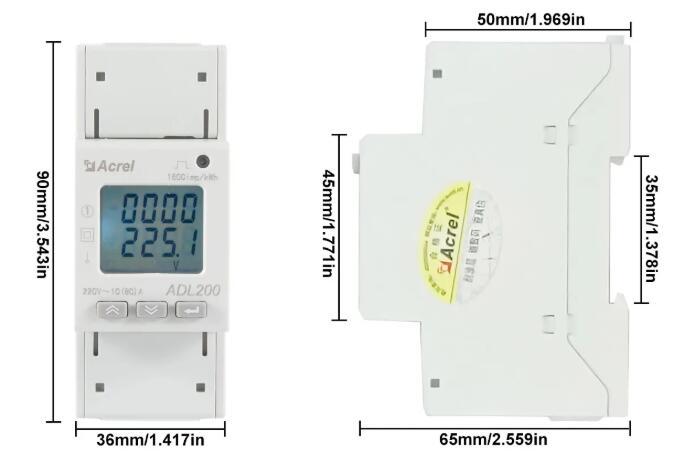

Dimension

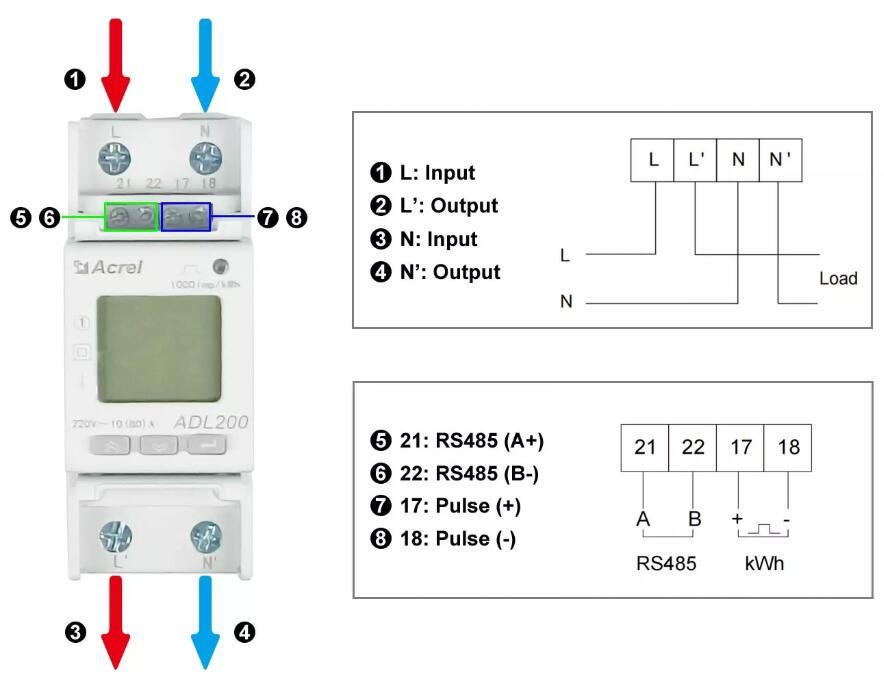

Wiring

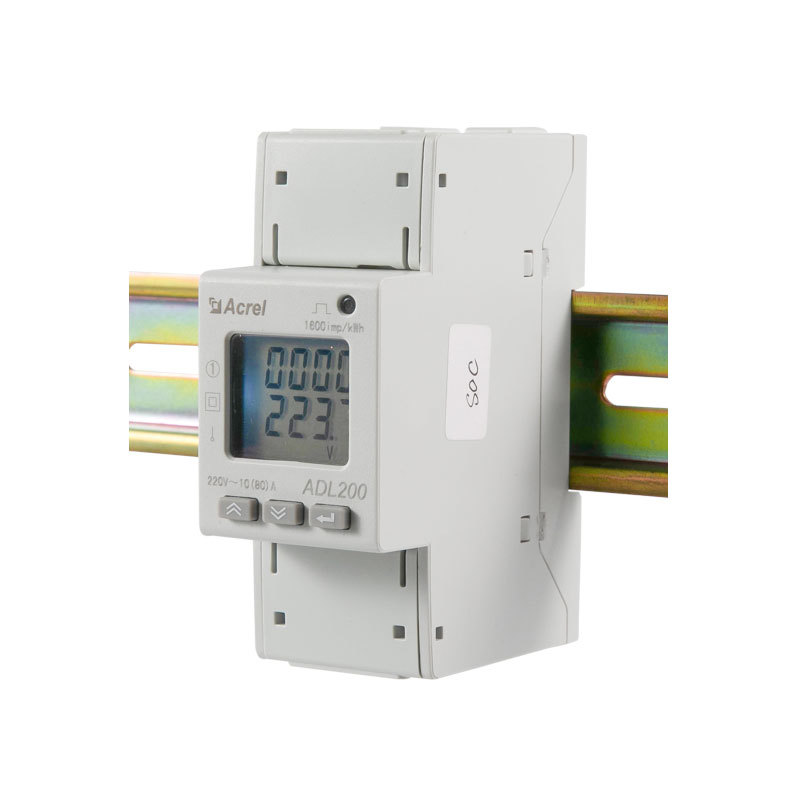

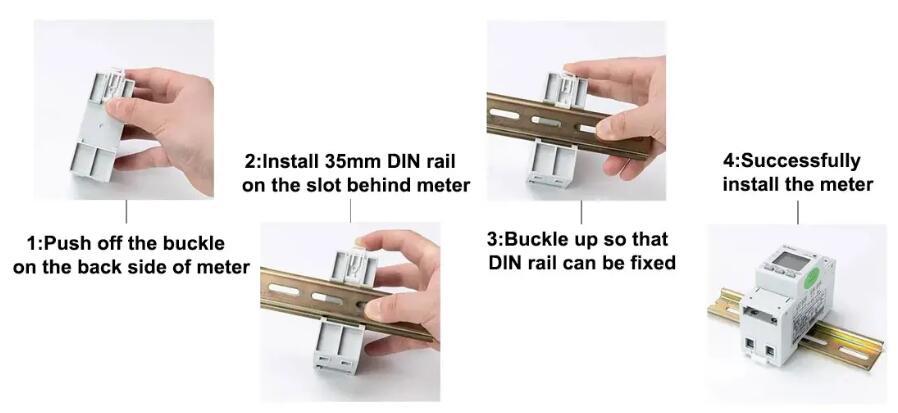

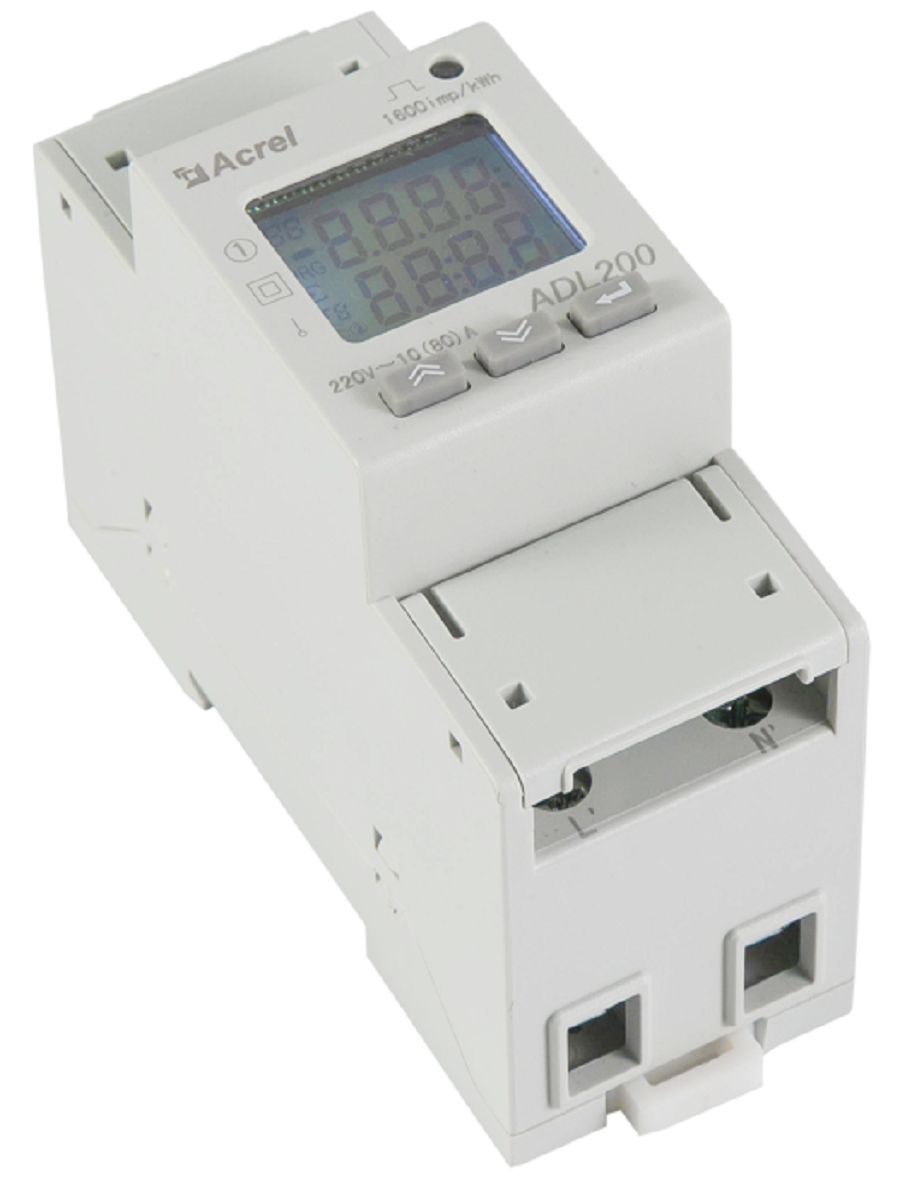

Installation
FAQ
Q: Could ADL200 be used in IoT Energy Monitoring System for factory or building?
A: ADL200 has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL200 on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Q: Why is the reading on ADL200 different from actual value?
A: Check if the wiring was correct according to the wiring diagram of ADL200. The installation direction need to be according to the actual current direction.
Q: What is Multi-rate/tariff function? How does it work?
A: First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.Other Question? Please contact us and we will get back to you as soon as possible.
Product Description:- PView
- high-performance
- requirements
-
Function
Function description
Function provide
Measurement of kWh
Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage
■
Measurement of electrical parameters
Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency
■
LCD Display
8 bits section LCD display
■
Key programming
3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol
■
Pulse output
Active energy pulse output
■
Multi-tariff
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
□F
Communication
Communication interface: RS485, Communication protocol: MODBUS-RTU
■C
(■：Standard；□：Optional)
Electric performance
Input voltage
Reference voltage
AC 220V
Reference frequency
50Hz
Power consumption
<10VA
Input current
Basic current
10A
Maximum current
80A
Starting current
4‰Ib
Consumption
<4VA
Measurement performance
Accuracy of measuring
1 class
Range of measuring
000000.00~99999999kWh
Clock accuracy
Error≤0.5s/d
Active pulse
Pulse width
80±20ms
Pulse constant
1000imp/kWh
Communication
Interface
RS485(A+、B-)
Connection mode
Shielded twisted pair conductors
Protocol
MODBUS-RTU
Mechanical performance
Outline
Length × Width × Height
90mm×36mm×65mm
Strong current terminal
Torque
<1.8Nm
Work environment
Temperature range
Work temperature
-25℃~55℃
Storage Temperature
-40℃~70℃
Relative humidity
≤95%(No condensation)
Altitude
<2000m
-
Q: Could ADL200 be used in IoT Energy Monitoring System for factory or building?
A: ADL200 has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL200 on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Q: Why is the reading on ADL200 different from actual value?
A: Check if the wiring was correct according to the wiring diagram of ADL200. The installation direction need to be according to the actual current direction.
Q: What is Multi-rate/tariff function? How does it work?
A: First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.Other Question? Please contact us and we will get back to you as soon as possible.
