Acrel-2000ES Energy Storage Management Platform
Series of products: Products
Series of products: Energy Management Platforms
Series of products: Acrel-2000ES Energy Storage Management Platform
- Product Description
- Parameters
- Q&A
- Download
-
Introduction
Acrel-2000ES Energy Storage Management System has comprehensive energy storage monitoring and management functions, covering detailed information of energy storage system equipment (PCS, BMS, meters, fire protection, air conditioning, etc.), achieving data acquisition, data processing, data storage, data query and analysis, visual monitoring, alarm management, and statistical reporting.
In advanced applications, it supports energy dispatching, with control functions such as planned curves, peakshaving and valley flling, demand control, and backup power.

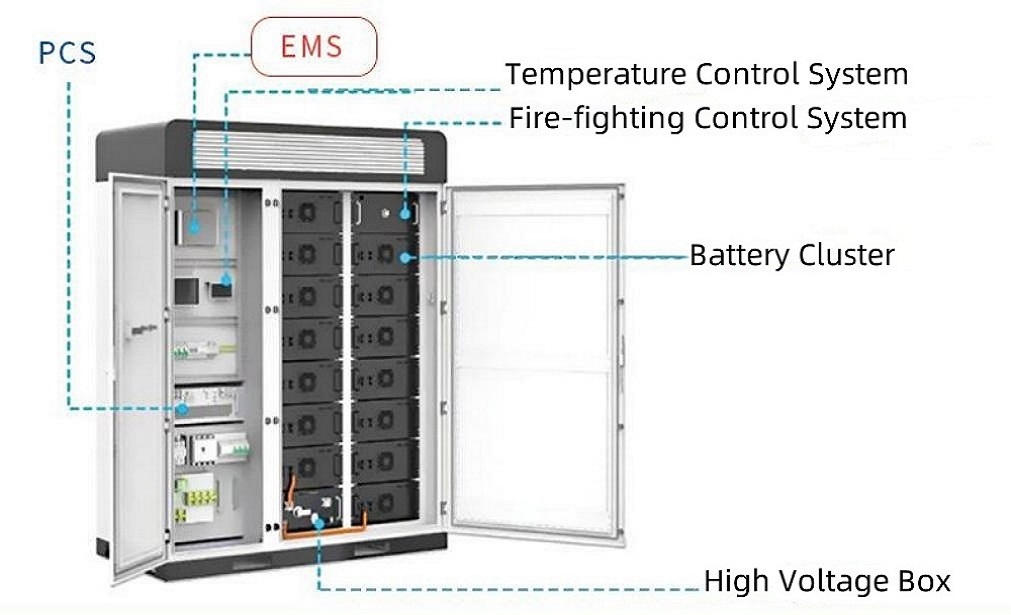

It can be used for both energy storage integrated cabinets and energy storage containers, serving as a dedicated software system platform for equipment management.

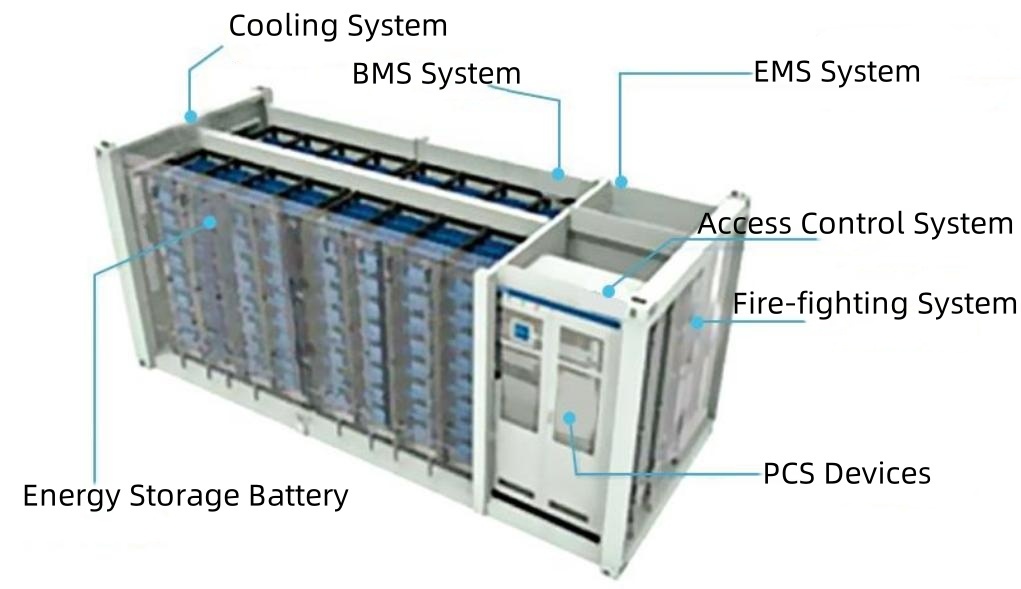

Application

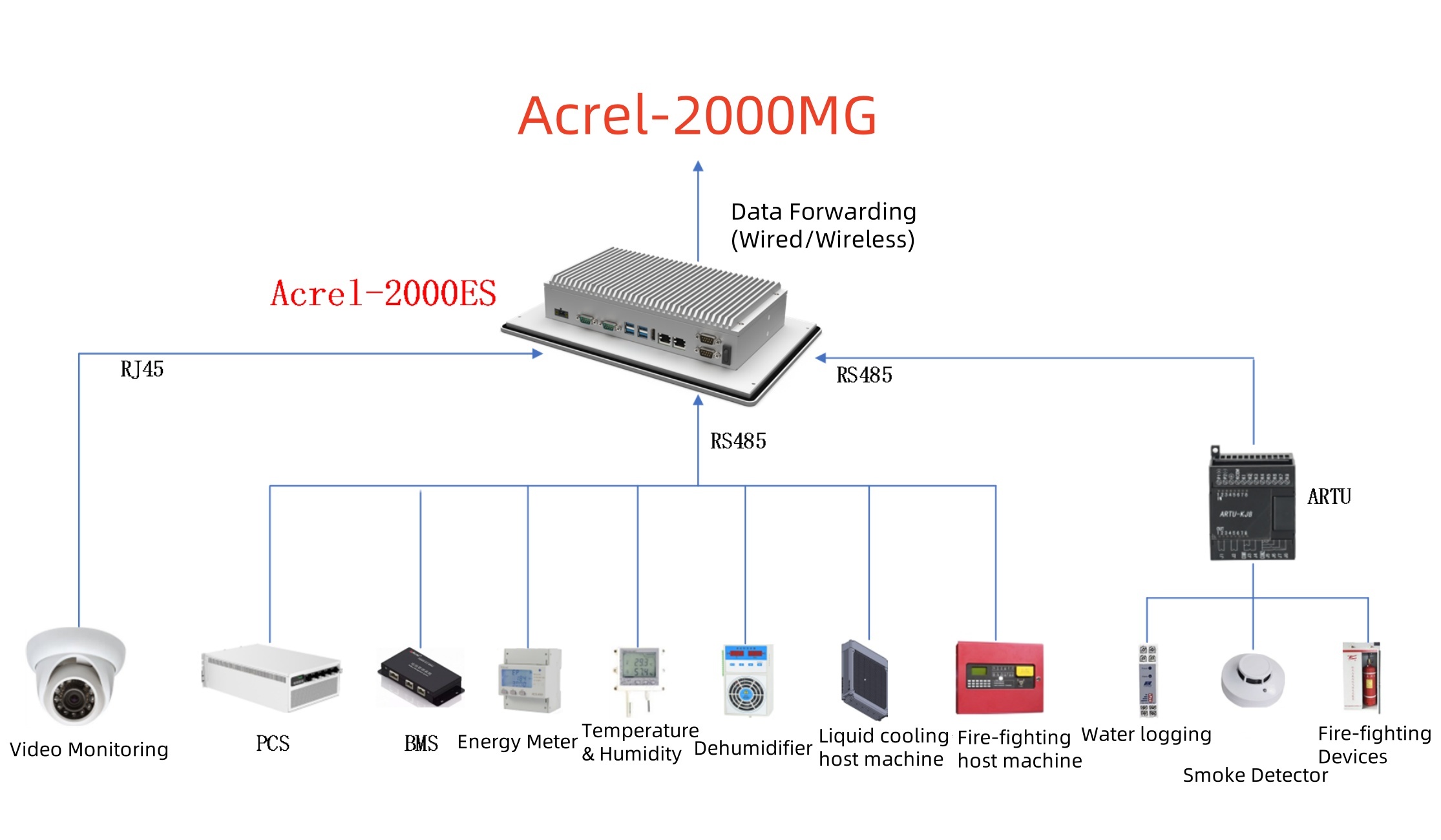

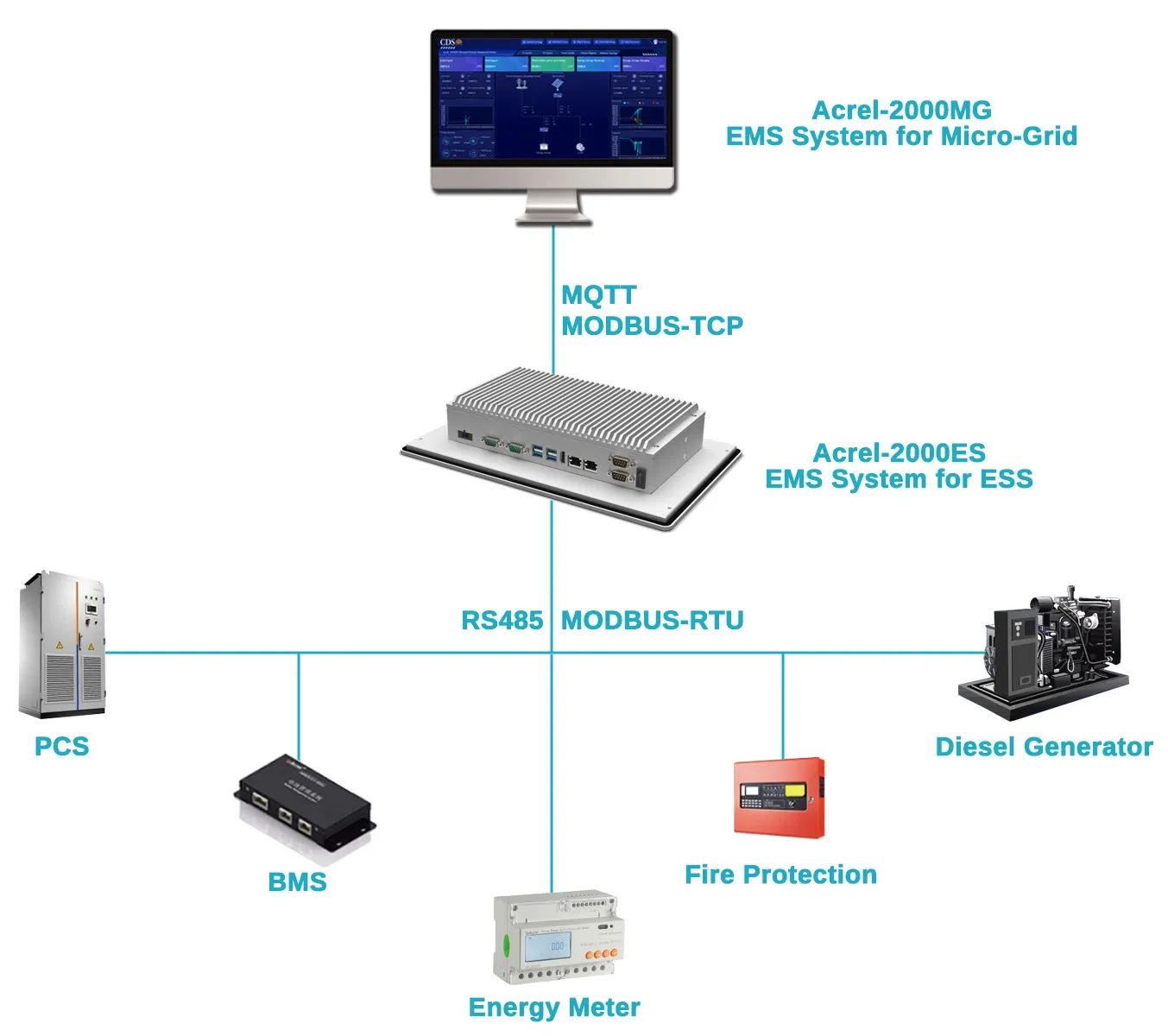

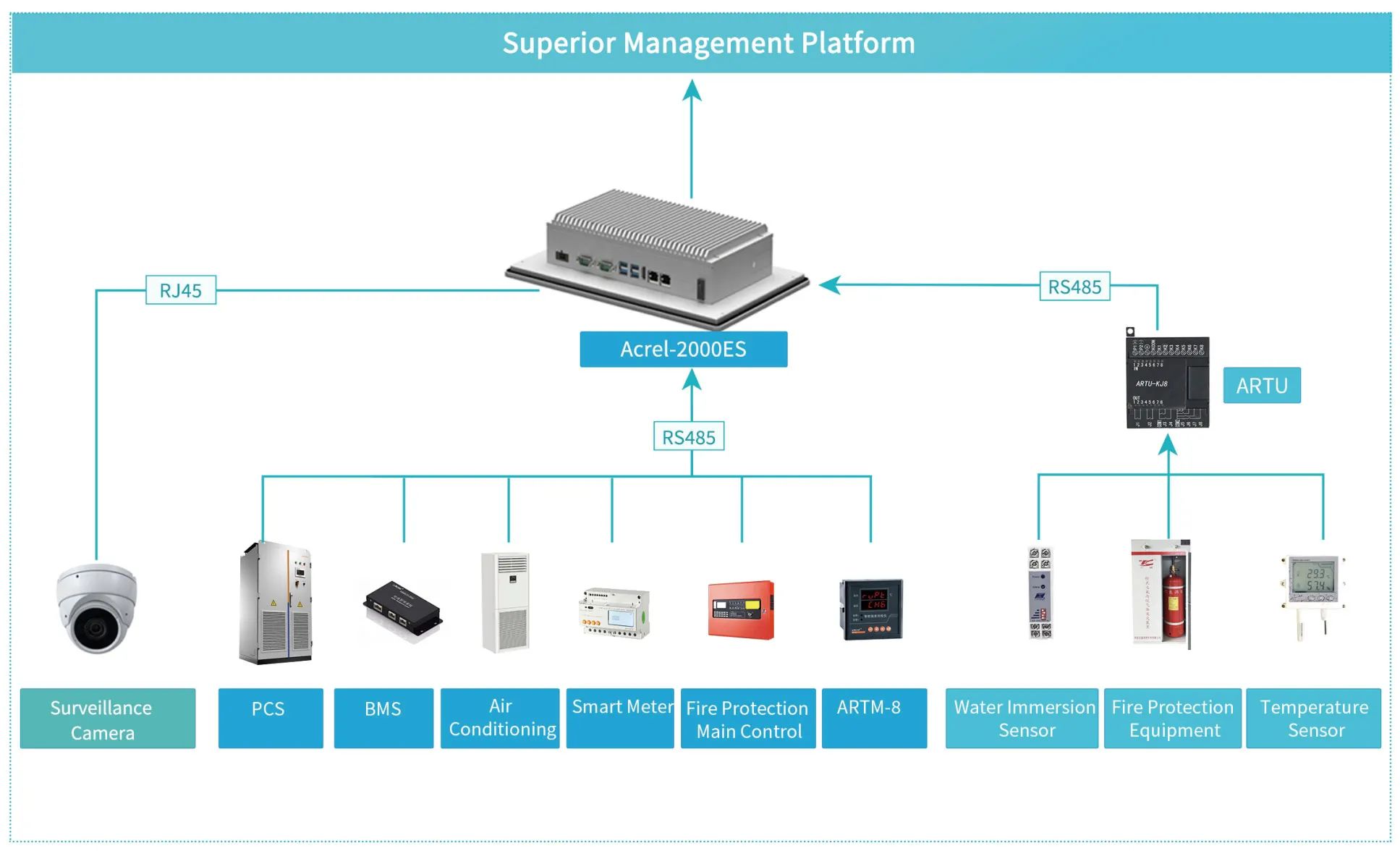

Network
Benefits that Brings You
All System Management
Acrel-2000ES could integrate with ESS and manage all sub system including PCS, BMS, air conditioner, fire protection, energy monitoring and etc.
Peak-Valley Arbitrage
By using the energy management and control plan of Acrel-2000ES, we could realize peak shaving &valley filling energy usage strategy for peak-valley arbitrage. Benefit of peak-valley arbitrage could be check in Acrel-2000ES energy magament system.
Power Demand Control
Acrel-2000ES could set a power demand threshold and manage all the power system in micro-grids so that the overall loads power demand won't exceed this limitation value. No extra fine happend due to exceeding the power demand.
Back-up Power Source
Acrel-2000ES EMS system could set the plan for back-up power source to prevent the influence of unpredicatable power outage.
Platform Overview

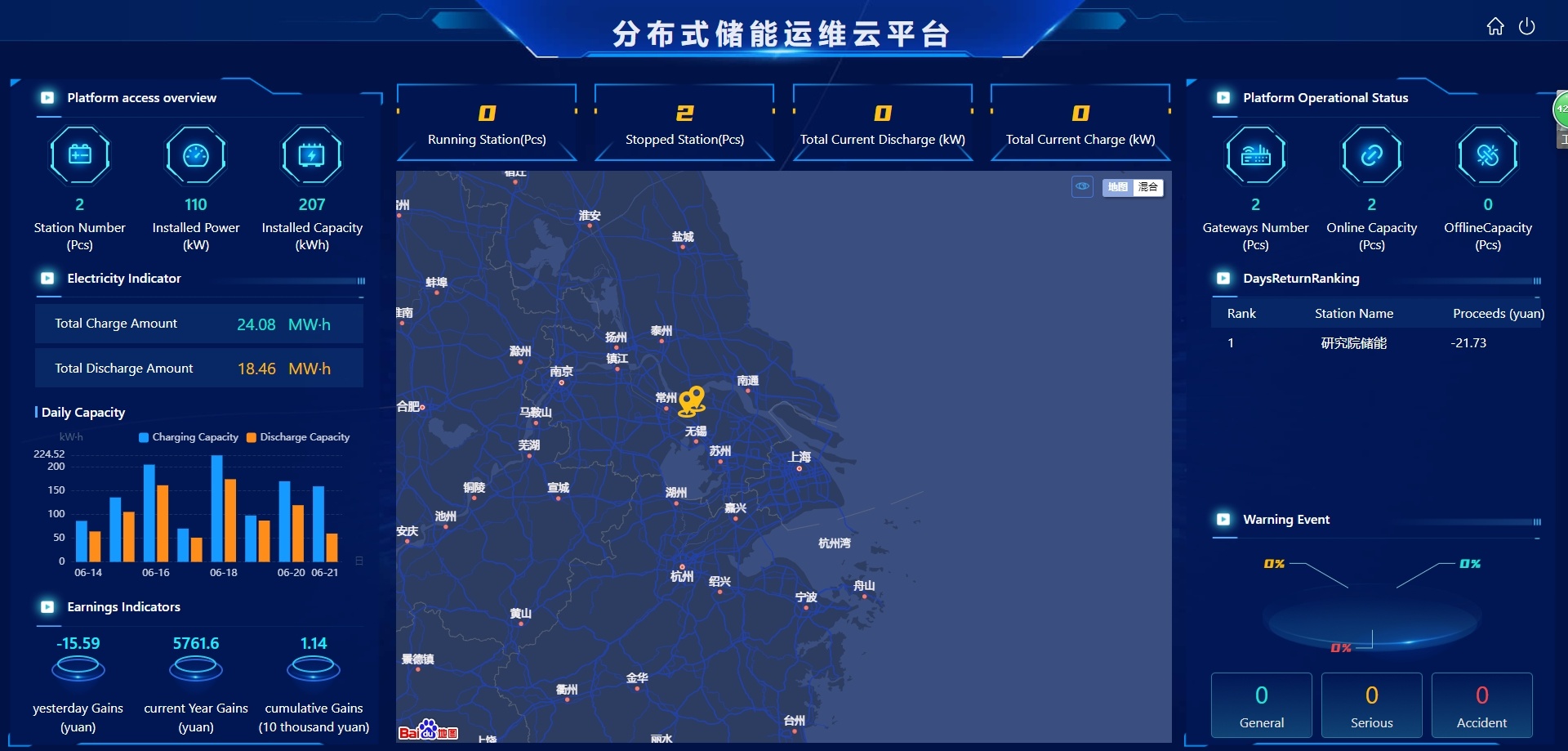

System Homepage
Homepage include a general view of PCS&BMS working status, charging&discharging energy, income gain by optimized power control, SOC curve, system power curve, air conditioning/fan/fire/ups protection working status and etc.

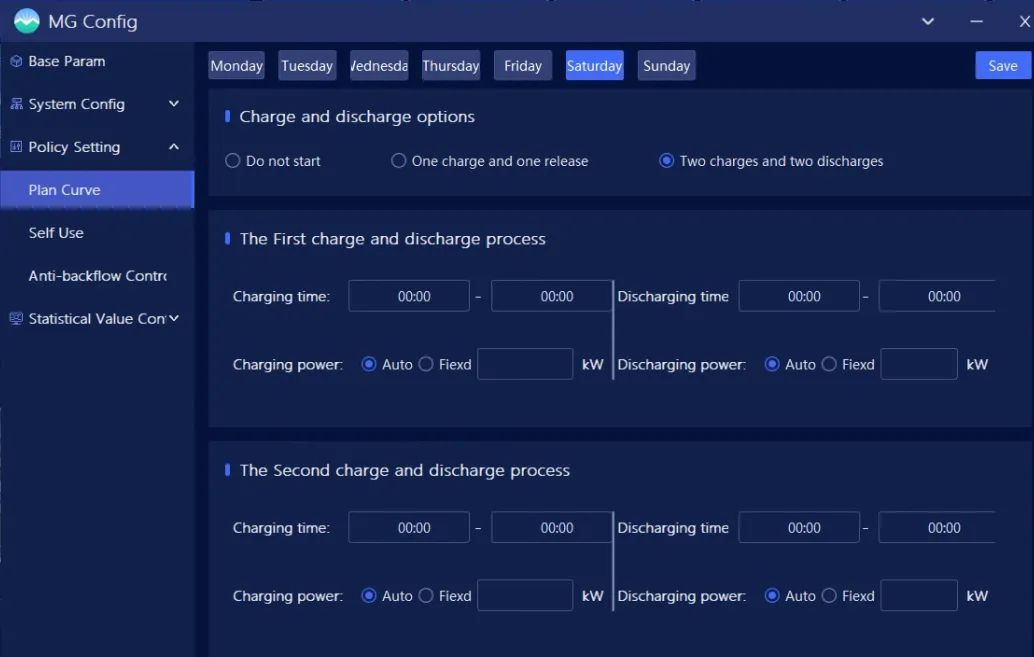

Optimized Power Control
Acrel-2000ES could set various charging&discharging control plan to realize optimized power operation for saving your money and make profit. Such as peak-valley arbitrage, max demand control, zero export to grids control, back-up energy for power outage prevention and etc

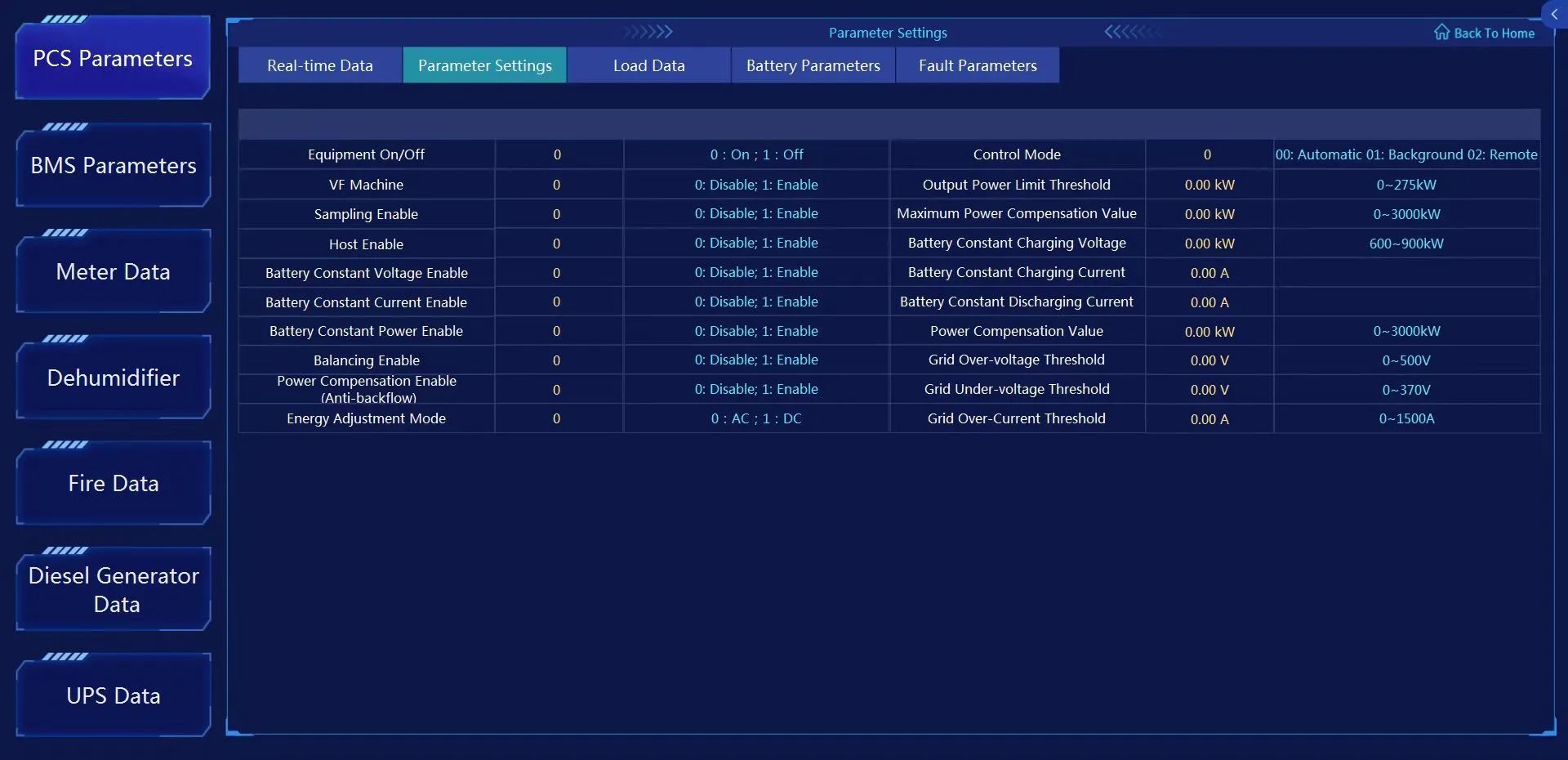

PCS Management
Providing a general management and monitoring for PCS including grid-connected&off-grid running mode switch, PCS on/off control current&voltage&power monitoring and alarm threshold setting, fault alarm status, battery SOC&voltage¤t monitoring&alarm and etc.

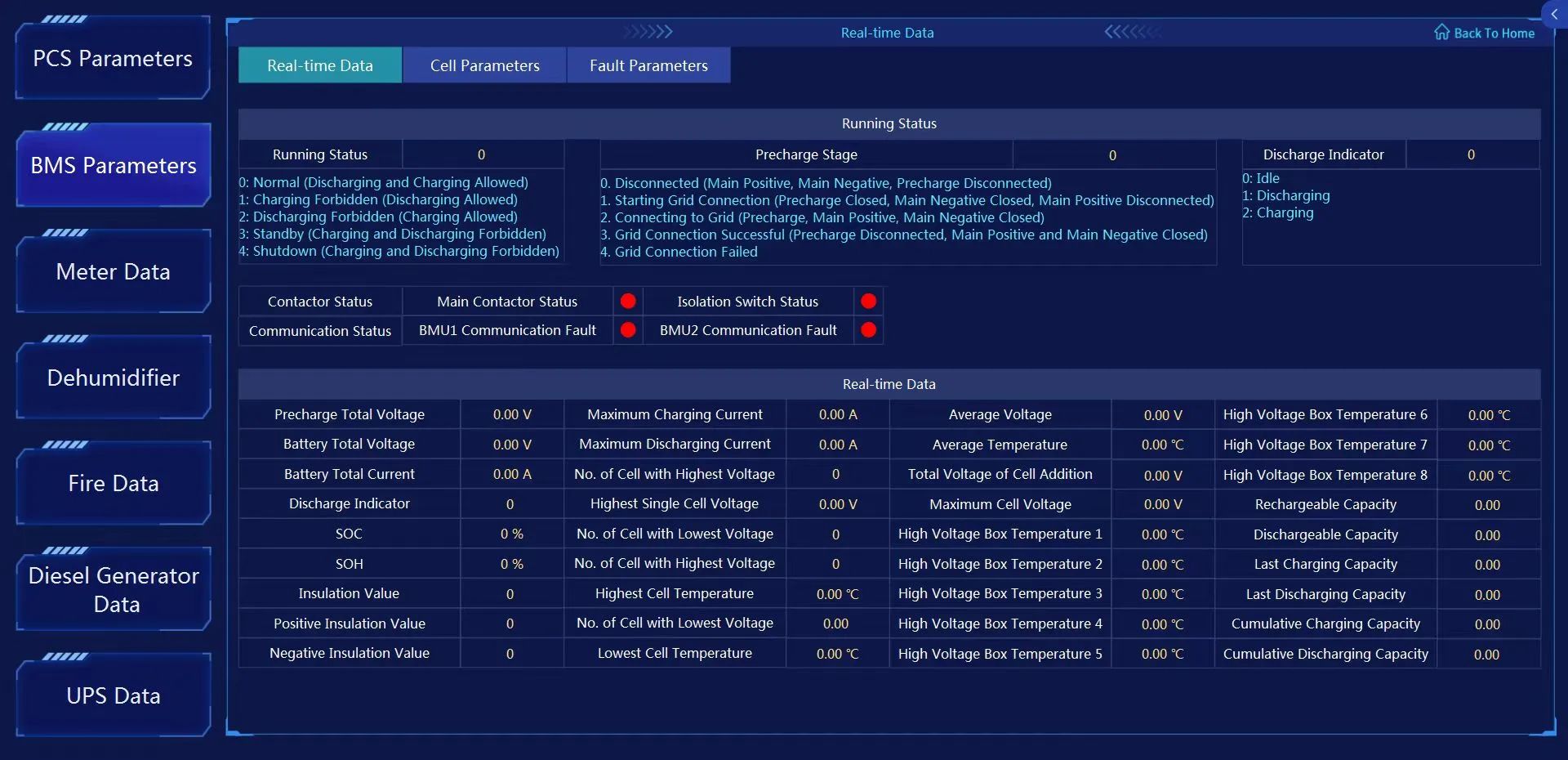

BMS Management
General monitoring for BMS including charger&discharger stutus, battery SOC&SOH, battery voltage¤t&temperature monitoring and threshold exceeding alarm

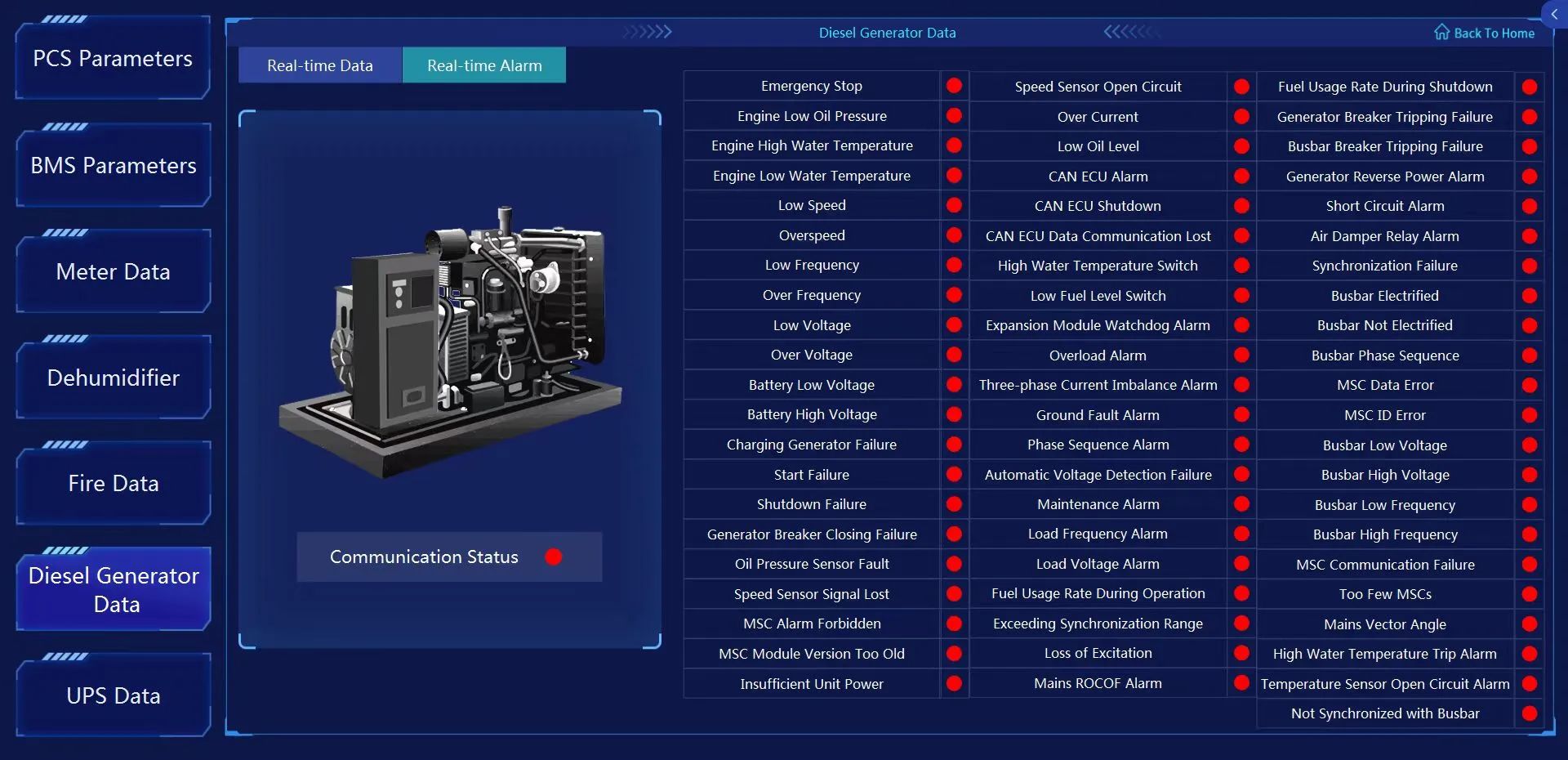

Diesel Generator Management
General monitoring for diesel generator including common electricity and engine status monitoring, diesel generator fault alarm status and etc.

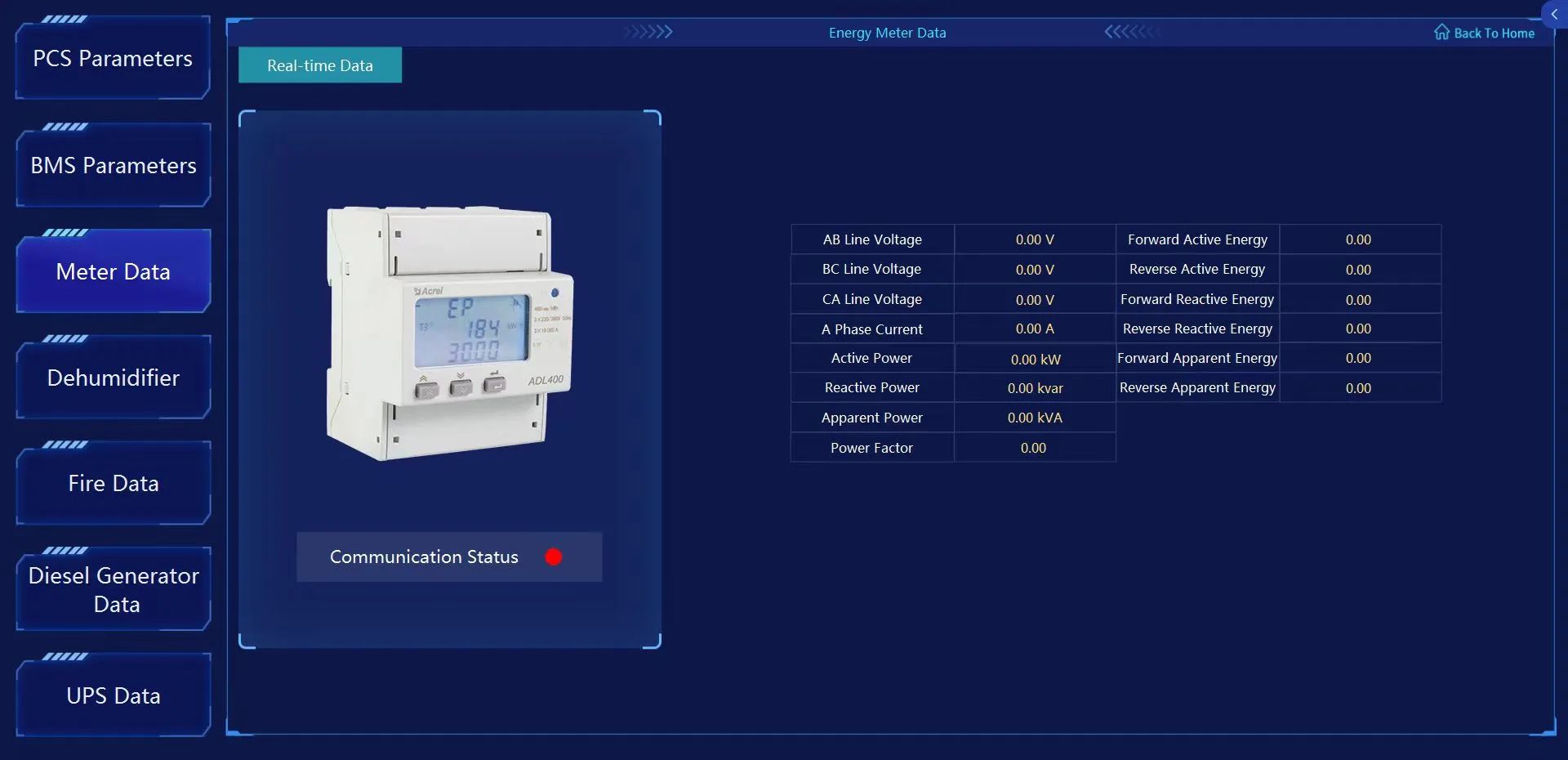

Energy Metering
By connecting to energy meter for monitoring all common electricity parameter and charging&discharging energy of overall ESS system.

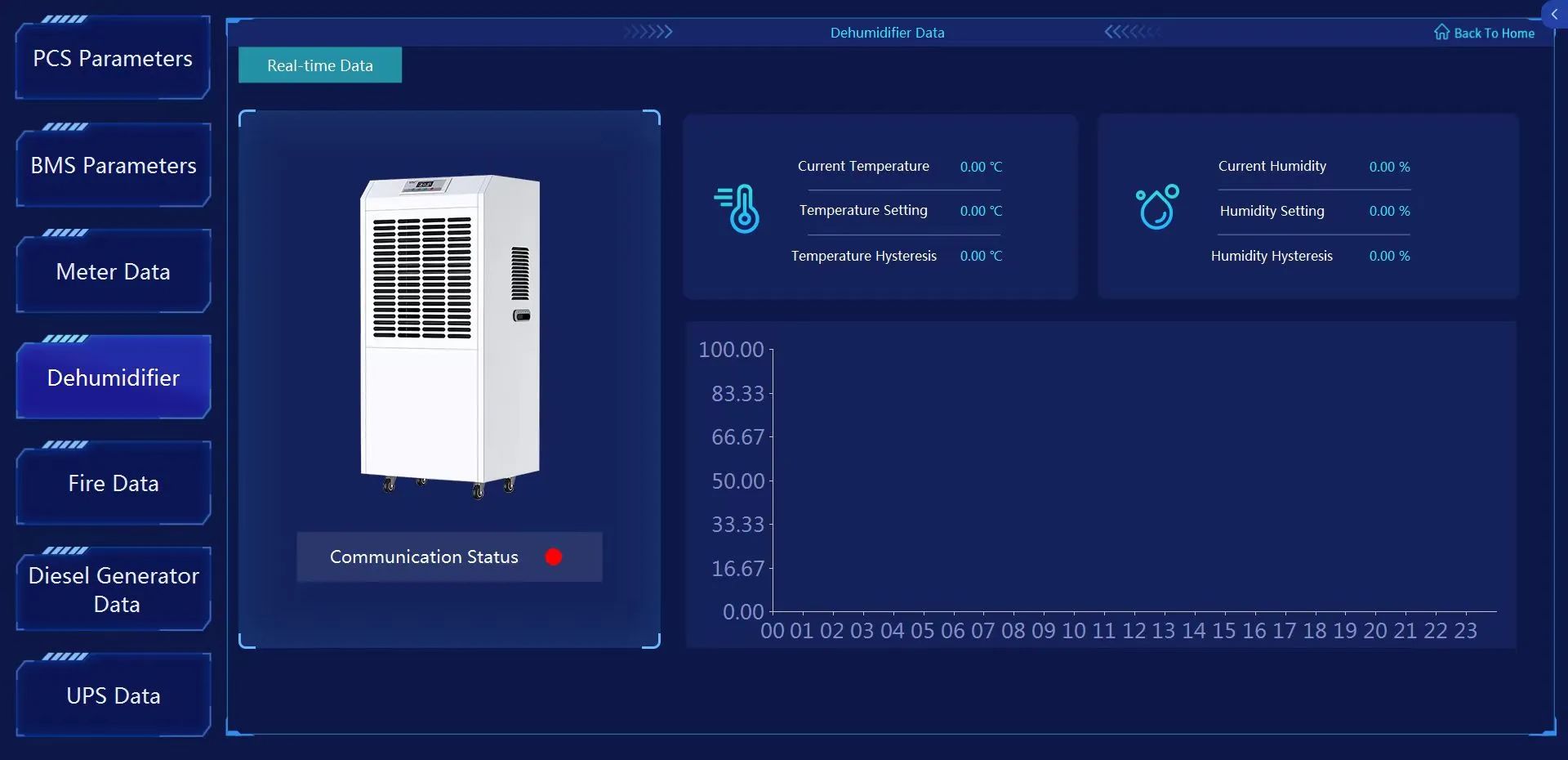

Dehumidifier Monitoring
General monitoring for dehumidifier including working ambient tempertaure&humidity, communications status.

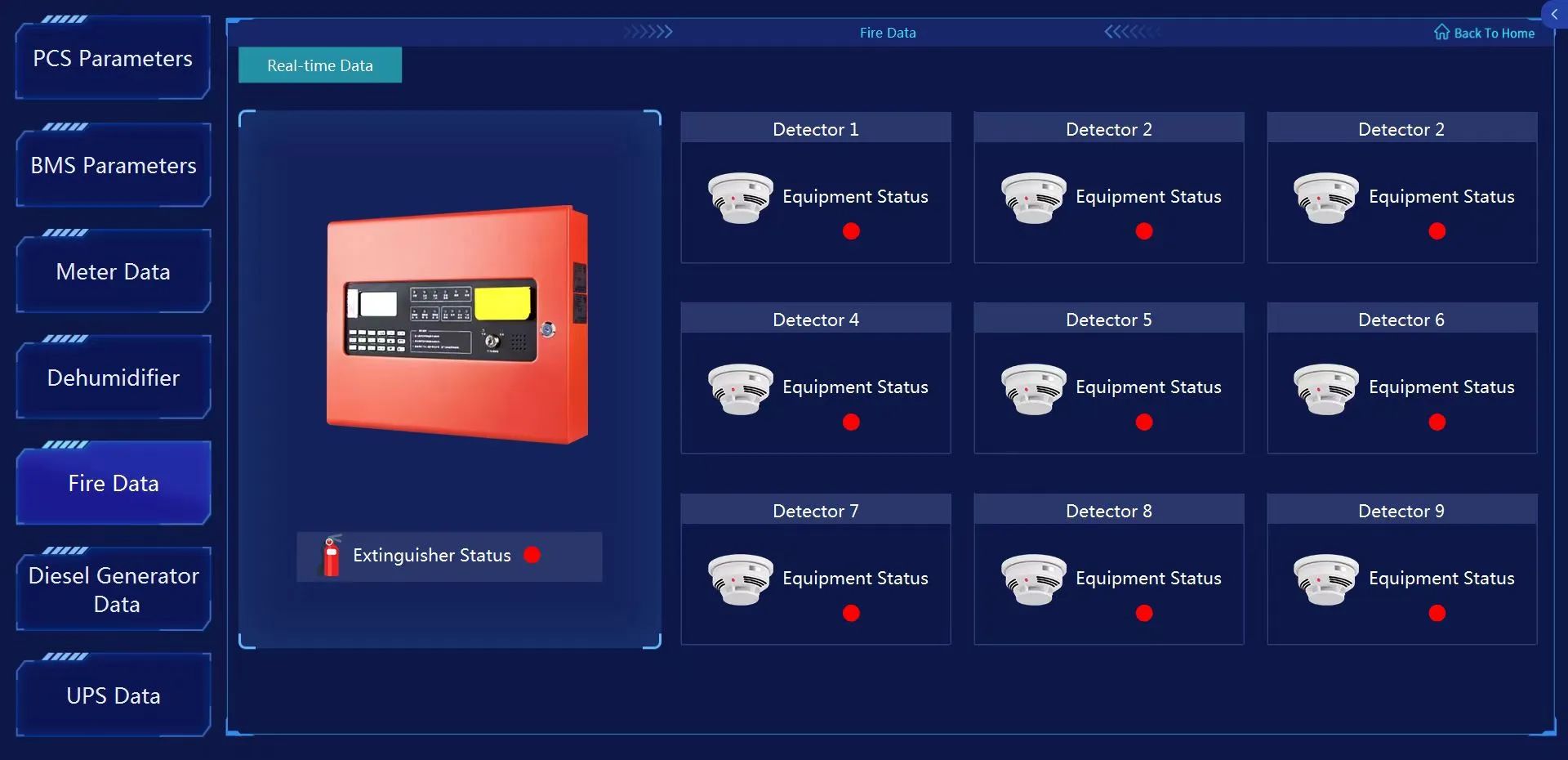

Fire Monitoring
General monitoring for fire protection system in ESS. By connecting I/O module to related sensor for monitoring the fire equipment working status.
Solutions
Acrel-2000MG Micro-grid Energy Management Platform
Acrel-2000ES Energy Storage Management Platform
Related Devices

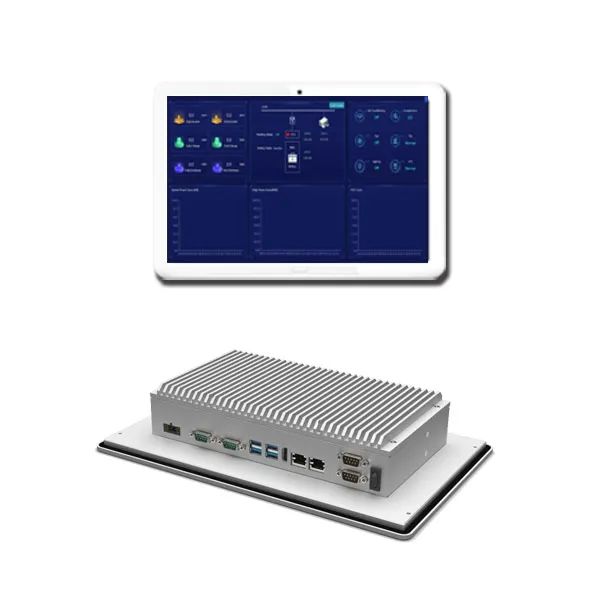

Acrel-2000ES Software and Industrial Tablet PC
PC&Software
Data collection and monitoring of internal equipment, consisting of communicationmanagement machine, industrial tablet PC, serial server, remote signaling module, and related communication accessories.
Data collection, upload, and forwarding to server and coordinated control devices. Strategy control: planned curves, demand control, peak shaving and valley filling, backup power, etc.

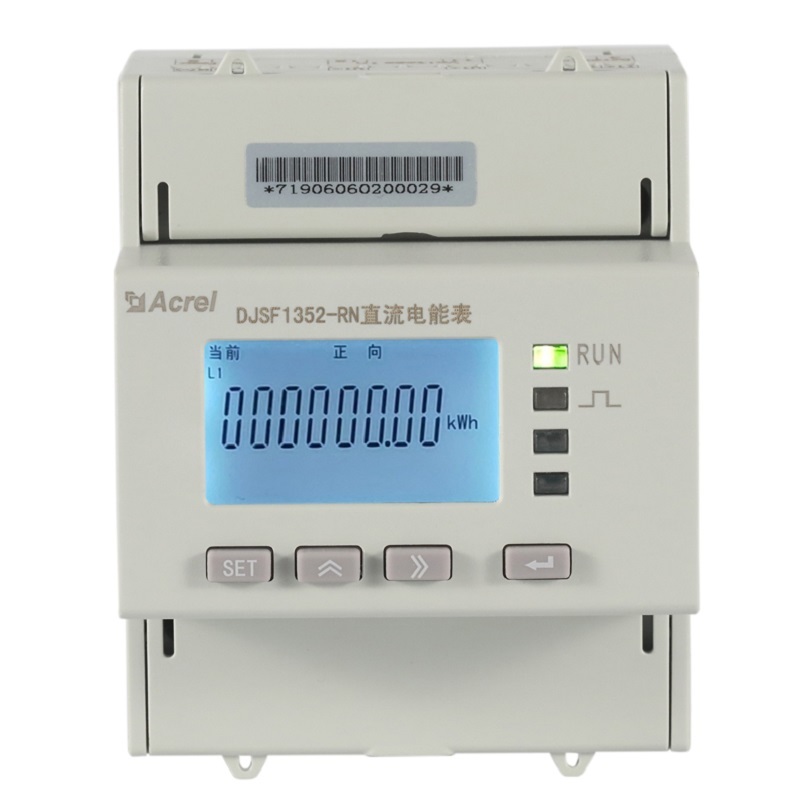

DJSF1352 Seires
DC DIN-rail Multi-function Energy Meter
Measures voltage, current, power, and bidirectional energy in DC systems; Optional dual channel DC metering; Equipped with infrared communication interface and RS-485 communication interface, supporting both Modbus RTU protocol; Can be equipped withrelay alarm output and switch input functions.
ANet series of gateways
The ANET series IoT gateway utilizes an embedded hardware computing platform and features multiple downstream communication interfaces and multiple upstream network interfaces. It is designed to aggregate and organize communication data from all intelligent monitoring/protection devices within a target area and upload it in real-time to the master station system. This setup completes the functions of remote signaling and remote measurement for energy data collection.
APView500 Series of Power Quality Analyser
Utilizing a high-performance multi-core platform and an embedded operating system, it adheres to the measurement methods for power quality indicators specified in IEC61000-4-30 and follows the IEC61000-4-15 standard. The system integrates functions such as harmonic analysis, waveform sampling, voltage sag/swell/interruption monitoring, flicker monitoring, voltage imbalance monitoring, event recording, and measurement control into one unit.
AM5SE Series of Medium-voltage Protection Relay
The AM5SE series microcomputer protection and control devices integrate protection, control, measurement, communication, and monitoring functions into one unit. They feature rich resources, comprehensive configuration, easy maintenance, and stable performance, making them suitable for protection and control of power systems with voltage levels of 35kV and below. These devices provide protection for incoming lines, main transformers, distribution transformers, motors, capacitors, bus couplers, and PTs. The application areas include power, water conservancy, transportation, petroleum, chemical, coal, metallurgy, and new energy industries.
ADW300 Series of Wireless Energy Meters
ADW300 wireless energy meters have multiple built-in communication modules designed for diffent situation when paired with IoT energy management system or other demand for remote connection. Meanwhile, ADW300 can provide various extration function module and various electrical parameters measurement to meet diffent requests from the customers. Also, as the prove for quality, ADW300 is strictly compliant of the standard of IEC 62052-11; IEC62053-22; LVD. Certificates are shown below.
