Acrel IOT Cloud Platform for Energy Consumption Monitoring MQTT Protocol Support Self-adaptive and Debug-free
Series of products: Products
Series of products: Energy Management Platforms
Series of products: IOT Cloud Platform
- Product Description
- Parameters
- Q&A
- Download
-
Overview
Acrel IOT EMS is a centralized online platform for connecting all acrel networking products. Acrel IoT EMS offers unified access, monitoring and control capabilities, which saves time and allows you to oversee your whole networking fleet. Acrel IoT EMS can be used in substation, building, telecommunication base station, industrial energy consumption, intelligent lighthouse, operation and maintenance of power, and so on.
If your acrel device is on IoT EMS, it can be used to generate remote access links to equipment that is connected to a private router network thus granting remote access to other equipment.Once an alarm event occurs,within a few seconds, relevant alarm and event information will be quickly pushed through the APP to notify relevant person.
Introduction Video
Application

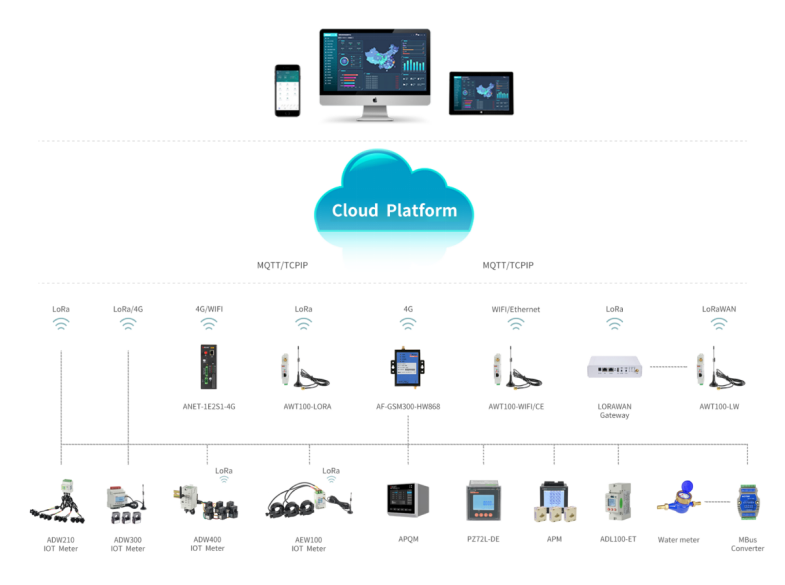

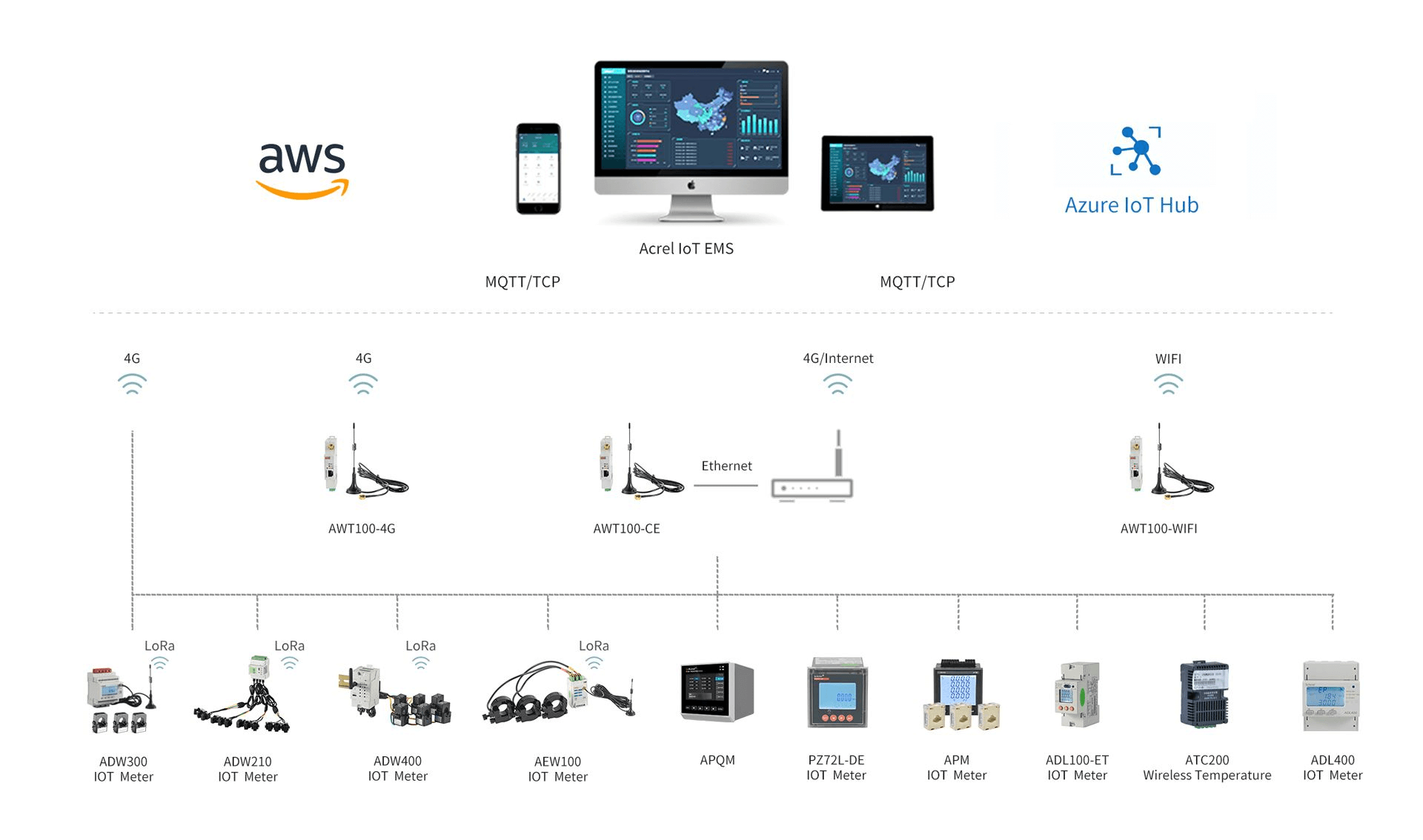

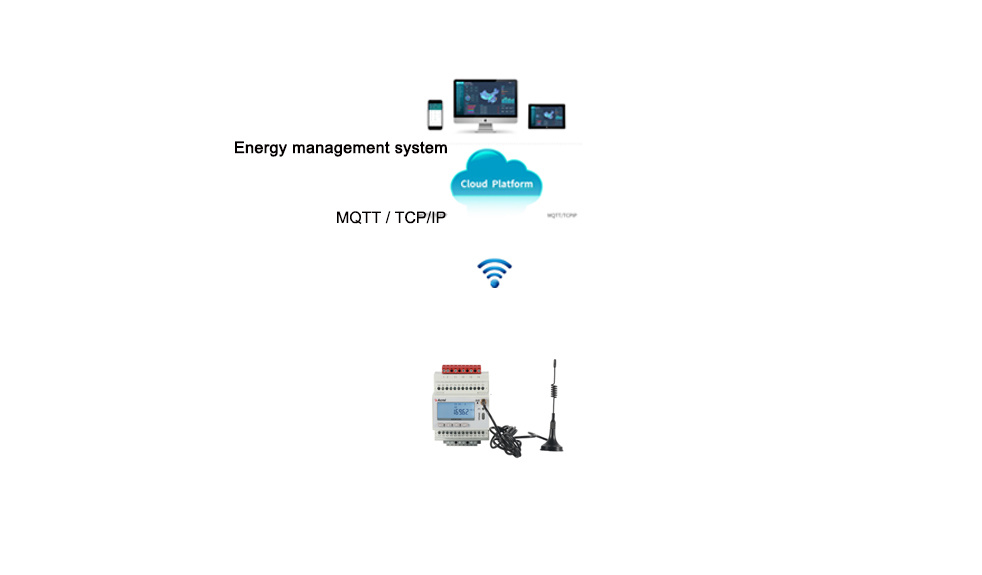

Network
Main Function

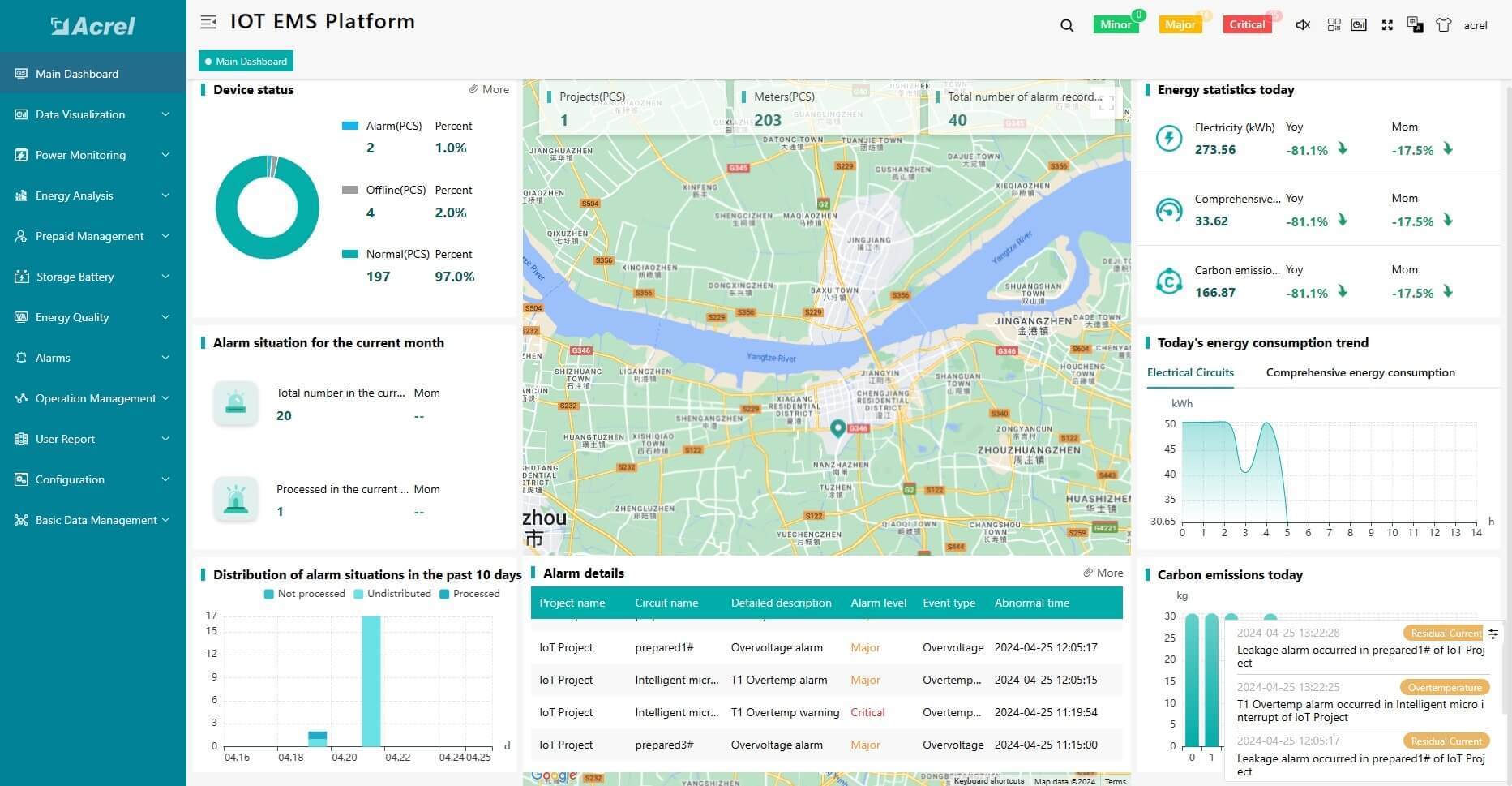

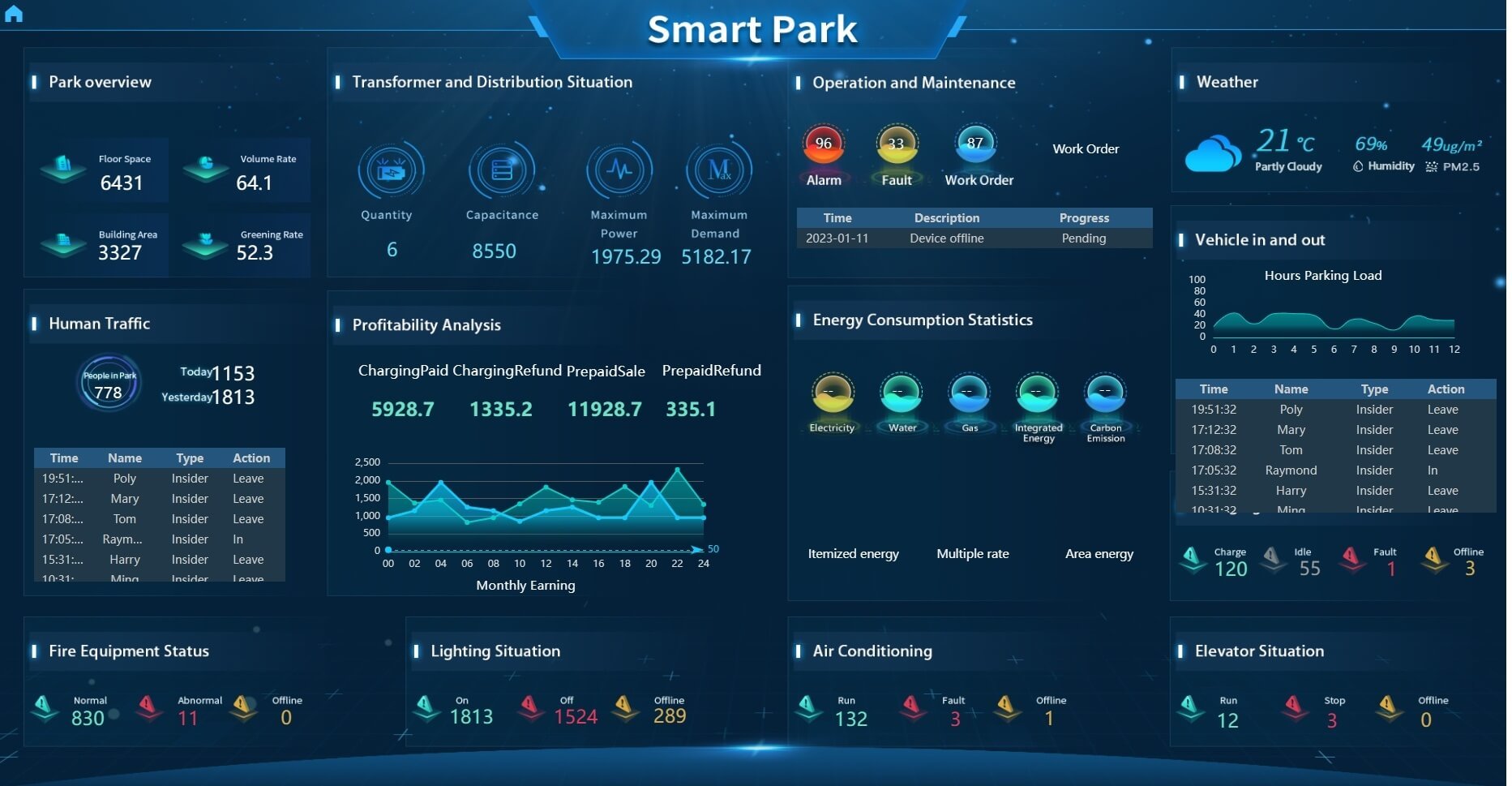

Main Dashboard
With wireless network can you check the status of your IoT devices all over the country. Beside, data like energy consumption and alarm report can also be briefly viewed.

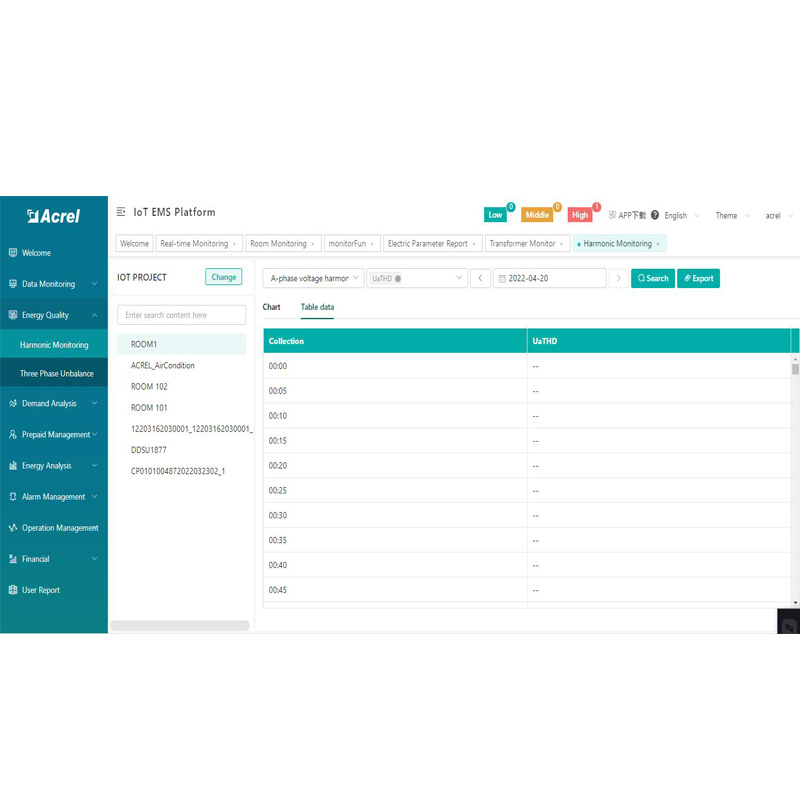

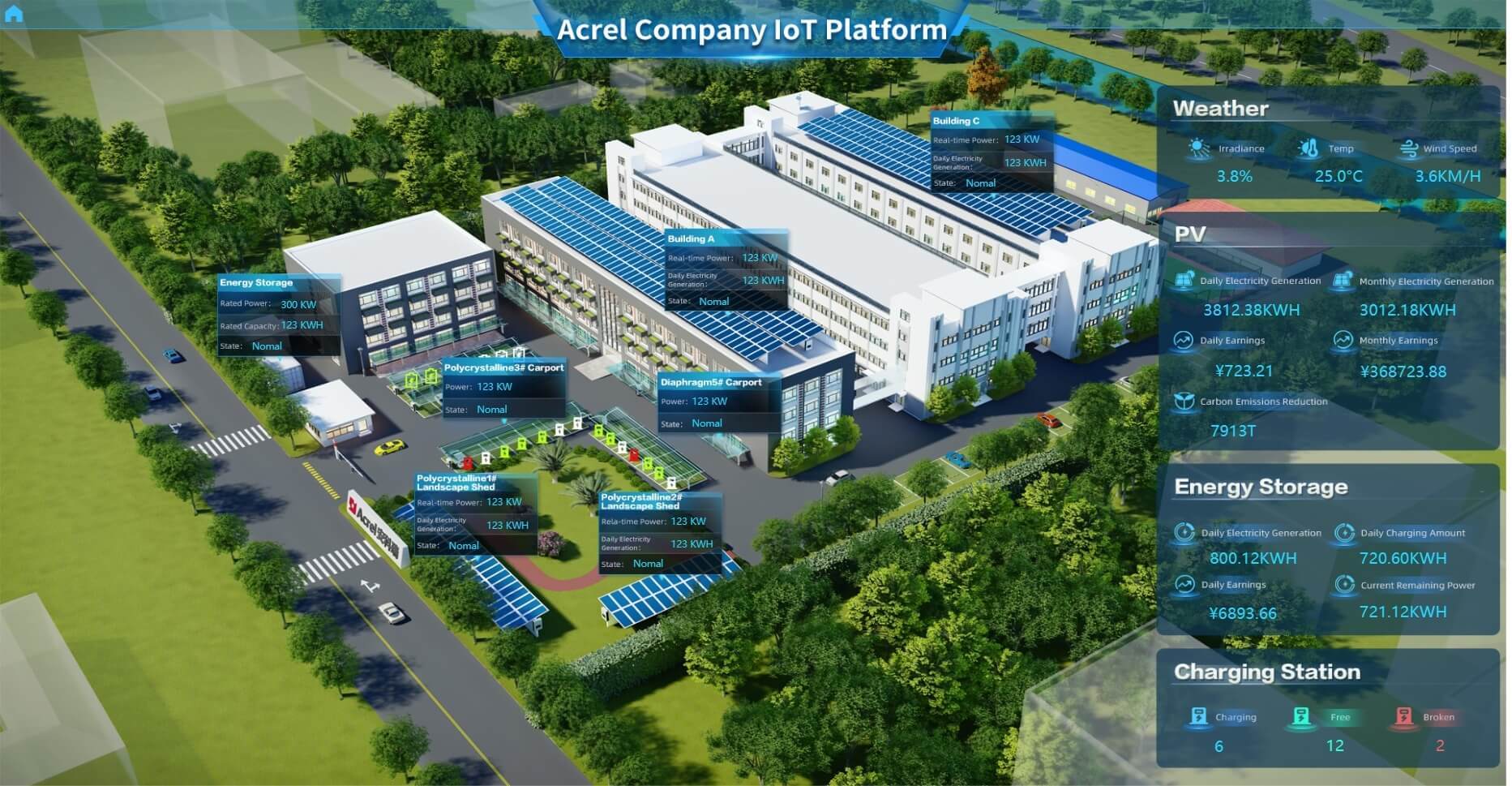

Data Visualization

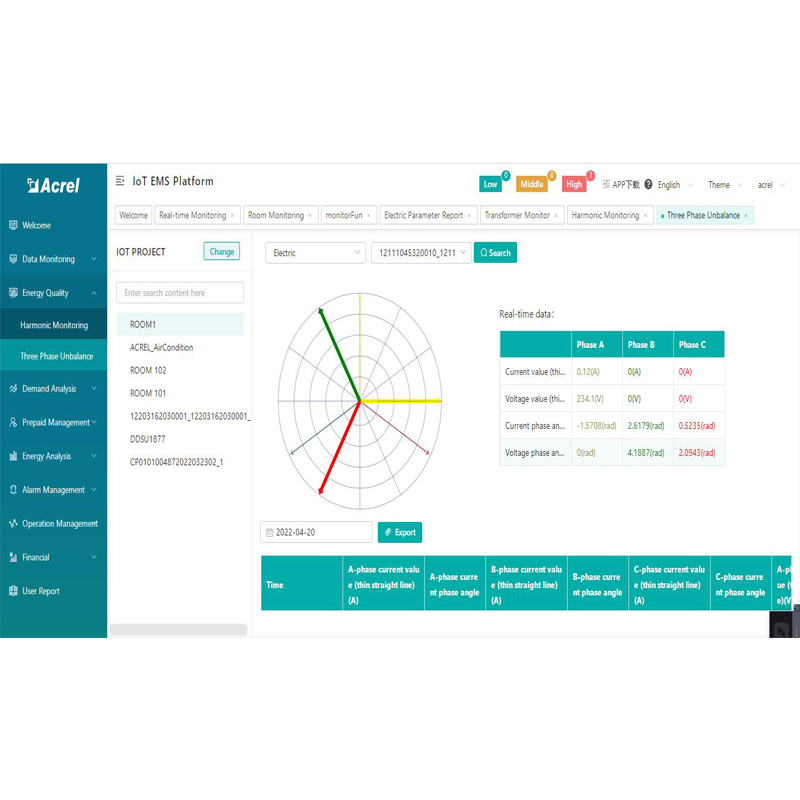

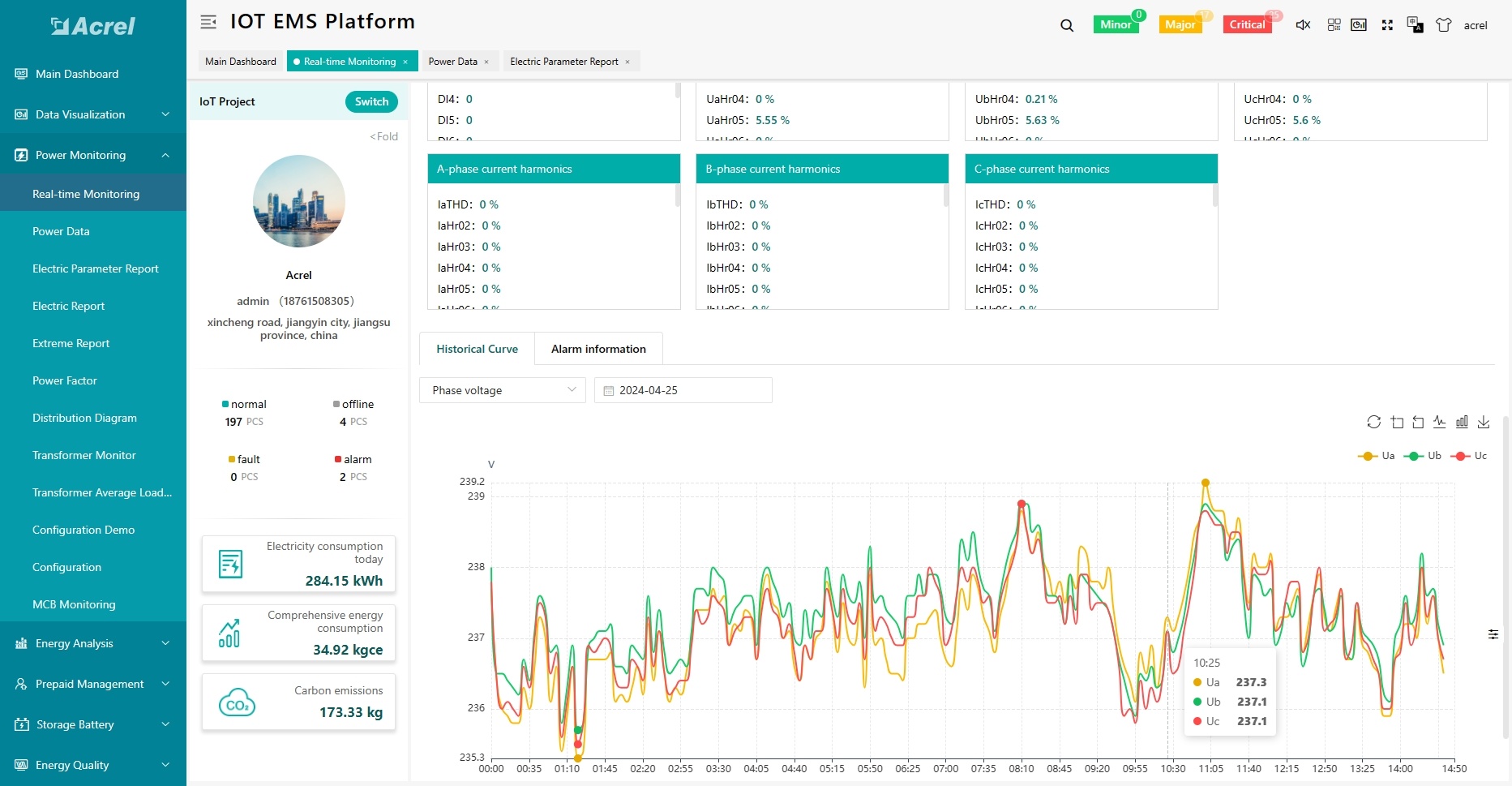

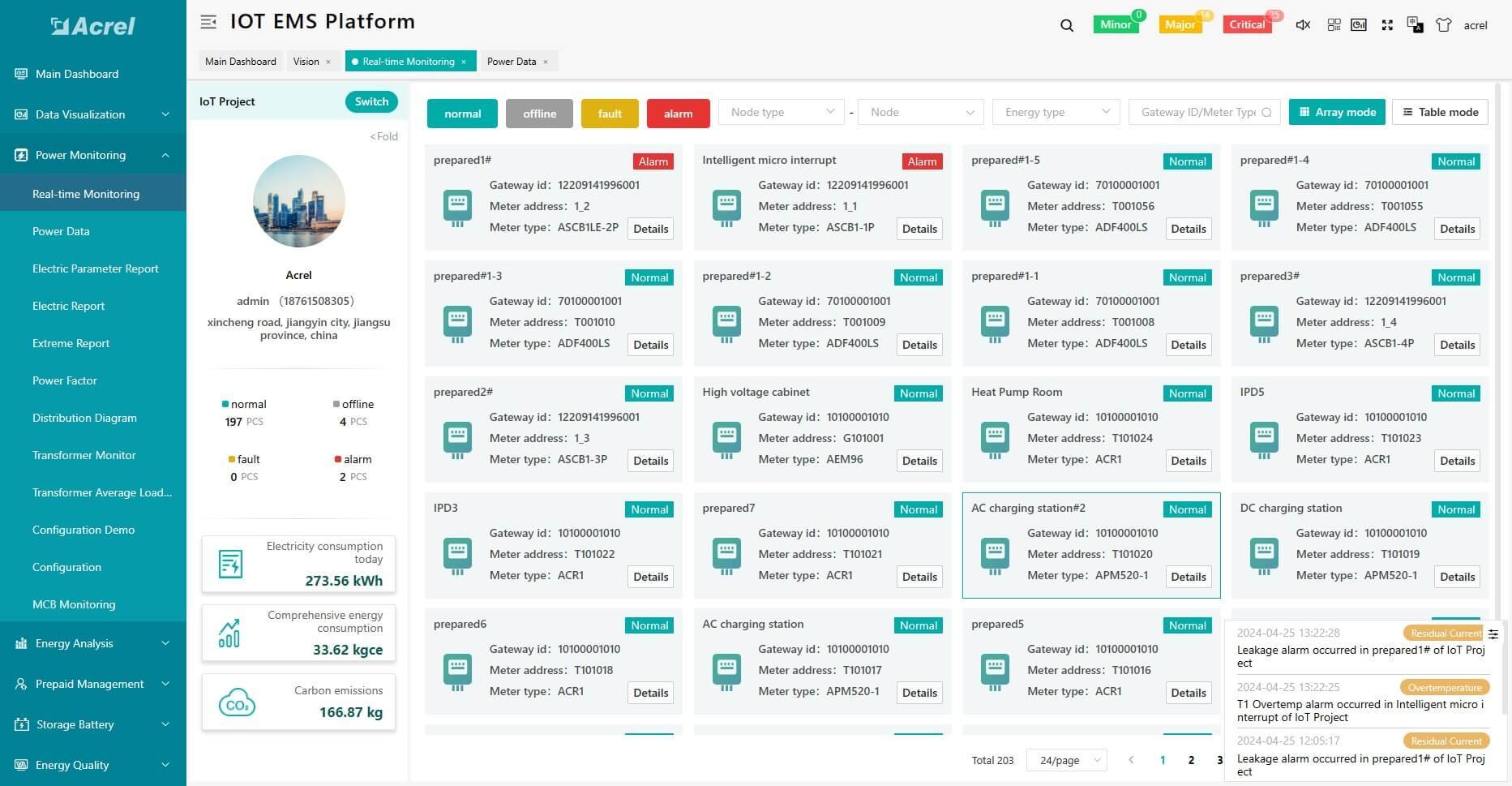

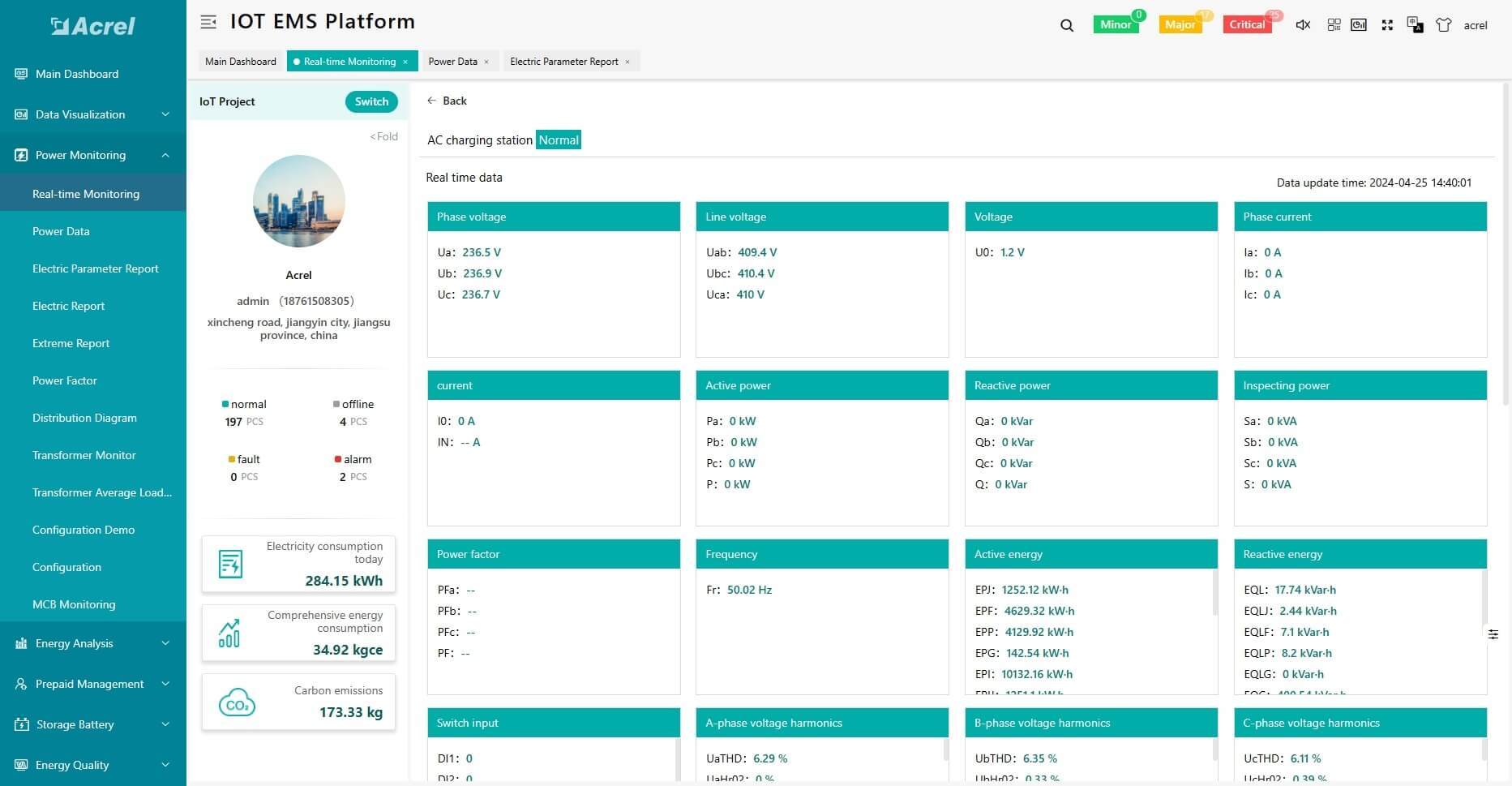

Real Time Monitoring

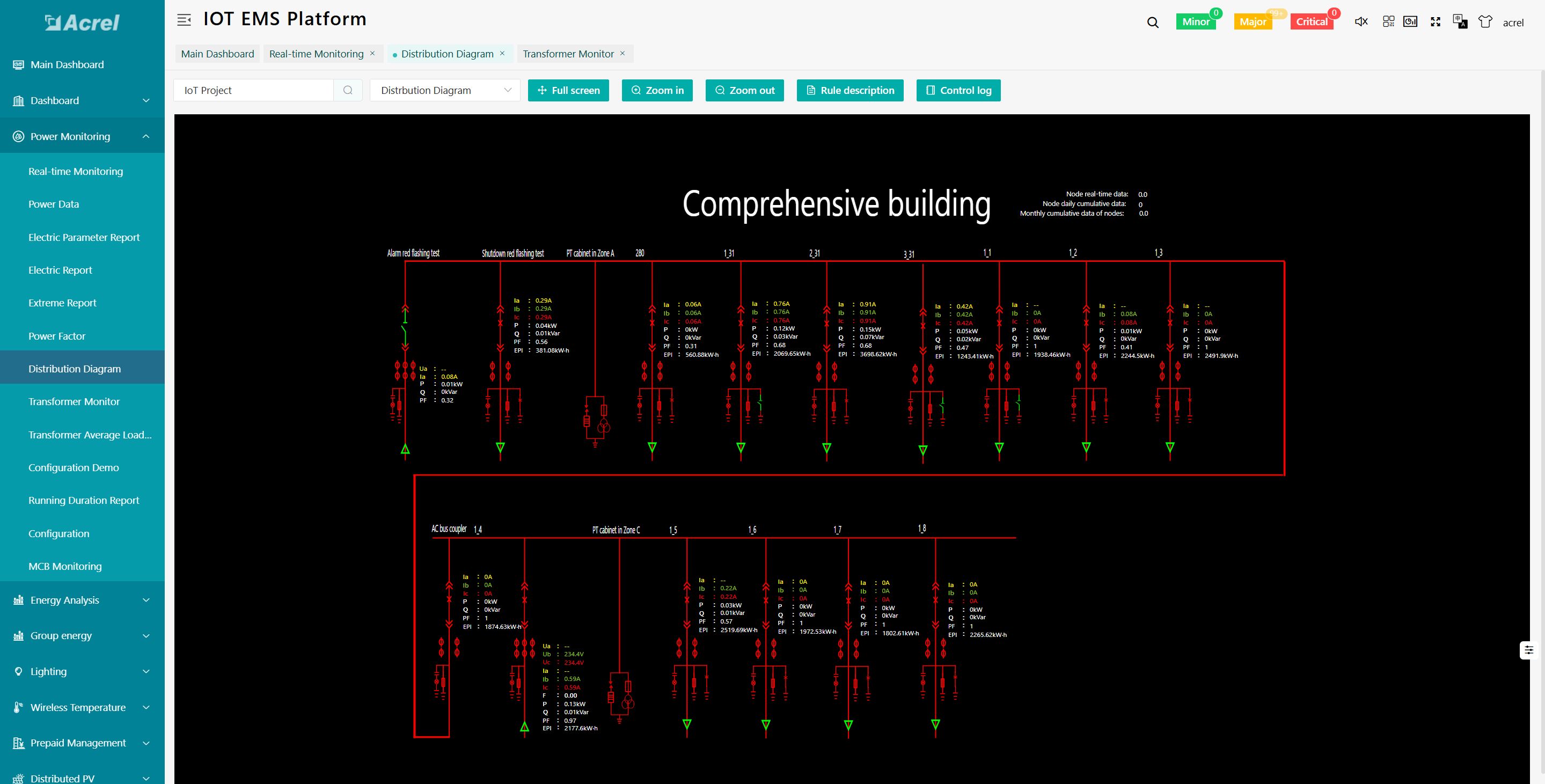

Distribution Diagram

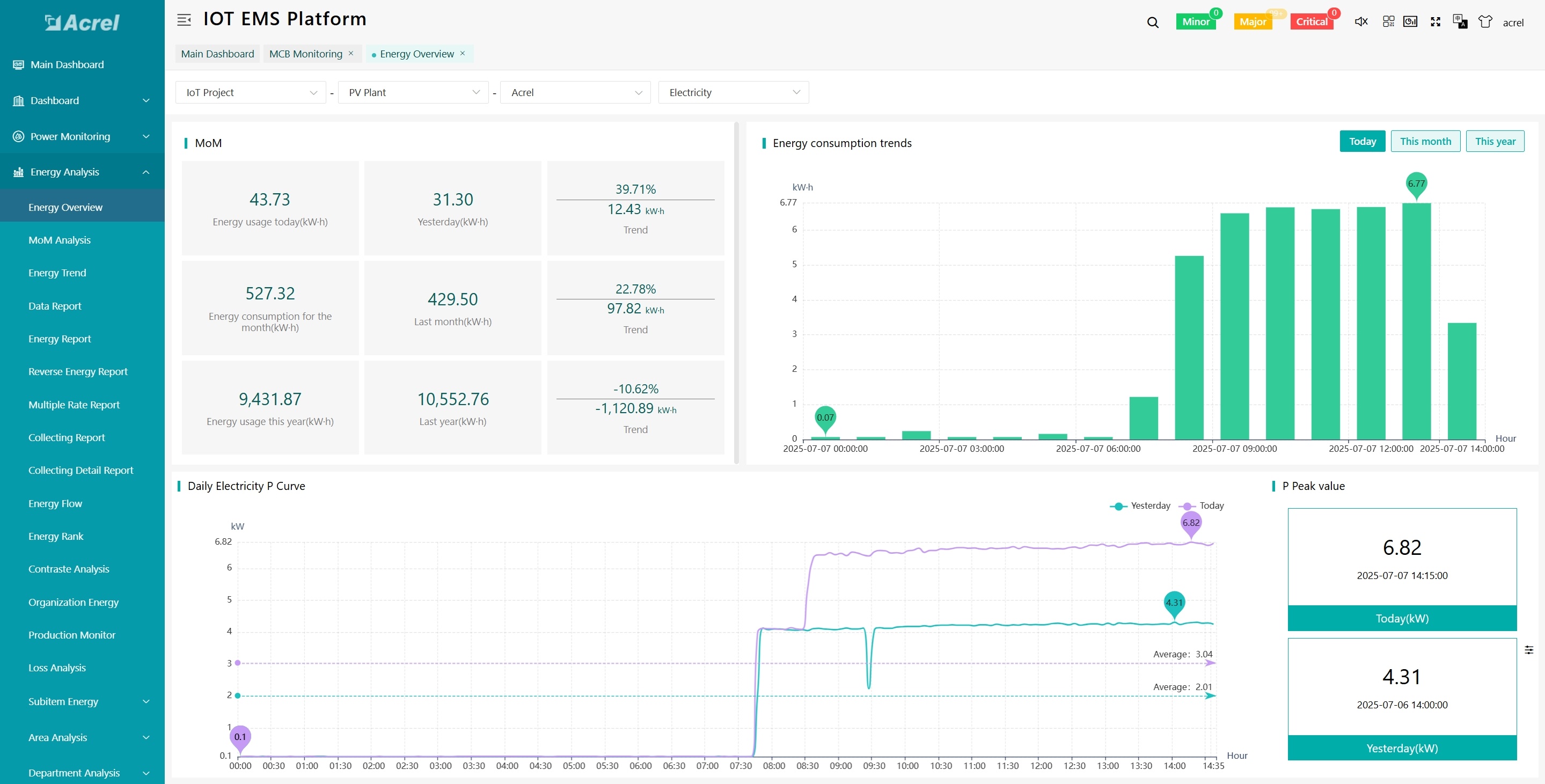

Energy Overview

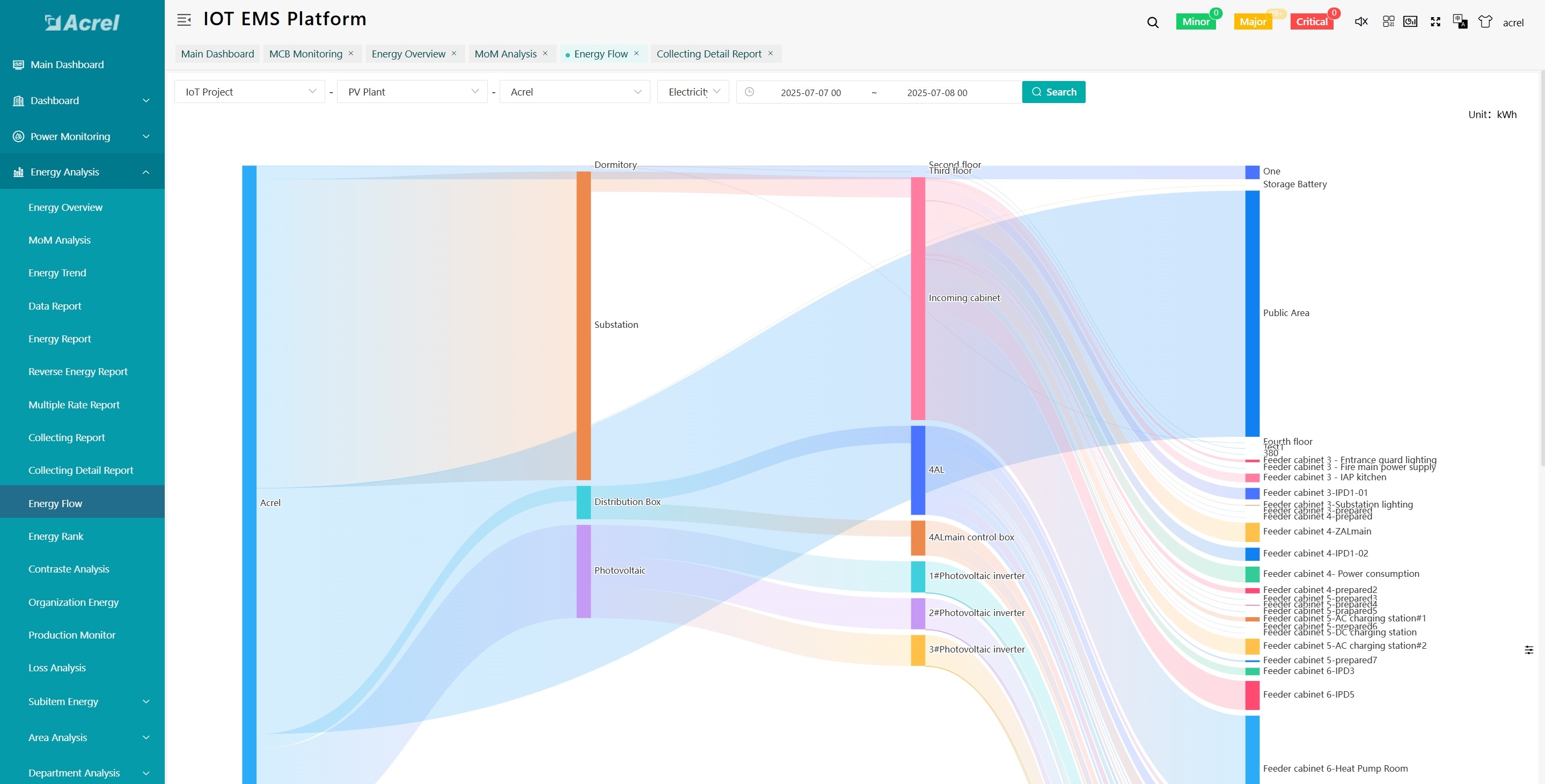

Energy Flow
Energy Trend
Dimension
Installation
FAQ
Q：What's the biggest advantage of ADW300?
A：ADW300 has its built-in wireless communication module which allow it to realize 4G LTE, WiFi, NB-IoT, LoRa upstream communication without using extra IoT gateways. For the application scenarios when the meters can't be of centralized installation, ADW300 will usually be the best option for monitor 3-phase circuits that were far from each other.
Q：How should I deal with RS485 network communication malfunction?
A：First, check if the wiring of RS485 communication line was loosen or wired incorrectly.(like reversely wiring the A,B terminal).
Next,inspect if the meter’s setting of address, baud rate, check bit was correct by using keypads on the meter.
Q：What if LoRa communication of meters malfunctioned?
A：First, use USB to RS485 serial converter to connect the meter with computer. Then use adjustment software to check if setting of meter is on consensus with the setting of master station.(setting of channel and spreading factor--SF)
If setting remain the same, then it might be due to large interference of work site or the excessively far range between meter and host. In that case, it’s recommended to use chuck antenna or set a new master station nearby.
Q：What’s the difference between ADW300 and ADW300W
A：ADW300 has internal current transformers and can select compatible current transformer according to the site current to realized a secondary connection via CTs.
ADW300W on the other hand, has external current transformers.(non-detachable or it will damage the meter) This kind of design extremely ease the wiring and installation if the work-site already has CTs.
Q：What do 3×57.7/100V,3×220/380V,3×380/660V,3×100V,3×380V,3×660V represent respectively?
A：The meter’s spec of 3*100V,3*57.7/100V is suitable for high voltage power system while pairing with PT(potential transformer or voltage transformer). Beside, 3*100V represent 3-phase 3-wire and 3*57.7/100V represent 3-phase 4-wire.
The meter’s spec of 3*220/380V,3*380/660V,3*380V,3*660V is suitable for low voltage power system(directly connect with meter). Meanwhile,3*380V,3*660V represent 3-phase 3-wire and 3*220/380V,3*380/660V represent 3-phase 4-wire.
Other Question? Please contact us and we will reply you as soon as possible.
