Acrel ASJ20-LD1A Residual Current Relays to Monitor Leakage Current Measure Residual Current
Series of products: Products
Series of products: Power Monitoring and Controlling Devices
Series of products: Residual Current Relays
- Product Description
- Parameters
- Q&A
- Download
-
Overview
ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50Hz, the rated voltage 400V or below.
ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
The product is qualified in accordance with the requirement of GB/T 22387—2008 Action Relay of After-Current.

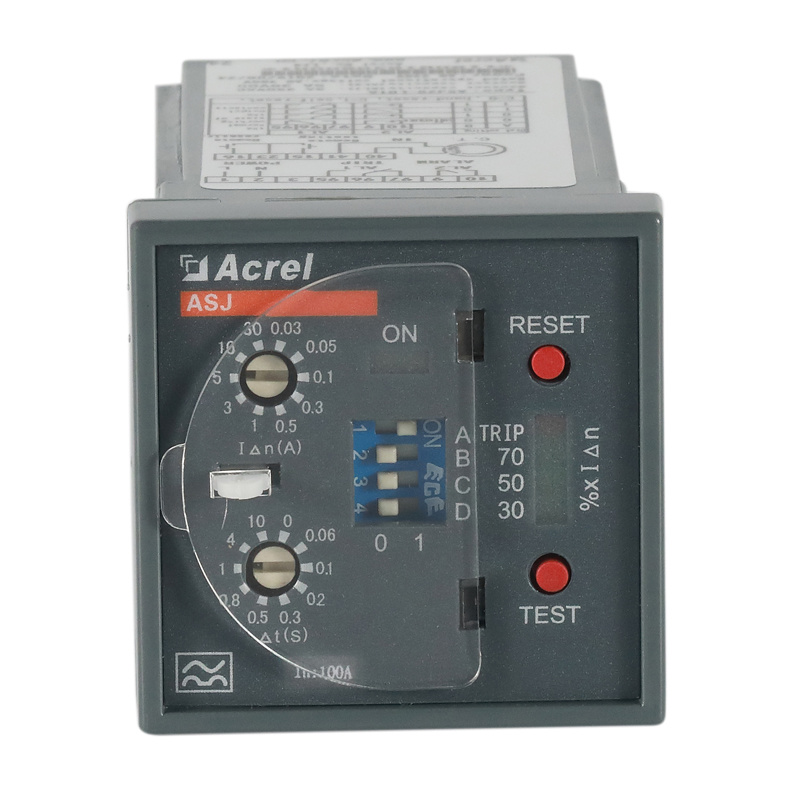

Dispaly

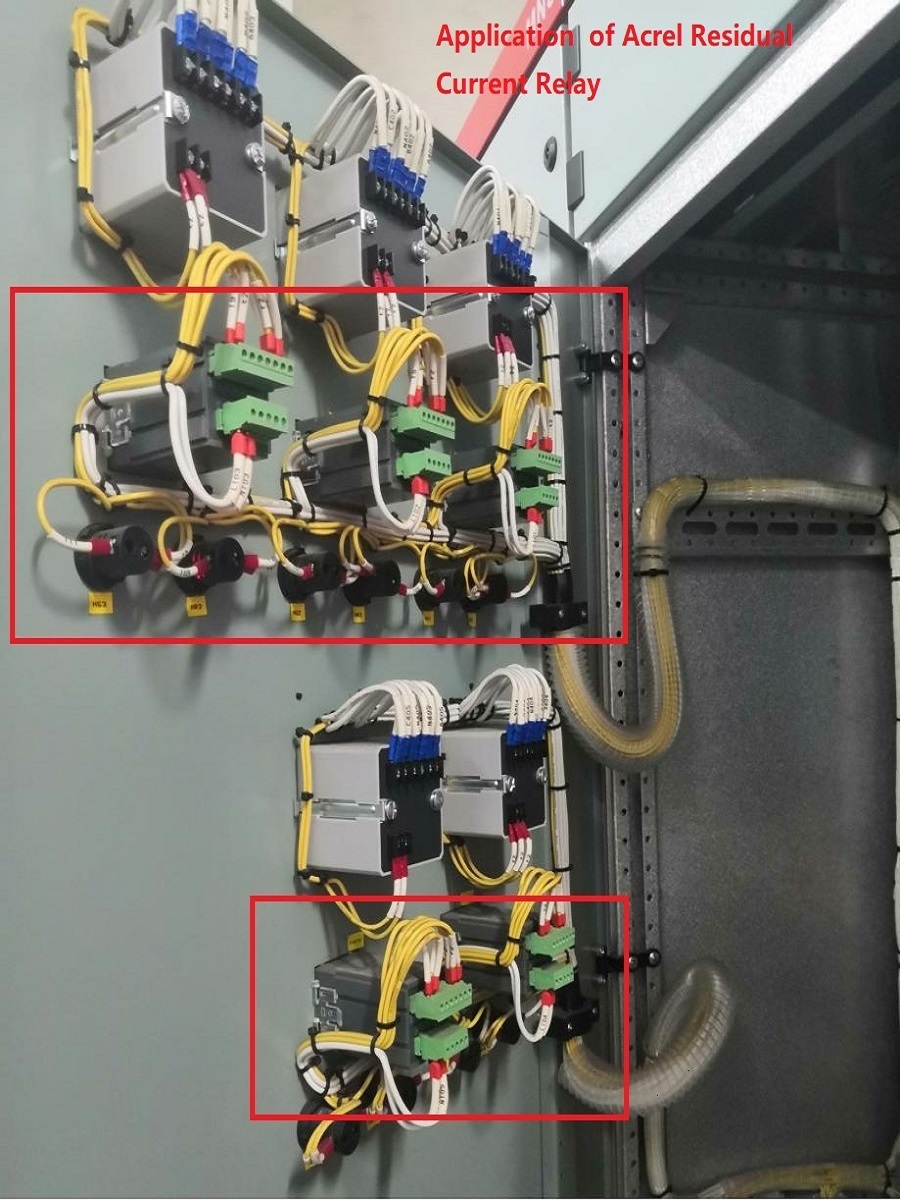

Application

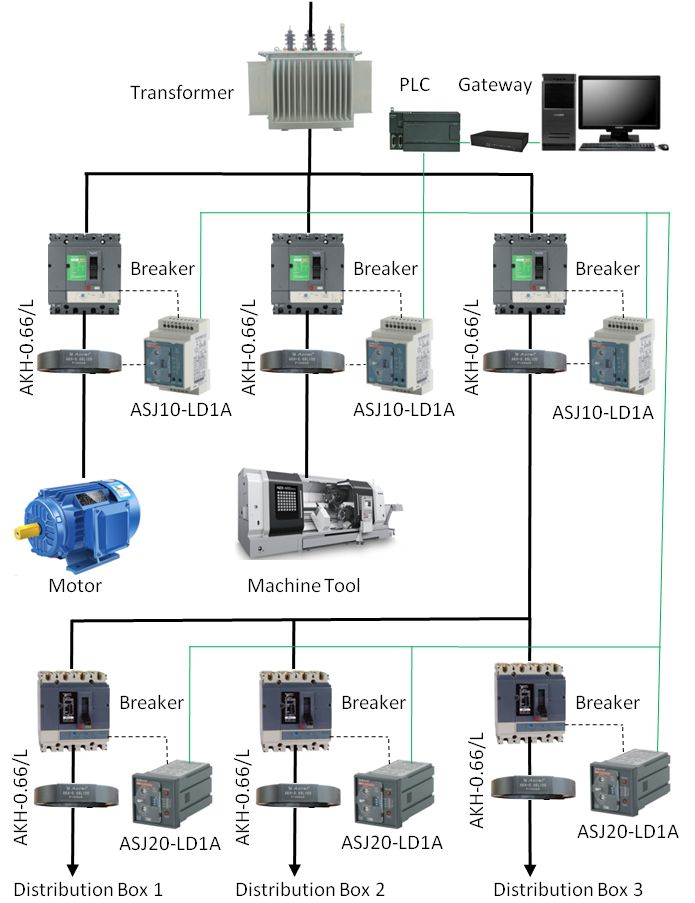

Network
Models
type
basic function
installing way

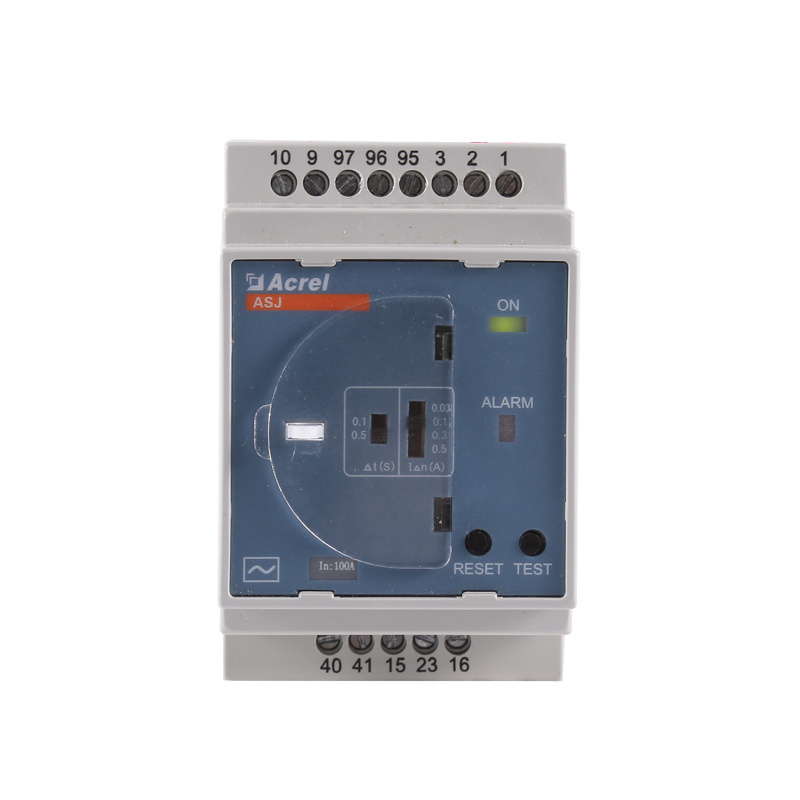

ASJ10-LD1C
Measurement of AC-type after-current;
Indicator of current off-limit alarm;
The setting of rated residual action current ( see in the table 2);
The setting of non-driving time of limitation ( see in the table 2);
Two-pair relay output;
Possessing the function of on-the-spot and long-distance testing and resetting
rail guiding
(TS35mm)

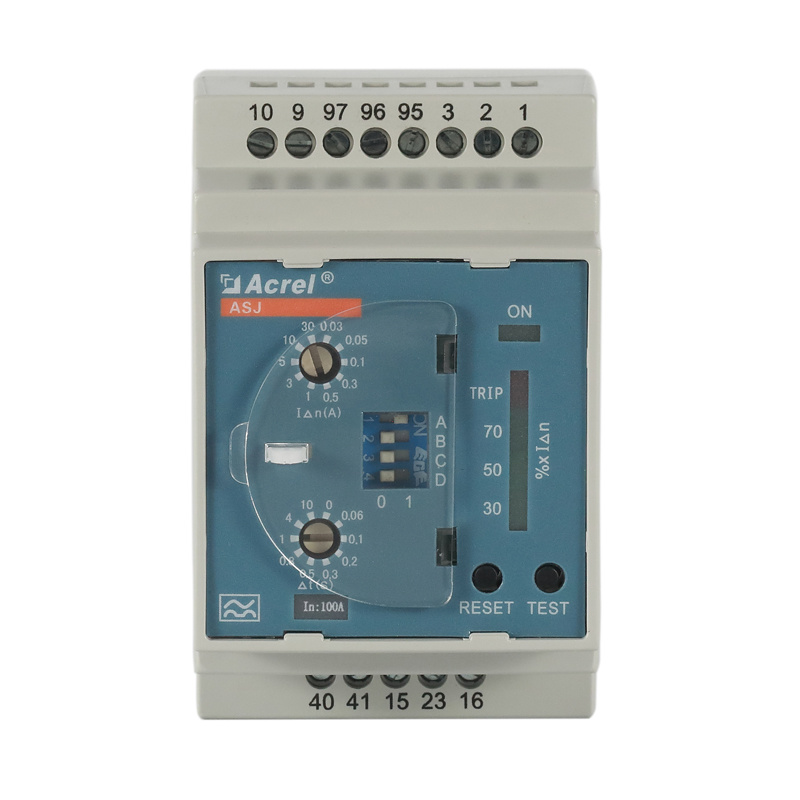

ASJ10-LD1A
The measurement of A-type after-current;
The streamer display of current percentage;
The setting of rated residual action current ( see in the table 2);
The setting of non-driving time of limitation ( see in the table 2);
Two- pair relay output(both of which can be set) *;
Possessing the function of on-the-spot and long-distance testing and resetting

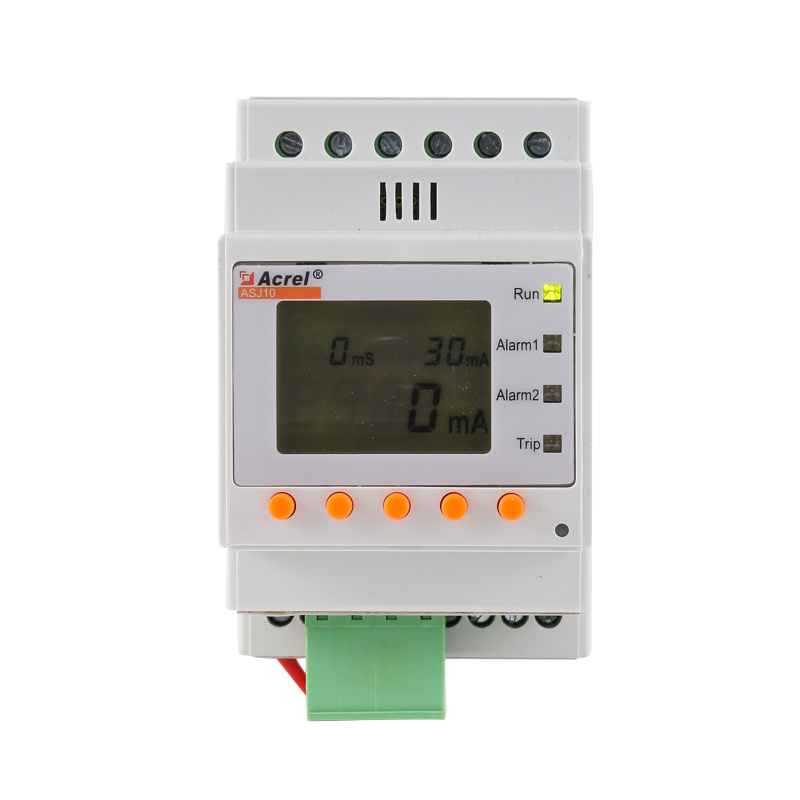

ASJ10L- LD1Anote 2
Type A residual current measurement;
Rated residual action current can be set (see 8.1) ;
Limit non-driving time can be set (see 8.1) ;
Two sets of relay outputs (settable, see 8.1) ;
The fault alarm of transformer can be set (see 8.1) ;
Warning value can be set (see 8.1) ;
Return value can be set (see 8asj10l-LD1A programming menu description) ;
With on-site, remote "test" , "reset" function, 25 event records;
ASJ20-LD1C
Measurement of AC-type after-current;
Indicator of current off-limit alarm;
The setting of rated residual action current ( see in the table 2);
The setting of non-driving time of limitation ( see in the table 2);
Two- pair relay output;
Possessing the function of on-the-spot and long-distance testing and resetting
Screen structure
(48 square)

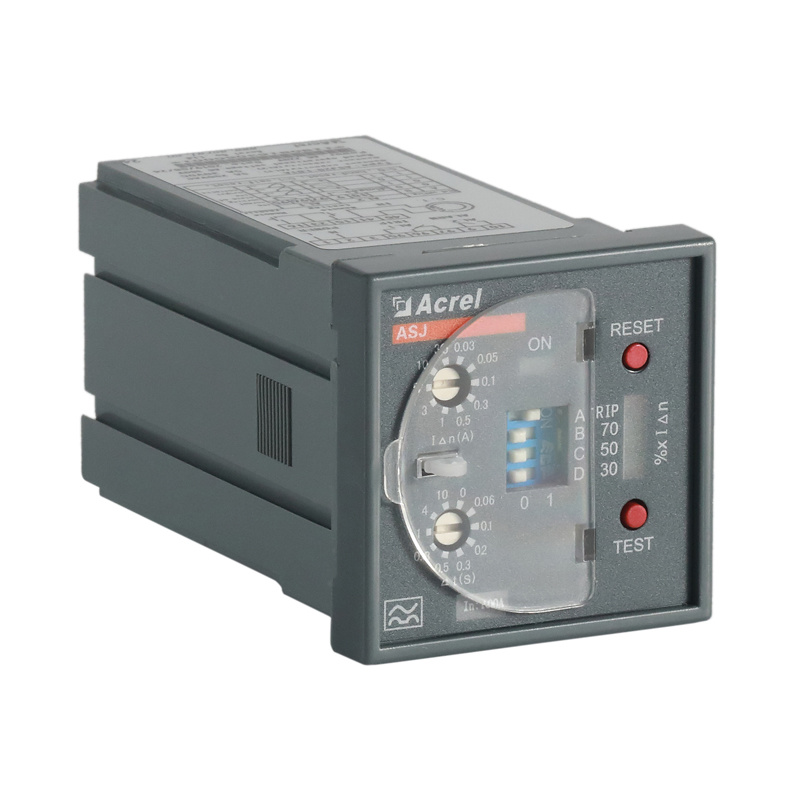

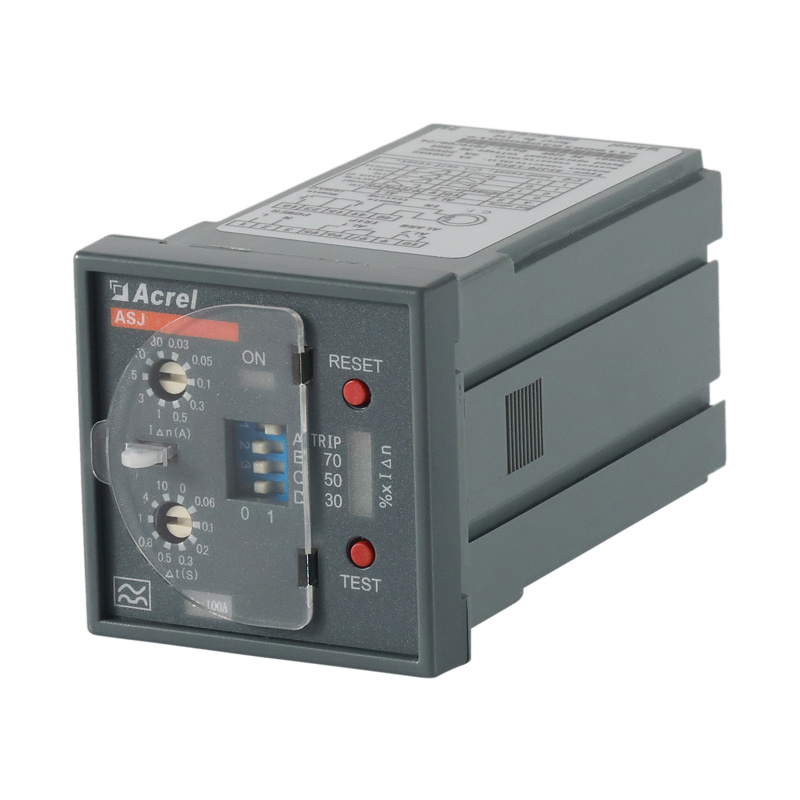

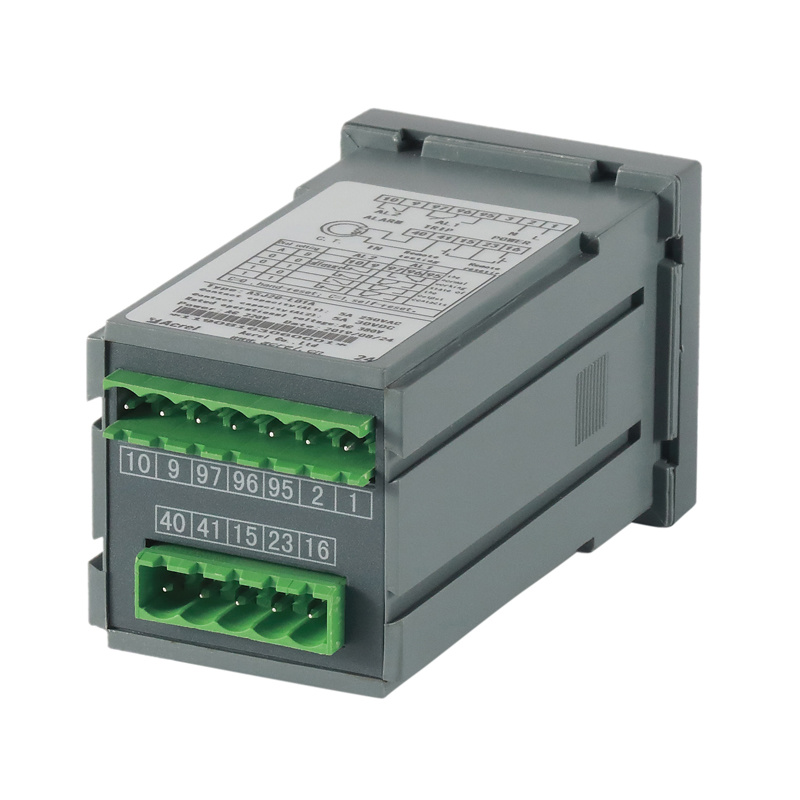

ASJ20-LD1A
The measurement of A-type after-current;
The streamer display of current percentage;
The setting of rated residual action current ( see in the table 2);
The setting of non-driving time of limitation ( see in the table 2);
Two- pair relay output(both of which can be set) note 1;
Possessing the function of on-the-spot and long-distance testing and resetting
Note 1：The function of setting for relay means that you can set the initialization and the output of the relay by yourself, which is acted by the dial switch on the panel; the specific setting guide can be found from the table 5.
Note 2：OPTIONAL FUNCTION C: RTU Communication RS485, Model ASJ10L-LD1A/C
Models of Residual Current Transformers
type
bore diameter
major loop current
no-load voltage ratio
AKH-0.66L45
45mm
80A
1A:1mA
AKH-0.66L80
80mm
250A
1A:1mA
AKH-0.66L100
100mm
400A
1A:1mA
AKH-0.66L150
150mm
630A
1A:1mA
AKH-0.66L200
200mm
1000A
1A:1mA
AKH-0.66L-260*100II
265*104mm
1000A
1A:1mA
Technical Parameters
technical parameter
index
Type AC
Type A
input
Rated residual action current I△n
0.03、0.1、0.3、0.5(A)
0.03、0.05、0.1、0.3、0.5、1、3、5、10、30(A) note 3
Non-driving time of limitation △t
0.1、0.5(s)
0、0.06、0.1、0.2、0.3、0.5、0.8、1、4、10(s) note 4
Rated residual non-action current I△no
50%I△n
50%I△n
performance characteristics
simple sinusoidal alternating current
simple sinusoidal alternating current and pulsating direct current
frequency
50Hz±5Hz
50Hz±5Hz
action error
-20% ~ -10%I△n
-20% ~ -10%I△n
output
output mode
one is the normal closing and the other is for the transformation
one is the normal closing or opening, and the other is for the transformation
contact capacity
5A 250VAC 5A 30VDC
AL1:8A 250VAC 5A 30VDC
AL2:6A 250VAC 5A 30VDC
reset mode
the on-the-spot one and the long-distance one,
the on-the-spot one, the long-distance one and the automatic one
power supply
voltage range
AC110V、AC220V（permissible error±10%）
AC110V、AC220V、DC85-270V
（permissible error±10%）
power dissipation
≤5W
power frequency withstand voltage
The effective value of alternating current between the power supply, input and output: 2kV/1min
under the normal operation
temperature
operating temperature: -20℃ ~ +55℃
storage temperature: -30℃ ~ +70℃
humidity
≤95%RH, with moisture condensation, and corrosive gas place
height above sea level
≤2000m
class of pollution
Grade three
installation category
Type Ⅲ
Note 3：ASJ10L-LD1A rated residual action current I N is 10mA-30A continuously adjustable;
Note 4：ASJ10L-LD1A limit non-driving Time N is 0-10S continuously adjustable.

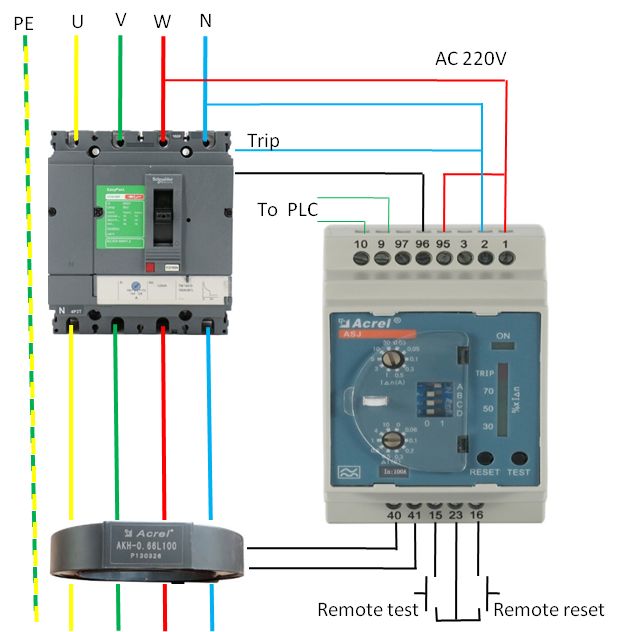

Wiring

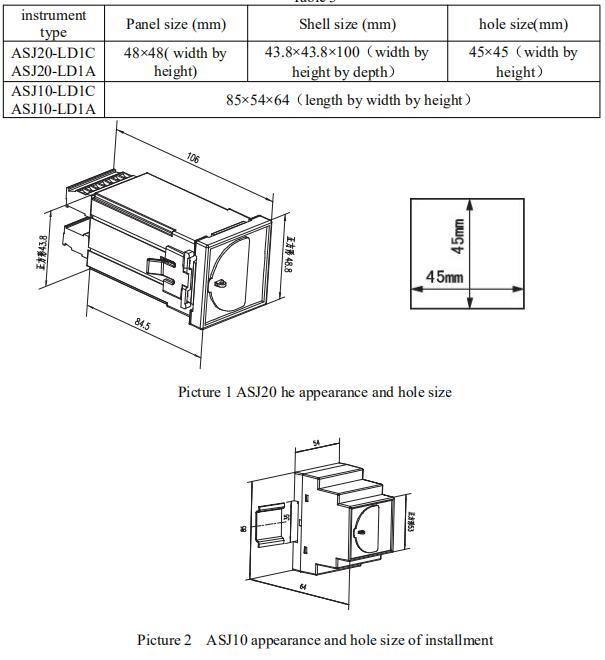

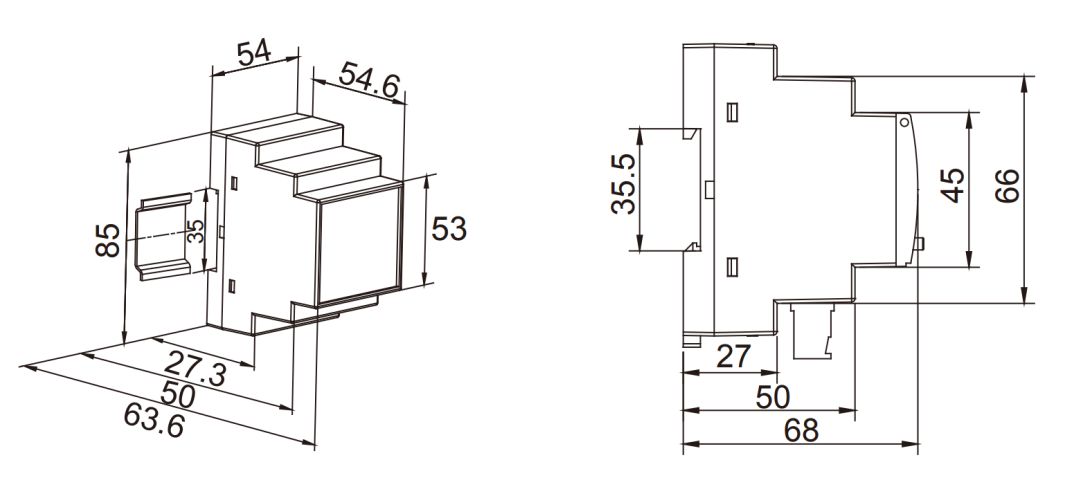

Dimension
Product Description:- PView
- high-performance
- requirements
-
Technical parameters
technical parameter
index
Type AC
Type A
input
Rated residual action current I△n
0.03、0.1、0.3、0.5(A)
0.03、0.05、0.1、0.3、0.5、1、3、5、10、30(A) note 3
Non-driving time of limitation △t
0.1、0.5(s)
0、0.06、0.1、0.2、0.3、0.5、0.8、1、4、10(s) note 4
Rated residual non-action current I△no
50%I△n
50%I△n
performance characteristics
simple sinusoidal alternating current
simple sinusoidal alternating current and pulsating direct current
frequency
50Hz±5Hz
50Hz±5Hz
action error
-20% ~ -10%I△n
-20% ~ -10%I△n
output
output mode
one is the normal closing and the other is for the transformation
one is the normal closing or opening, and the other is for the transformation
contact capacity
5A 250VAC 5A 30VDC
AL1:8A 250VAC 5A 30VDC
AL2:6A 250VAC 5A 30VDC
reset mode
the on-the-spot one and the long-distance one,
the on-the-spot one, the long-distance one and the automatic one
power supply
voltage range
AC110V、AC220V（permissible error±10%）
AC110V、AC220V、DC85-270V
（permissible error±10%）
power dissipation
≤5W
power frequency withstand voltage
The effective value of alternating current between the power supply, input and output: 2kV/1min
under the normal operation
temperature
operating temperature: -20℃ ~ +55℃
storage temperature: -30℃ ~ +70℃
humidity
≤95%RH, with moisture condensation, and corrosive gas place
height above sea level
≤2000m
class of pollution
Grade three
installation category
Type Ⅲ
Note 3：ASJ10L-LD1A rated residual action current I N is 10mA-30A continuously adjustable;
Note 4：ASJ10L-LD1A limit non-driving Time N is 0-10S continuously adjustable.
-
