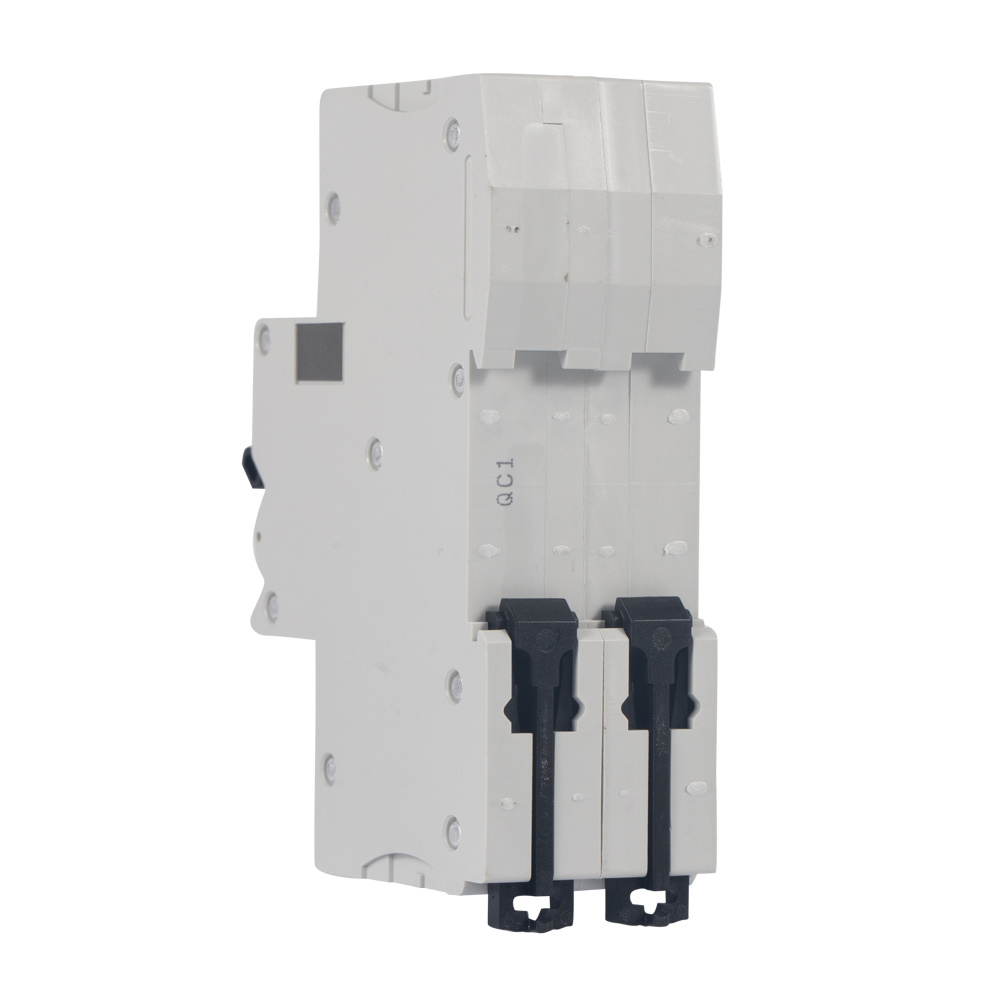

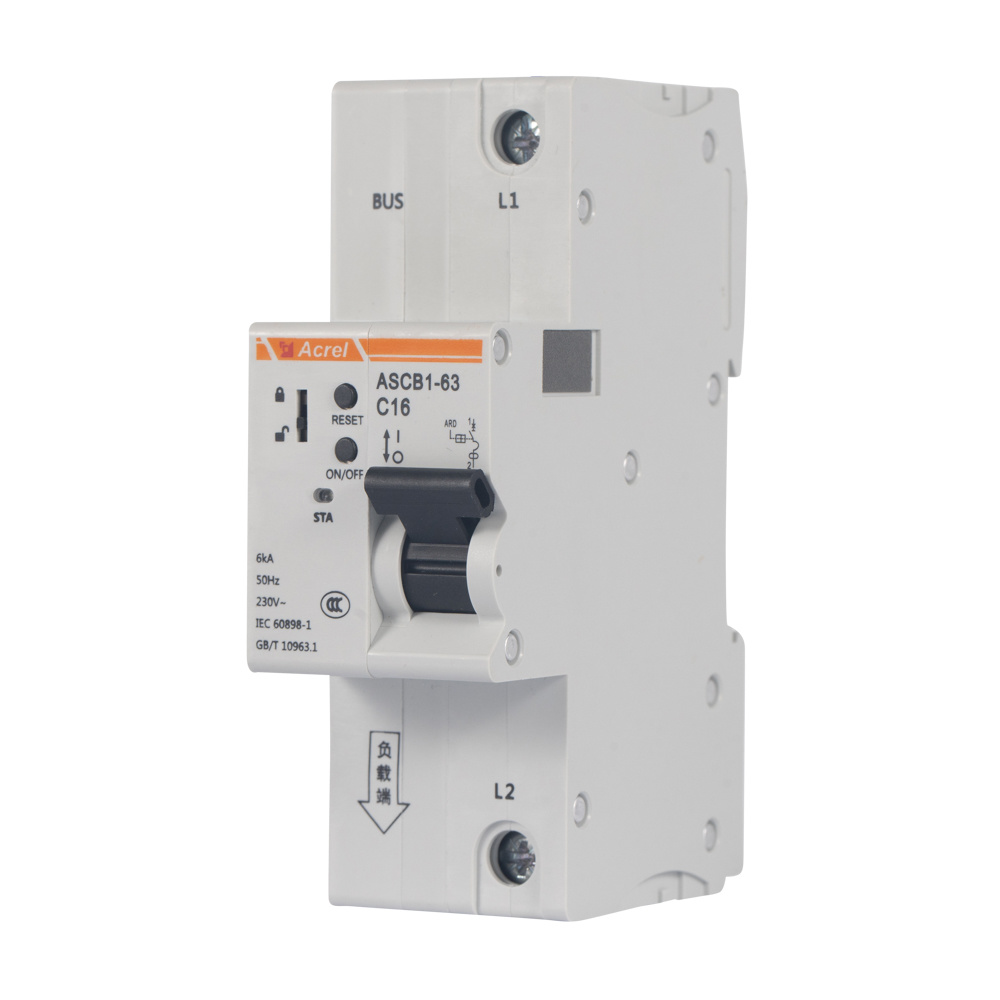

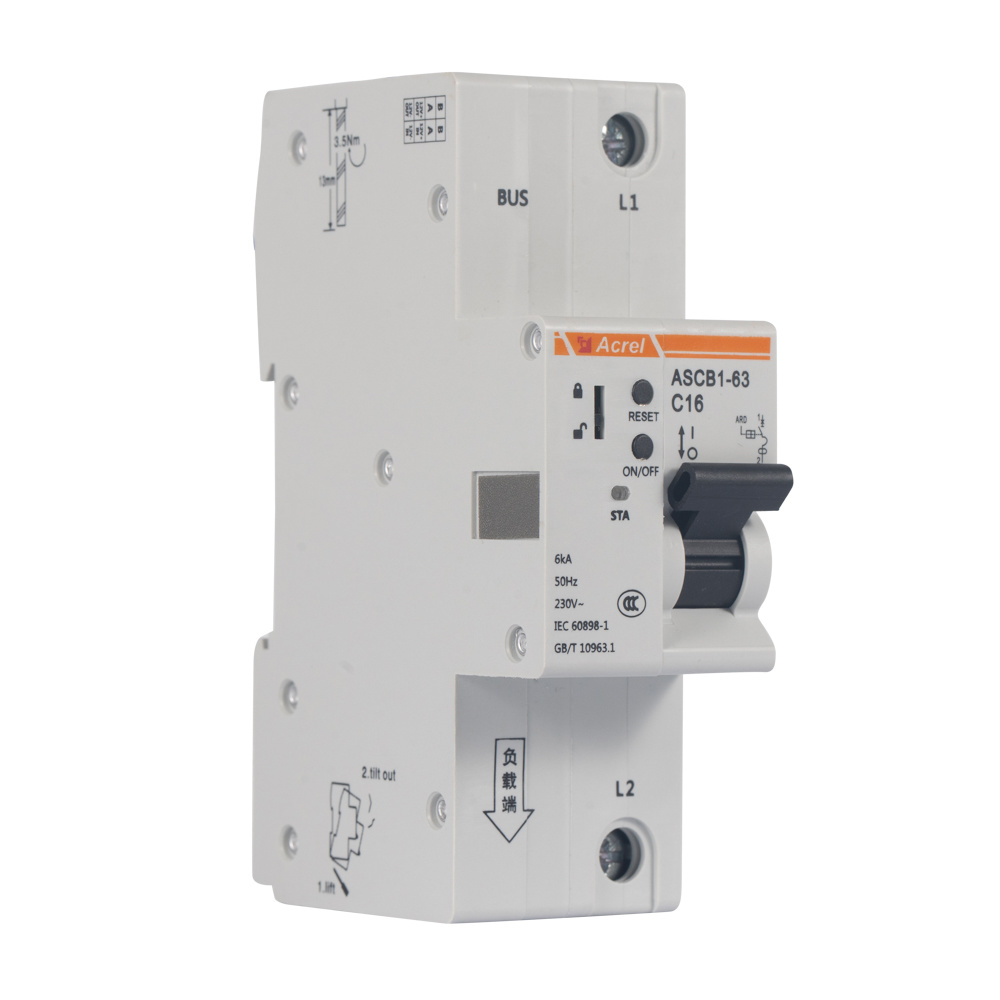

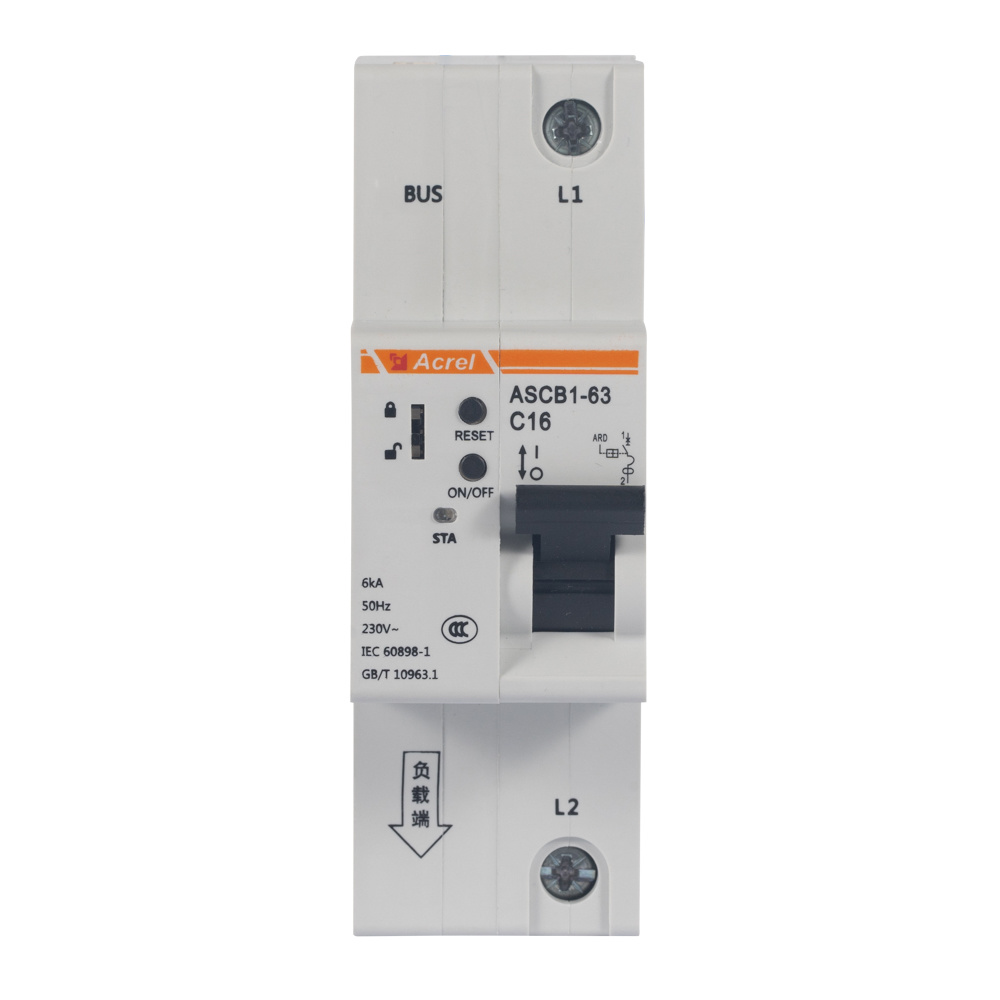

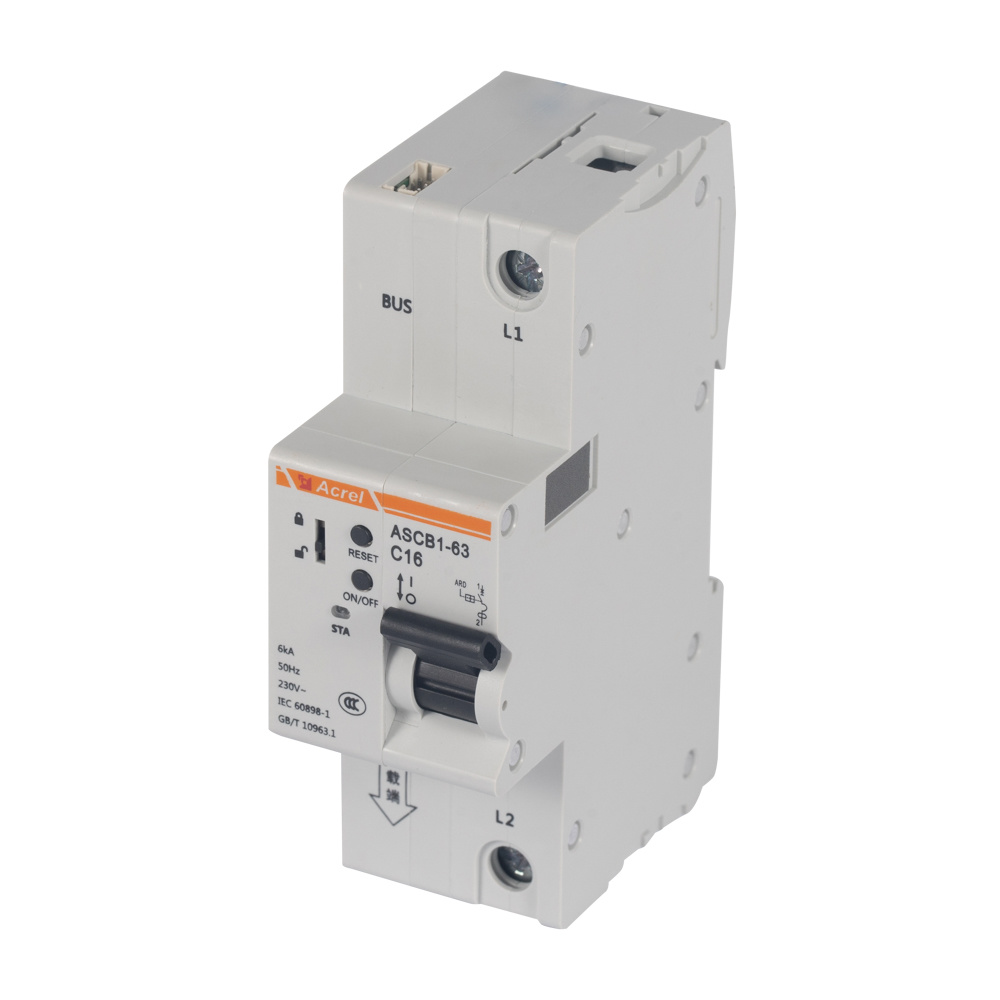

Acrel ASCB1-63-C32-1P Electrical Din Rail 32A Smart Single Phase Circuit Breaker for Remote Control Power Consumption Monitoring
Series of products: Products
Series of products: Power Monitoring and Controlling Devices
Series of products: Smart Circuit Breakers
- Product Description
- Parameters
- Q&A
- Download
-
Overview
ASCB1 series intelligent micro circuit breakers (hereinafter referred to as intelligent micro circuit breakers) are applied to low-voltage terminal distribution networks in industrial, commercial, civil buildings and infrastructure fields in residential buildings and similar places.
The intelligent micro circuit breaker is used with the intelligent gateway to conduct real-time monitoring of the key electrical parameters of the power line, such as voltage, current, power, temperature, leakage, energy consumption, etc., and has remote control, abnormal warning, accident trip warning alarm, electric energy metering statistics, fault positioning and other functions. This series of products can be selected from 1 pole, 2 pole, 3 pole, 4 pole.
Coding Rule
Dispaly
Function
● Real-time monitoring of voltage, current, power, electric energy, temperature, leakage current and other parameters
● With over voltage, under voltage, overload, short circuit, over current, ultra-moderate leakage and other protection functions
● Communication: RS485(Modbus-RTU)● optional buckle curve type C / D type.● With local manual lever, local electric control, local lock, remote control, timing control and other control functions
● Guide rail type installation, optional pole number 1P / 2P / 3P / 4P● Monitor residual current
● Neutral line can be switch off and protected● The rated current it can monitor is 63A.Application
Network
Dimension
Wiring & Installation
During installation, please tighten the copper wire with the torque specified in Table 5. After installation, check the copper wire as a shaking wire, and tighten the copper wire again with the specified torque.
The above figure is only examples of intelligent micro circuit breaker installation wiring, for reference only.
Note: Each type of intelligent micro circuit breakers can be installed in any combination, one gateway can connect up to 16 intelligent micro circuit breakers.
Product Description:- PView
- high-performance
- requirements
-
Table 3. Technical parameters table of intelligent micro circuit breaker
Model
ASCB1-63
ASCB1LE-63
Pole
1P/2P/3P/4P
2P/4P
Grade of Shell
63A
Rated Voltage
230V（1P/2P）、400V(3P/4P)
Rated Current
6A,10A,16A,20A,25A,32A,40A,50A,63A
Instantaneous Unbuckle Type
C/D
Rated Short-circuit Breaking Capacity
6000A
Protect
Over-current Protection
Default 100% rated current alert，
110% Rated current trip with adjustable threshold
Short-circuit Protection
5-10 Rated current for 0.04 seconds for circuit break protection
Overload Protection
Default 100% rated power alert，110% Rated power trip with adjustable threshold
Over-voltage Protection
Default 110% rated voltage alert，120% rated voltage trip with adjustable threshold
Under-voltage Protection
Default 90% rated voltage alert，80% rated voltage trip with adjustable threshold
Over-temperature Protection
Default 80℃ alert，100℃ trip, the threshold is adjustable
Leakage Protection
No
Default 20mA alert, 30mA trip, the threshold is adjustable
Leakage self-Inspection
No
Manual button self-inspection
Mechanical Life
20000次
Electrical Life
6000次
Levels of Protection
IP20
Connection Capacity
1-35mm²
Elevation Requirements
2000m
Ambient Temperature
-10℃～55℃，the average temperature at 24h was no higher than 40℃
Environmental Requirements
No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
Relative Humidity
At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
Storage Temperature
-20℃-70℃
Class of Pollution
Ⅱ
Installation Type
Ⅲ
Way to Installation
Standard 35mm guide rail installation
Table 4 ASCB1 Intelligent Gateway
Product Model
ASCB1-M-4G
ASCB1-M-CE
Power Supply
AC 220V
Consumption
≤30W
Communication
4G
Ethernet
Display
LCD dot-matrix
Incident Record
Up to 20 alarm, fault and action records each
Protocol
Modbus-RTU、MQTT and so on
Elevation Requirements
2000m
Ambient Temperature
-10℃-55℃，24h the average temperature is not higher than 40℃
Environmental Requirements
No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
Relative Humidity
At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
Storage Temperature
-20℃-70℃
Levels of Protection
IP20
Way to Installation
Standard 35mm guide rail installation
-
