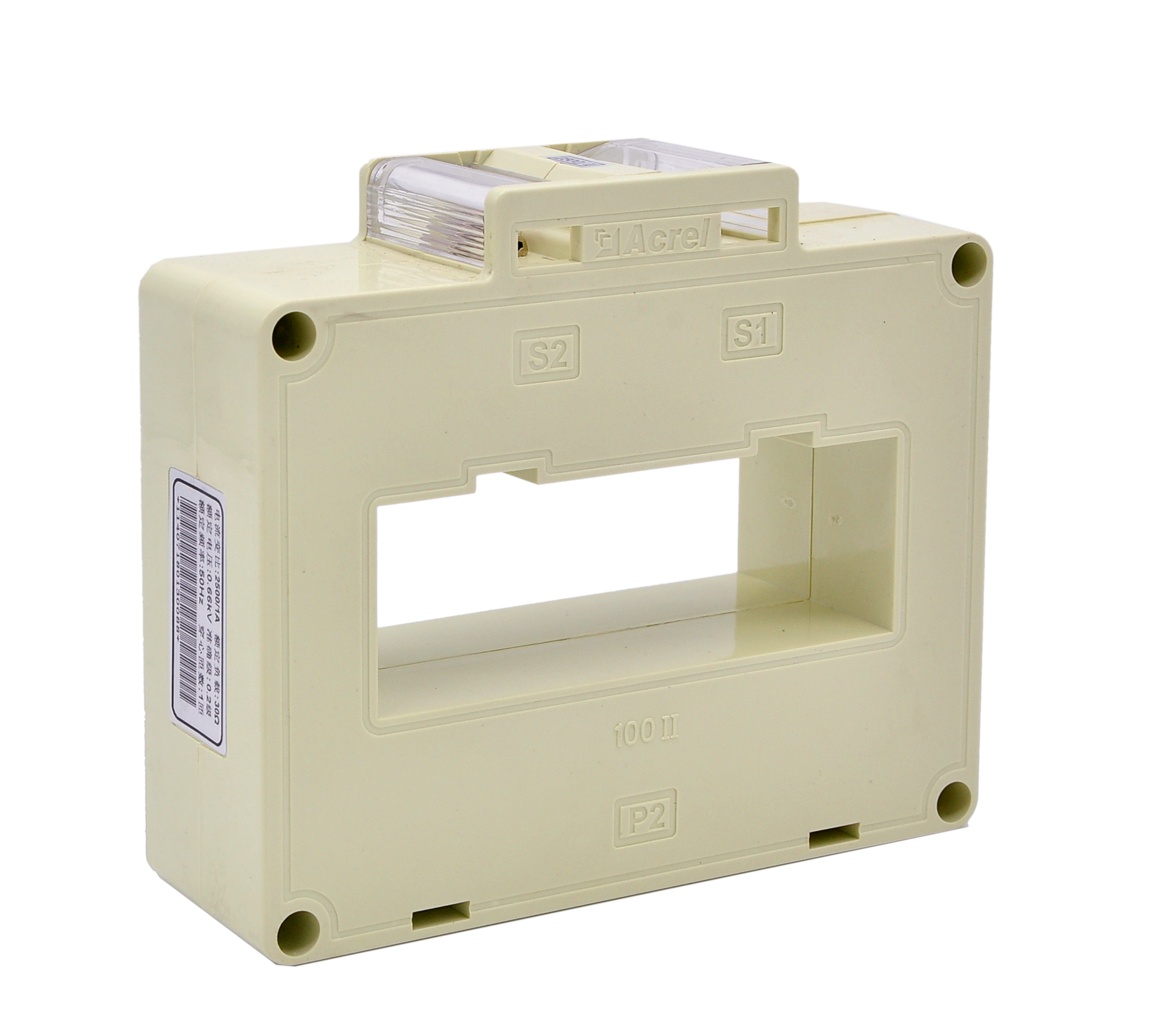

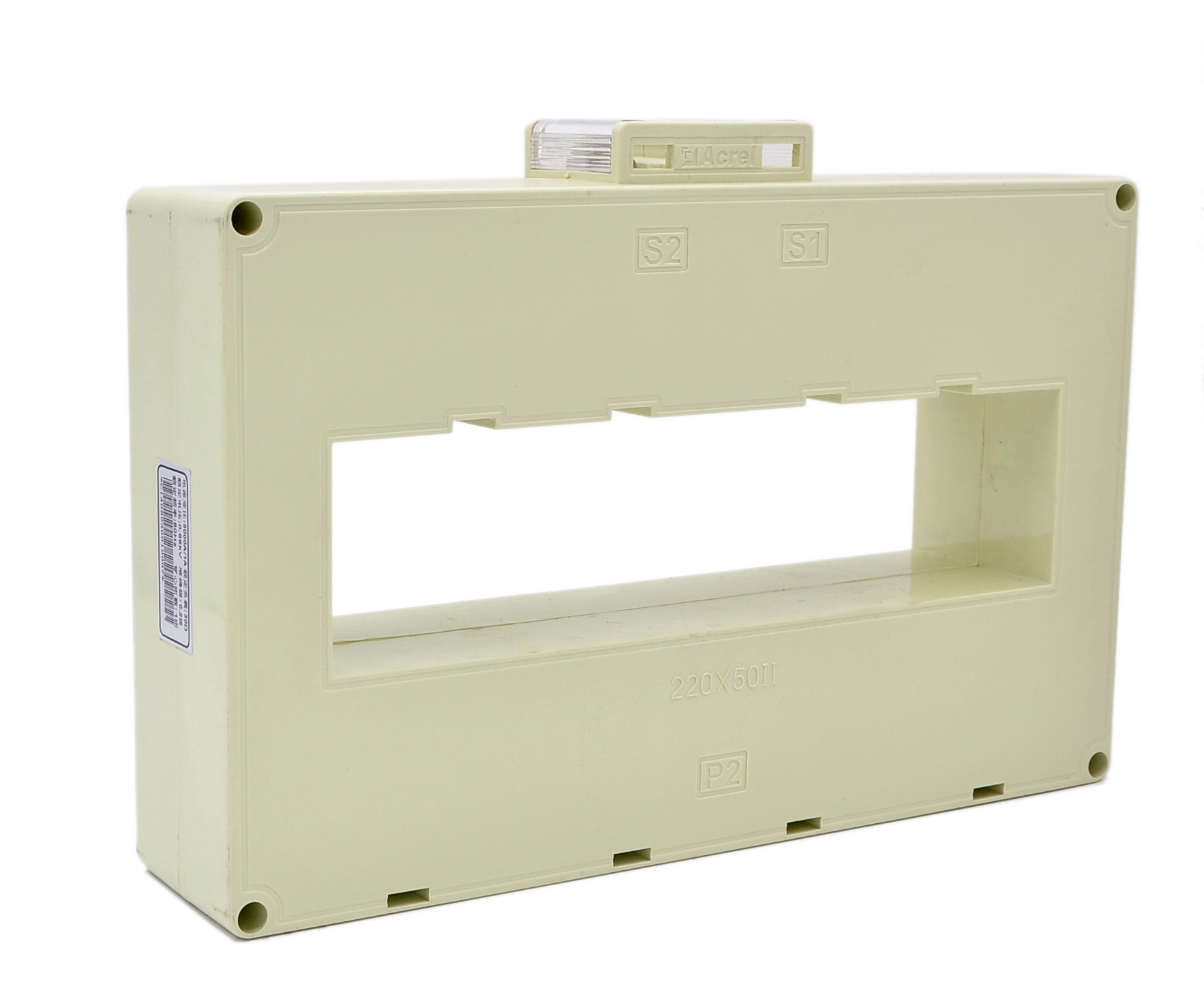

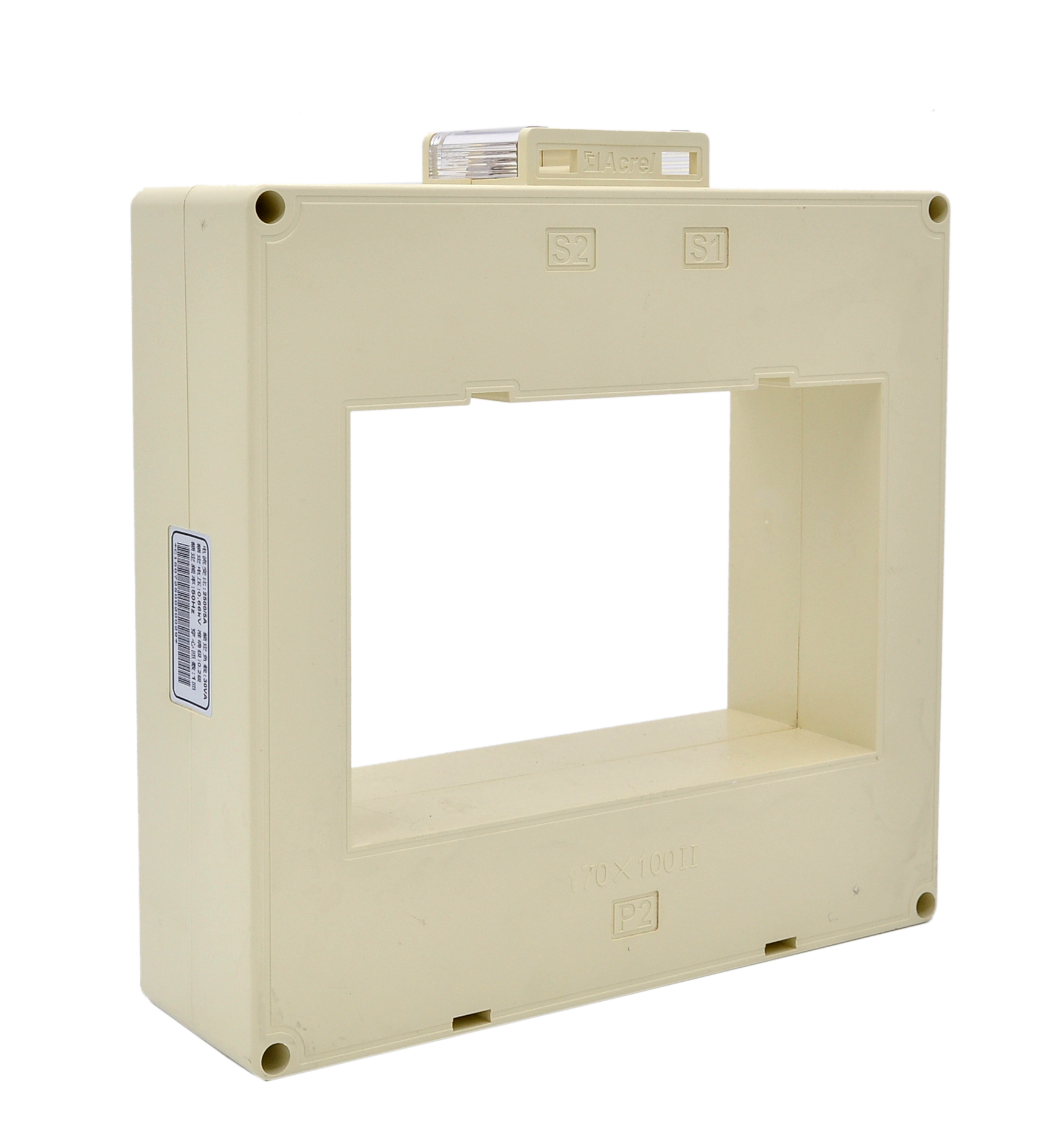

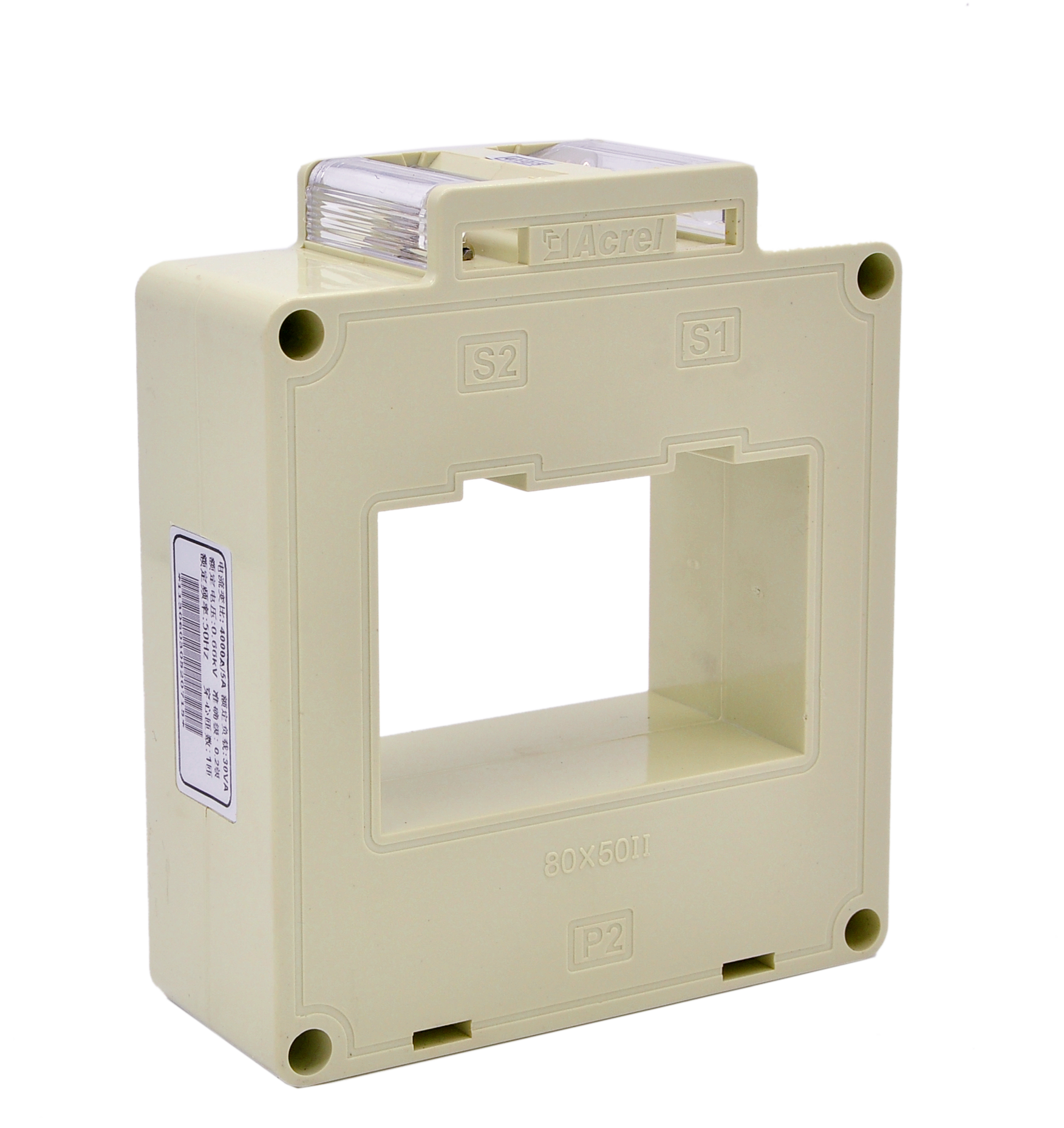

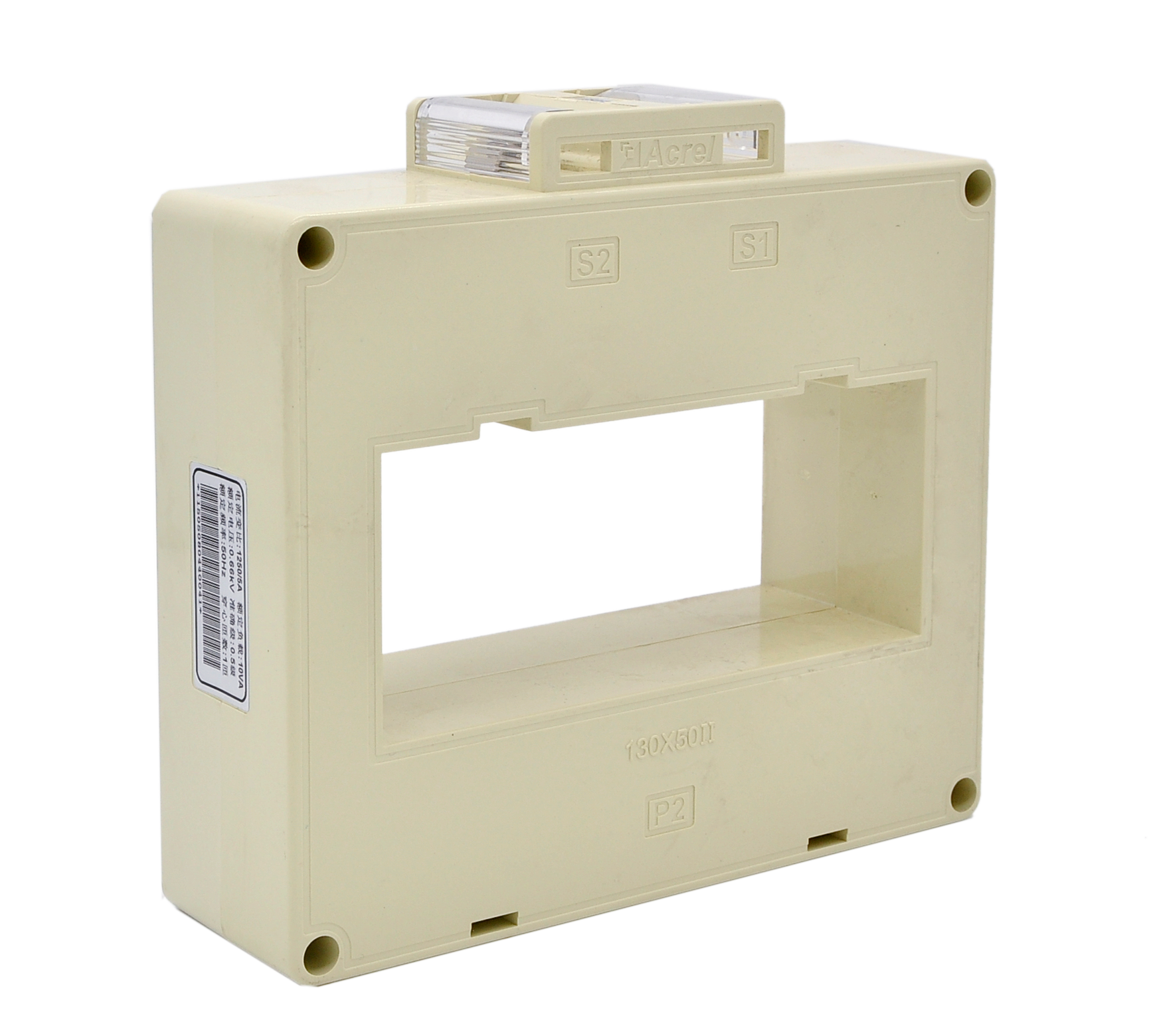

Acrel AKH-0.66/G G-170x100II Series, 5000A/5A Closed Core AC CT Current Sensor High Accuracy Current Transformers for Smart Power Meters IOT Cloud Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Power Sensors
Series of products: AC Current Transformers
Series of products: Closed Core AC Current Transformers
- Product Description
- Parameters
- Q&A
- Download
-
Overview
The seris of closed core current transformers are patented and flip designed. The appearance is nice and the wiring is convenient.
The transparent polycarbonate material is selected for the flip. We can clearly see the secondary lead wiring. It have square-round hole for both cable and bus passing through.
As alternating current signal acquisition element, it is generally matched with measuring instruments and widely used in electrical sets.

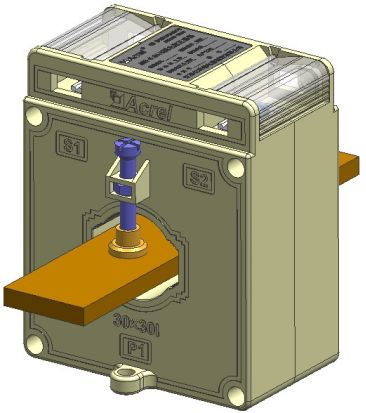

Vertical square hole type, they can pass through 1-3 bar bus. Not only they possess features of typeⅠ , Ⅱ, III, but also can be used for electric metering of power supply, and matched with current relay to do protection.
This product meet the requirements of GB20840.2-2014 (Equivalent IEC61869-2: 2012, MOD), and have achieved CE certificate.

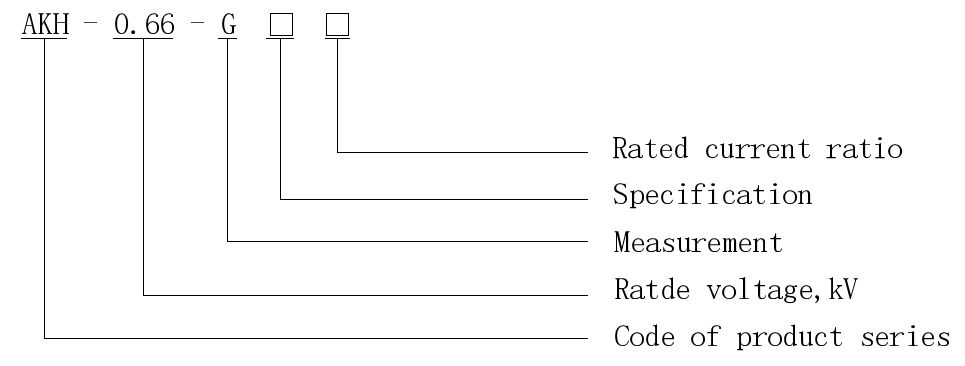

Coding Rule
Dispaly
Function

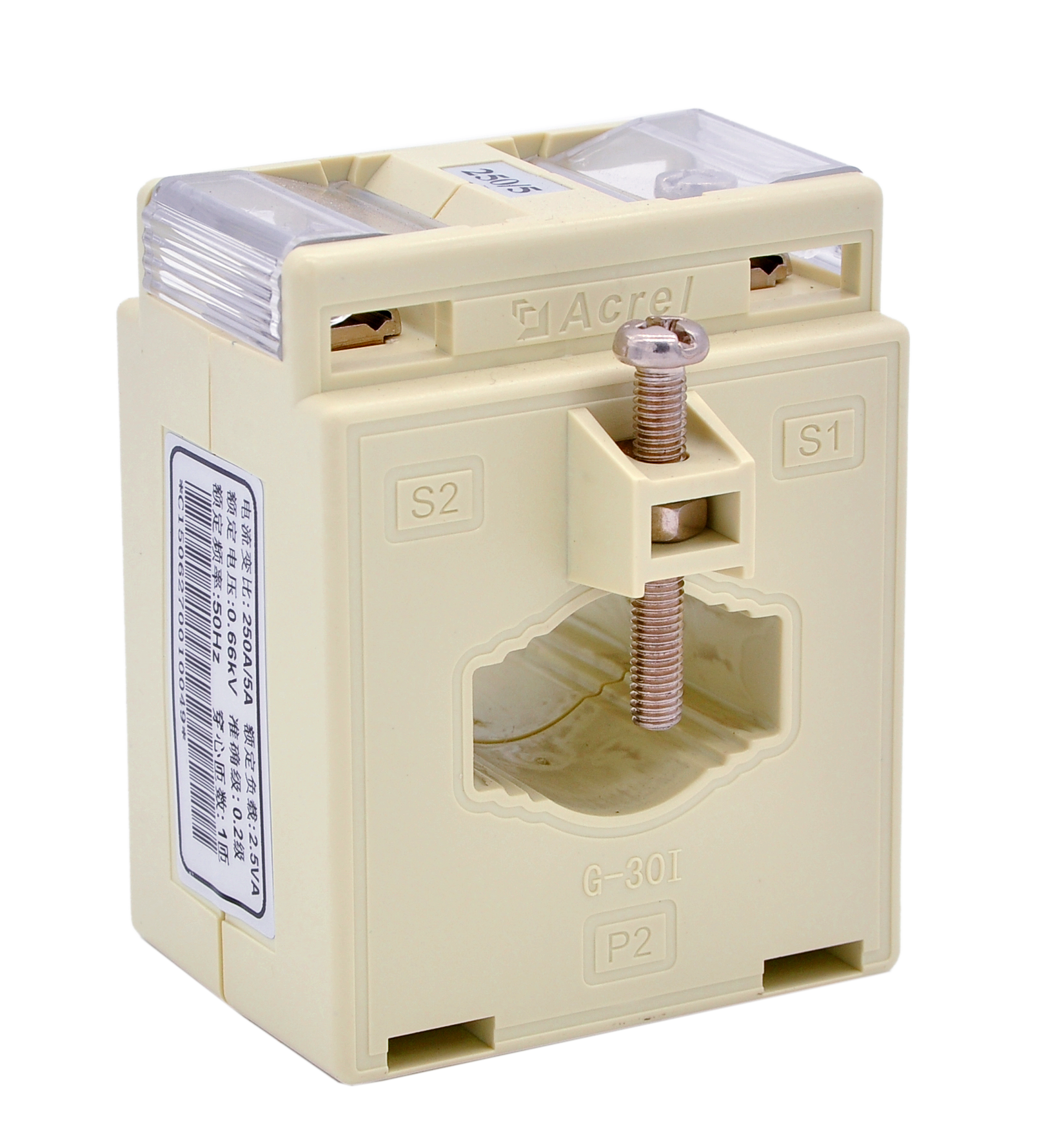

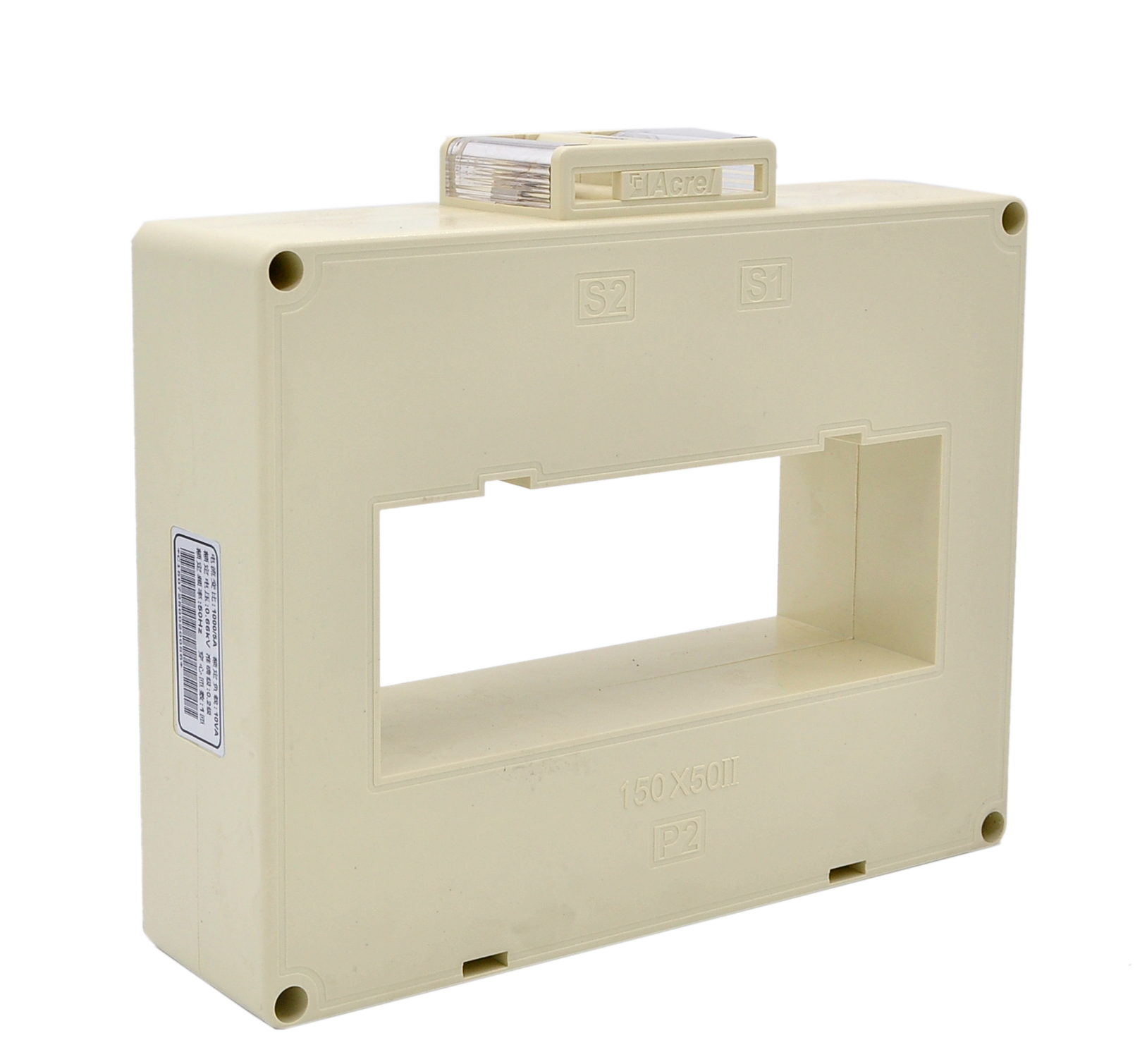

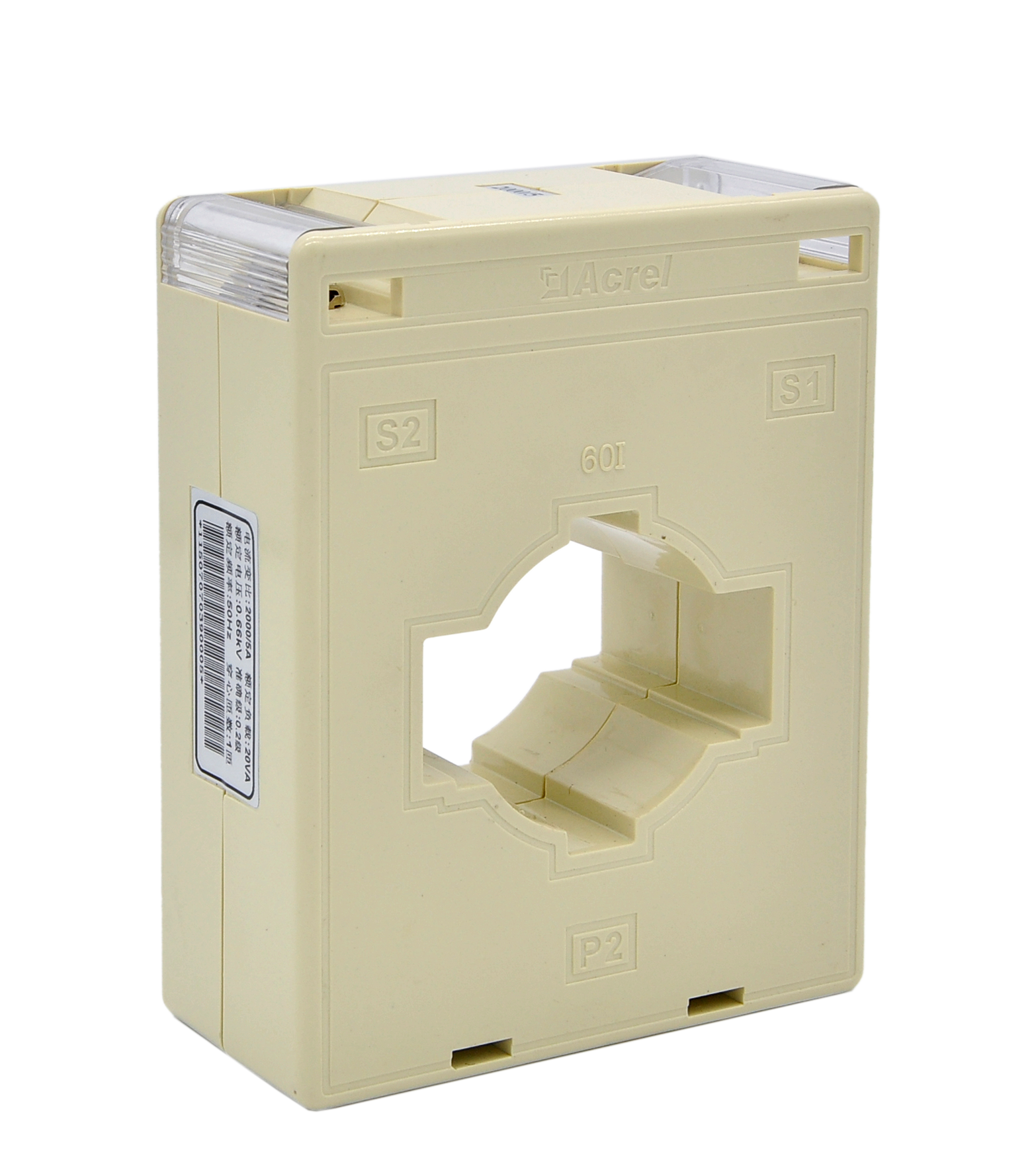

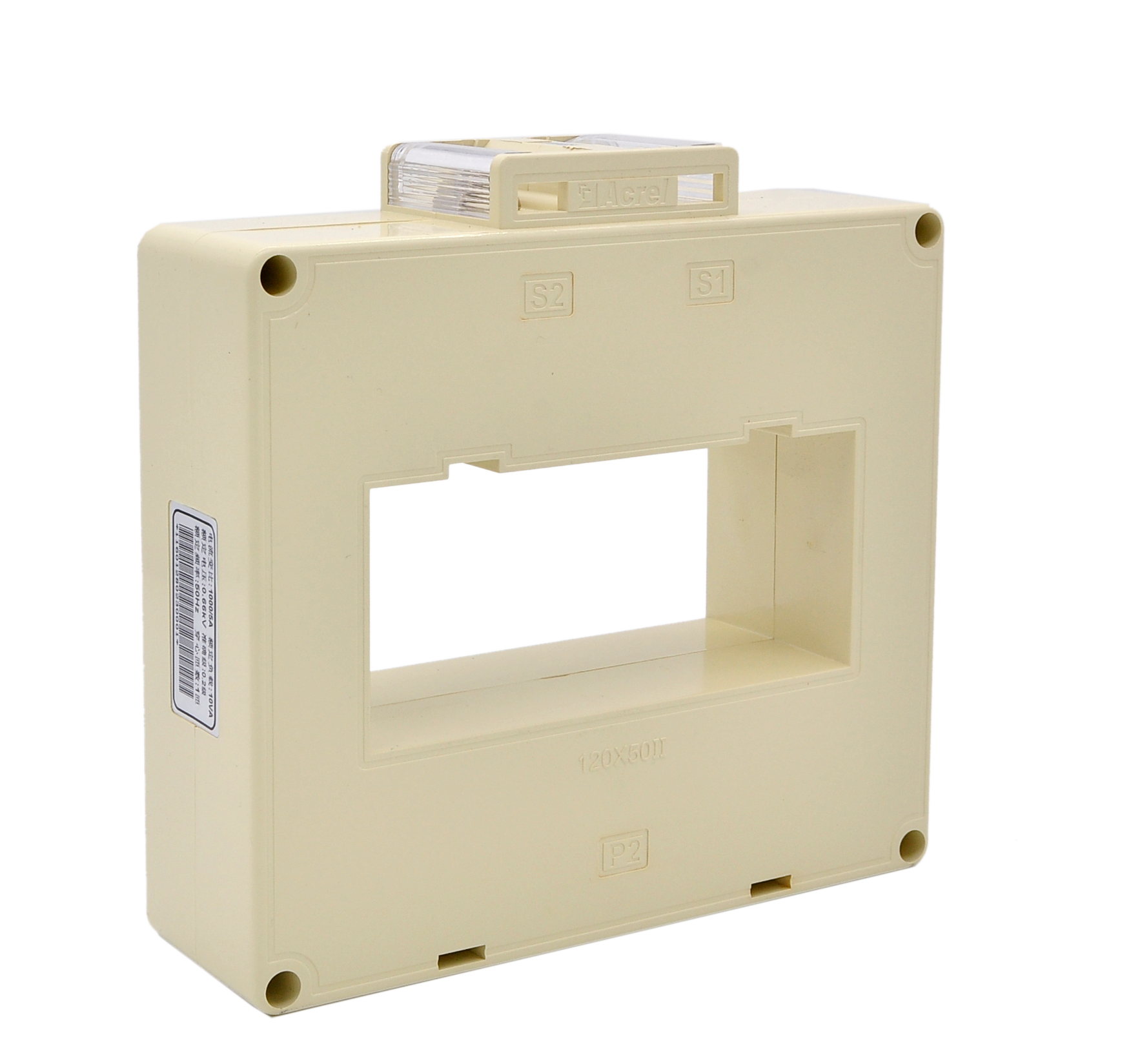

● Model: AKH-0.66/G G-30I, G-30x30I, G-40I, G-60I, G-80I, G-40II, G-50II, G-60II, G-60x50II, G-80II, G-80x50II, G-100II, G-100x50II, G-100x80II, G-120x50II, G-130x50II, G-150x50II, G-170x100II, G-180x50II, G-200x50II, G-220x50II, G-260x50II, G-260x100II, G-60III, G-80III, G-100III, G-130III
● Accuracy: 0.2, or 0.5S, or 0.2S
● Rated operation voltage AC 0.66kV
(Equivalent AC 0.69kV, GB156-2017)
● Rated secondary current: 5A
● Rated primary current: 10A-5000A
● Rated frequency: 50-60Hz
● Continuous overload: 120%In
● Protection level: IP30
● Operating temperature:-30℃-+70℃
● Storage temperature:-40℃-+80℃
● Relative humidity, no condensation:90%
● Standard&Certificate: CE; IEC; UL

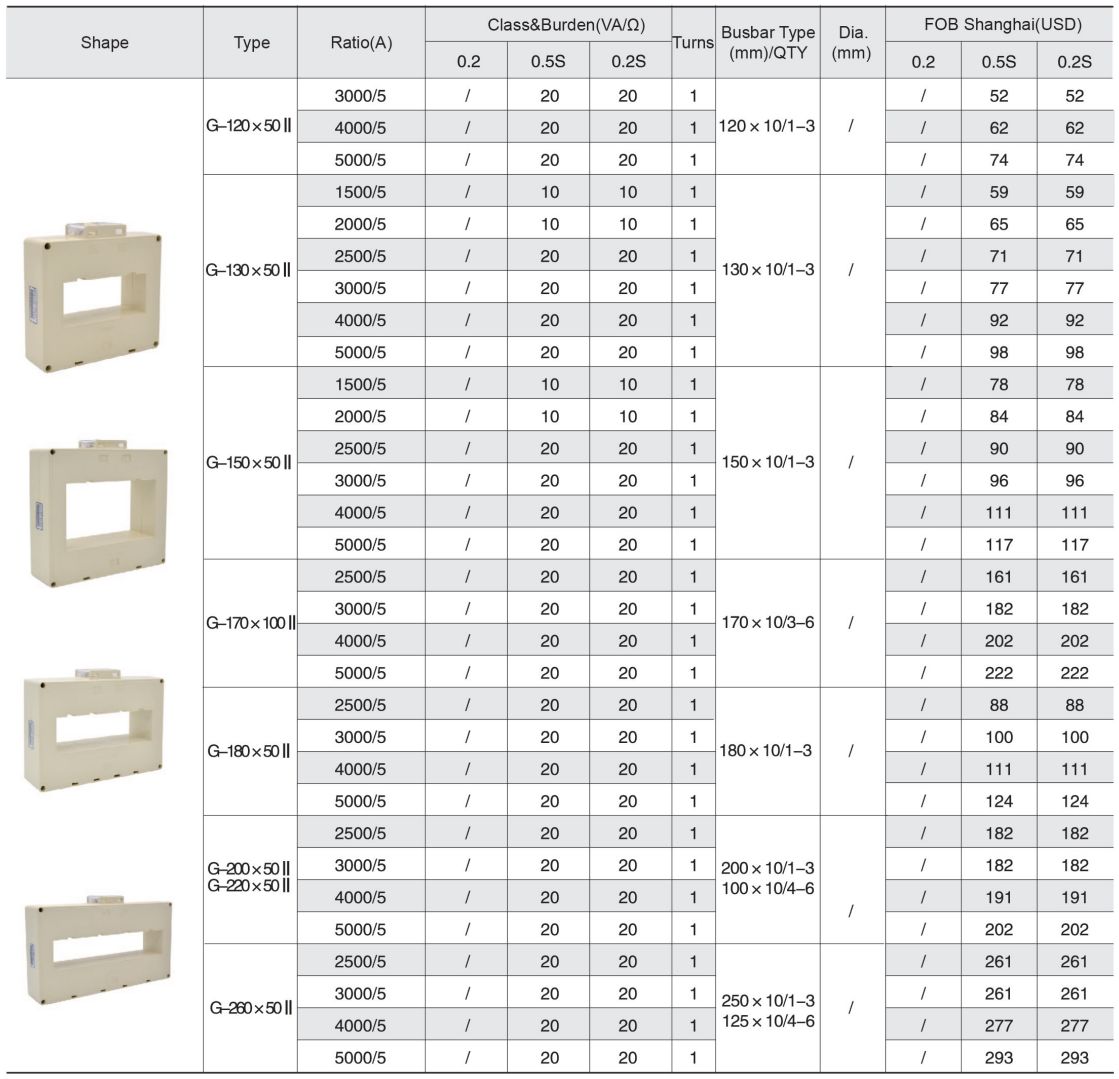

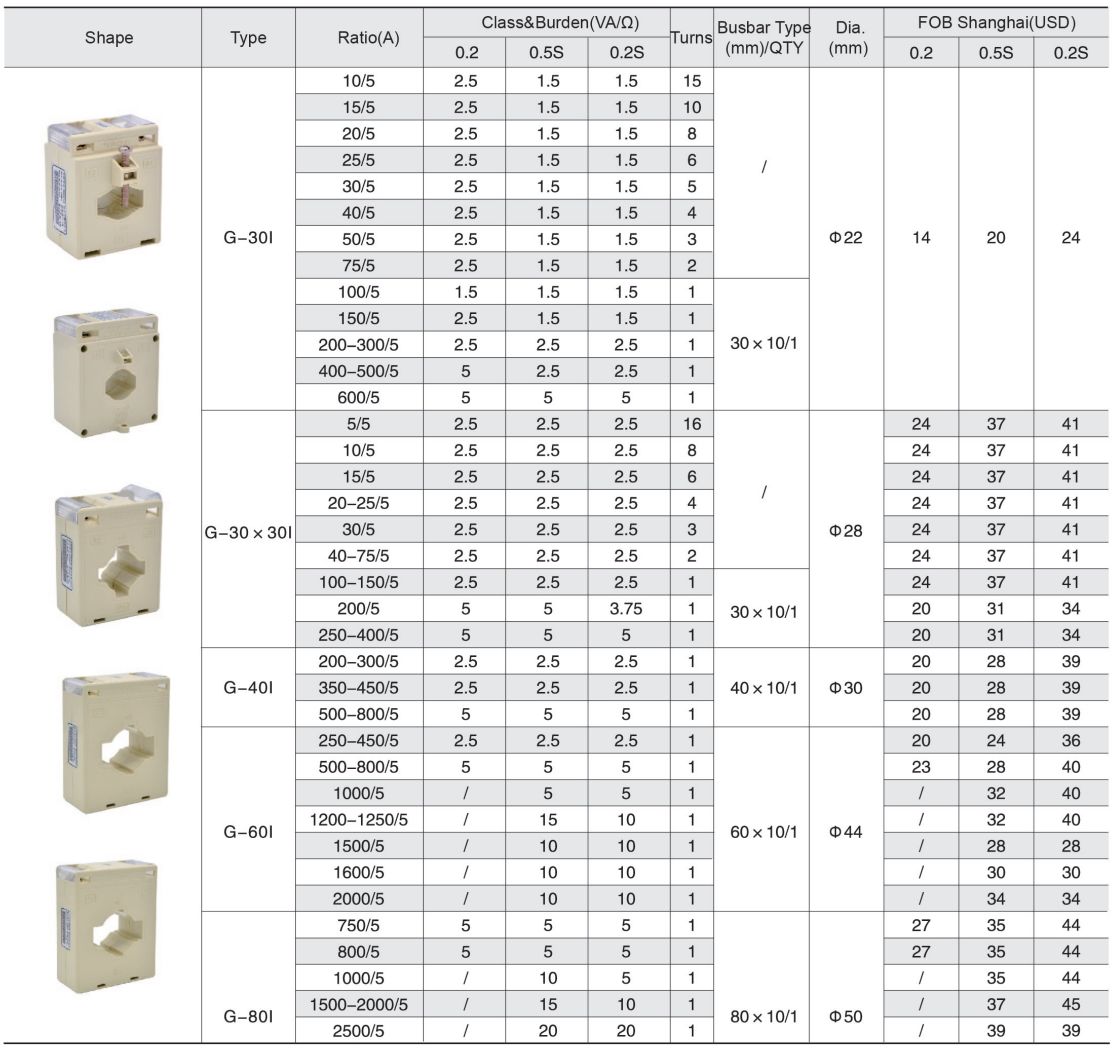

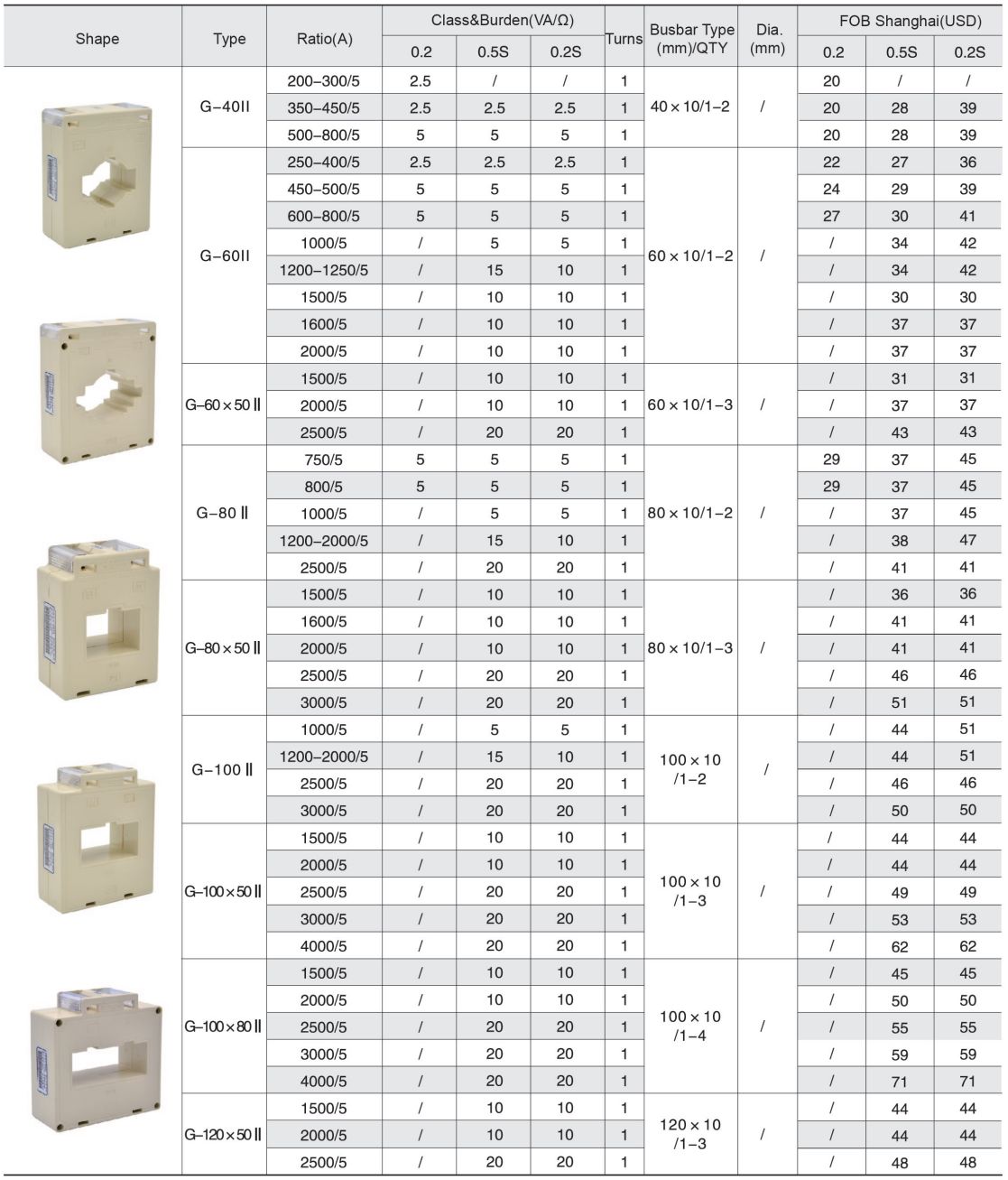

Models
Network

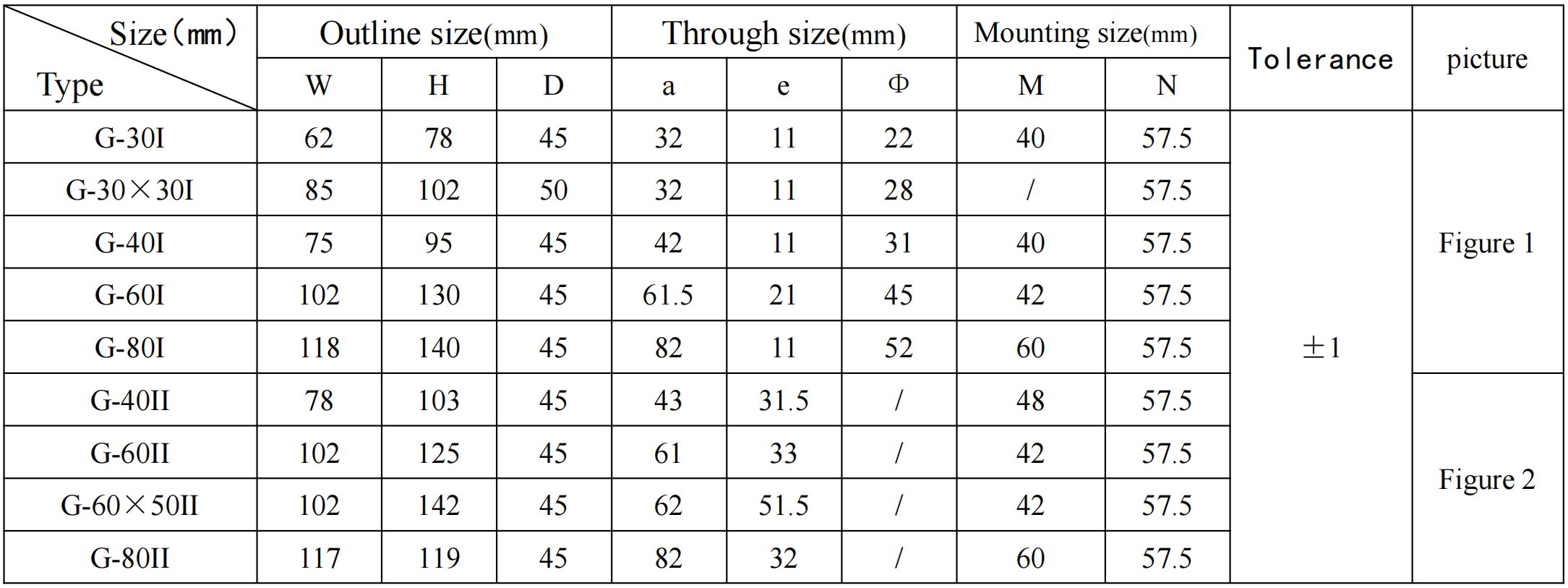

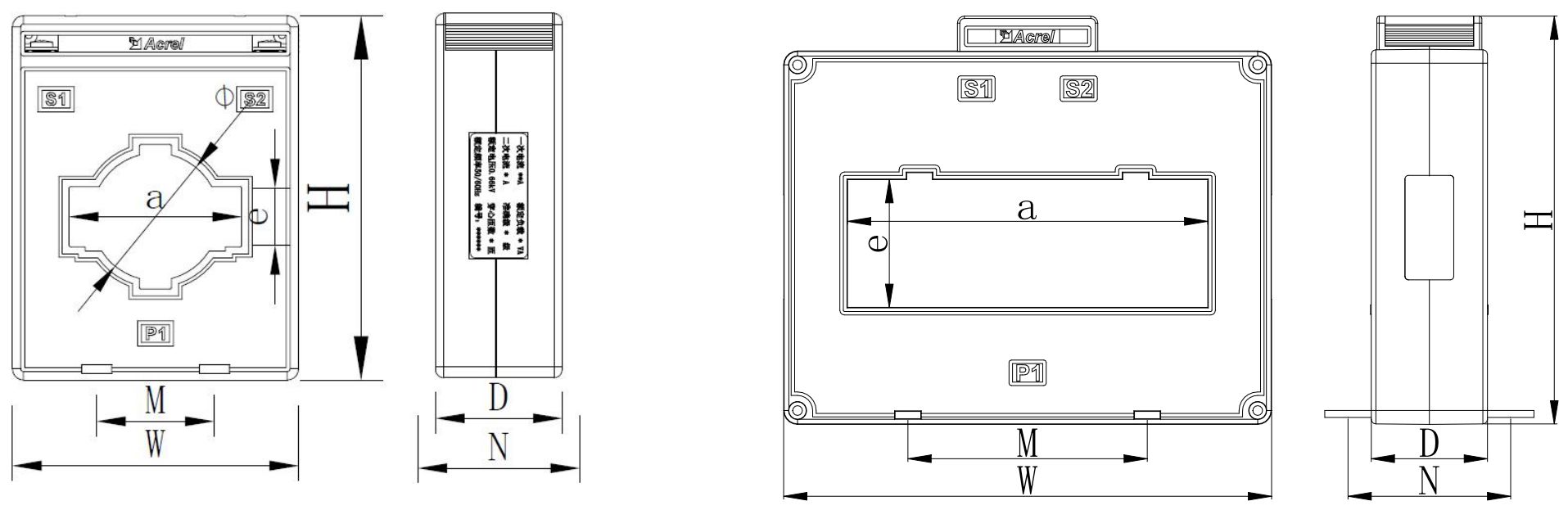

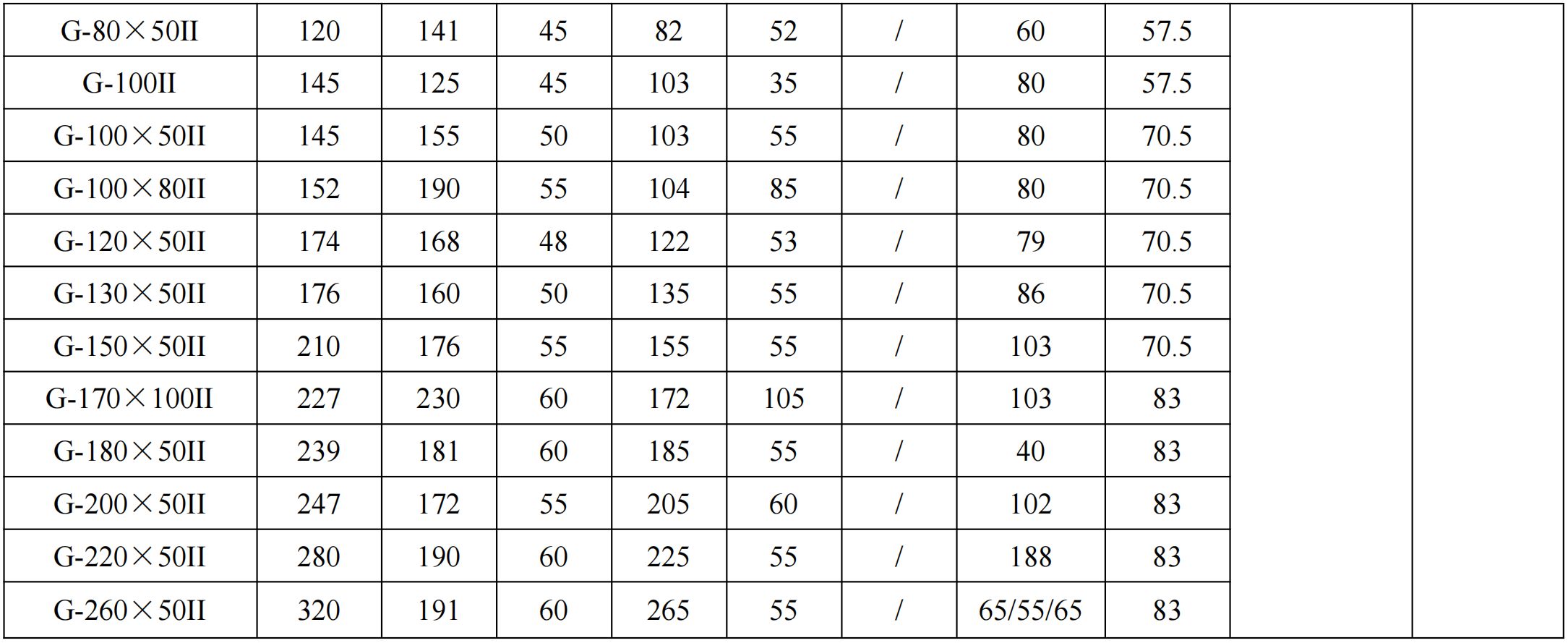

Dimension

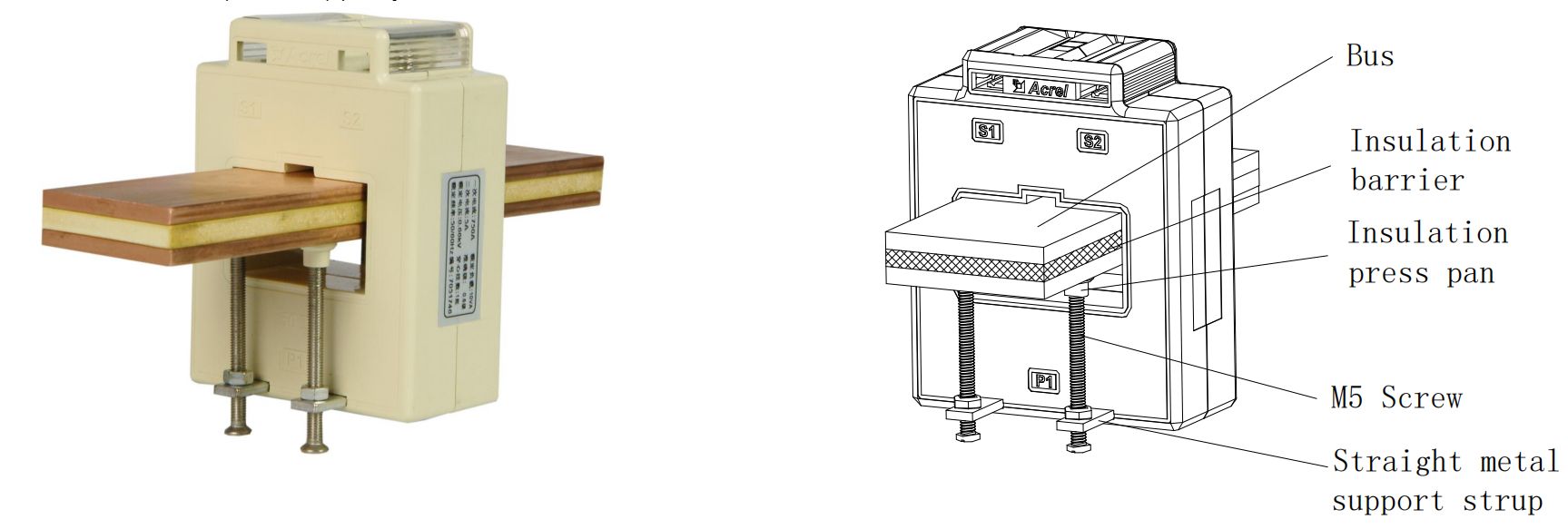

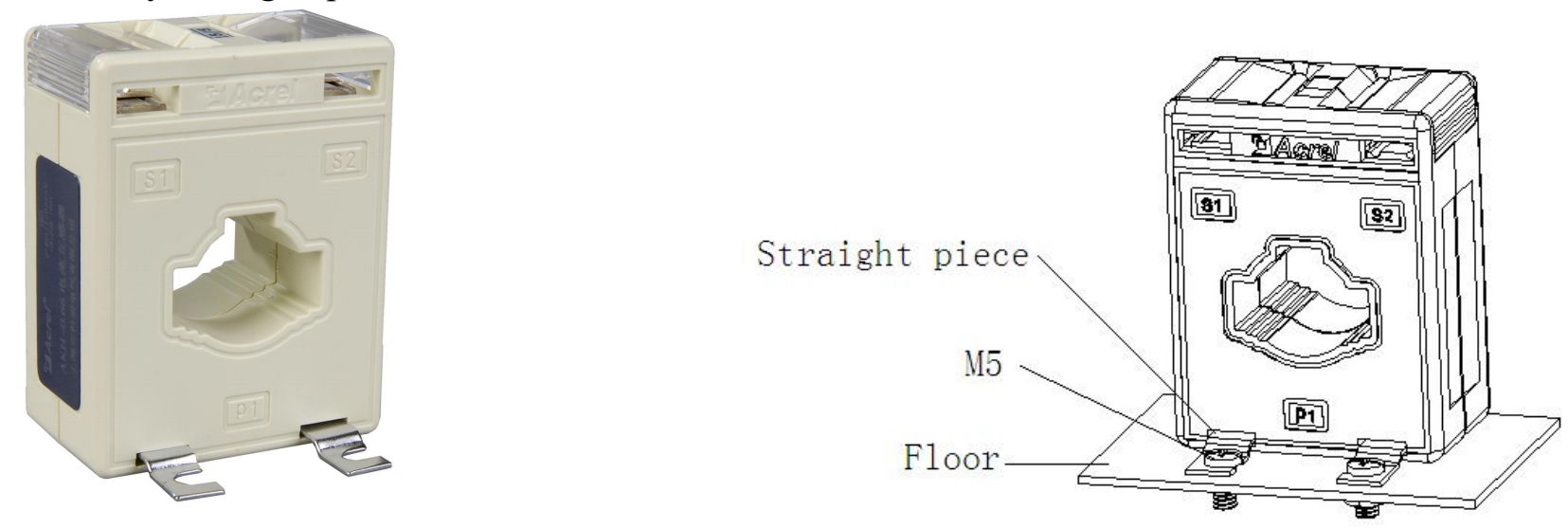

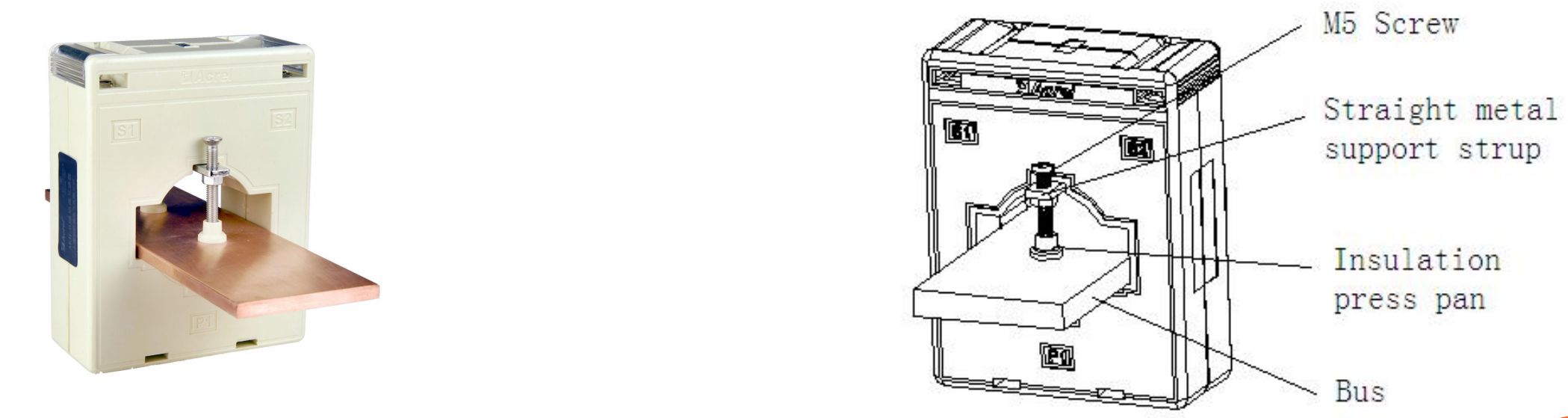

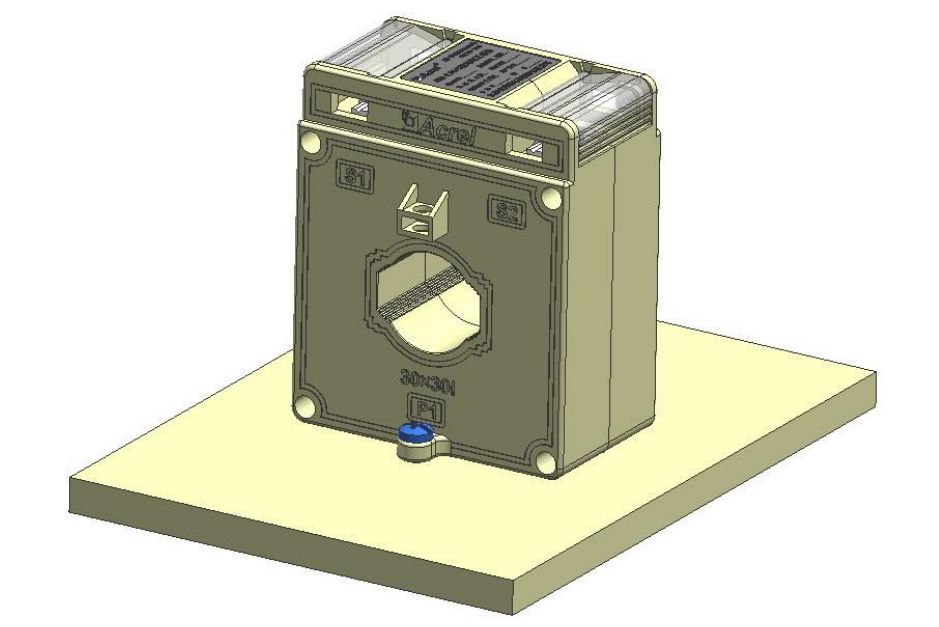

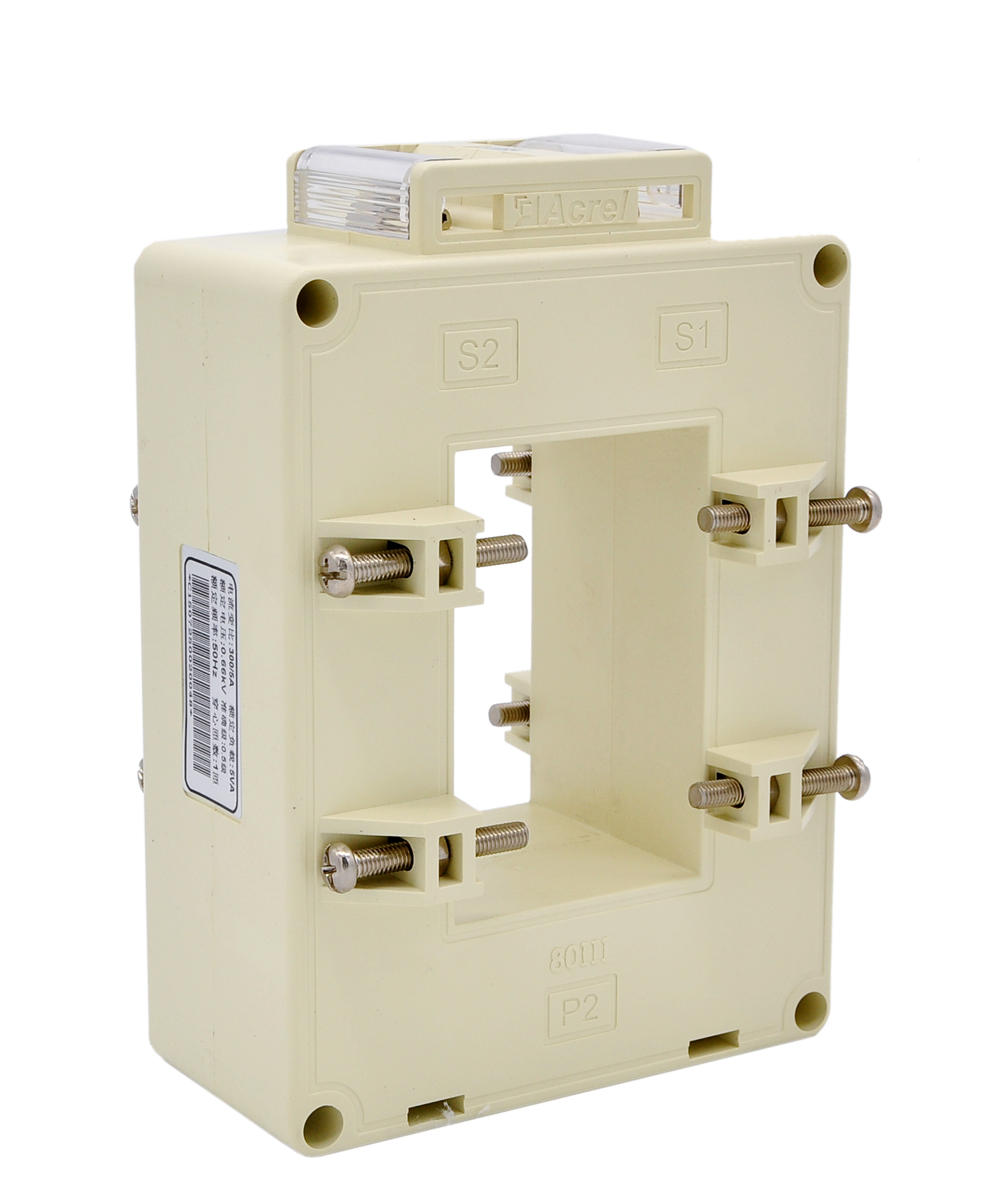

Installation
A. Fixed by straight piece
C. Fixed by straight piece
D. Fixed by straight piece
E. Fixed by straight piece
F. Fixed by straight piece
Product Description:- PView
- high-performance
- requirements
-
Models
-
