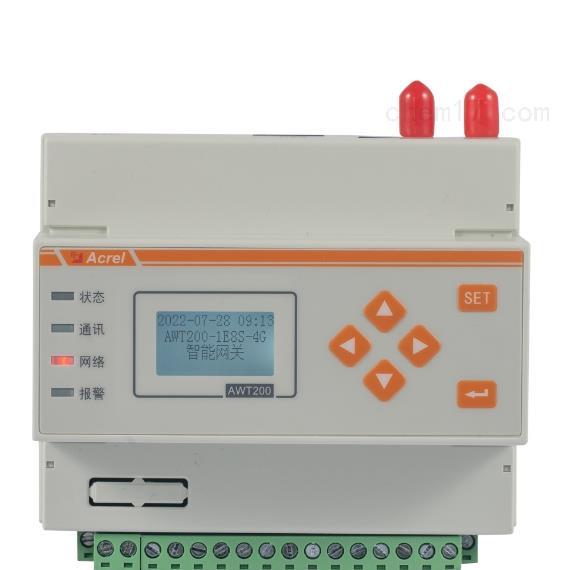

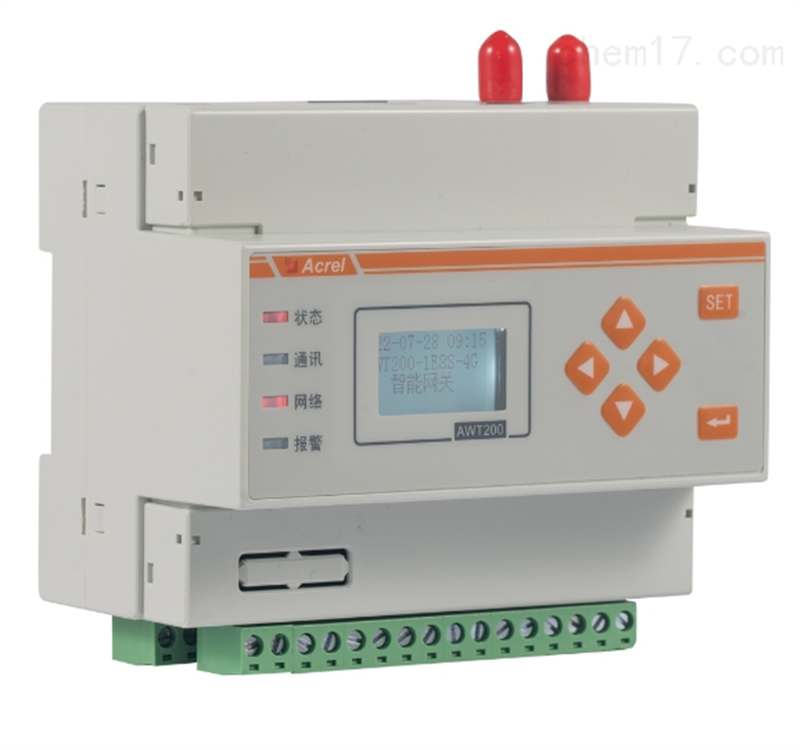

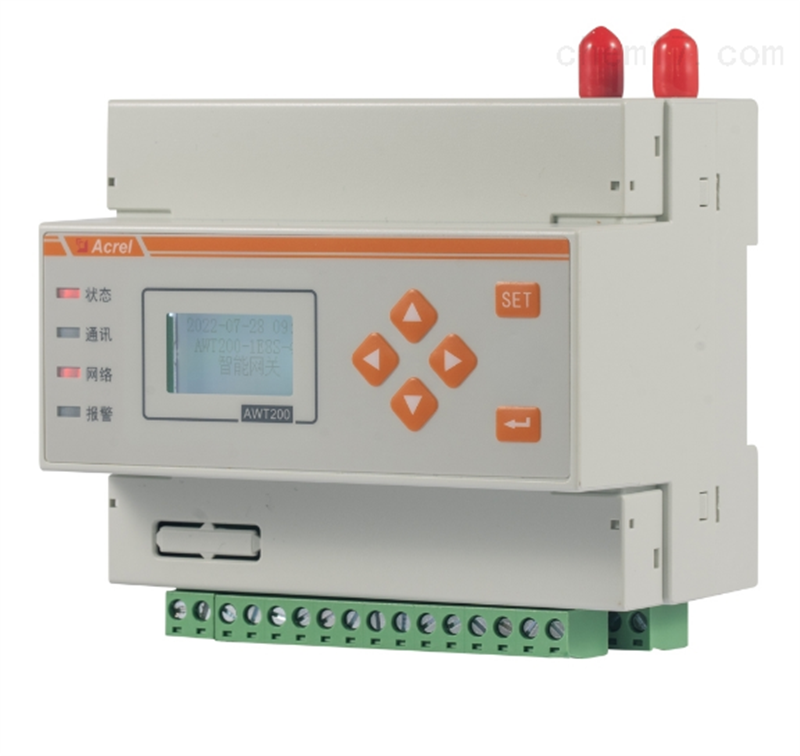

Acrel AWT200-1E4SL-WiFi CE Approved 4 RS485(Modbus-RTU) / Ethernet & WiFi Smart WiFi Gateway For IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Smart Gateway
Series of products: AWT200 Series of Smart Gateways
- Product Description
- Parameters
- Q&A
- Download
-
Overview
AWT200 data communication gateway is used in various terminal equipment data acquisition and data analysis, to realize the monitoring, control and calculation of the equipment, to establish a communication link between the system and the equipment, to achieve two-way data communication.
Real-time monitoring and timely discovery of abnormal data, at the same time according to the user rules to make logical judgment, greatly saving manpower and communication costs.

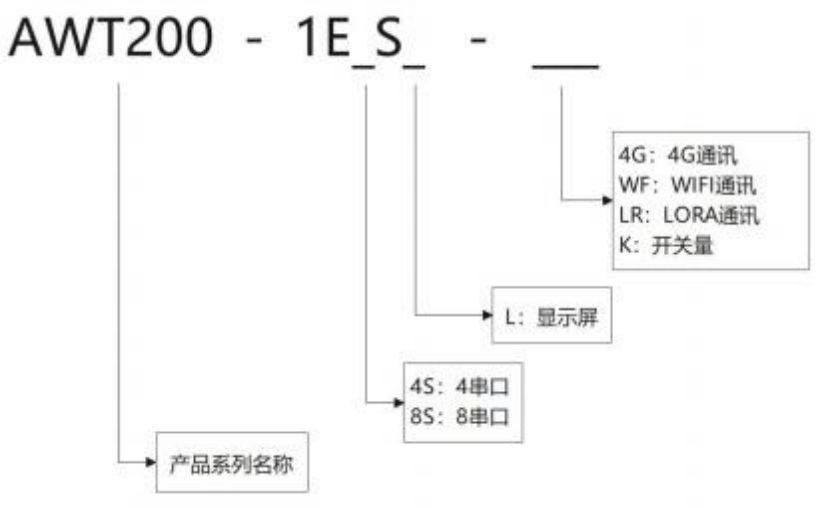

Coding Rule
Dispaly
Function
● Communication: 4 channels of RS485(Modbus-RTU)/ Ethernet(Modbus-TCP/IP), WiFi etc.
● Operating voltage: DC24V, or AC/DC220V
Can link to IOT Platform, Energy Management Systems, etc.
Features
1) Support on-site debugging free, adaptive meter reading
2) The maximum support for centralized collection of 10,000 points
3) Large capacity storage, support resumable breakpoint
4) Supporting management tools, convenient system configuration and maintenance
5) Strong communication ability, up to support 8 serial ports, LoRa, Ethernet, 4G, WIFI
6) With switch quantity and analog quantity input
7) 1.2 inch dot-matrix display screen and buttons
8) Support a variety of mainstream IoT communication protocols
9) Support data logical operation and processing

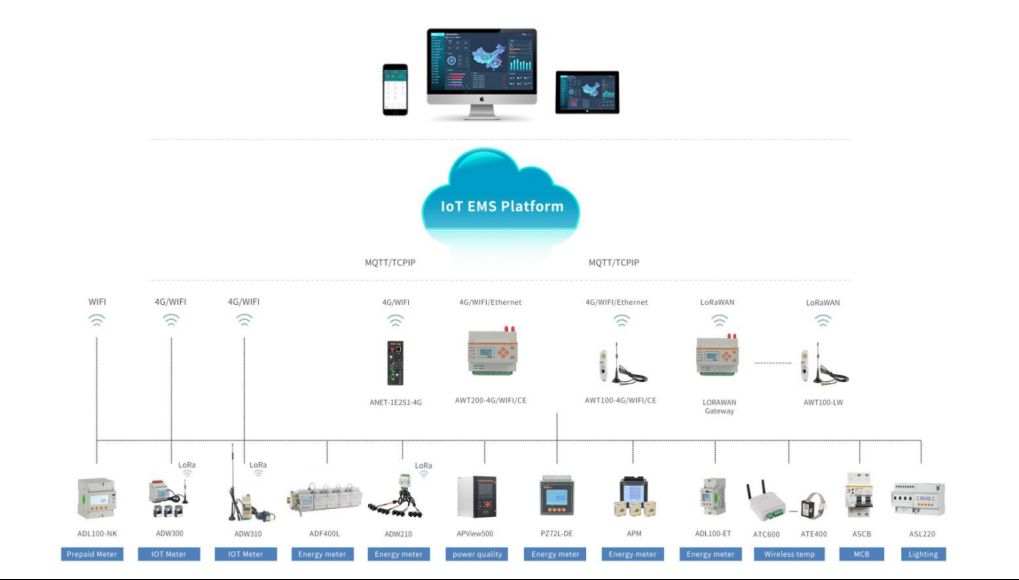

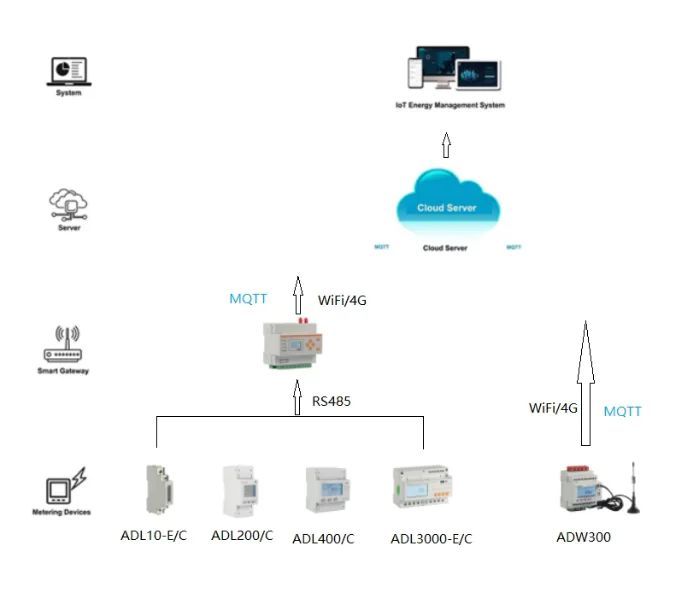

Network/Application

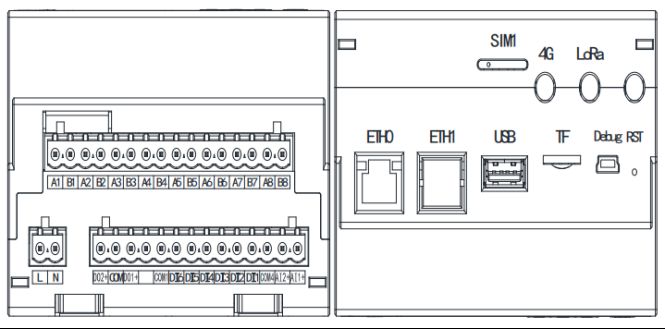

Wiring
Wiring Diagram of AWT100-4GHW (24Vdc Power Supply via default Configuration)

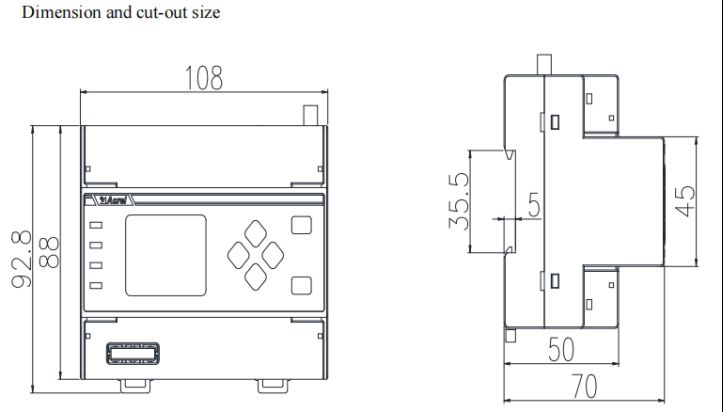

Dimension
Product Description:- PView
- high-performance
- requirements
-
Technical Parameter
外形 Shape

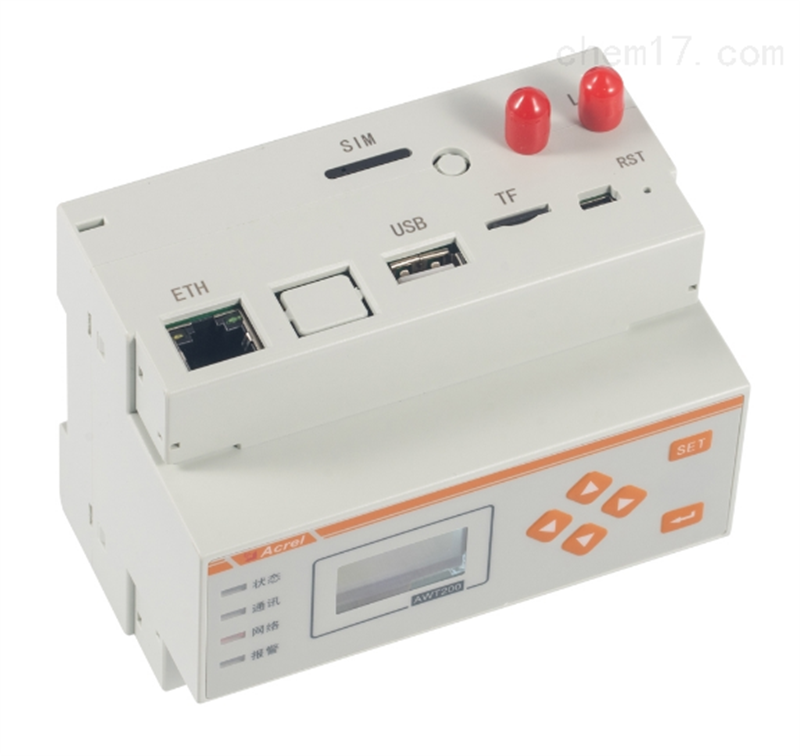

接口 Interface
RS485：接线端子 AI/DI/DO：接线端子
RS485: wiring terminal AI/DI/DO: wiring terminal
尺寸 Size
6 模（108mmX88mmX70mm）导轨，阻燃 ABS 材料
6-mold (108mmX88mmX70mm) din-rail, flame retardant ABS material
性能 Performance
处理器 Processor
M4 内核
M4 Kernel
主频 Frequency
168MHZ
存储 Storage
8G TF 卡
8G TF Card
通信接口 Communication Interface
以太网 Ethernet
10M/100M * 1 ，电气隔离 Electrical Isolation
串口 Serial Port
RS485*（4/8）：485A 、485B 、GND ，电气隔离 Electrical Isolation
串口参数 Serial Port Parameter
波特率 Baud Rate
1200~ 115200bps
验位 Check Bit
无、奇、偶 None,Odd,Even
数据位 Data Bit
7～8 位 Bits
流控
Flow Control
无流控 No Flow Control
软件 Software
IP 方式 IP Mode
IPV4 、IPV6
协议 Protocol
TCP、UDP、HTTP、DHCP
配置方式
Configuration Mode
Windows 桌面软件、WEB 浏览器、远程调试
Windows Desktop Software, WEB Browser, Remote Debugging
通信方式
Communication Mode
TCP/IP 直接通讯、RS485、LORA
TCP/IP direct communication 、RS485、LORA
通信协议 Protocol
Modbus RTU 、Modbus TCP 、MQTT
固件升级
Firmware upgrade
Windows 桌面软件、WEB 浏览器、串口升级
Windows Desktop Software, WEB Browser, Serial port upgrade
工作模式 Working mode
TCP 服务器, TCP 客户端，UDP 服务器, UDP 客户端
TCP server, TCP client, UDP server, UDP client
电源要求 Power Requirements
电源 Power Supply
DC 12-24V （配电源适配器）（Power Adapter）
环境要求 Environment
操作温度
Operating
Temperature
-20℃~+55℃
储存温度 Storage Temperature
-40℃~+85℃
<95%RH ，不结露 No Condensation
-
