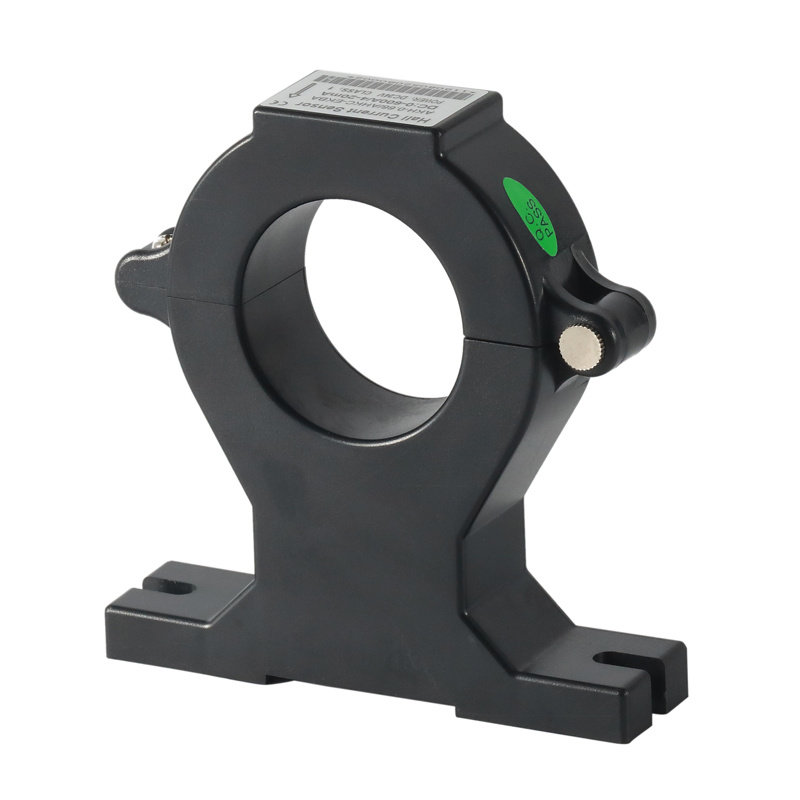

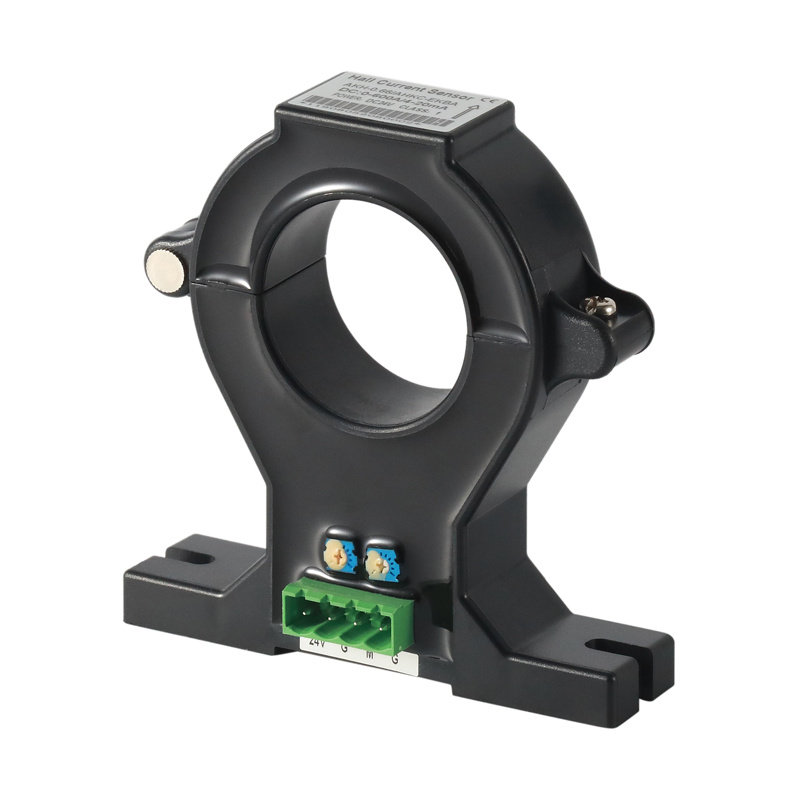

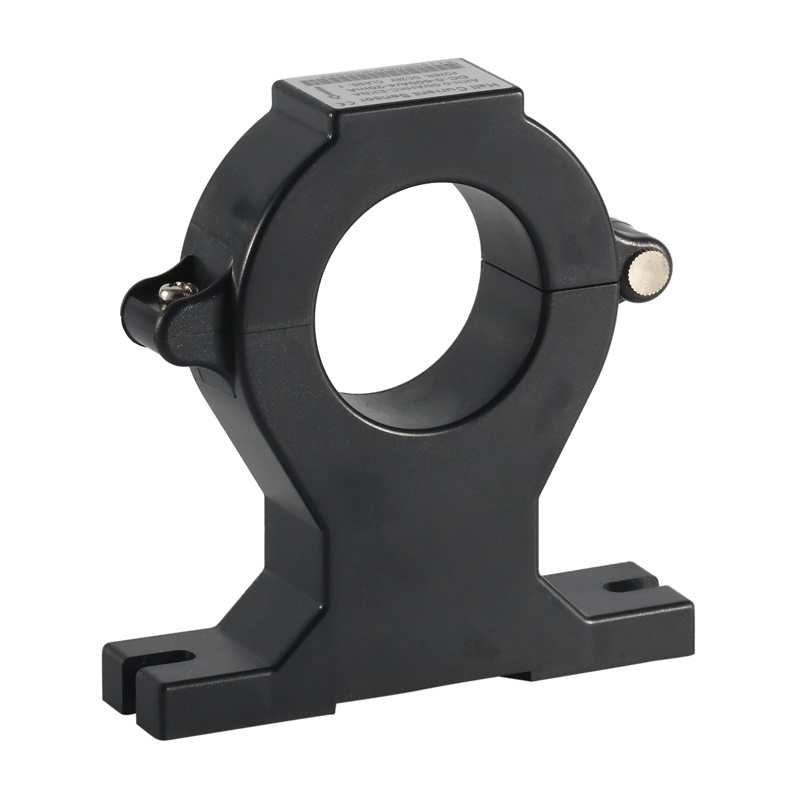

AHKC-EKA 500A/0-5V Split Core Hall Effect Sensor for DC Energy Meters IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Power Sensors
Series of products: Hall Effect Sensors
- Product Description
- Parameters
- Q&A
- Download
-
Overview
Hall current sensors are mainly used to isolate and convert Ac,DC,pulse and other complex signals .After signals are convertedaccording to the Hall Effect Theory,the can be directly acquired by AD,DSP,PLC, secondary instruments and other devices.Hall current sensors are widel applicable for acquisition and feedback control of current signals in the current monitoring,battery application,inverter,solar power management,direct current cabinet ,DC motor drive,electroplating,welding,frequency converter,UPS servo control systems.They feature the quick response ,wide range of measurement,high precision ,strong overload capcity,good linearity and excellent and anti-interference performace.

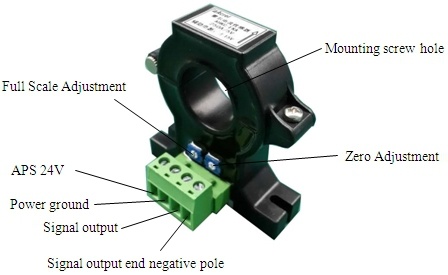

Dispaly
Function
● Rated current input：AC/DC0-(50-500)A
● Rated output voltage: ±5V/±4V, 10V, 2.5V±2V, ±3.3V, 1-5V, 2.5±0.625V
● Aperture: 20mm/40mm/55mm/etc
● Power supply: ±15V, ±12V
● Accuracy Class: 1
● Zero Offset Voltage: ±20mV
● Offset Voltage Drift: ≤±1.0mV/℃
● Linearity: ≤0.2%FS
● Response Time: ≤5us
● Bandwidth: 0～20kHz
● Isolation Voltage: 3.5kV/50Hz/1min
● Operating Temperature: -40℃～85℃
● Storage Temperature: -40℃～85℃
● Consumption: ≤0.5W

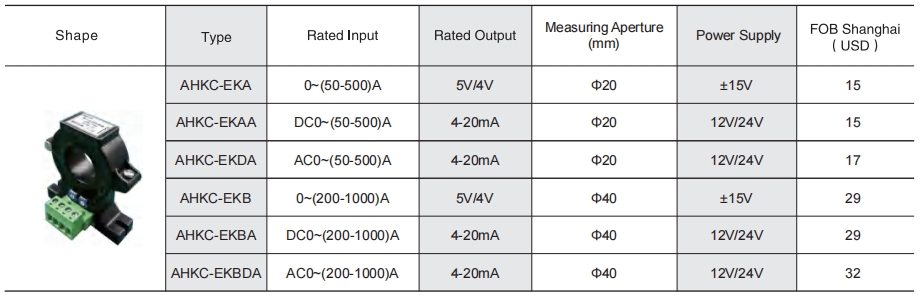

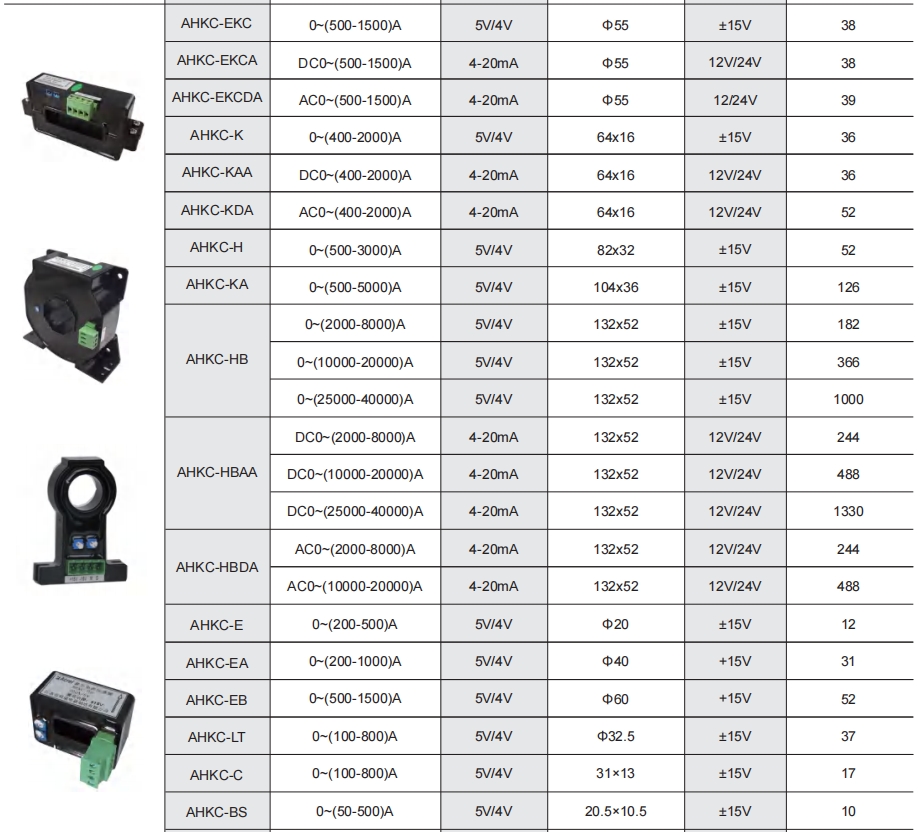

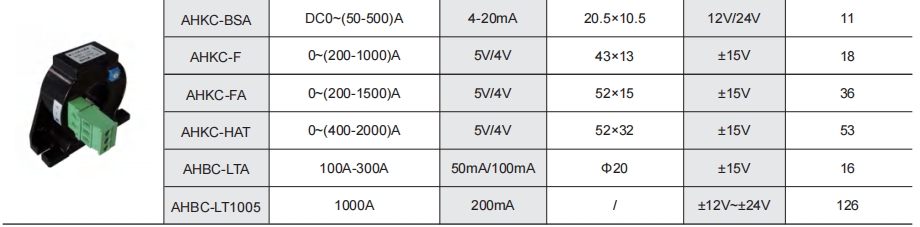

Models
Network

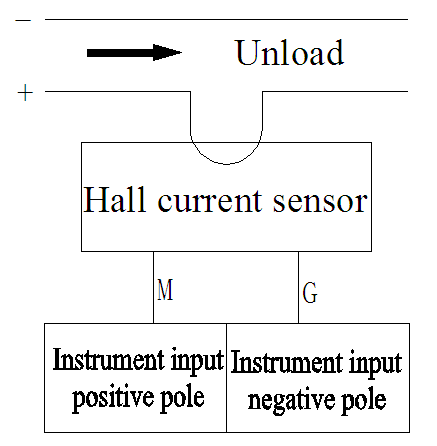

Wiring
+15V—— power supply+15V
-15V ——power supply-15V (Note that power positive and negative poles cannot be inversely connected.)
M —— signal output end positive pole
G —— power ground and signal output end negative pole
Note: The specific wiring is subject to the terminal no. of object shell.

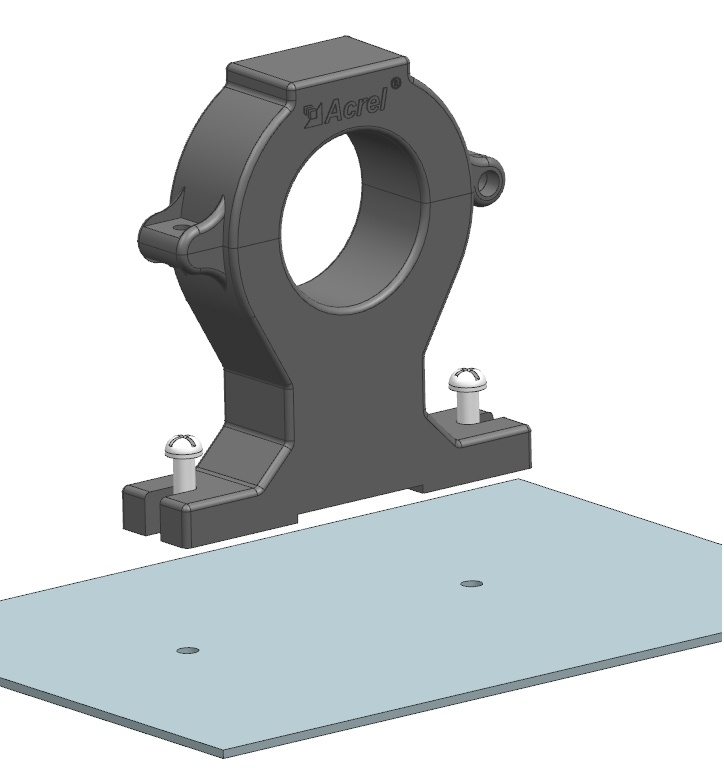

Installation
Product Description:- PView
- high-performance
- requirements
-
-
1. Who are we?
We are a top manufacturer with over 2100 employees, over 500 R&D engineers in China, with CE, ROHS, IEC, EAC, MID, UL, FCC Certificates, etc.
Our Products: AC/DC electricity meters, current transformers, hall sensors, transducers, gateways, Motor protectors, wireless temperature monitoring, residual current relays, medical IT, IOT platform, other energy management systems, etc.As a top-level provider of electrical solution service, we can help you save energy, reduce cost, improve energy efficiency and safety, realize intelligent, visual and fine management of energy, and provide data services for energy management.
2. What is your website?
www.acrelindia.com3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;4.What can you buy from us?
AC/DC Energy Meter, Hall Effect Sensor, Current Transformer, Current Transducer, Motor Protectors, Wireless Temperature Monitoring, Residual Current Relay, IOT Platform, etc.5. Why should you buy from us not from other suppliers?
147 computer software copyrights, 2 million meters, 1.5 million transformers, more than 100 design patents, 70 utility model patents.6. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDU, Express Delivery, etc.
Accepted Payment Currency: USD, EUR, RMB, etc.
Accepted Payment Type: T/T, L/C, etc.
Language Spoken:English, Spanish, Chinese, etc.Other Question? Please contact us and we will get back to you as soon as possible.
