AHKC-0.66/K-50 Series of 1000A/333mV Split Core Current Transformers for Energy Meters IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Power Sensors
Series of products: AC Current Transformers
Series of products: Split Core AC Current Transformers
- Product Description
- Parameters
- Q&A
- Download
-
Overview
AKH-0.66/K series split current transformers are mainly used in reconstructing projects of urban and rural power grids. They can be mounted easily without removal of primary bus. They also can be operated with electricity, which prevents the normal utilization of electricity. Thus, they save the manpower, material resources and financial resources and improve the efficiency of users. This series match with relay protection, measuring and metering equipment.

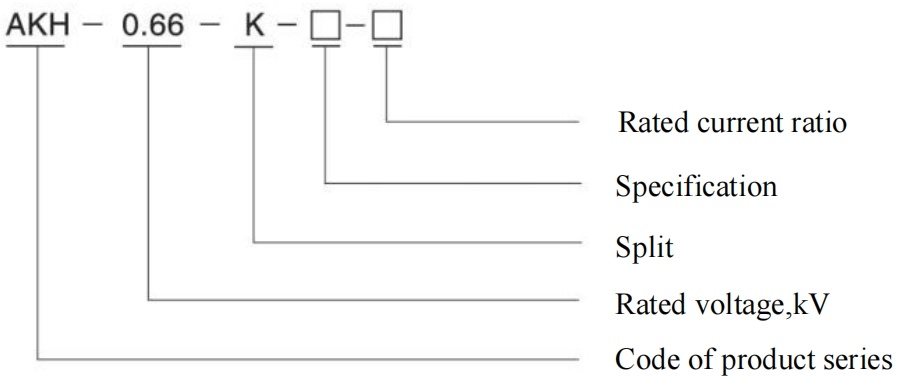

Coding Rule
Dispaly
Function
● Model: AKH-0.66/K K-50
● Rated secondary current: 333mV
● Rated primary current: 500-1000A
● Security factor: FS<5
● Maximum system voltage: 720V AC
● Test voltage: 3kV AC(1min)
● Rated frequency: 50/60Hz
● Rated short-time thermal current: Ith=40~60In
● Rated dynamic current: Idyn=2.5Ith
● Continuous overload: 120%In
● Protection level: IP30
● Operating temperature:-25℃-+50℃
● Storage temperature:-40℃-+80℃
● Relative humidity, no condensation:90%
● Standard&Certificate: CE; IEC; UL

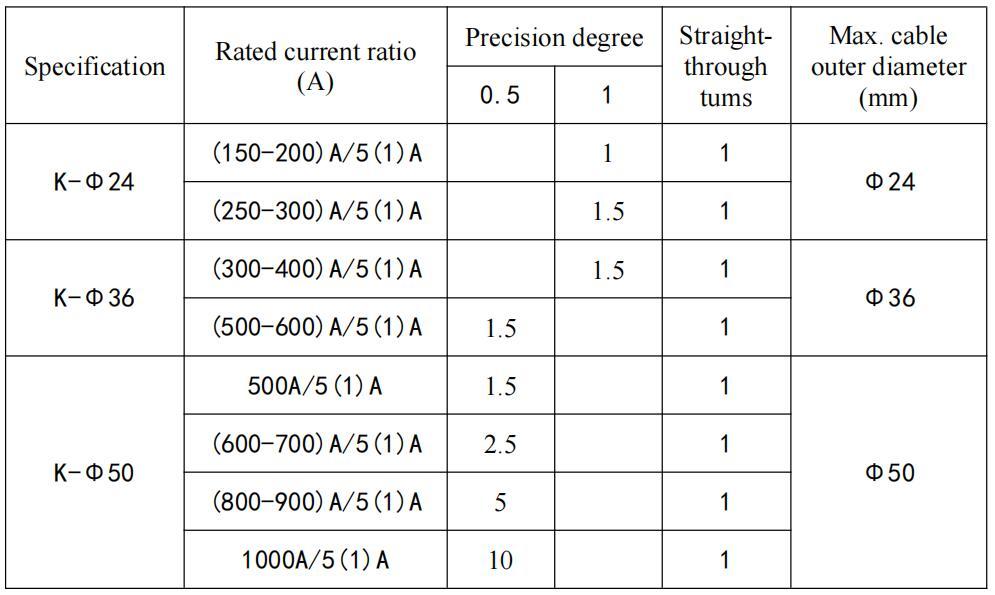

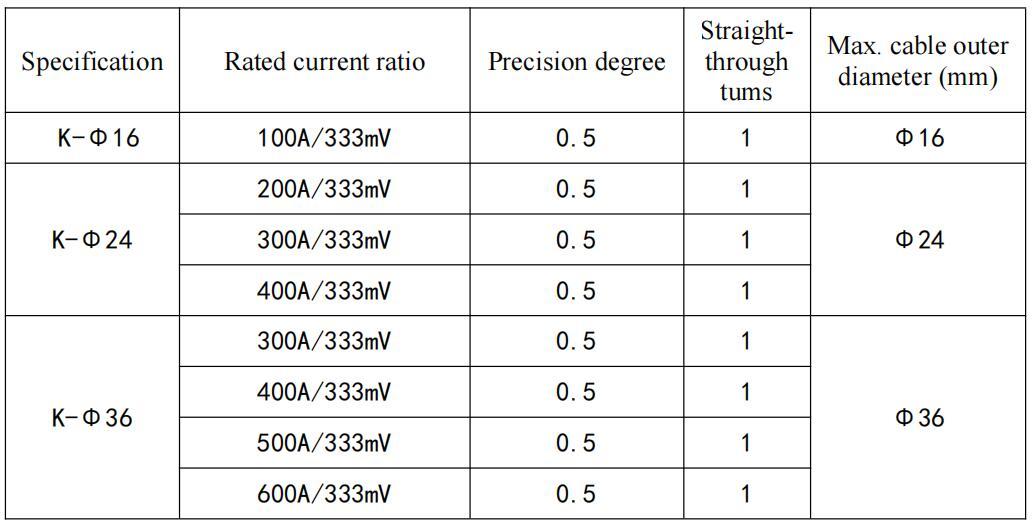

Models
Network

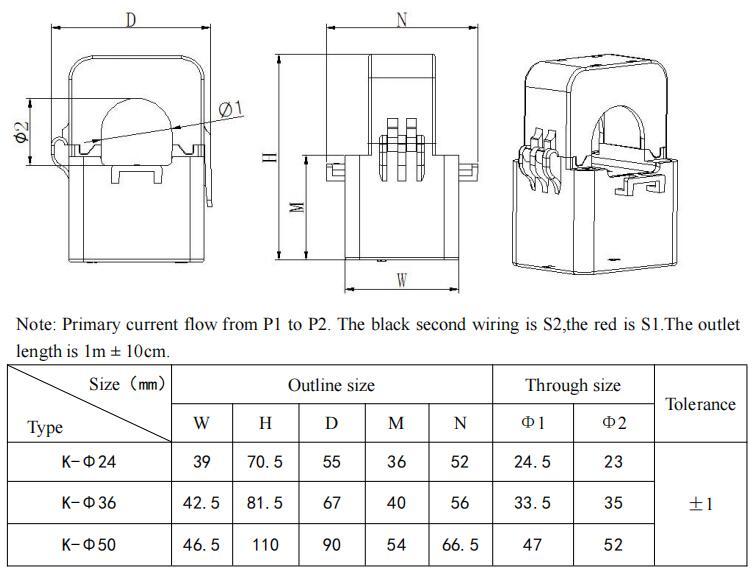

Dimension
Wiring
Installation
Product Description:- PView
- high-performance
- requirements
-
-
