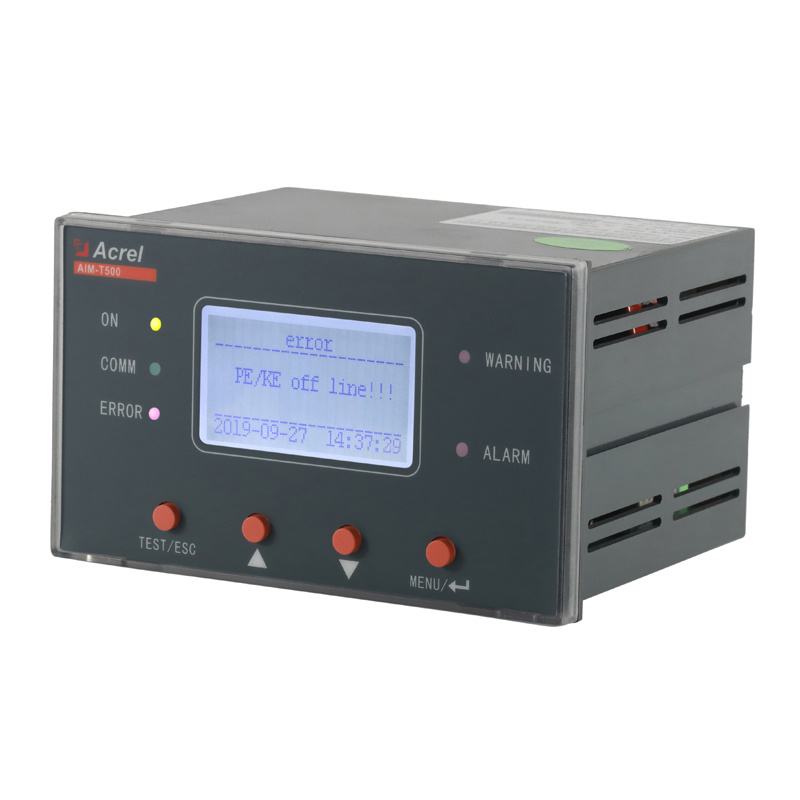

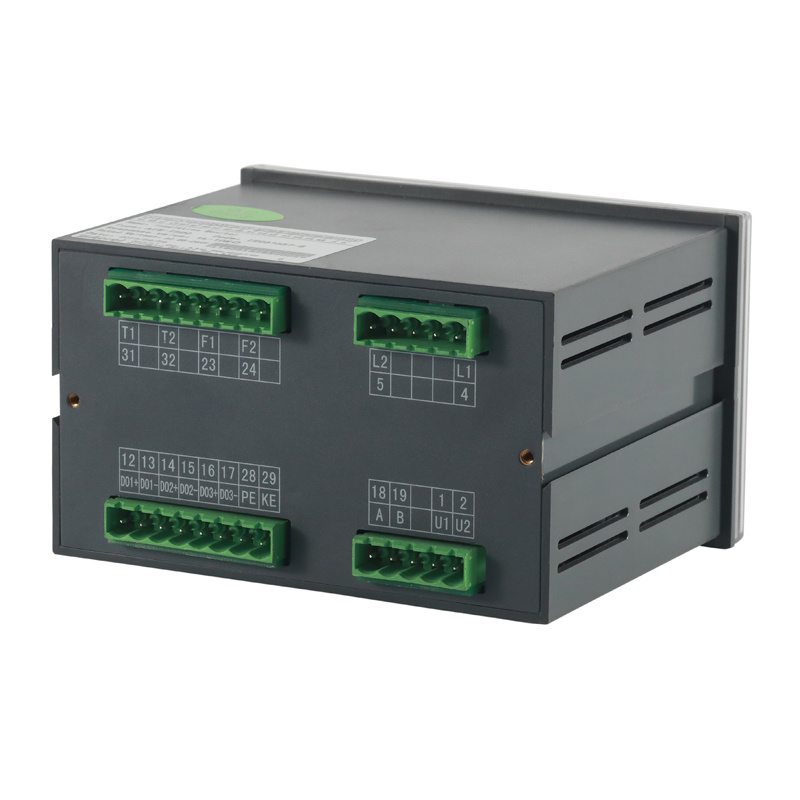

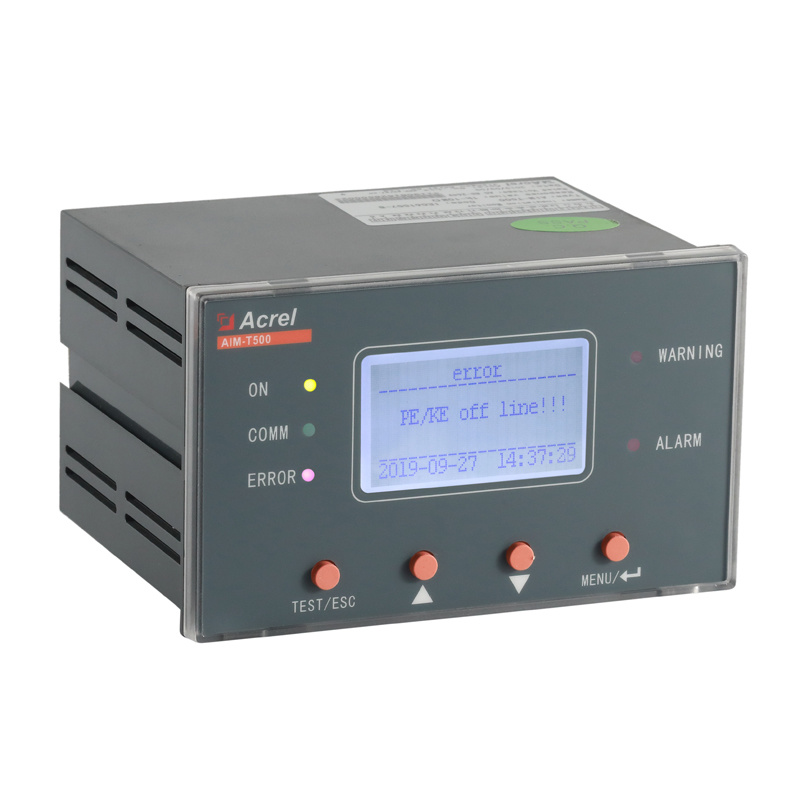

Acrel AIM-T500 Industrial Insulation monitoring instrument
Series of products: Products
Series of products: Electrical Safety
Series of products: Industrial Insulation Monitoring Devices
- Product Description
- Parameters
- Q&A
- Download
-
Overview
AIM-T500 insulation monitoring device is designed and developed by Acrel gathering the design experience of electric power meter industry for many years to monitor the insulation condition of low voltage IT distribution system (ungrounded system).
The product adopts advanced micro controller technology, with high degree of integration, compact size and easy installation, and it integrates intelligence, digitalization and networking.
The device, with many functions such as insulation fault warning, fault alarm, event recording and so on, can be used in the mines, glass factories, electric furnaces and test facilities, metallurgical plants, chemical plants, and exploded dangerous places, computer center, emergency power supply and other places to monitor the insulation status of IT system in real time. When insulation fault occurs, it will alarm and remind the staff to check the fault.
The products conform to the requirements of enterprise standard Q/VDCL-26-2017 IT System Insulation Monitor.

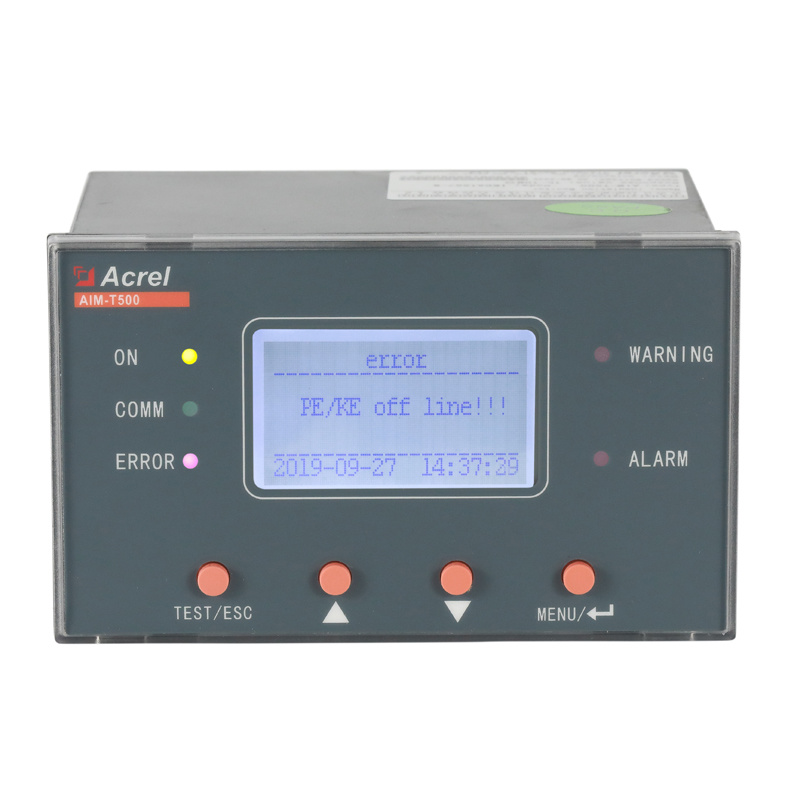

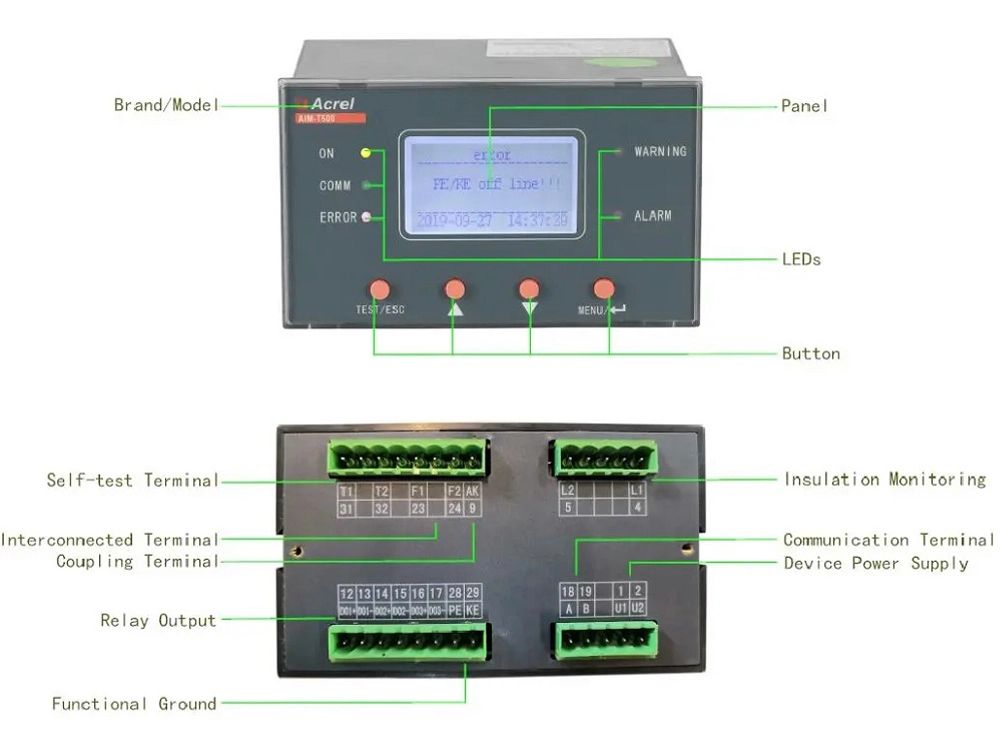

Dispaly

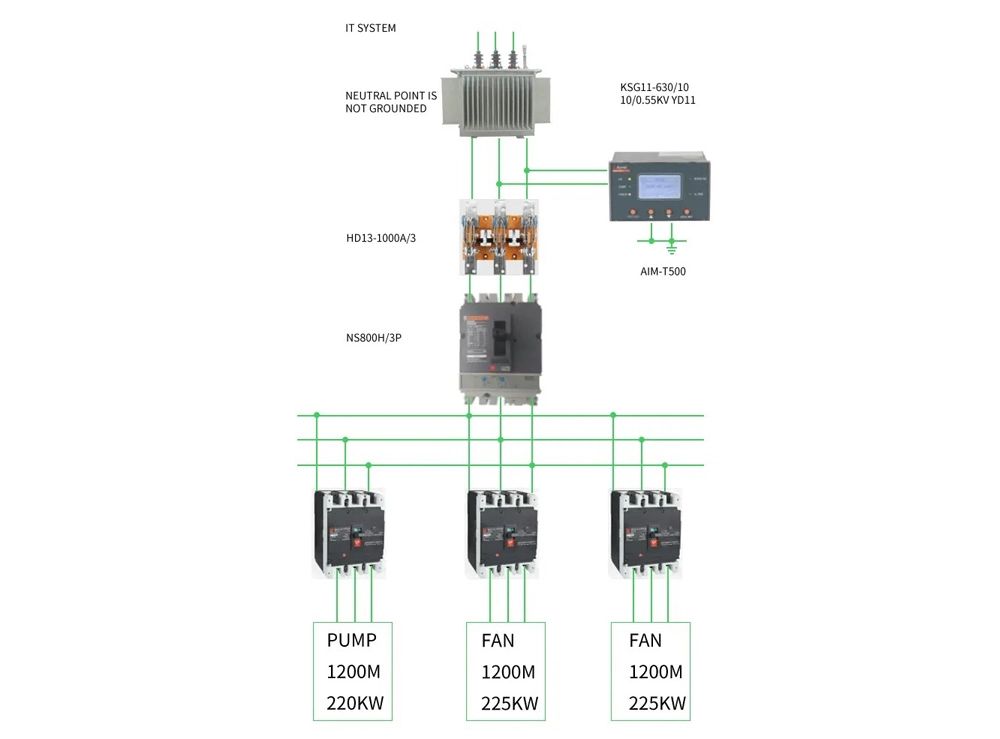

Application
Features
1. Function of insulation resistance monitoring, warning and alarm for the monitored IT system.
2. Multiple fault indication function, such as relay alarm output and LED alarm output.
3. Advanced field bus communication technology, and it can communicate with the host computer management terminal and monitor the operation status of the IT system in real time.
4. Fault event recording function. It can record the time and type of failure to provide convenience for operators to analyze the operation status of the system and eliminate faults in time.
5. Applicable for insulation monitoring of AC, DC and AC / DC hybrid IT systems.
6. Self checking function. realize the fault self-inspection of instrument hardware circuit.
7. Broken line monitoring function. Monitor the connection condition of the PE/KE.
8. The free option of manual reset/automatic reset.
9. Wide range of measurement, Allowable leakage capacitance of the system is large.
Network
Technical Parameters
Item
Parameter
Accessory power supply
AC 85~265V; DC100~300V; 50/60Hz
Power dissipation
< 8W
System voltage
AC 0~690V; DC 0~800V; 40~460Hz
System application
IT system (online), Other system (offline)
Insulation monitoring
Measuring range
1k~10MΩ
Alarm range
10k~10MΩ
Resistance accuracy
1~10k,1k; 10k~10M, ±10%
system leakage capacitance
<500μF
Response time (Ce=1μF)
<5s
Internal parameters
Measuring voltage
<50V
Measuring current
<270μA
Internal DC impedance
≥180kΩ
Relay output
Error, Alarm, Warning
SOE
20 records (fault type, fault value, fault time)
Alarm type
LCD, LED indicator
Communication
RS485, Modbus-RTU
Impulse voltage / Pollution Level
8kV/Ⅲ
EMC/ Radiation
IEC61326-2-4
Environment
Working temperature
-10 ~+65℃
Storage temperature
-20~+70℃
Relative humidity
<95%, without condensation
Altitude
≤2500m

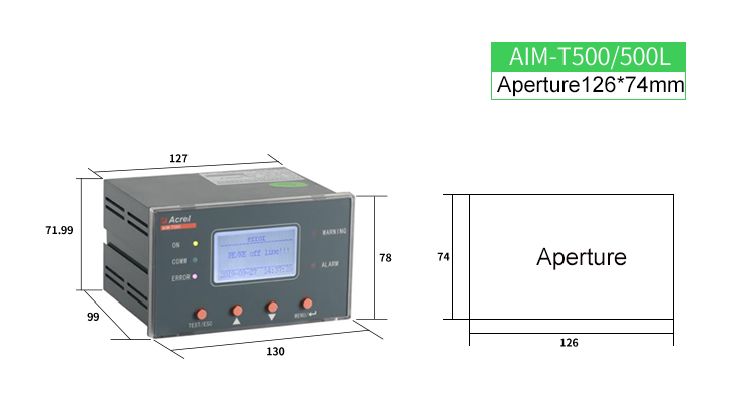

Dimension

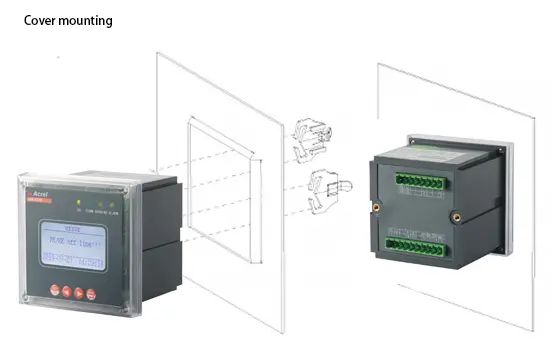

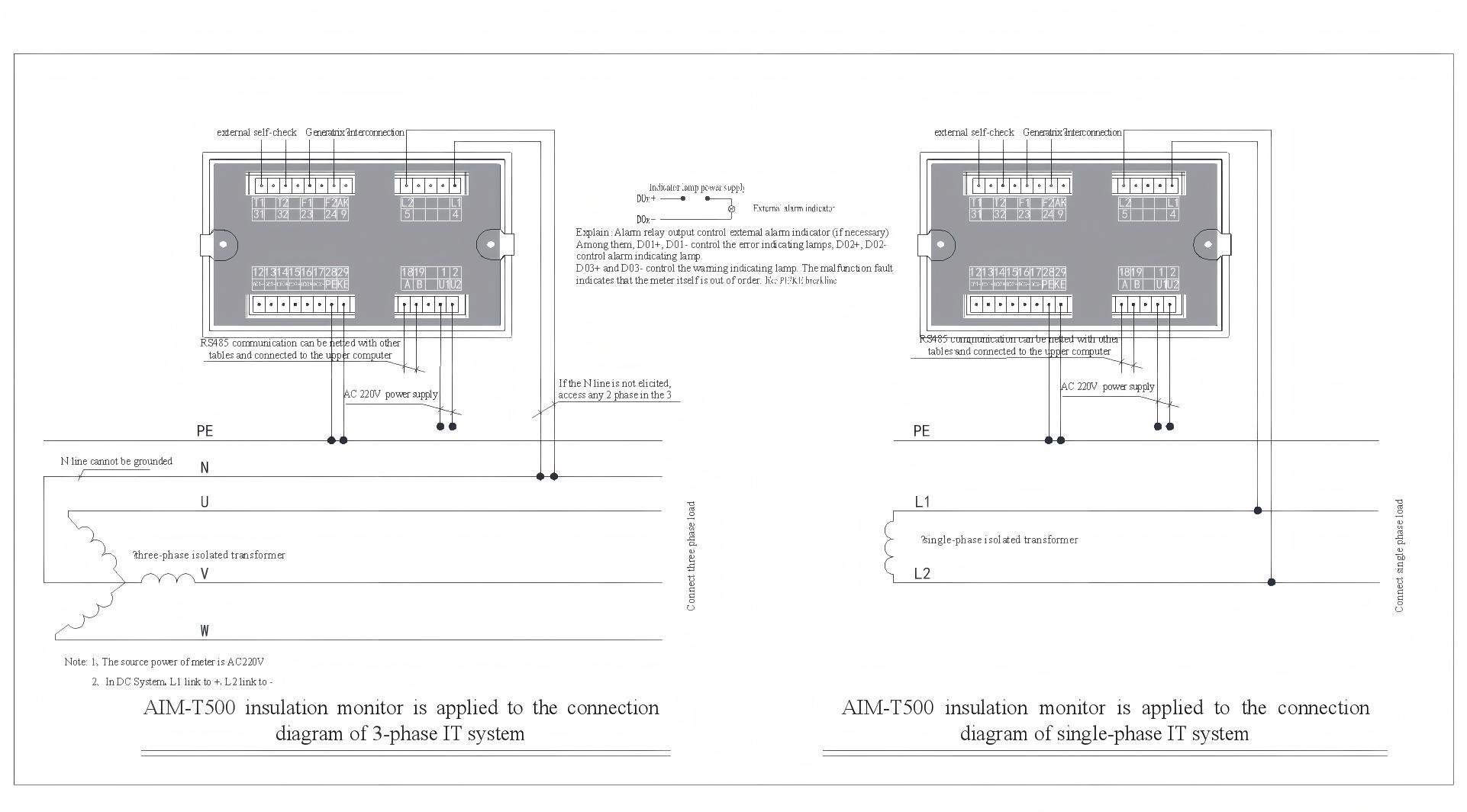

Installation
Product Description:- PView
- high-performance
- requirements
-
Technical parameters
Item
Parameter
Accessory power supply
AC 85~265V; DC100~300V; 50/60Hz
Power dissipation
< 8W
System voltage
AC 0~690V; DC 0~800V; 40~460Hz
System application
IT system (online), Other system (offline)
Insulation monitoring
Measuring range
1k~10MΩ
Alarm range
10k~10MΩ
Resistance accuracy
1~10k,1k; 10k~10M, ±10%
system leakage capacitance
<500μF
Response time (Ce=1μF)
<5s
Internal parameters
Measuring voltage
<50V
Measuring current
<270μA
Internal DC impedance
≥180kΩ
Relay output
Error, Alarm, Warning
SOE
20 records (fault type, fault value, fault time)
Alarm type
LCD, LED indicator
Communication
RS485, Modbus-RTU
Impulse voltage / Pollution Level
8kV/Ⅲ
EMC/ Radiation
IEC61326-2-4
Environment
Working temperature
-10 ~+65℃
Storage temperature
-20~+70℃
Relative humidity
<95%, without condensation
Altitude
≤2500m
Reference standards
■ IEC 61557-8 Electrical safety in low voltage distribution systems up to 1000V a.c. and 1500V d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 8: Insulation monitoring devices for IT systems
■ IEC 61326-2-4 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 2-4: Particular requirements - Test configurations, operational conditions and performance criteria for insulation monitoring devices according to IEC 61557-8 and for equipment for insulation fault location according to IEC 61557-9
-
