Acrel AIM-T500L Industrial Insulation monitoring instrument
Series of products: Products
Series of products: Electrical Safety
Series of products: Industrial Insulation Monitoring Devices
- Product Description
- Parameters
- Q&A
- Download
-
Overview
With the development of industrial science and technology, residual current poses a great threat to industrial production safety. In order to improve the continuity and reliability of power supply, many important production sites adopt IT distribution system (ungrounded system).
AIM-T500L series industrial insulation monitoring and fault is specially developed by Acrel for IT distribution system in industrial occasions such as mine, glass factory, electric furnace and test equipment, ship, metallurgical plant, chemical plant, explosion hazard site, computer center and emergency power supply.
The system has rich functions, including insulation resistance monitoring, insulation fault warning, insulation fault alarm, event recording, parameter setting, communication networking, etc. When the system has grounding fault, it can give a timely alarm and accurately locate the specific circuit of the fault to remind staff to check the fault in time.
The products conform to the requirements of enterprise standard Q/VDCL-26-2017 IT System Insulation Monitor.

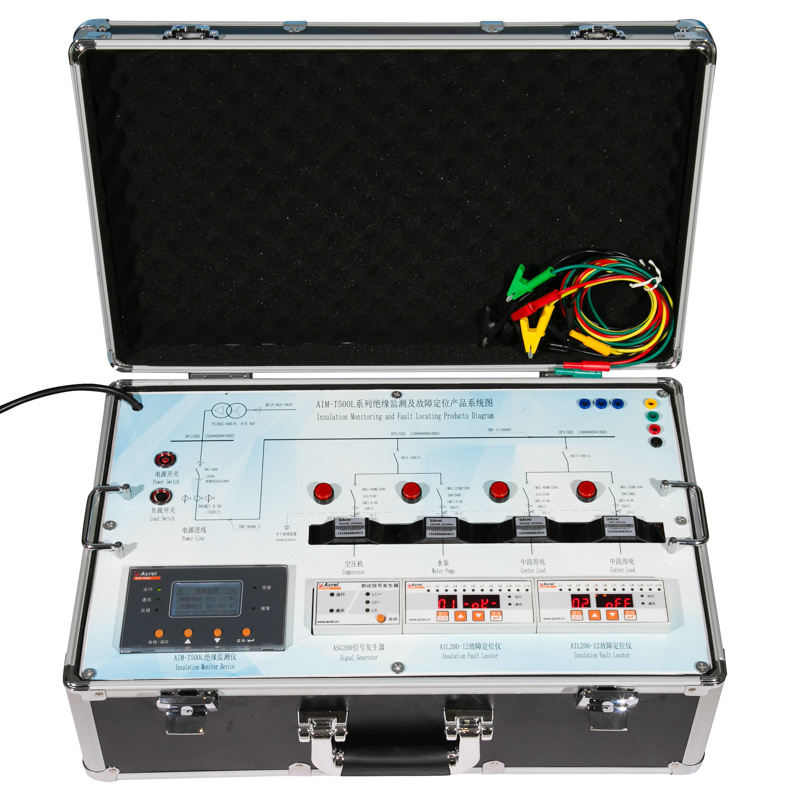

Dispaly

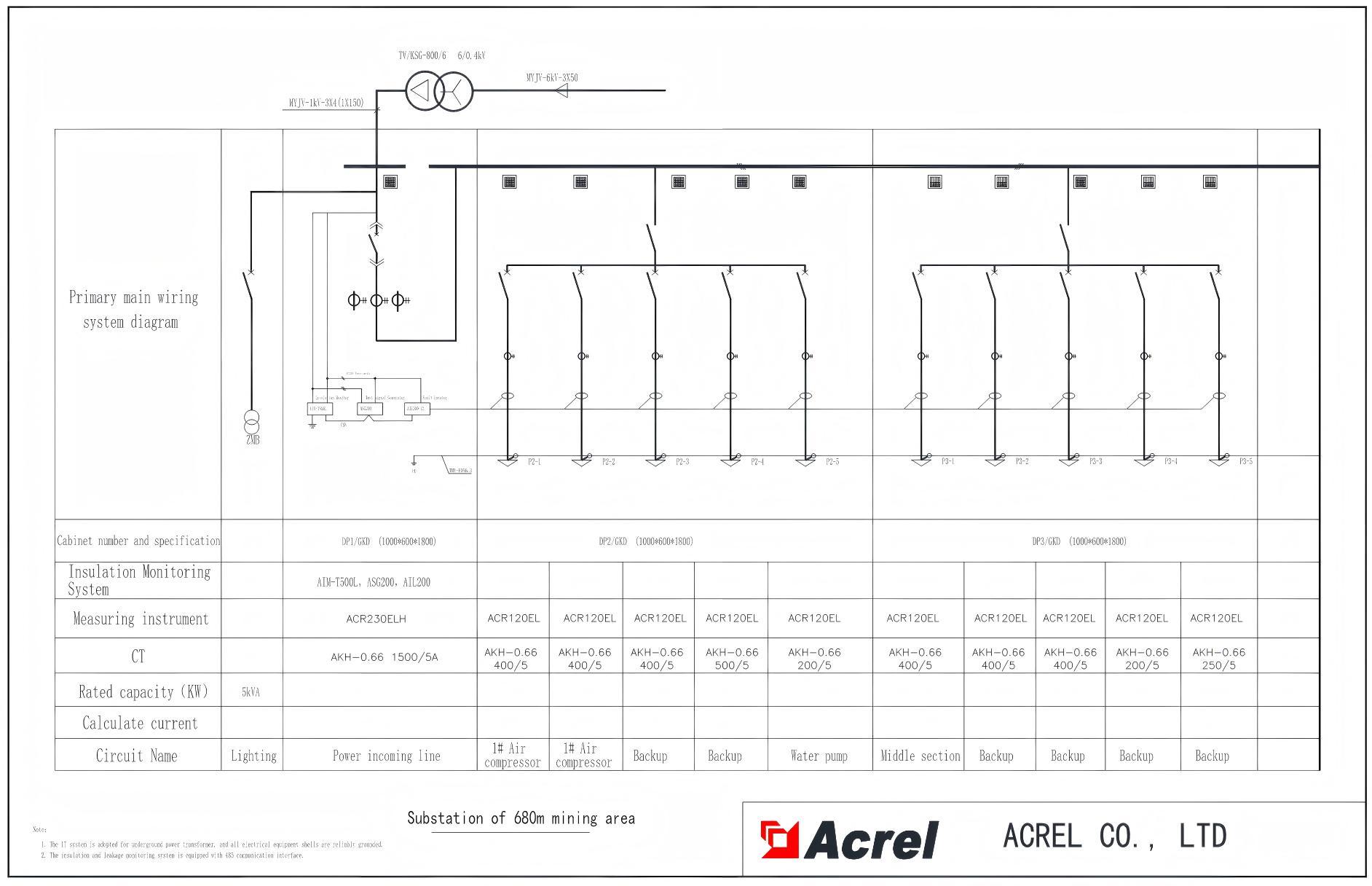

Application
Features

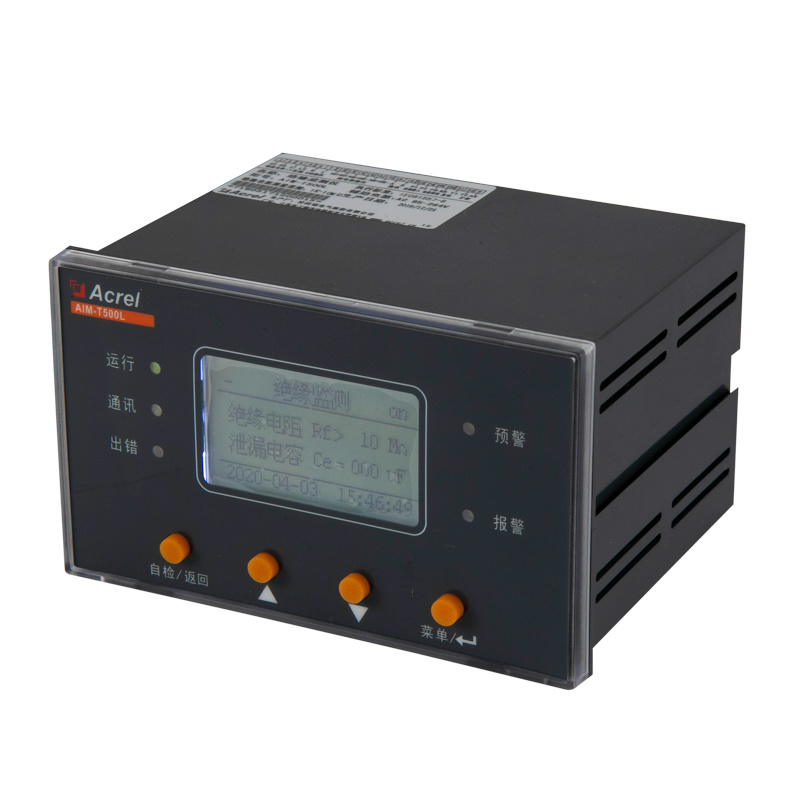

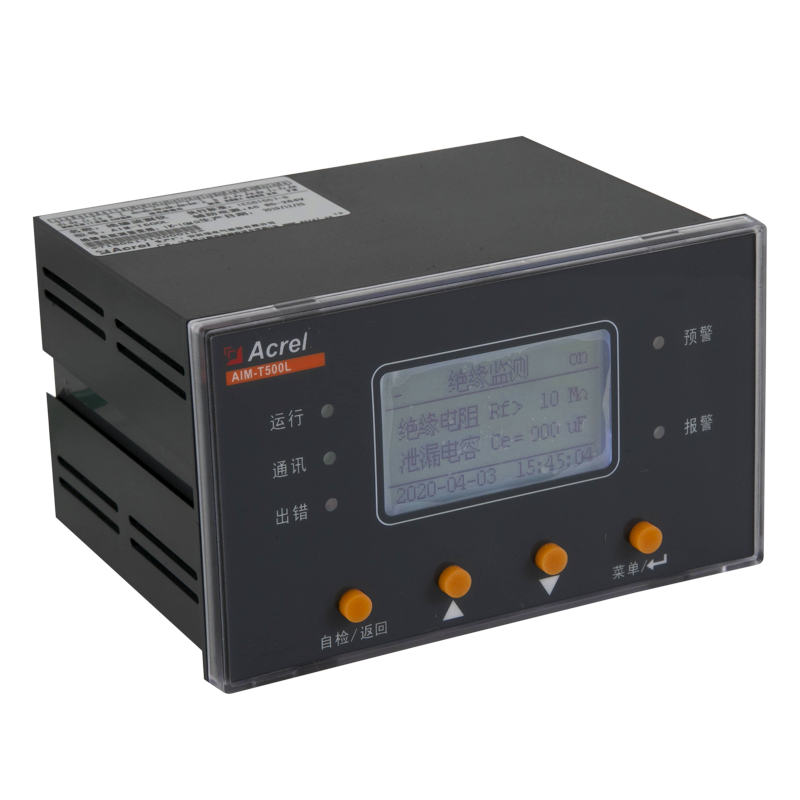

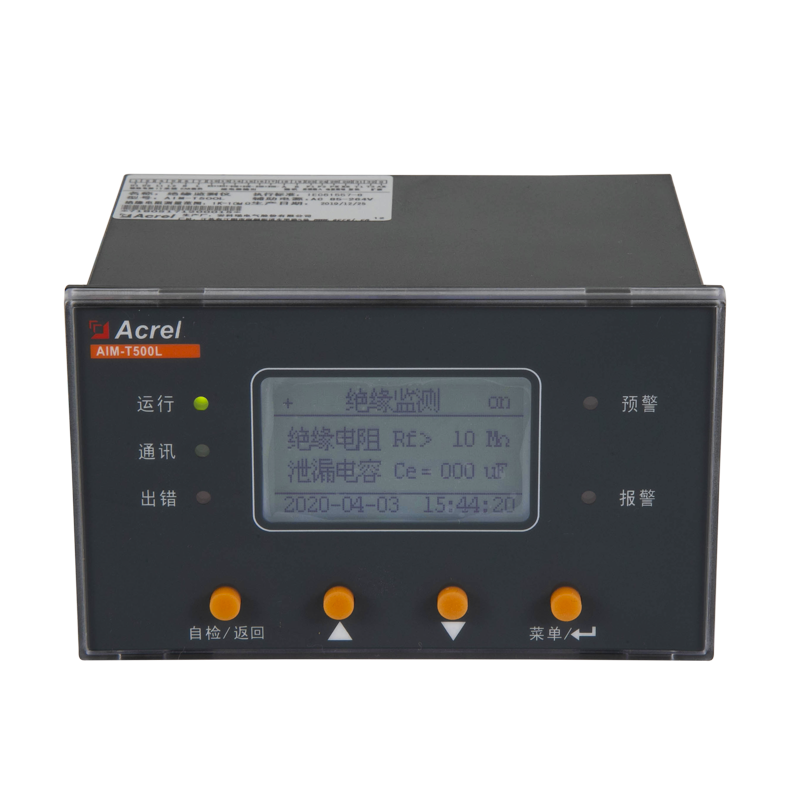

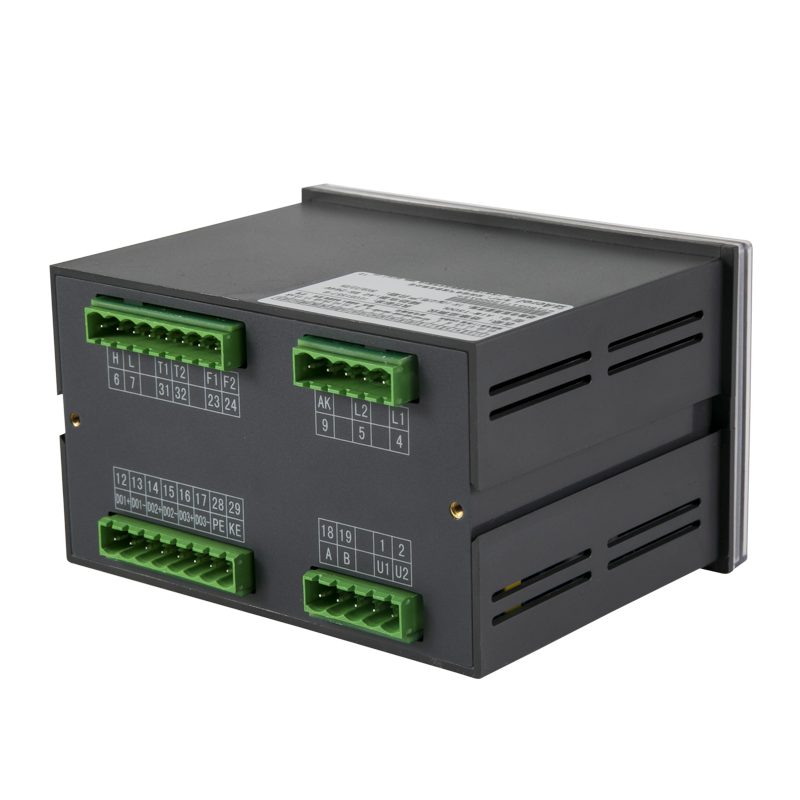

1. AIM-T500L insulation monitor
■ Monitor resistance of IT system real time, warning or alarm when the resistance exceeds the limit;
■ Relay alarm output, LED alarm output and other fault indication modes;
■ SOE function, convenient for staff to check and analyze the failure type and occurrence time, and judge the operation status of the system;
■ Self-check function, which can realize fault self-check of instrument hardware circuit;
■ Disconnect monitoring, real-time monitoring of PE/KE function grounding wire connection status;
■ RS485 interface, standard Modbus-RTU protocol;
■ CAN interface, custom protocol, used to interact with signal generator and fault locator;
■ Support manual/automatic reset modes;
■ Wide range of applications, suitable for AC, DC and AC-DC hybrid IT systems.

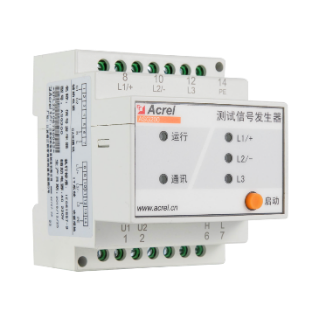

2. ASG200 test signal generator
■ Generate positioning signals and inject them into the ungrounded system;
■ Indicate the phase line where the fault is;
■ Manual startup positioning is supported;
■ CAN bus technology is adopted to facilitate data interaction with other devices in the system.
3. AIL200-12 insulation fault locator
■ Locate and indicate the loop where the fault is;
■ A single AIL200-12 can locate up to 12 loops;
■ Each IT system can be connected to a maximum of 90 locators, with a total of 1080 loops;
■ CAN bus technology is adopted to facilitate data interaction with other devices in the system.
4. AKH-0.66L series current transformer
■ Rated current ratio 5A:5mA , select model according to the rated current of the loop;
■ Coordinate with AIL200-12 insulation fault locator to achieve fault location.

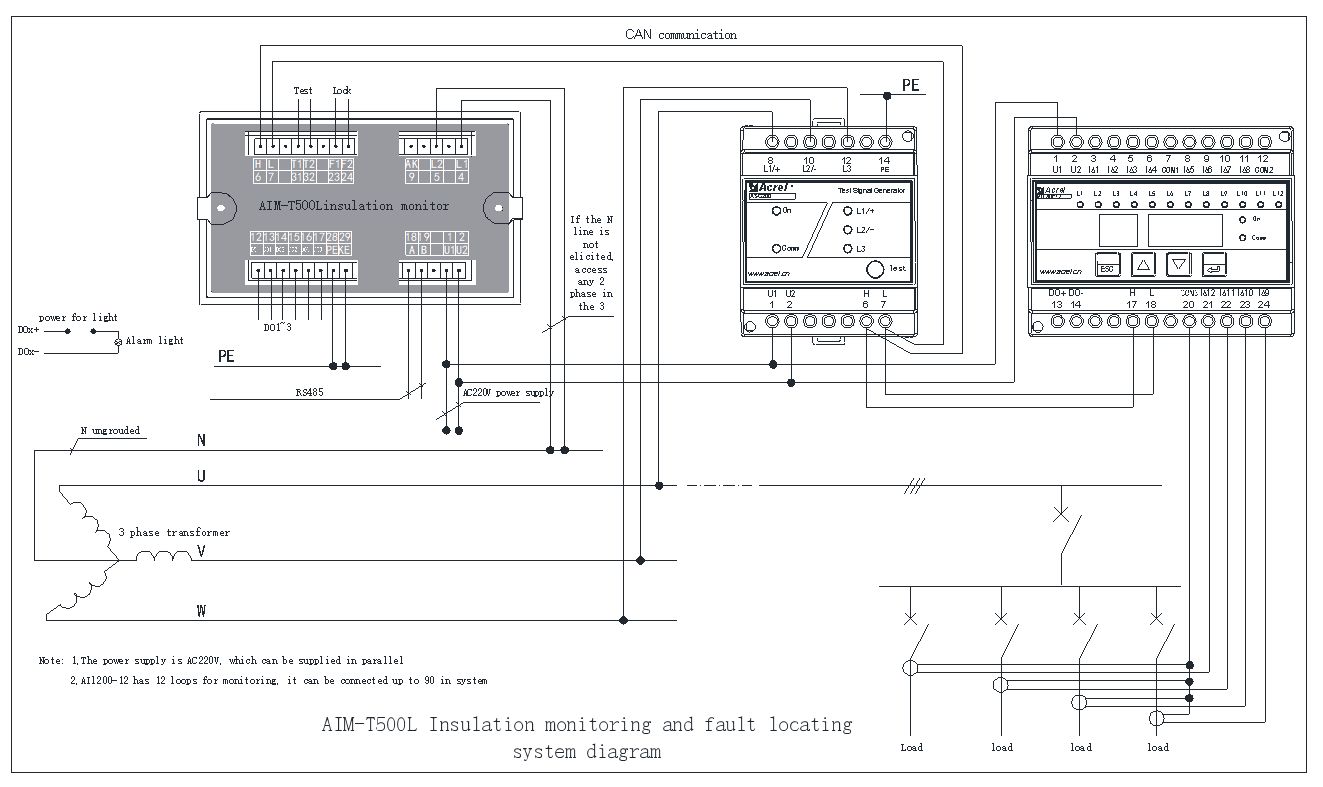

Network
Technical Parameters
1. AIM-T500L insulation monitor
Item
Parameter
Accessory power supply
AC 85~265V; DC100~300V; 50/60Hz
Power dissipation
< 8W
System voltage
AC 0~690V; DC 0~800V; 40~460Hz
System application
IT system (online), Other system (offline)
Insulation monitoring
Measuring range
1k~10MΩ
Alarm range
10k~10MΩ
Resistance accuracy
1~10k,1k; 10k~10M, ±10%
system leakage capacitance
<500μF
Response time (Ce=1μF)
<5s
Internal parameters
Measuring voltage
<50V
Measuring current
<270μA
Internal DC impedance
≥180kΩ
Relay output
Error, Alarm, Warning
SOE
20 records (fault type, fault value, fault time)
Alarm type
LCD, LED indicator
Communication
RS485, Modbus-RTU; CAN, custom
Impulse voltage / Pollution Level
8kV/Ⅲ
EMC/ Radiation
IEC61326-2-4
Environment
Working temperature
-10 ~+65℃
Storage temperature
-20~+70℃
Relative humidity
<95%, without condensation
Altitude
≤2500m
2. ASG200 test signal generator
Accessory power supply
Voltage
AC 85~265V; DC100~300V
Power dissipation
<7W
IT system
Voltage
AC 220V; 3AC 0~690V; DC 0~800V
Fault locating
Response time
<5s
positing voltage
20V/5Hz
positing current
0~10mA
Response sensitivity
——
Internal parameters
EMC/ Radiation
IEC61326-2-4
Output
Relay output
——
Environment
Working temperature
-15~+55℃
3. AIL200-12 insulation fault locator
Accessory power supply
Voltage
AC 85~265V; DC100~300V
Power dissipation
<5W
IT system
Voltage
——
Fault locating
Response time
<12s
positing voltage
——
positing current
——
Response sensitivity
>0.5mA
Internal parameters
EMC/ Radiation
IEC61326-2-4
Output
Relay output
Alarm
Environment
Working temperature
-15~+55℃
4. AKH-0.66L series current transformer
Specifications
Rated current
Ratio
Accurate level
Rated load
Overload ratio
L-45
16-100A
5A:5mA
1 level
100Ω
10
L-80
100-250A
L-100
250-400A
L-150
400-800A
L-200
800-1500A
Related Products
Type and Name
Introduction
AIM-T500L insulation monitor

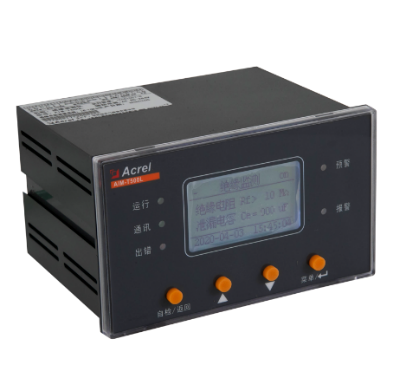

AIM-T500L insulation monitor adopts advanced microcontroller technology, high integration, small size, easy to install, intelligent, digital, networking in one. wide measuring range, fast reaction speed and large allowable system leakage capacitance.
ASG200
test signal generator
ASG200 test signal generator can start and produce test signals in time when insulation fault occurs in the monitored IT system. It can coordinate with insulation fault locator to realize insulation fault location function and send fault phase line.
AIL200-12 insulation fault locator

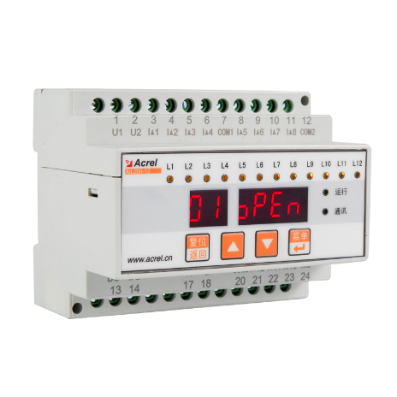

AIL200-12 insulation fault locator adopts high-precision signal detection circuit, and AKH-0.66L series current transformer, detection the signal of ASG200 test signal generator, accurate location of the insulation fault loop. every locator can locate 12 loops.
AKH-0.66 L series current transformer
AKH-0.66 L series current transformer is used with AIL200-12 insulation fault locator together, ratio is 1000:1. It is installed in the cabinet in the way of screw direct fixation.

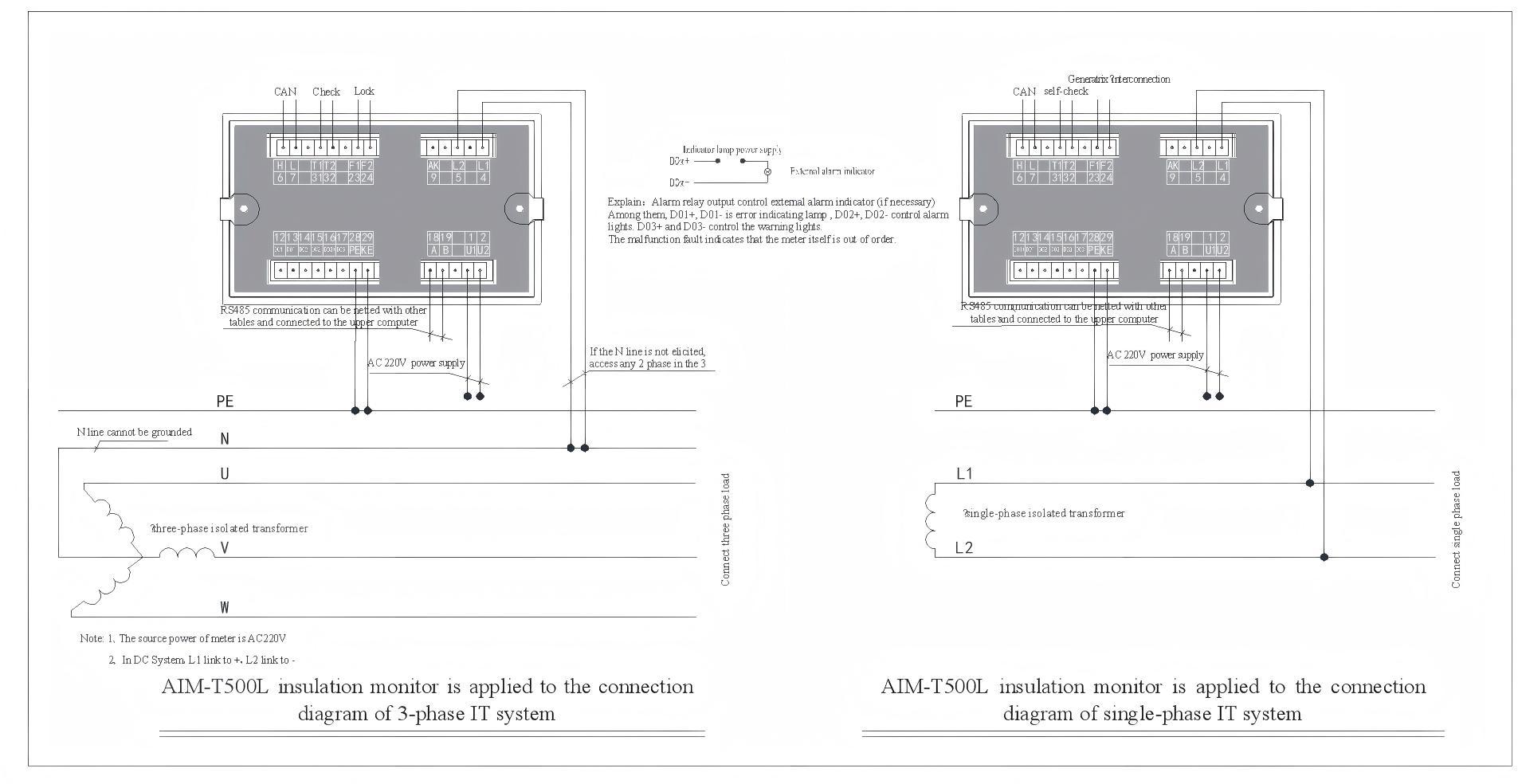

Wiring
Dimension
Installation
Product Description:- PView
- high-performance
- requirements
-
Technical parameters
1. AIM-T500L insulation monitor
Item
Parameter
Accessory power supply
AC 85~265V; DC100~300V; 50/60Hz
Power dissipation
< 8W
System voltage
AC 0~690V; DC 0~800V; 40~460Hz
System application
IT system (online), Other system (offline)
Insulation monitoring
Measuring range
1k~10MΩ
Alarm range
10k~10MΩ
Resistance accuracy
1~10k,1k; 10k~10M, ±10%
system leakage capacitance
<500μF
Response time (Ce=1μF)
<5s
Internal parameters
Measuring voltage
<50V
Measuring current
<270μA
Internal DC impedance
≥180kΩ
Relay output
Error, Alarm, Warning
SOE
20 records (fault type, fault value, fault time)
Alarm type
LCD, LED indicator
Communication
RS485, Modbus-RTU; CAN, custom
Impulse voltage / Pollution Level
8kV/Ⅲ
EMC/ Radiation
IEC61326-2-4
Environment
Working temperature
-10 ~+65℃
Storage temperature
-20~+70℃
Relative humidity
<95%, without condensation
Altitude
≤2500m
2. ASG200 test signal generator
Accessory power supply
Voltage
AC 85~265V; DC100~300V
Power dissipation
<7W
IT system
Voltage
AC 220V; 3AC 0~690V; DC 0~800V
Fault locating
Response time
<5s
positing voltage
20V/5Hz
positing current
0~10mA
Response sensitivity
——
Internal parameters
EMC/ Radiation
IEC61326-2-4
Output
Relay output
——
Environment
Working temperature
-15~+55℃
3. AIL200-12 insulation fault locator
Accessory power supply
Voltage
AC 85~265V; DC100~300V
Power dissipation
<5W
IT system
Voltage
——
Fault locating
Response time
<12s
positing voltage
——
positing current
——
Response sensitivity
>0.5mA
Internal parameters
EMC/ Radiation
IEC61326-2-4
Output
Relay output
Alarm
Environment
Working temperature
-15~+55℃
4. AKH-0.66L series current transformer
Specifications
Rated current
Ratio
Accurate level
Rated load
Overload ratio
L-45
16-100A
5A:5mA
1 level
100Ω
10
L-80
100-250A
L-100
250-400A
L-150
400-800A
L-200
800-1500A
Reference standards
■ Q/ VCL-26-2017 IT System Insulation Monitor.
■ IEC 61557-8 Electrical safety in low voltage distribution systems up to 1000V a.c. and 1500V d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 8: Insulation monitoring devices for IT systems.
■ IEC 61557-9 Electrical safety in low voltage distribution systems up to 1 000 V a.c. and 1 500 V d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 9: Equipment for insulation fault location in IT systems.
■ IEC 61326-2-4 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 2-4: Particular requirements - Test configurations, operational conditions and performance criteria for insulation monitoring devices according to IEC 61557-8 and for equipment for insulation fault location according to IEC 61557-9.
-
