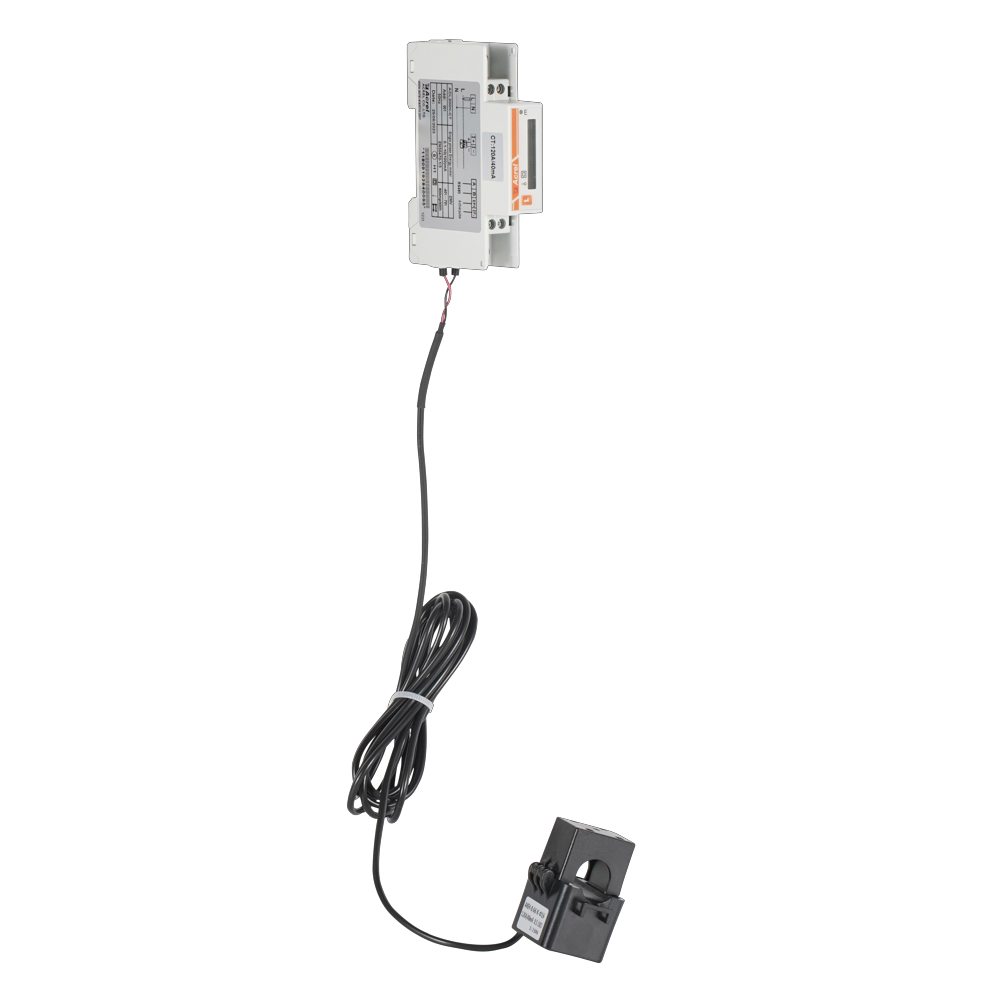

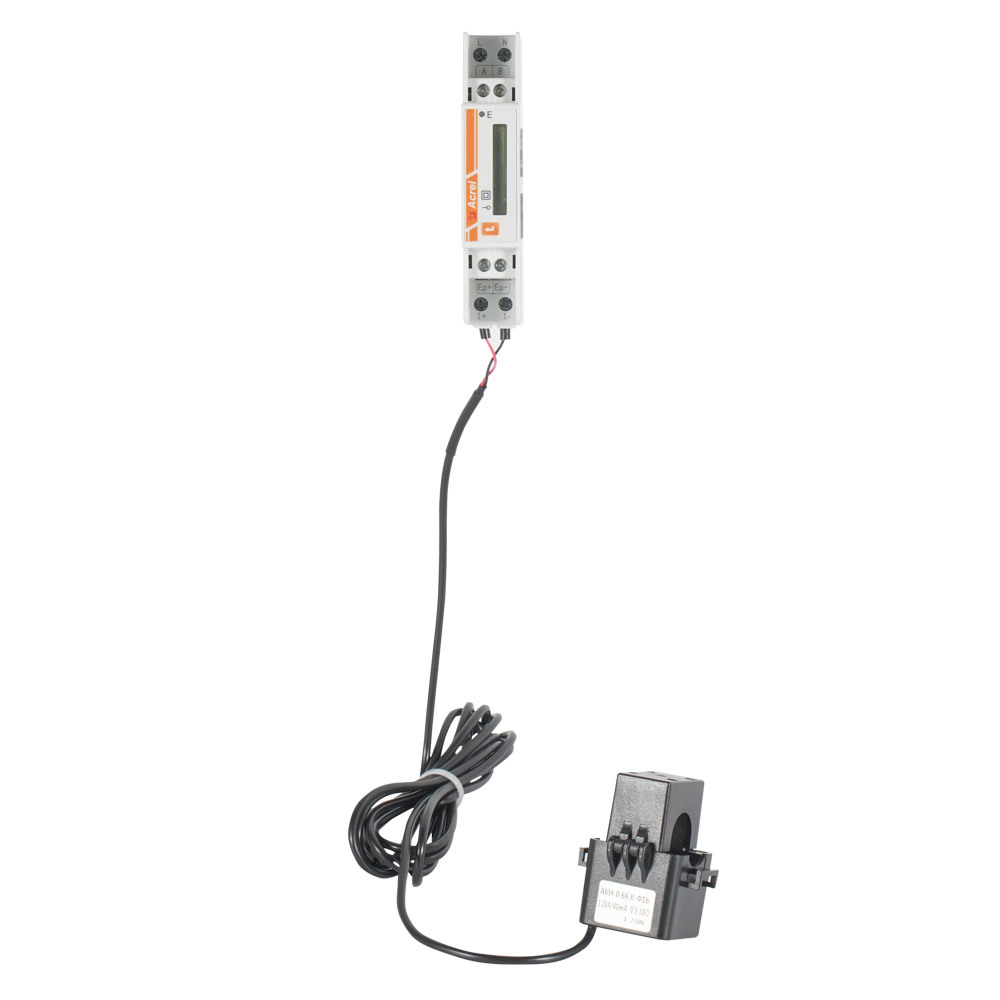

Acrel ADL200N-CT/D16 CE MID Approved Digital Single Phase Energy Meter for Charging Piles IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Energy Management
Series of products: AC Energy Meters
Series of products: Single Phase Energy Meters
Series of products: Din Rail Installed Energy Meters
Series of products: Din Rail Installed AC Energy Meters
Series of products: New Energy
Series of products: AC/DC Meters for Charging Piles
Series of products: AC Meters for EV Chargers
- Product Description
- Parameters
- Q&A
- Download
-
Overview
ADL series DIN-rail mounted multifunctional electric energy meter is an intelligent instrument mainly designed for new energy power generation systems such as photovoltaic grid-connected system, micro inverter system, energy storage system, AC coupling system, etc.
The product has the advantages of high precision, small volume, high respondent speed and convenient installation.
The product has the features of sampling, metering and monitoring power parameters, communicating with an inverter or an energy management system (EMS), realizing the functions of preventing reverse flow, regulating power generation, charging and discharging batteries according to real-time power and accumulated electric energy, and realizing bidirectional metering and household distributed photovoltaic energy management.

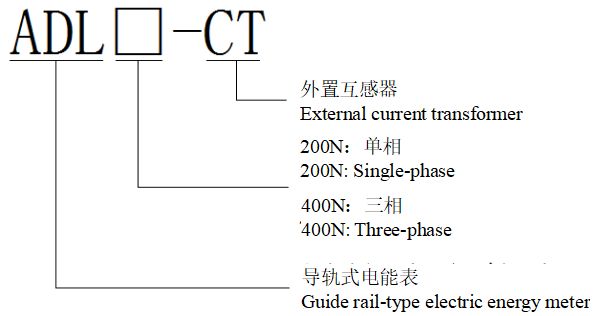

Coding Rule
Dispaly

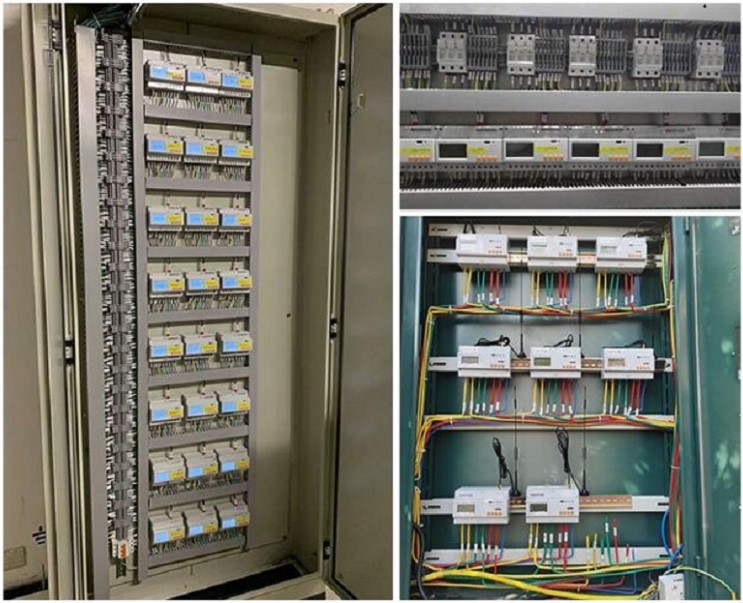

Application

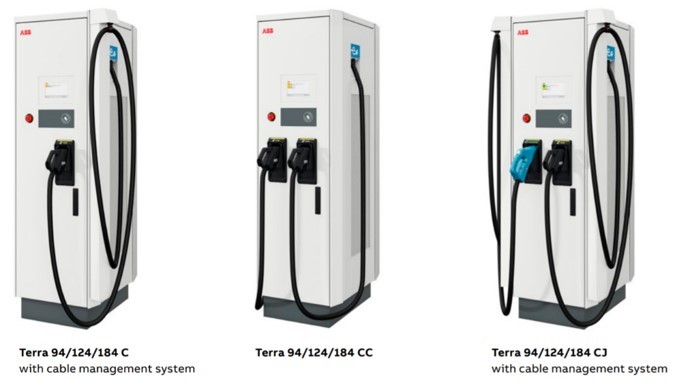

Installed in charging piles
Used as a general 3 phase electricity meters

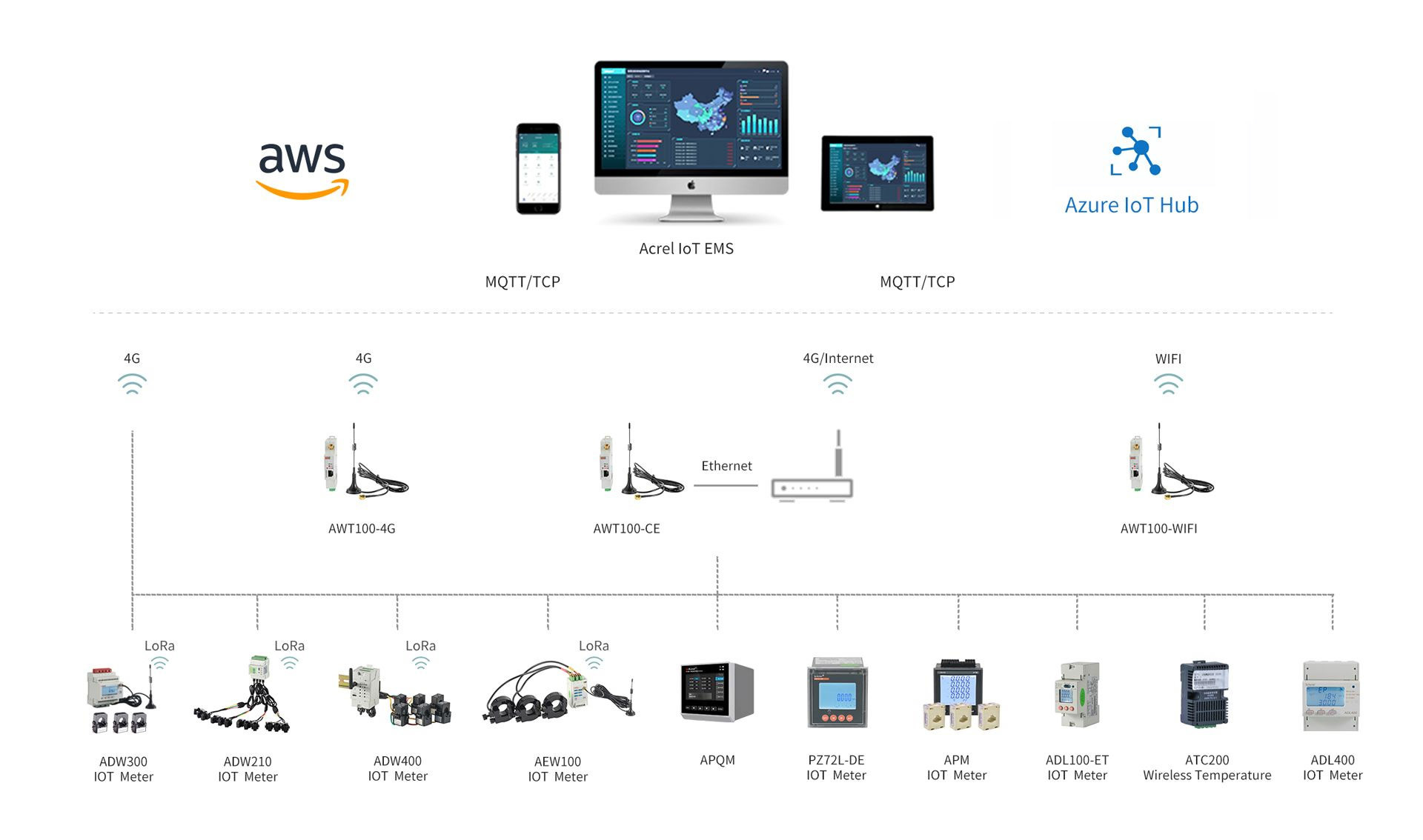

Network
Function
● Single phase 2 wires
● Rated voltage: AC 230V;
● Rated current: 80A, 120A, 200A, 300A
● Overload: 1.2 times rating (continuous)
2 times the rating for 1 second
● Accuracy: 0.5
● Accuracy of active energy：Class B (split current transformer) /Class C (closed current transformer)
● Communication: RS485(Modbus-RTU)
Electricity Data Measurement
● kWh (positive and negative)
● kVarh (positive and negative)
● U, I, P, Q, S, PF, Hz, etc.
● Communication, transformation ratio and other parameters can be programmable by the key
● LCD dispaly: Segmented LCD display
● Active pulse output
● LED alarm: Operation instructions
● Grid frequency: 45~65Hz, error ±0.5%
● Standard&Certificate: MID; CE;
● Power frequency withstand voltage: Between communication and signal input, AC4kV 1min
● Insulation resistance: Input and output terminals to casing >100MΩ

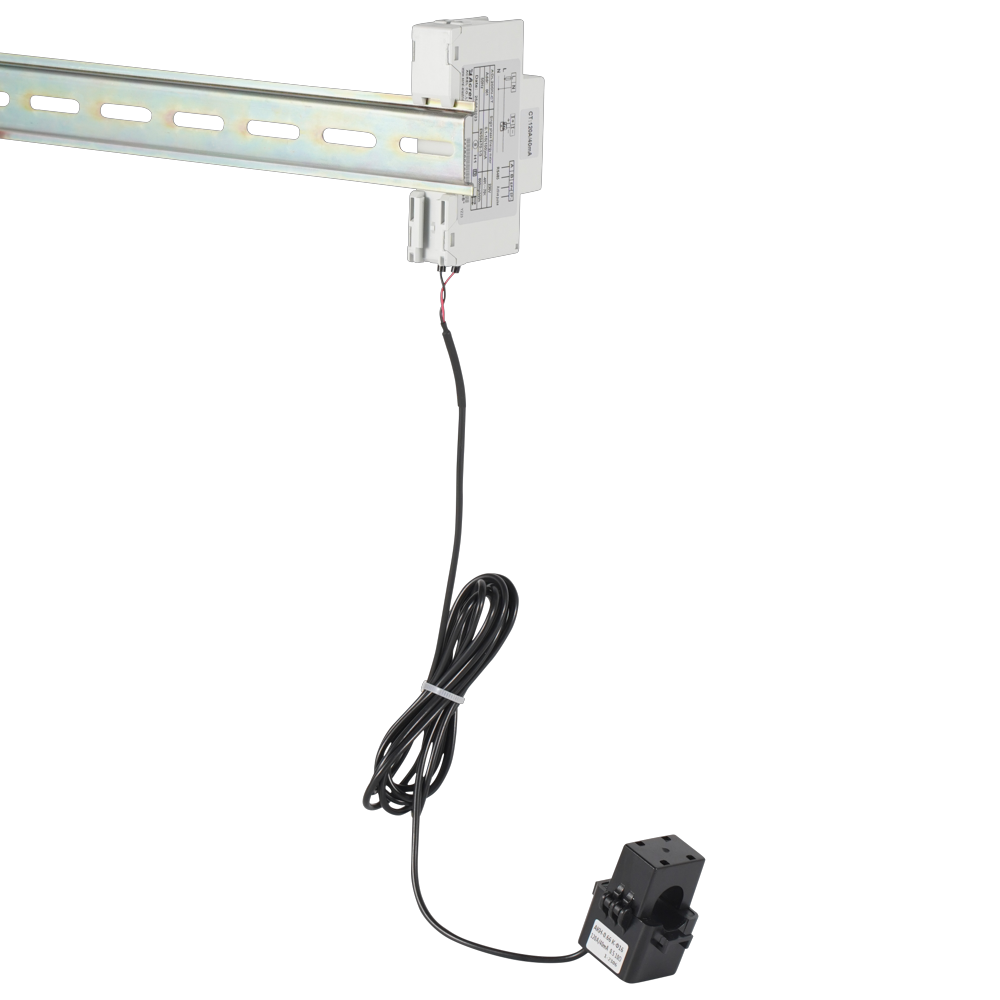

● Mounted: DIN 35mm
● Baud rate: Support 1200bps-38400bps
● Operating temperature: -40℃～+70℃
● Storage temperature: -40℃～+70℃
● Relative humidity: ≤95℅ (without condensation)

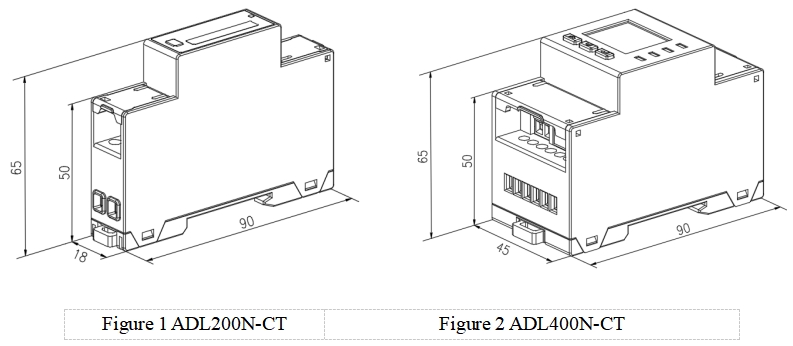

Dimension
Wiring
Figure 3 ADL200N-CT

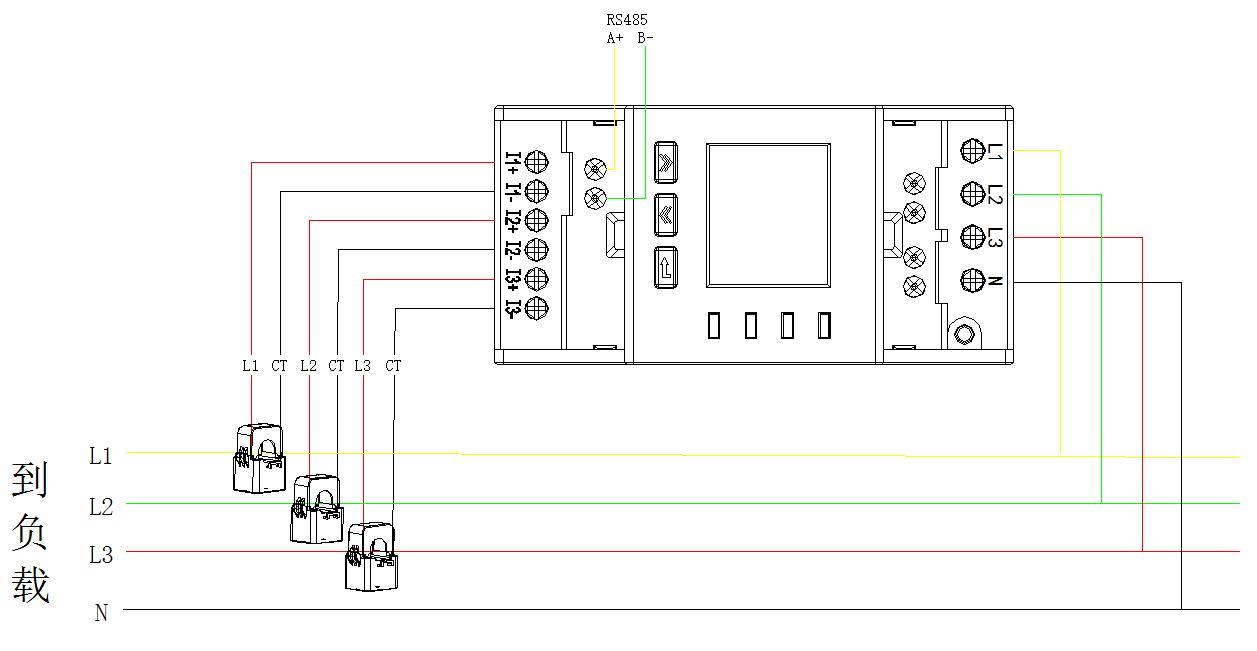

Figure 4 ADL400N-CT Three-phase Four-wire Connection Through Current Transformer

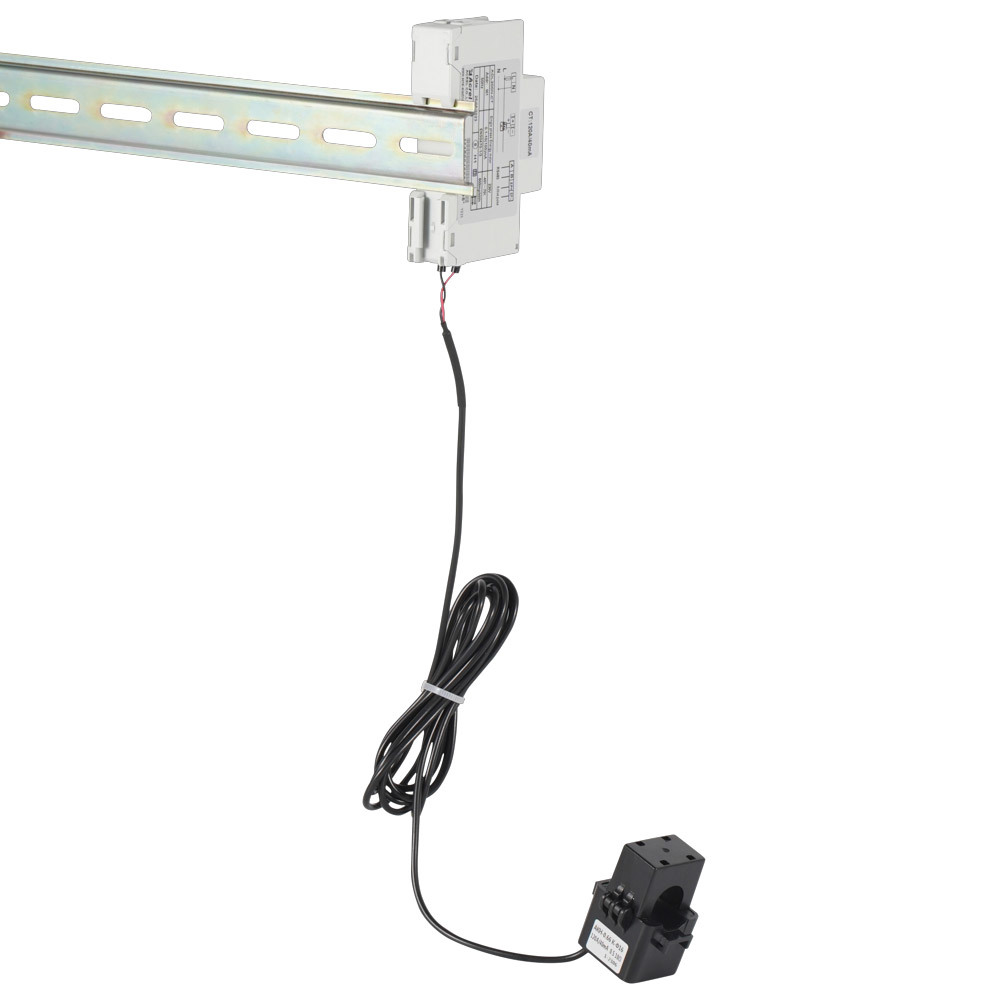

Installation
Product Description:- PView
- high-performance
- requirements
-
Function description
功能
Function功能说明
DescriptionsADL200N-CT
ADL400N-CT
电能计量
Electric energy metering有功电能计量（正、反向）
Active energy metering (forward and reverse)■
■
无功电能计量（正、反向）
Reactive energy metering (forward and reverse)■
■
分相电能
Split-phase energy□
■
电量测量
Electric quantity measurementU, I
■
■
P, Q, S, PF, F
■
■
LCD显示
LCD display段式LCD显示
Segmented LCD display■
■
按键编程
Key programming按键可编程通信、变比等参数
Communication, transformation ratio and other parameters can be programmable by the key□
■
脉冲输出
Pulse output有功脉冲输出
Active pulse output■
■
LED报警
LED alarm运行指示
Operation instructions□
■
通讯
CommunicationRS485接口，支持Modbus RTU规约
RS485：Modbus RTU■
■
Technical Parameters
项目
Item性能参数
Performance Parameters型号系列
Model SeriesADL200N-CT
ADL400N-CT
测量
Measurement网络
Grid单相
Single-phase三相四线、三相三线、单相三线
Three-phase four-wire, three-phase three-wire, single-phase three-wire电压
Voltage额定电压
Rated voltage230
单相：240/480V
Single-phase: 240/480V三相：3×230/400V、3×277/480V
Three-phase:3×230/400V、3×277/480V过负荷
Overload1.2 倍额定值（连续）
1.2 times rating (continuous)2 倍额定值持续 1 秒
2 times the rating for 1 second功耗
Power consumption<0.2VA
精度等级
Accuracy class误差±0.5%
Error ±0.5%电流
Current输入电流
Input current80A, 120A, 200A, 300A
80A, 120A, 200A, 300A, 3×80A, 3×120A, 3×200A, 3×300A
过负荷
Overload1.2 倍额定值（连续）
1.2 times rating (continuous)2 倍额定值持续 1 秒
2 times the rating for 1 second功耗
Power consumption<0.2VA
精度等级
Accuracy class误差±0.5%
Error ±0.5%功率
Power有功、无功、视在功率，误差±0.5℅
Active, reactive, apparent power, error ±0.5℅电网频率
Grid frequency45～65Hz，误差±0.5%
45~65Hz, error ±0.5%响应速率
Response rate≤100ms（电压、电流、功率）
≤100ms (voltage, current, power)≤1s（电能）
≤1s (electrical energy)计量
Metering电能
Electric energy有功电能：B级(开口式互感器)/C级(闭口式闭口器)
Active energy ：Class B (split current transformer) /Class C (closed current transformer)无功电能（准确度等级2级）
Reactive energy (Class 2 accuracy)电磁兼容
electromagnetic compatibility静电放电抗扰度 III 级
Electrostatic discharge immunity class III电快速瞬变脉冲群抗扰度 IV 级
Electrical fast transient burst immunity class IV浪涌(冲击)抗扰度 IV 级
Surge (shock) immunity Class IV安全性
Security工频耐压
Power frequency withstand voltage通信与信号输入之间 AC4kV 1min
Between communication and signal input, AC4kV 1min绝缘电阻
Insulation resistance输入、输出端对机壳>100MΩ
Input and output terminals to casing >100MΩ通信
Communication接口与通信规约
Interface and communication protocolRS485口、Modbus RTU规约
RS485 interface and Modbus RTU protocol通信地址范围
Communication address rangeModbus RTU:1~ 247；
波特率
Baud rate支持1200bps-38400bps
Support 1200bps-38400bps环境
Environment工作温度
Operating temperature-40℃～+70℃
储存温度
Storage temperature-40℃～+70℃
相对湿度
Relative humidity≤95℅（无凝露）
≤95℅ (without condensation)海拔高度
Altitude≤3000m
-
