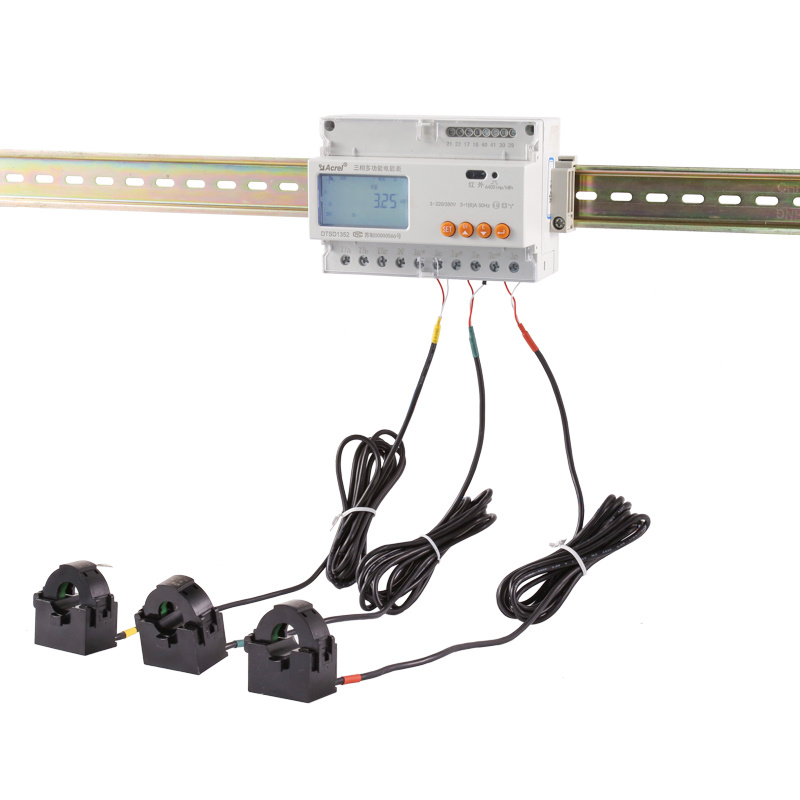

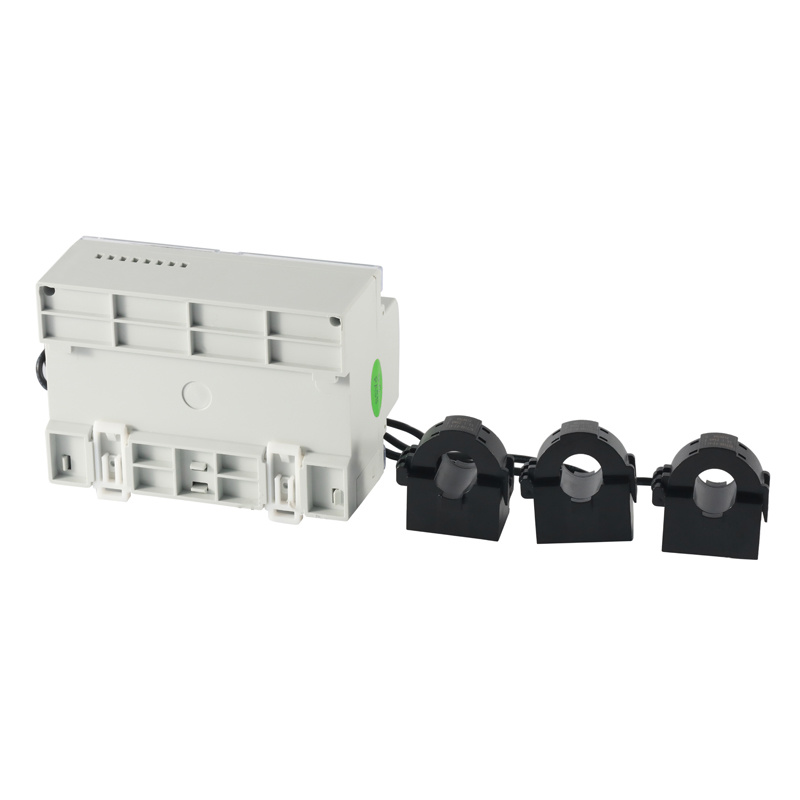

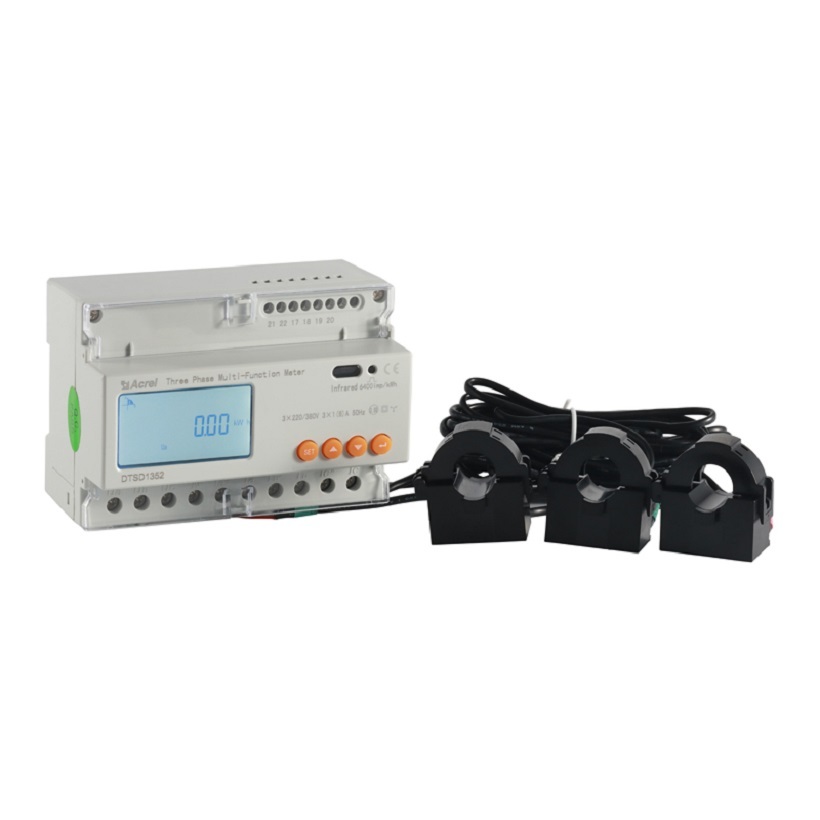

Acrel ADL3000-E/CT(DTSD1352-CTC) CE UL Approved Digital 3 Phase Anti-reflux 100A Energy Meter for Solar Power Inverters IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Energy Management
Series of products: New Energy
Series of products: Three Phase Energy Meters
Series of products: AC Energy Meters
Series of products: Din Rail Installed Energy Meters
Series of products: Din Rail Installed AC Energy Meters
Series of products: Anti-reflux Energy Meters for Solar Power Inverters
Series of products: AC/DC Meters for Charging Piles
Series of products: AC Meters for EV Chargers
- Product Description
- Parameters
- Q&A
- Download
-
Overview
ADL3000-E/CT(DTSD1352-CTC) is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand.
It features the high precision, small size and simple installation.
It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output.
It is fitted with RS485 communication port and adapted to MODBUS-RTU. ADL3000-E can be used in all kinds of control systems, SCADA systems and energy management systems.
All meters meet the related technical requirements of electricity power meter in the IEC62053-21、IEC62053-22 standards.
Coding Rule

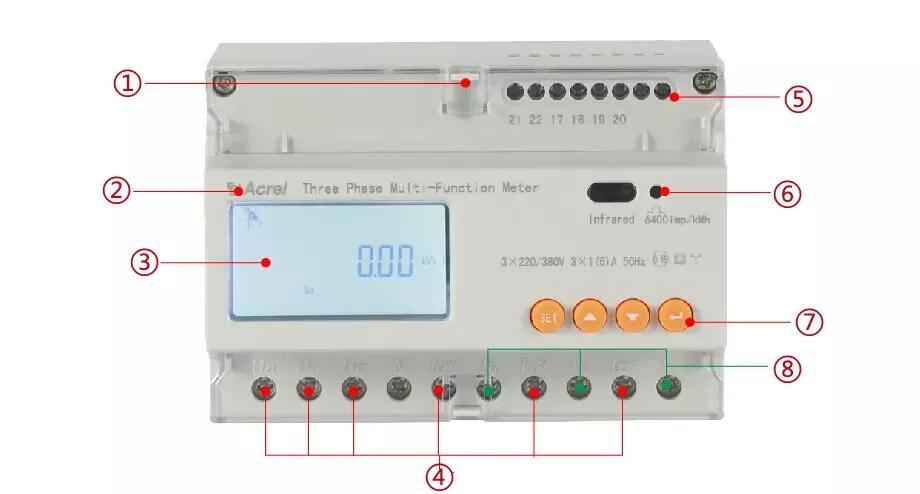

Dispaly
① Seal for Anti theft ② Brand ③ Panel ④ Enter-wire
⑤ Auxiliary function ⑥ Pulse output light ⑦ Button ⑧ Outlet wireApplication
ADL3000(DTSD1352) meters can be used for Sungrow inverters SG30CX, SG50CX, SG110CX, and Ginlong inverters, etc.
Even we can say, it may can be used for other Sungrow invereter models.

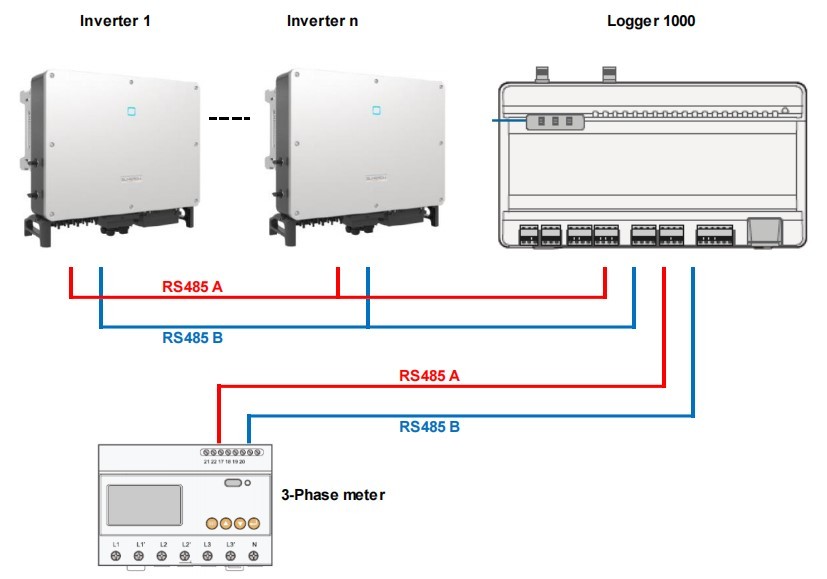

This quick guide is to be read in conjunction with the Sungrow’s User Manuals and SG30/50/110CX inverters as example for demonstration.
For export control and load consumption, an energy meter (DTSD1352-C/1(6)A with external CT) needed to be connected.
All of the components are connected via daisy-chain RS485 as per standard RS485 topology.
Installed in charging piles
Used as a general 3 phase electricity meters
Function
● 3 phase 3 wires, 3 phase 4 wires
● Rated voltage: AC 3×100V, 3×380V, 3×57.7/100V, 3×240/415V;
● Rated current: 3×1(6)A, or 3×10(100)A
● Accuracy: 0.5S
● Communication: 2 channels of RS485(Modbus-RTU)(Optional), Infrared communication
Electricity Data Measurement
● kWh (positive and negative)
● kVarh (positive and negative)
● U, I, P, Q, S, PF, Hz, etc.
● A, B, C phase positive active kWh
● 2~31ST Voltage and current harmonic(optional)
● Multi tariff: Adapt 4 time zones, 2 time interval lists,
14 time interval by day and 4 tariff rates(optional)
● Max demanded kWh and time happened(optional)
● Temperature measurement: Support 3 outlay NTC temperature(optional)
● 1 DI/1 DO(optional)
● Frozen data on last 48 months, last 90 days(optional)
● Pulse output: active pulse output, reactive pulse output, clock pulse output
● Key programming: 3 keys to communication and set parameters
● Standard&Certificate: UL; CE; IEC
● Display: 8 digits display U, I, P, Q, PF, kWh and other energy consumption
● Frequency: 45-65Hz
● Mounted: DIN 35mm
● Pulse constant: 400imp/kWh, 6400imp/kWh
● Starting current: Direct connect: 0.004Ib
● Connect via CT: 0.001ln
● Baud rate: 1200bps~19200bps
● Clock: ≤0.5s/d

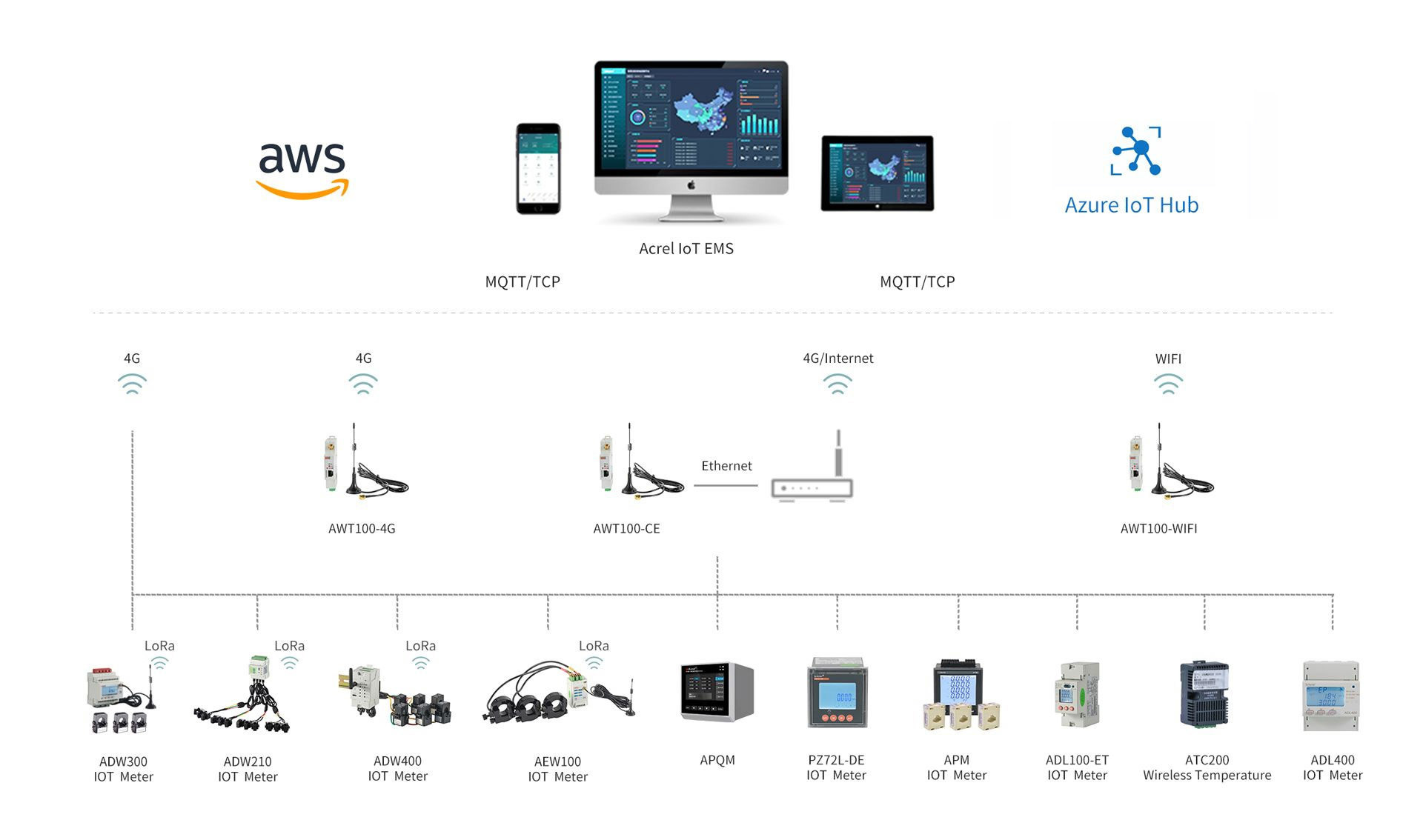

Network

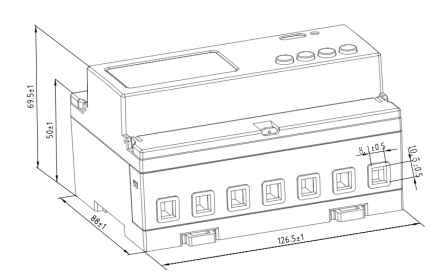

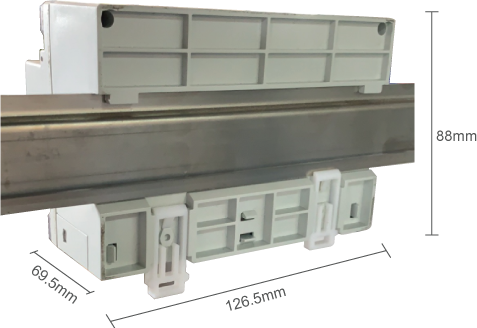

Dimension
Direct access
CT access
Wiring

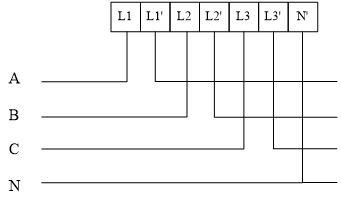

Three phase four lines direct access

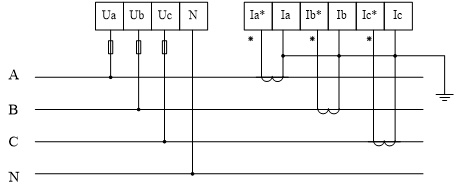

Three phase four lines CT access

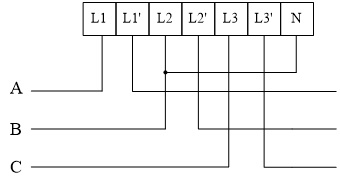

Three phase three lines direct access

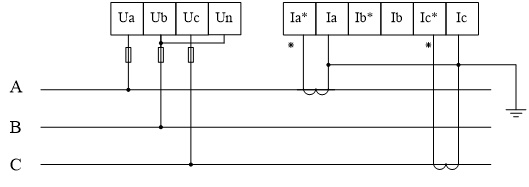

Three phase three lines CT access
Installation
FAQ
Q: What’s the difference of current input via direct connect or via CTs?
A: Normally, for 3-phase loads with rated current below 100A AC, we will use model of ADL3000-E/CT(DTSD1352-CTC) whose current input is via direct connect. Specs of “Rated Current: 10(100)A AC” was aimed for this model of ADL3000-E/CT(DTSD1352-CTC) (current input via direct connect). 10 means basic current is 10A AC, 100 means rated current input is 100A AC.
And for 3-phase loads with rated current over 100A AC, we will use model of ADL3000-E/CT(DTSD1352-CTC) whose current input is via CTs (usually paired with -/5A CTs whose secondary current output is with 5A AC rated current output). Specs of “Rated Current: 1(6)A AC” was aimed for this model of ADL3000-E/CT(DTSD1352-CTC) (current input via CTs). 1 means basic current is 1A AC, 6 means max current input is 6A AC.
Q: Do your company also have paired CTs for ADL3000-E/CT(DTSD1352-CTC) ?
A: Usually, we will recommend our user to use split-core CTs called AKH-0.66/K K-φ Series or solid-core CTs called AKH-0.66/I Series to the paired with ADL3000-E/CT(DTSD1352-CTC) (current input via CTs)
Q: How can I set the CT or PT ratio of ADL3000-E/CT(DTSD1352-CTC)?
A: No need to set CT ratio.
Q: Could ADL3000-E/CT(DTSD1352-CTC) be used in IoT Energy Monitoring System for factory or building?
A: ADL3000-E/CT(DTSD1352-CTC) has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL3000-E/CT(DTSD1352-CTC) on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Q: What is Multi-rate/tariff function? How does it work?
A: First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.Other Question? Please contact us and we will get back to you as soon as possible.
Product Description:- PView
- high-performance
- requirements
-
Function description
Function
Function description
Function provide
Measurement of kWh
Active kWh (positive and negative)
■
Reactive kWh (positive and negative)
■
A, B, C phase positive active kWh
■
Measurement of electrical parameters
U、IP、Q、S、PF、F
■
■
Measurement of
2~31ST Voltage and current harmonic
■
LCD Display
8 bits section LCD display, background light
■
Key programming
4 keys to communication and set parameters
■
Pulse output
Active pulse output
■
Reactive pulse output
□Note 1
Clock pulse output
□Note 1
Multi-tariff and functions
Active switch input
□Note2
Switch output
□Note 2
Adapt 4 time zones, 4 time interval lists, 14 time interval by day and 4 tariff rates
□
Max demanded kWh and time happened
□
Frozen data on last 48 months, last 90days
□
Date, time
□
Communication
Infrared communication
■
The first communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU
□
The second communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU
□Note 2
Temperature measurement
Support 3 outlay NTC temperature
□Note 3
Technical parameter
Specification
3 phase 3 wires, 3 phase 4 wires
Voltage
Reference voltage
3×100V、 3×380V、3×57.7/100V、 3×220/380V、3×230/400V
Consumption
<10VA(Single phase)
Impedance
>2MΩ
Accuracy class
Error±0.2%
Current
Input current
3×1(6)A，3×1(6)A(Outlay transformer)，3×10(80)A，3×10(100)A(Outlay transformer)
Consumption
<1VA(Single phase rated current)
Accuracy class
Error±0.2%
Power
Active, reactive, apparent power, error±0.5℅
Frequency
45～65Hz， Error±0.2%
Temperature
-40℃～99℃
Energy
Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
Clock
≤0.5s/d
Energy pulse output
1 active optocoupler output, 1 reactive optocoupler output
Switching output
1 Switching output, Maximum allowed voltage: DC/AC 220V
Switching input
1 optocoupler input,Maximum allowed voltage: DC/AC 220V
Width of pulse
80±20ms
Pulse constant
6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication
RS485：Modbus RTU
Range of communication address
Modbus RTU:1~ 247；
Baud rate
1200bps~19200bps
Relative temperature
-25℃~+55℃
Relative humidity
≤95℅(No condensation)
-
Q: What’s the difference of current input via direct connect or via CTs?
A: Normally, for 3-phase loads with rated current below 100A AC, we will use model of ADL3000-E/CT(DTSD1352-CTC) whose current input is via direct connect. Specs of “Rated Current: 10(100)A AC” was aimed for this model of ADL3000-E/CT(DTSD1352-CTC) (current input via direct connect). 10 means basic current is 10A AC, 100 means rated current input is 100A AC.
And for 3-phase loads with rated current over 100A AC, we will use model of ADL3000-E/CT(DTSD1352-CTC) whose current input is via CTs (usually paired with -/5A CTs whose secondary current output is with 5A AC rated current output). Specs of “Rated Current: 1(6)A AC” was aimed for this model of ADL3000-E/CT(DTSD1352-CTC) (current input via CTs). 1 means basic current is 1A AC, 6 means max current input is 6A AC.
Q: Do your company also have paired CTs for ADL3000-E/CT(DTSD1352-CTC) ?
A: Usually, we will recommend our user to use split-core CTs called AKH-0.66/K K-φ Series or solid-core CTs called AKH-0.66/I Series to the paired with ADL3000-E/CT(DTSD1352-CTC) (current input via CTs)
Q: How can I set the CT or PT ratio of ADL3000-E/CT(DTSD1352-CTC)?
A: No need to set CT ratio.
Q: Could ADL3000-E/CT(DTSD1352-CTC) be used in IoT Energy Monitoring System for factory or building?
A: ADL3000-E/CT(DTSD1352-CTC) has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL3000-E/CT(DTSD1352-CTC) on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Q: What is Multi-rate/tariff function? How does it work?
A: First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.Other Question? Please contact us and we will get back to you as soon as possible.
