ARD3M CE Approved Smart Motor Protectors for Protecting Motors and Power Monitoring
Series of products: Products
Series of products: Power Monitoring and Controlling Devices
Series of products: Smart Motor Protectors
- Product Description
- Parameters
- Q&A
- Download
-
Overview

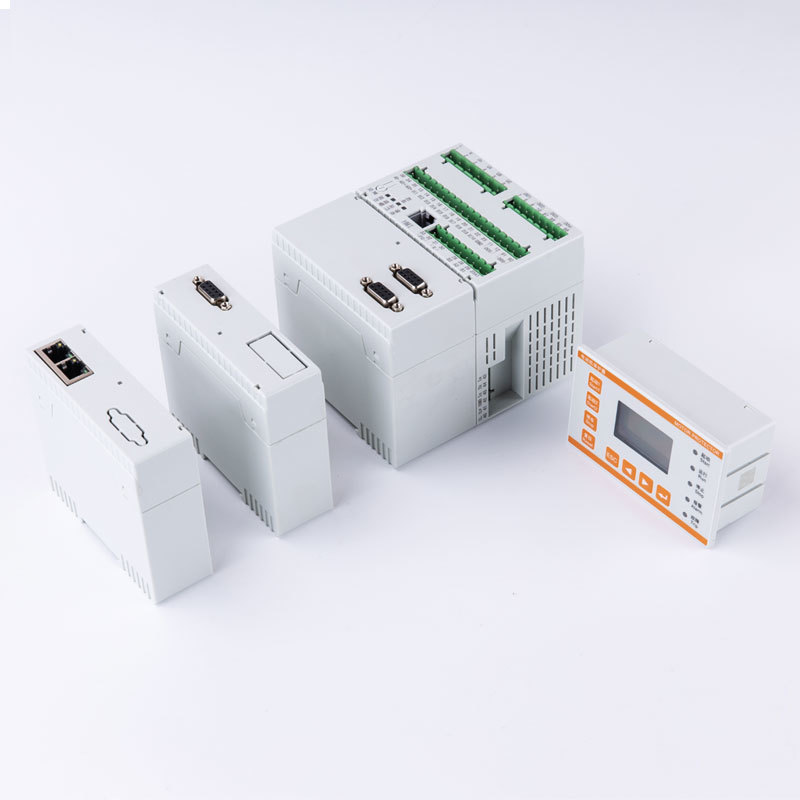

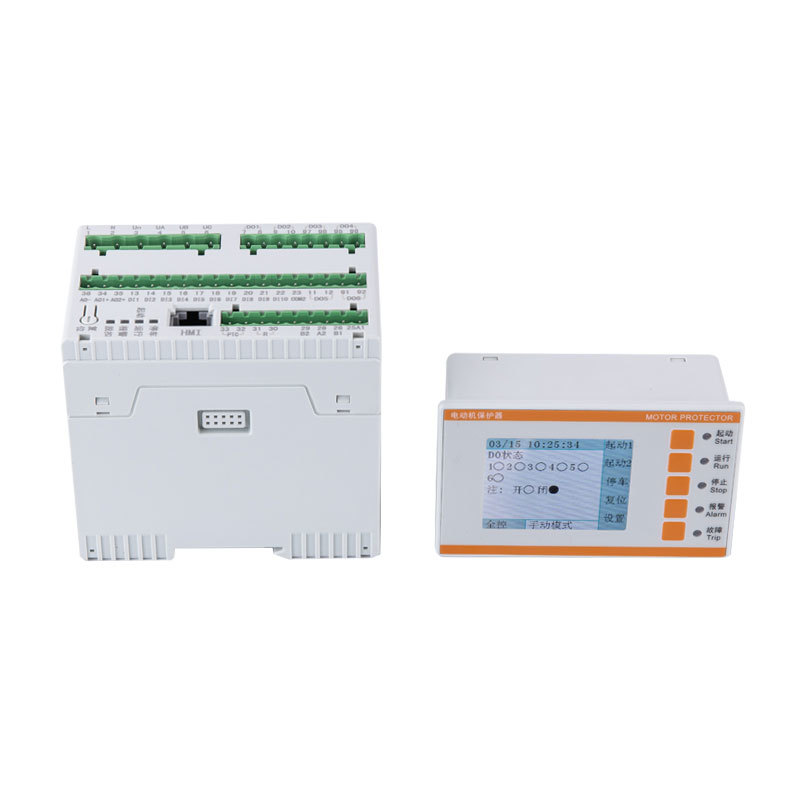

The ARD3M intelligent motor protector (hereinafter referred to as the protector) is suitable for low-voltage motor circuits with rated voltage up to 660V and integrates protection, measurement, control, communication, operation and maintenance.Its perfect protection function ensures the safe operation of the motor, with logic programmable function, can meet a variety of control methods.Different communication modules can be selected to meet the needs of field communication. Product Implementation standards: ——GB 14048.4-2020 Low-voltage switchgear and controlgear -- Part 4-1: Contactors and motor starters -- Electromechanical contactors and motor starters (including motor protectors); ——JBT 10736-2007 Low voltage motor protector.

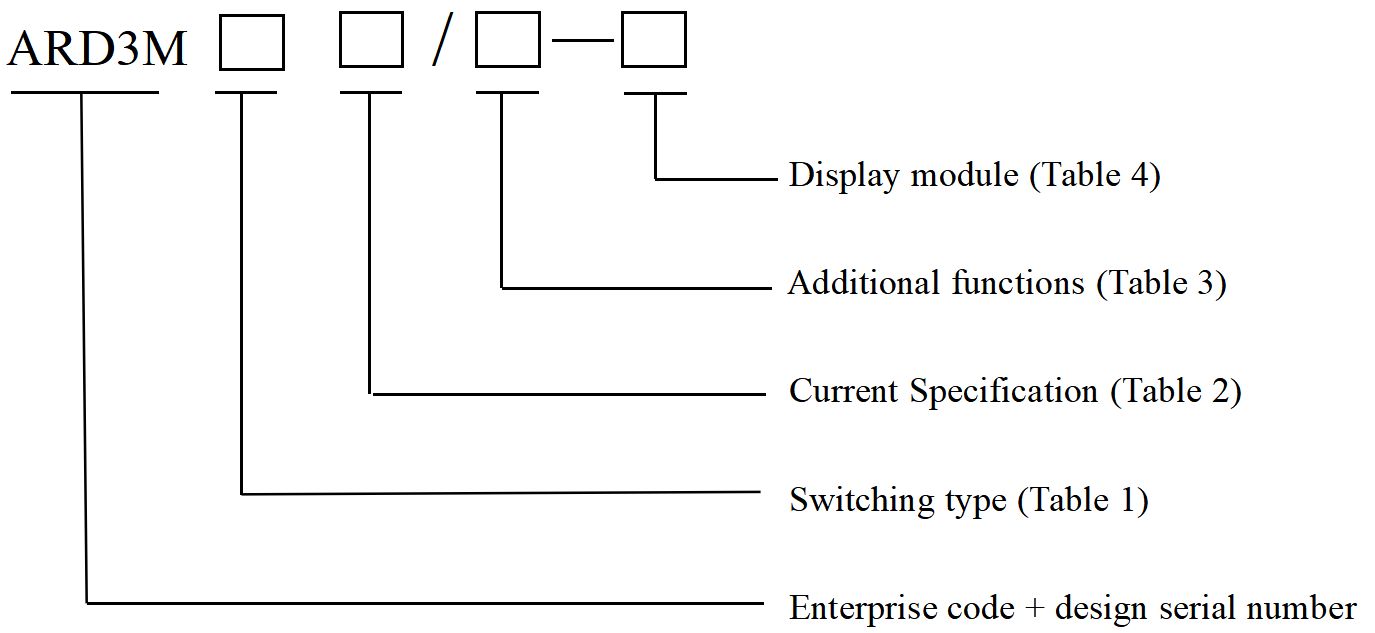

Coding Rule
Dispaly
Application
Function
● Active energy: Class 0.5
● Range: 45-65Hz
● Auxiliary power supply: AC/DC 85~265V
● Pulse output: 1600-160000imp/kWh
● Voltage: Power consumption <0.5VA;
● Current: Power consumption< 0.5VA;
● Auxiliary power supply:power consumption≤10VA

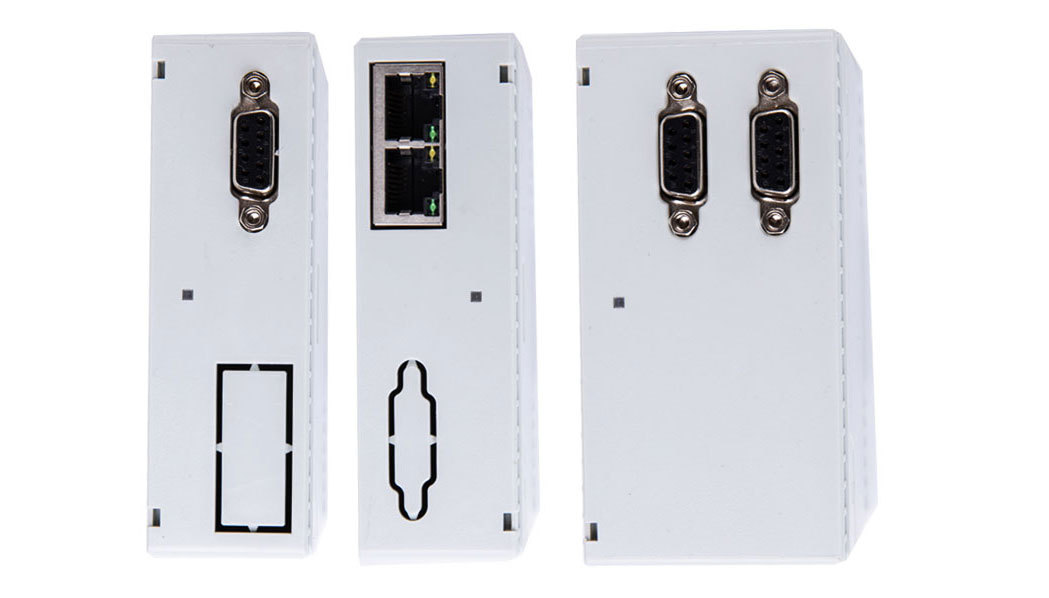

Communication:
● 2 Channel Modbus RTU; Profibus DP; Profinet; Modbus Tcp; Wifi
● Switch: Input 10 channel; Output 6 channe
● Analog: 2 channels of 4-20mA
● Mounted: DIN 35mm
● Certificate: CE
Network

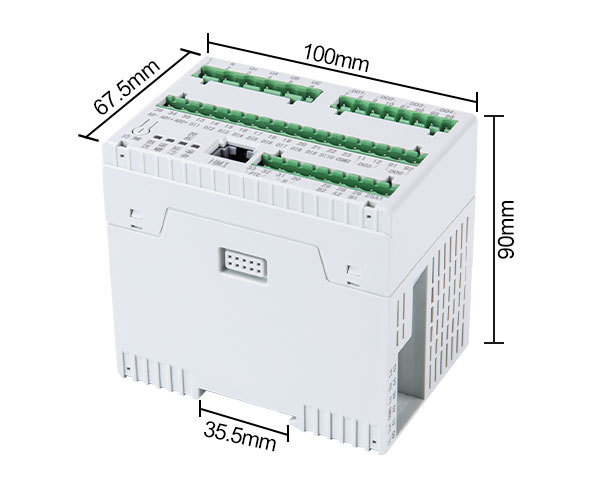

Dimension
Wiring

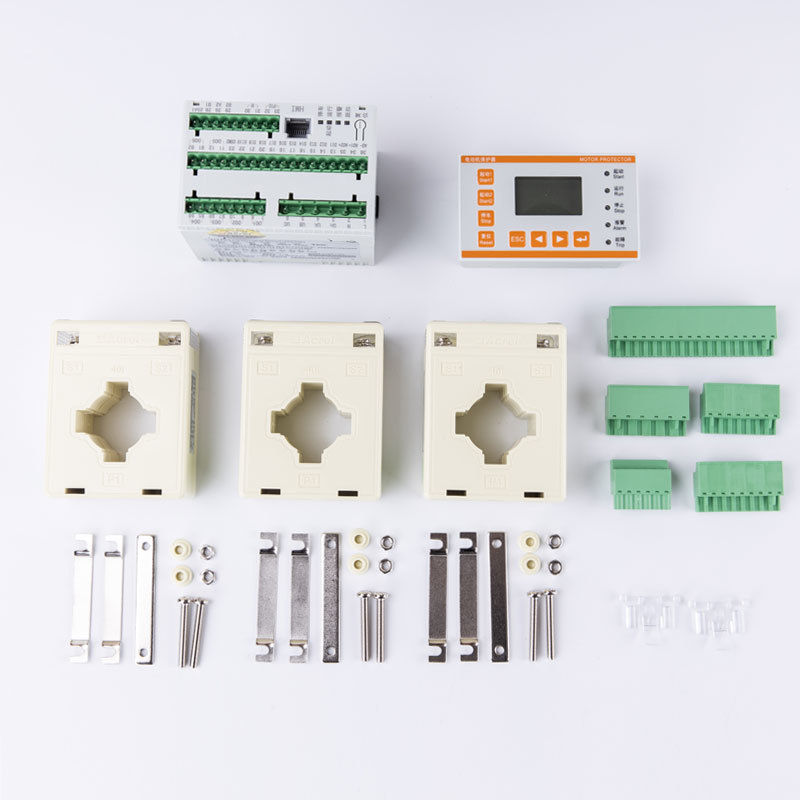

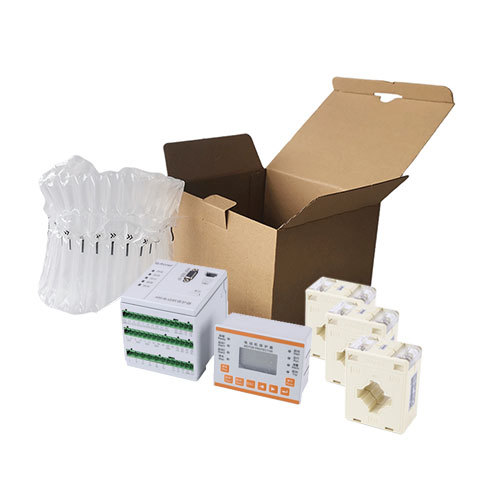

Package
Product Description:- PView
- high-performance
- requirements
-
Main parameters
1. Technical indicators

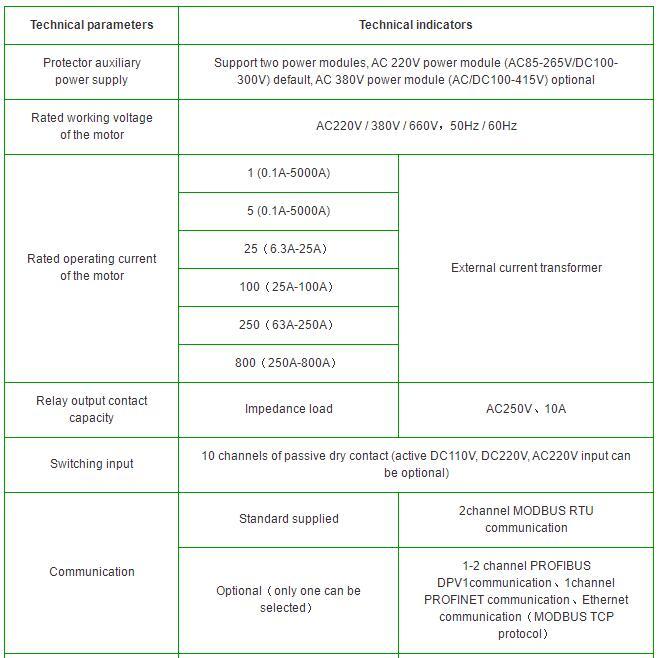

ARD3M technical indicators are shown in Table 5:
Table 5
Technical parameters
Technical indicators
Protector auxiliary power supply
Support two power modules, AC 220V power module (AC85-265V/DC100-300V) default, AC 380V power module (AC/DC 100-415V) optional
Rated working voltage of the motor
AC220V / 380V / 660V，50Hz / 60Hz
Rated operating current of the motor
1 (0.1A-5000A)
External current transformer
5 (0.1A-5000A)
25（6.3A-25A）
100（25A-100A）
250（63A-250A）
800（250A-800A）
Relay output contact capacity
Impedance load
AC250V、10A
Switching input
10 channels of passive dry contact (active DC110V, DC220V, AC220V input can be optional)
Communication
Standard supplied
2channel MODBUS RTU communication
Optional（only one can be selected）
1-2 channel PROFIBUS DPV1communication、
1channel PROFINET communication、
Ethernet communication（MODBUS TCP protocol）

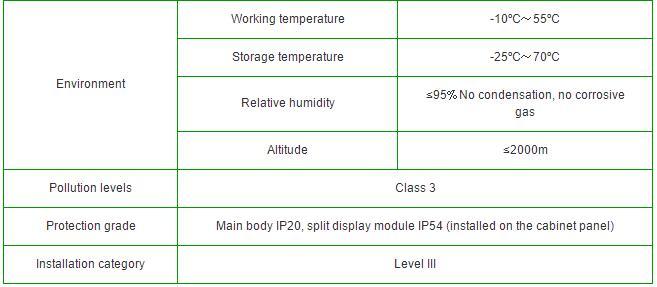

Environment
Working temperature
-10ºC～55ºC
Storage temperature
-25ºC～70ºC
Relative humidity
≤95﹪No condensation, no corrosive gas
Altitude
≤2000m
Pollution levels
Class 3
Protection grade
Main body IP20, split display module IP54 (installed on the cabinet panel)
Installation category
Level III
2. Functional configuration
The ARD3M functional configuration is shown in Table 6
Table 6
Type
Function
Functional configuration
Standard function
Optional function
Protection function
Fixed time overload
√
Inverse time overload
√
Starting timeout
√
Phase loss
√
Voltage unbalance
√
Current unbalance
√
Locked-rotor
√
under load
√
External fault
√
Block
√
Temperature protection（PTC/NTC）
√
Residual current
grounding
√
leakage
√（leakage）
Phase sequence
√
Under voltage
√
Over voltage
√
Under power
√
Over power
√
tE Time protect
√
Overflow protection
√
Alarm of starting times
√
Running time alarm
√
Fault frequency alarm
√
Control mode
Protect type
√
Manual mode
Two step model
Double speed mode
Star triangle three successive
Power Shake and start again
√
Communication function
2channel Modbus-RTU communication
√
1-2channel PROFIBUS DPV1 communication
√
1channel PROFINET communication
√
1-channel Ethernet communication (dual network port)
√
WIFI function
√(Optional with color dot matrix LIQUID crystal)
Switching input
10 DI
√
Relay output
6 DO
√
Analog output
1channel DC4-20mA
√
2channe DC4-20mA
Event log
Start record,stop record,DI displacement record,restart record,operation record (support communication transmission and U disk export)
√
Waveform recording
Record the current,voltage,DI/DO waveform before and after the fault trip,support communication transmission and U disk export
√
Measurement display constant value setting
Measured parameters
Three phase current,three phase line voltage,active power,reactive power,power factor,frequency,active power,reactive power,etc
√
2-63rd current,voltage harmonics,harmonic inclusion rate,total harmonic distortion rate
√
Fixed value setting
Various protected fixed value queries
√
Various protection Settings
√
Panel
Liquid crystal display (LCD)
Black and white dot matrix LCD display
√
Color dot matrix LIQUID crystal display
-
Q: What’s the difference of current input via direct connect or via CTs?
A: Normally, for 3-phase loads with rated current below 80A AC, we will use model of ADL400 whose current input is via direct connect. Specs of “Rated Current: 10(80)A AC” was aimed for this model of ADL400 (current input via direct connect). 10 means basic current is 10A AC, 80 means rated current input is 80A AC.
And for 3-phase loads with rated current over 80A AC, we will use model of ADL400 whose current input is via CTs (usually paired with -/5A CTs whose secondary current output is with 5A AC rated current output). Specs of “Rated Current: 1(6)A AC” was aimed for this model of ADL400 (current input via CTs). 1 means basic current is 1A AC, 6 means max current input is 6A AC.
Q: Do your company also have paired CTs for ADL400?
A: Usually, we will recommend our user to use split-core CTs called AKH-0.66/K K-φ Series or solid-core CTs called AKH-0.66/I Series to the paired with ADL400 (current input via CTs)
Q: How can I set the CT or PT ratio of ADL400?
A: Current ratio of ADL400 could be set by using the keypads on ADL400 and following the instruction of ADL400 manual. Also, setting need to be according to the CTs or PTs ratio which were paired with ADL400. For example, if the current input is via 250A/5A CTs, the CT ratio on ADL400 should be set to 250/5=50. And if the voltage input is via direct connect, PT ratio on ADL400 should be set to 1. When the problem hasn’t been solved, please contact us for help.
Q: Could ADL400 be used in IoT Energy Monitoring System for factory or building?
A: ADL400 has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL400 on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Q: What is Multi-rate/tariff function? How does it work?
A: First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.Other Question? Please contact us and we will get back to you as soon as possible.
