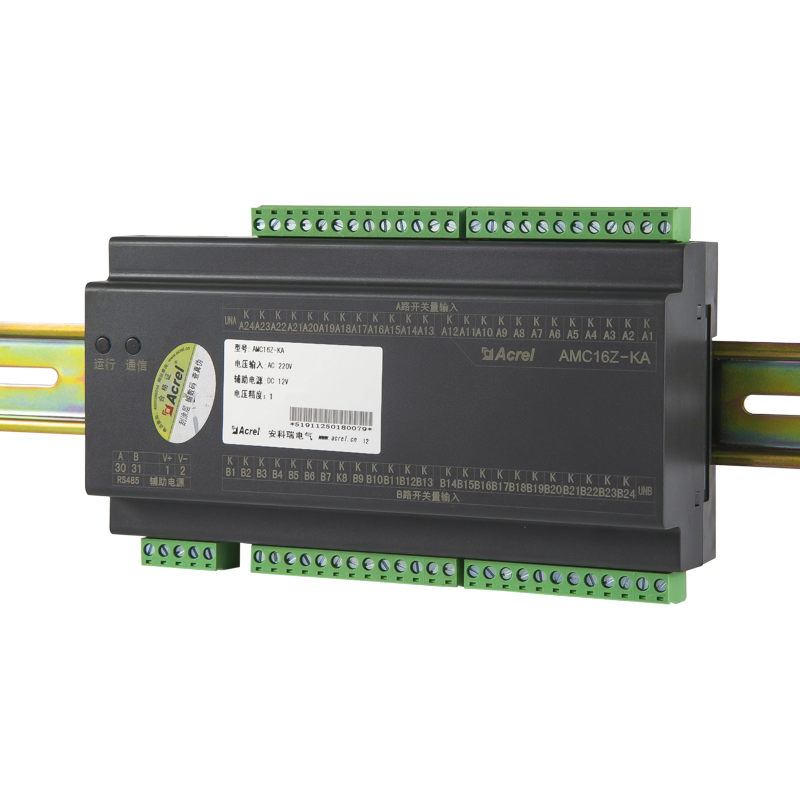

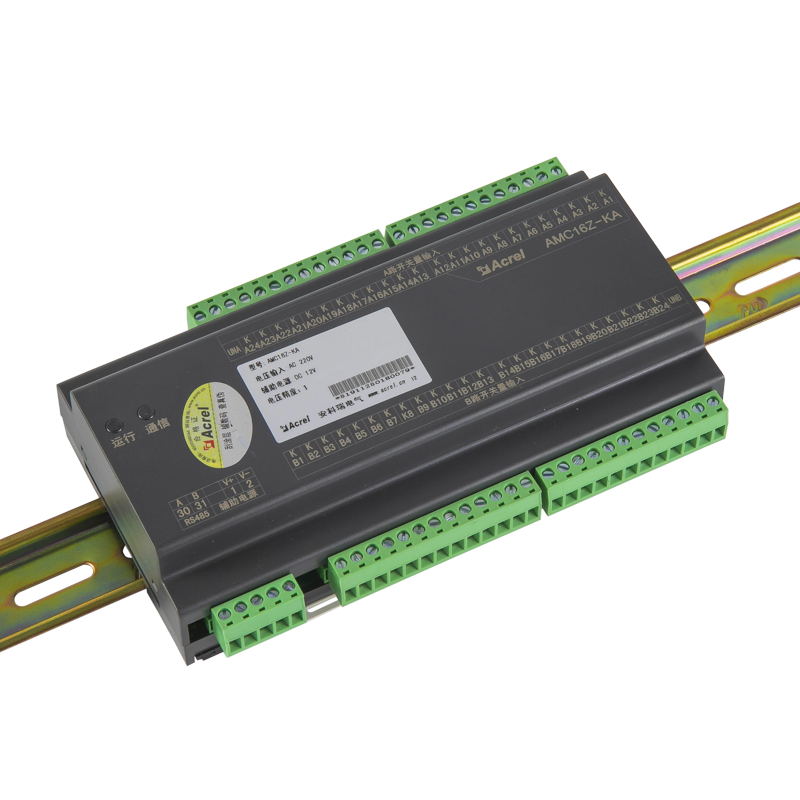

Acrel AMC16Z-KD Meter Monitor Active Switching State for Data Center with IOT Platform Energy Consumption Monitoring
Series of products: Products
Series of products: Energy Management
Series of products: Data Center/Tower Base Station/Battery Monitoring
Series of products: Multi-channel Energy Meters
Series of products: Multi-channel AC Energy Meters
Series of products: Din Rail Installed Energy Meters
Series of products: Din Rail Installed AC Energy Meters
Series of products: Multi-channel Energy Meters for Data Center
- Product Description
- Parameters
- Q&A
- Download
-
Overview
With the rapid development of data center, the energy consumption problem of data center is becoming more and more prominent. The energy management and power supply and distribution design of data center have become a hot issue.
Efficient and reliable power distribution system scheme of data center is an effective way to improve the power consumption efficiency of data center and reduce the energy consumption of equipment. In order to realize energy saving in data center, it is necessary to monitor each electrical load first. However, there are many load circuits in data center. Traditional measuring instruments cannot meet the requirements of cost, volume, installation, construction and other aspects. In this case, the multi-circuit monitoring device which is suitable for centralized monitoring in data center is necessary to be used.
AMC16Z series AC precision power distribution monitoring device is specially designed for data center server power management.The device designed exquisite, can provide A + B 2 incoming and 96 outgoing’s electrical parameters, the input and output switch and the state of lightning protection device with real-time monitoring.
All alarm threshold of measurement channels can be set in separate. Over-outgoing triggers system acoustooptic warning immediately. Highly integrated monitoring loop is realized in the volume of traditional instruments.

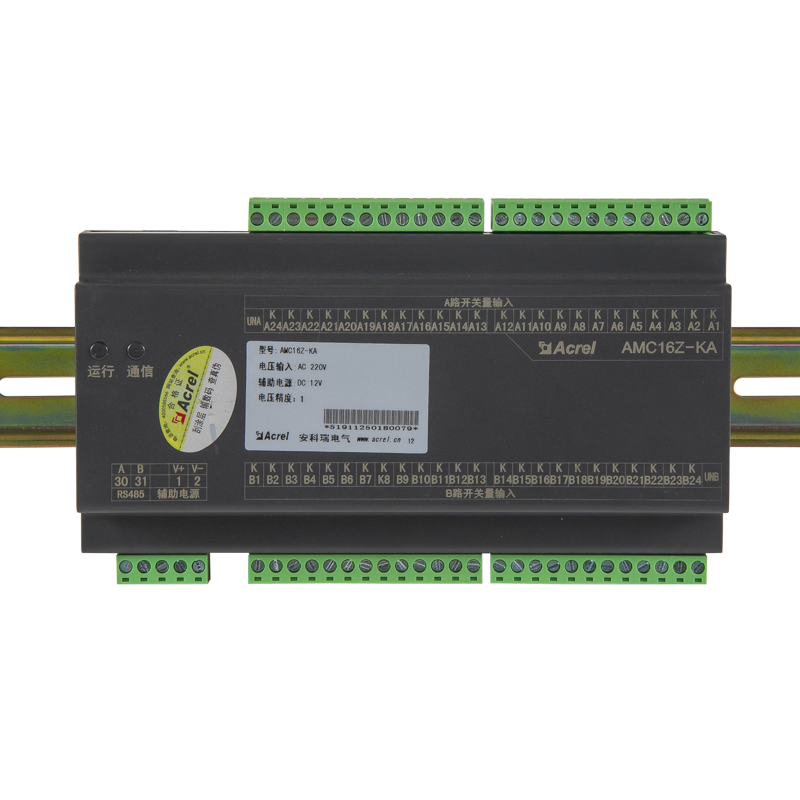

Dispaly

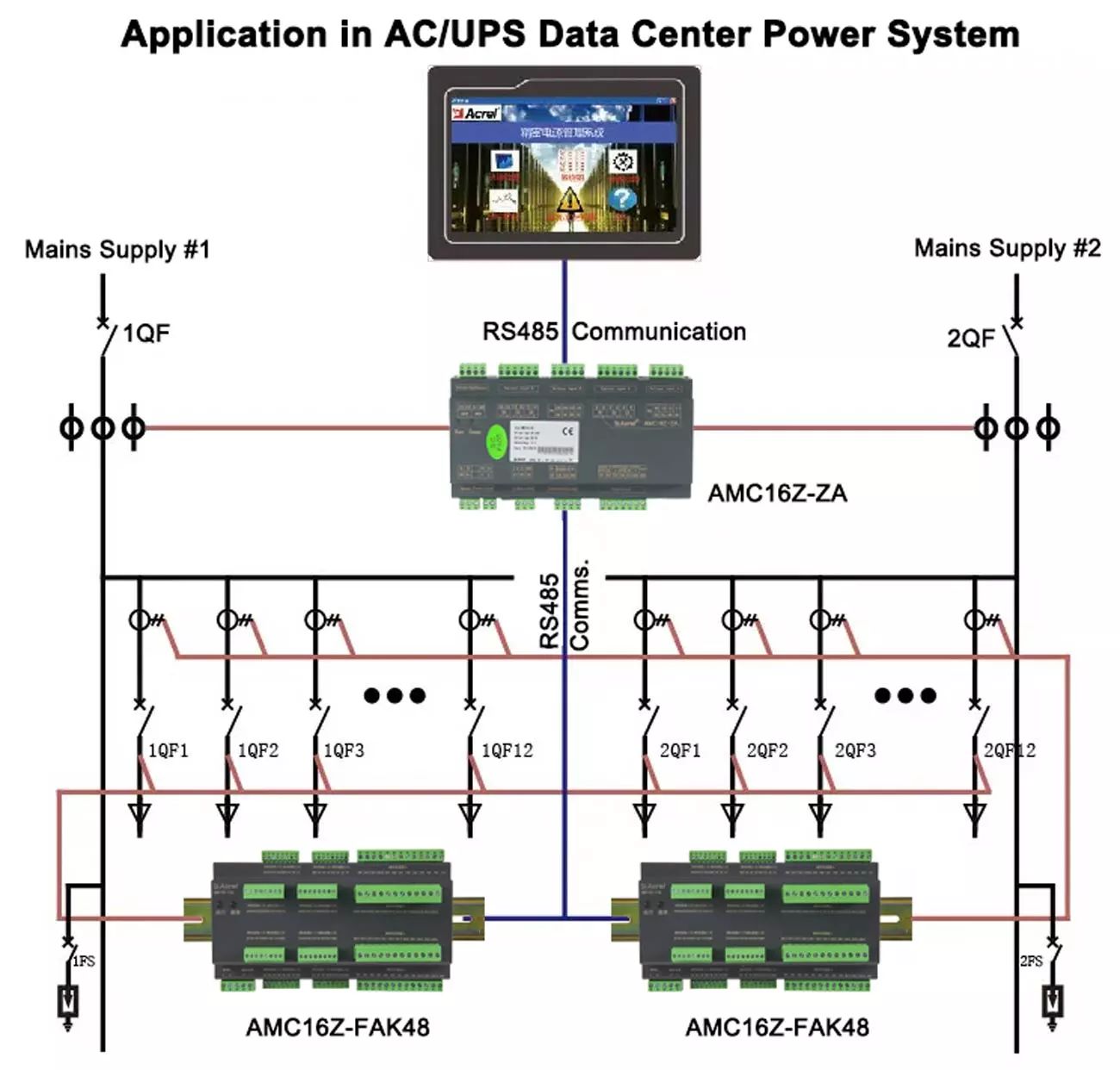

Application
Installation in Data Center
Network
Function
Dual 2*24 channels of Passive Switch State Monitoring
● A+B Monitor 2*24 channels of Passive Switch State
Easy Installation
● RS485(Modbus-RTU)

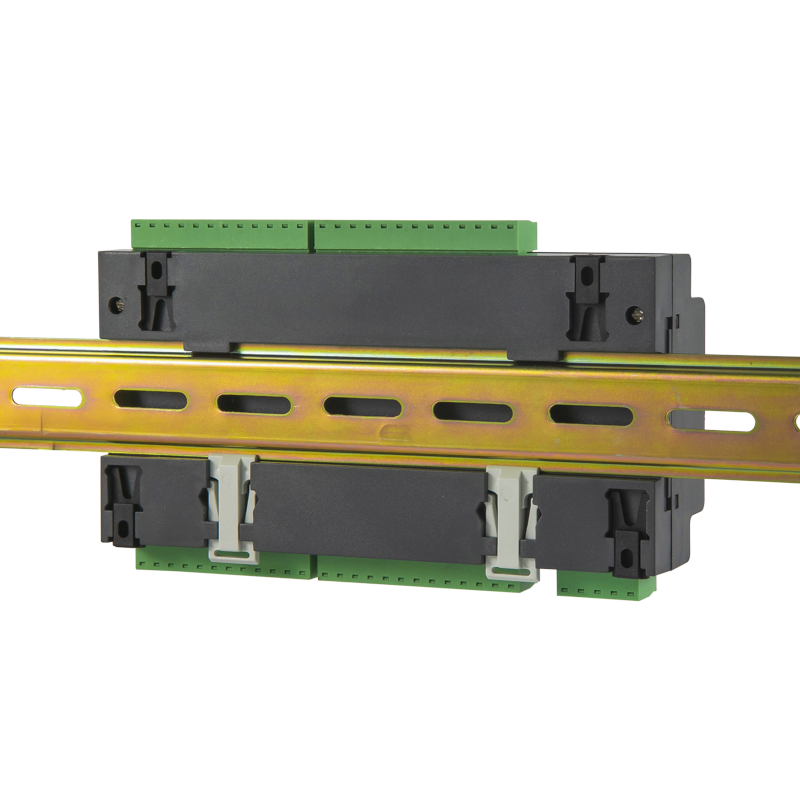

● 35mm Din rail installation

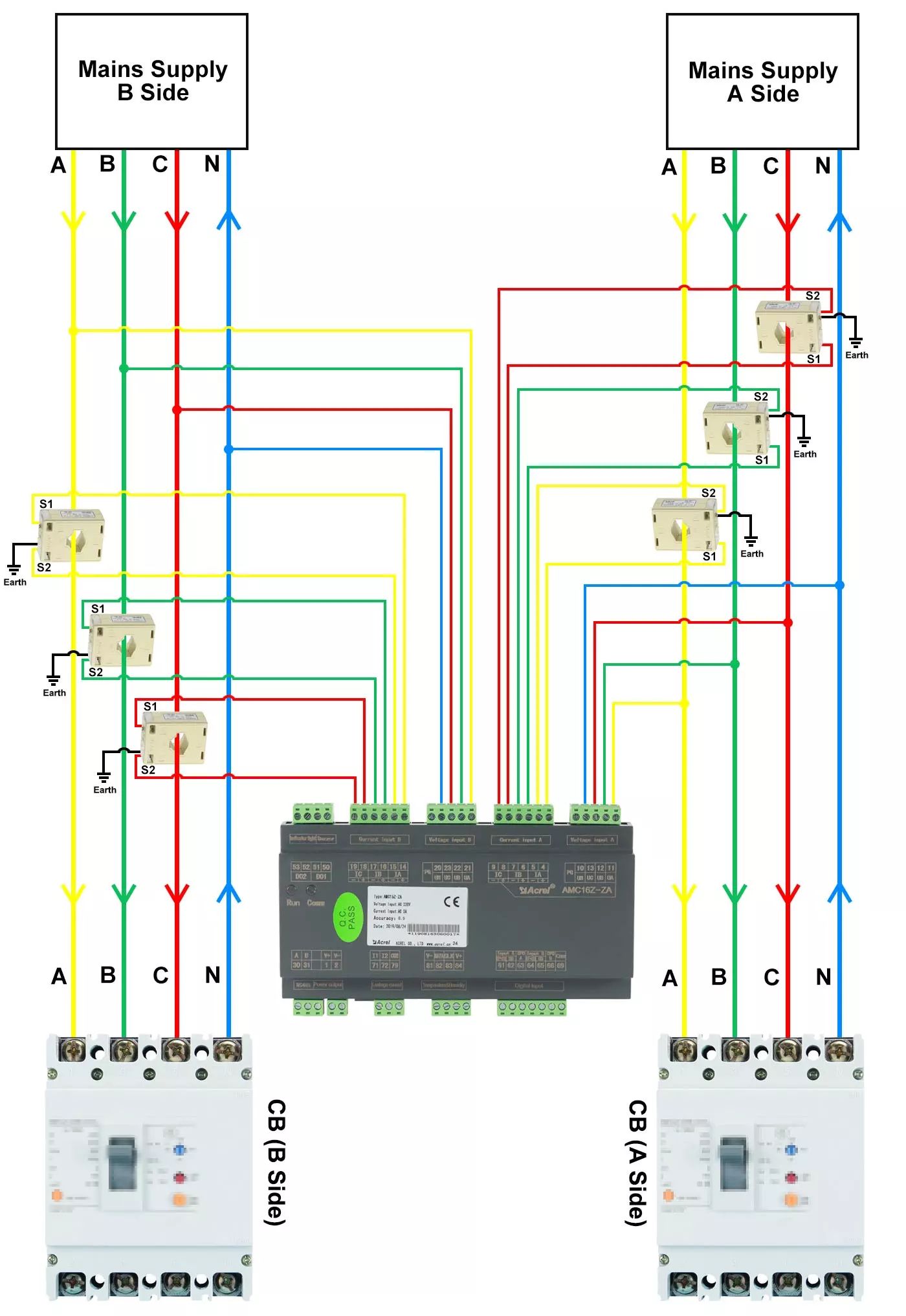

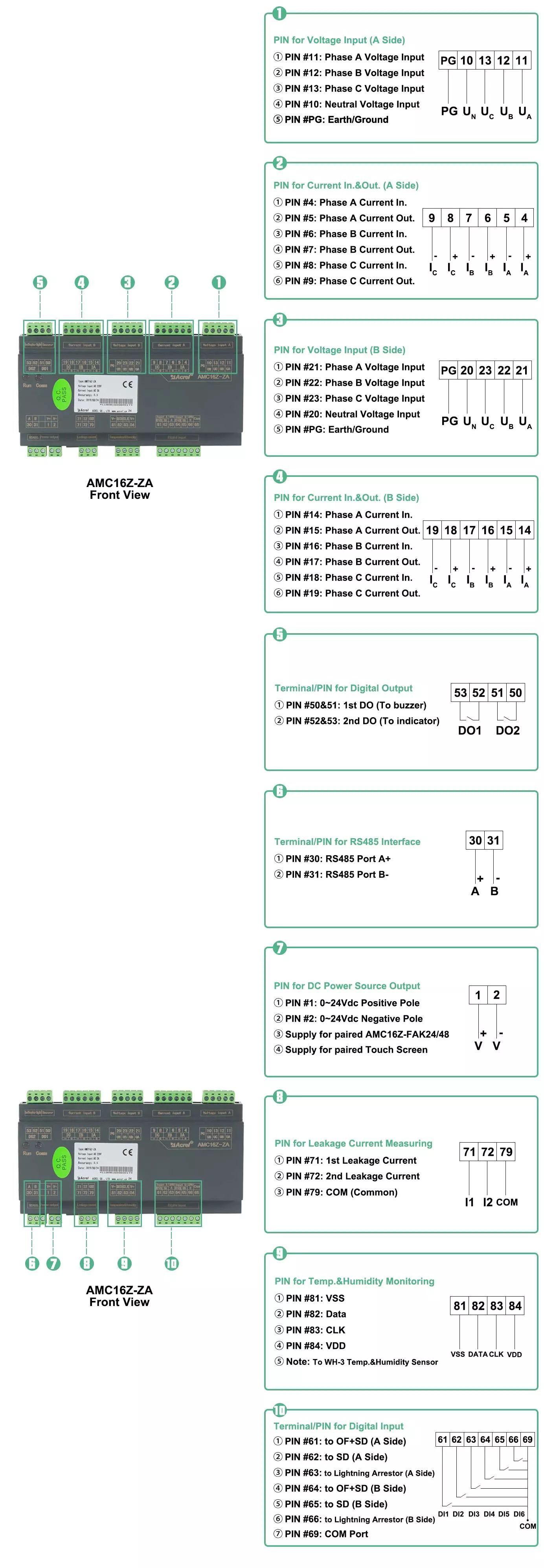

Wiring Installation

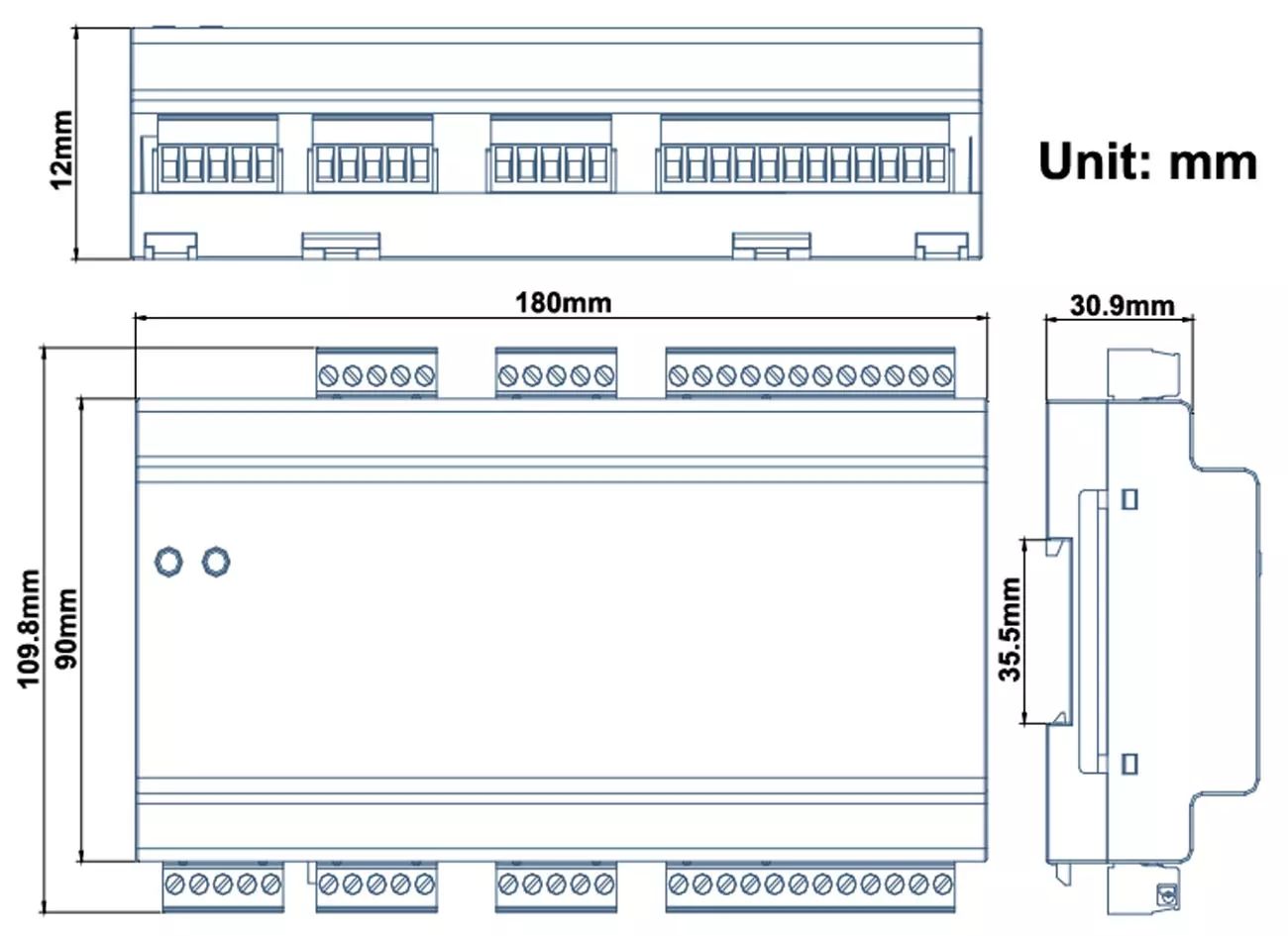

Dimension
Product Description:- PView
- high-performance
- requirements
-
1. Function Overview
Function Description Measurement(Common)Three-phase AC kWh, kVarh, Active Power, Reactive Power, Current, Voltage, Power Factor, Apparant Power, Frequency, Zero ground voltage, neutral line current
Measurement(Power Quality)total harmonic content (THD), 2-63 harmonics, current and voltage unbalance degree, current K coefficient (KF), voltage crest coefficient (CF),telephone waveform factor (THFF), peak voltage, voltage and current sequence quantity
Temp.&HumidityMonitoringTempeatrue Monitoring Range: -40℃～+99℃
Humidity Monitoring Range: 20%～90%
Leakage Current2-channel Leakage Current Measurement
AccuracyElectrical Parameter Metering Accuracy: Voltage/current level 0.2, active power/electric energy level 0.5,reactive power/electric energy level 1
Temperature Metering Accuracy: ±1℃; Temperature Metering Accuracy: ±5%
CommunicationRS485 Interface (MODBUS-RTU protocol)
DO(Swtich Output)2-channel DO (Digital Output); 3A 250VAC/3A 30VDCDI(Swtich Input)6-channel DI (Digital Input); dry contact2. Main Parameters
Parameter Description&Value VoltageInputRated Voltage 3x220~264Vac L-N
Reference Frequency 45~65Hz CurrentInputRated Current 3x1(6)A AC (via CTs) PowerSupplySource from Voltage Input (Voltage signal input for both measurement and power supply) InstallationDIN-rail 35mm standard DIN-rail Installation PhaseWiring3P4W 3-phase 4-wire SafetyInsulationAll terminals and the insulation resistance between the conductive pieces not less than 100MΩWithstand voltageA-way voltage and current signal, B-way voltage and current signal, switch output and other ports should meet AC2kV 1min in pairs, the switch input and other ports should meet ac0.5kv 1mim, leakage current should be less than 2mA, no breakdown or flashover3. Environment
Condition Description&Value TemperatureOperating Temperature: -20℃～+55℃; Storage Temperature: -40°C ~+70°C
Humidity≤95%RH,no condensation,without corrosive gas
Altitude≤ 2000m
-
